What is the difference with these bands?

Discussion in 'Apple Watch' started by Rogifan, Jan 25, 2015.

  1. Defender2010 macrumors 68030

    Defender2010

    Joined:
    Jun 6, 2010
    Location:
    England
    #2
    Apart from colour? material? Probably not function as they are most likely part of the strap securing mechanism.

  2. Night Spring macrumors G5

    Night Spring

    Joined:
    Jul 17, 2008
    #3
    One is rubber, the other is metal. I guess the dark ovals on the metal are softer material to cushion the contact. Rubber is already soft, so no need for a different material there. Just a guess, though.

  3. Piggie macrumors 604

    Piggie

    Joined:
    Feb 23, 2010
    #4
    From an engineering point of view as it's something I'm involved with.

    These items will be a very good fit, but they cannot be a micron accurate perfect fit, that's just not realistic.

    When you have a metal shaped piece sliding into a metal groove, it is was just metal it would move.

    My best guess is these rubber pads are there on the metal ones to take out the slack that has to be in there.

    Even if it's just 0.1mm there needs to be a little slack in the metal to metal join, and this will allow there to be metal slack, but also keep it a snug fit when it compresses as you slip it into place.

    And I agree with what's been said, with a rubber to metal join this issue is not going to be there.

  4. Rogifan thread starter macrumors P6

    Rogifan

    Joined:
    Nov 14, 2011
    #5
    Makes sense.

  5. Dave245 Suspended

    Joined:
    Sep 15, 2013
    #6
    I hope so because i have thin wrists and i do intend to buy the stainless steel link bracelet and (depending on price) other straps/bands as well. Not having to go somewhere to have them altered to fit my wrist would be a VERY good thing indeed :)

  6. Gav2k macrumors G3

    Gav2k

    Joined:
    Jul 24, 2009
    #7
    Those pads on both straps will be a harder plastic I'd actually put money on it. If the sport band was made out of just soft rubber then it would pop out.

  7. fousfous macrumors regular

    Joined:
    Jan 11, 2015
    Location:
    France
    #8
    And do you have any idea of how the mechanism will works?
    I know we will need to push the button but how that's work? I think about it and I can't see what is the system.

  8. Julien macrumors G3

    Julien

    Joined:
    Jun 30, 2007
    Location:
    Atlanta
    #9
    Most likely the 2 outside tabs are spring loaded. When you insert the band the button pushes the center tab down a small amount releasing the spring and extending the tabs. To release you push the button in all the way and it releases the tabs and resets the spring.

  9. fousfous macrumors regular

    Joined:
    Jan 11, 2015
    Location:
    France
    #10
    Yeah but there's something: in the band there are no place to have a tab.

  10. Julien macrumors G3

    Julien

    Joined:
    Jun 30, 2007
    Location:
    Atlanta
    #11

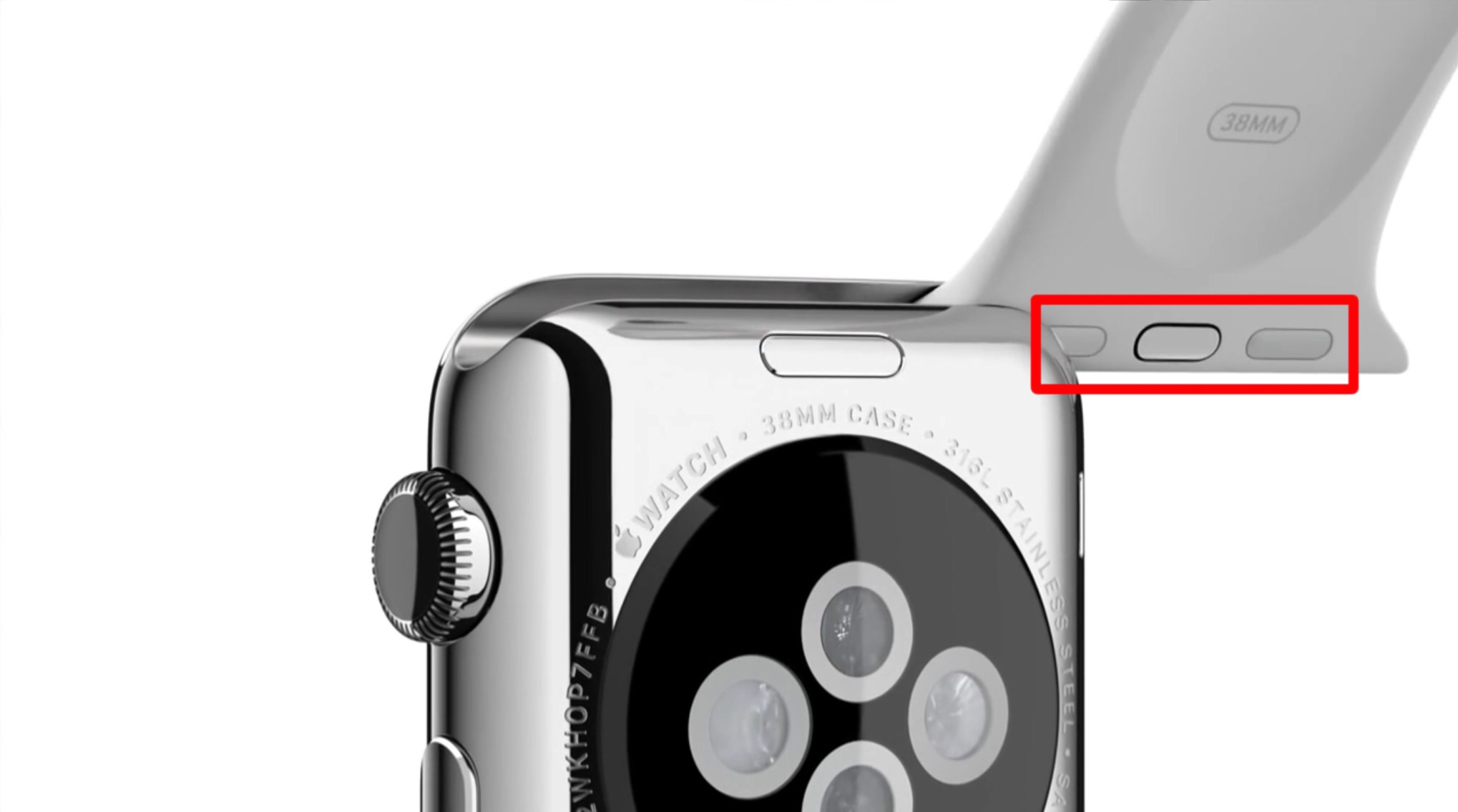

    Did you look at the pictures? The 3 tabs are in the red box.

  11. Piggie macrumors 604

    Piggie

    Joined:
    Feb 23, 2010
    #12
    I was thinking it was even more simple than that.

    The center pad on the strap actually sticks out perhaps a millimeter or so (unlike is shown on these computer renders)

    You press this in as you slide it sideways into the slot in the watch.

    When it reaches mid way it finds the hole behind the button shown on the case, and pops up into the hole.

    then you wish to remove it, you press the button on the back of the case, this pressed the sprung button down on the strap, allowing it to be slid out sideways.

    This would work fine, but there are probably a couple of others ways you could do the same.

    It's probably just metal and a spring and the pads whichever way it works.

  12. fousfous macrumors regular

    Joined:
    Jan 11, 2015
    Location:
    France
    #13
    The tabs are in the red box yes, but the middle one look like at the same thickness that the rest.

  13. Rogifan thread starter macrumors P6

    Rogifan

    Joined:
    Nov 14, 2011
  14. DannyBres macrumors 65816

    DannyBres

    Joined:
    Oct 30, 2007
    Location:
    UK
    #15
    Yes definately, probably should credit Neven foer the mock up too.

  15. Mascots macrumors 65816

    Mascots

    Joined:
    Sep 5, 2009
    #16
    Yep, you just rocked my world.

  16. Tanegashima macrumors 6502

    Joined:
    Jun 23, 2009
    Location:
    Portugal
    #17
    First World Anarchy! :cool:
