What is this on my pro logic board?

Discussion in 'Mac Pro' started by TheEasterBunny, May 14, 2013.

  1. TheEasterBunny macrumors 6502

    Joined:
    Jan 22, 2013
    Location:
    Delaware
    #1

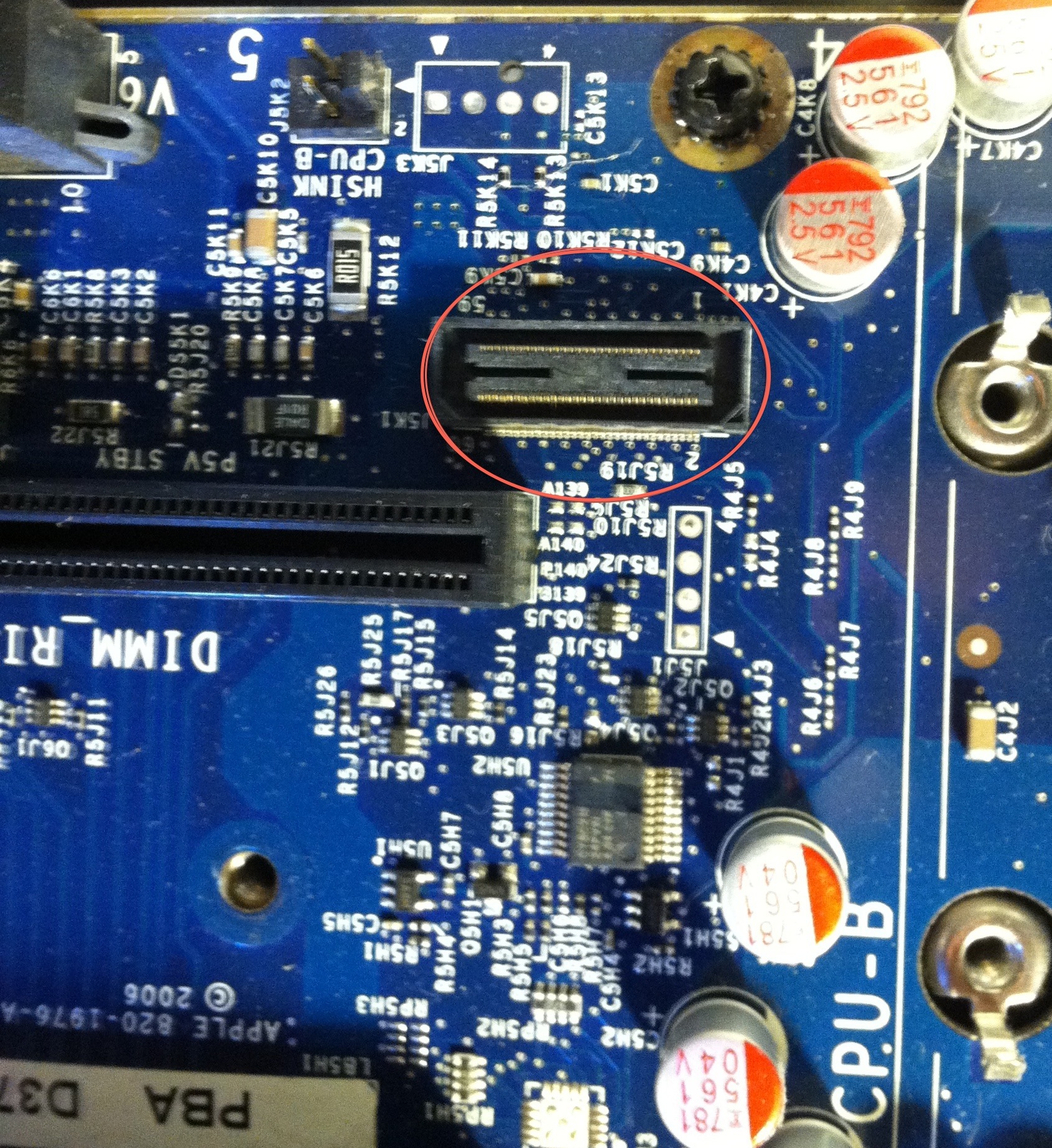

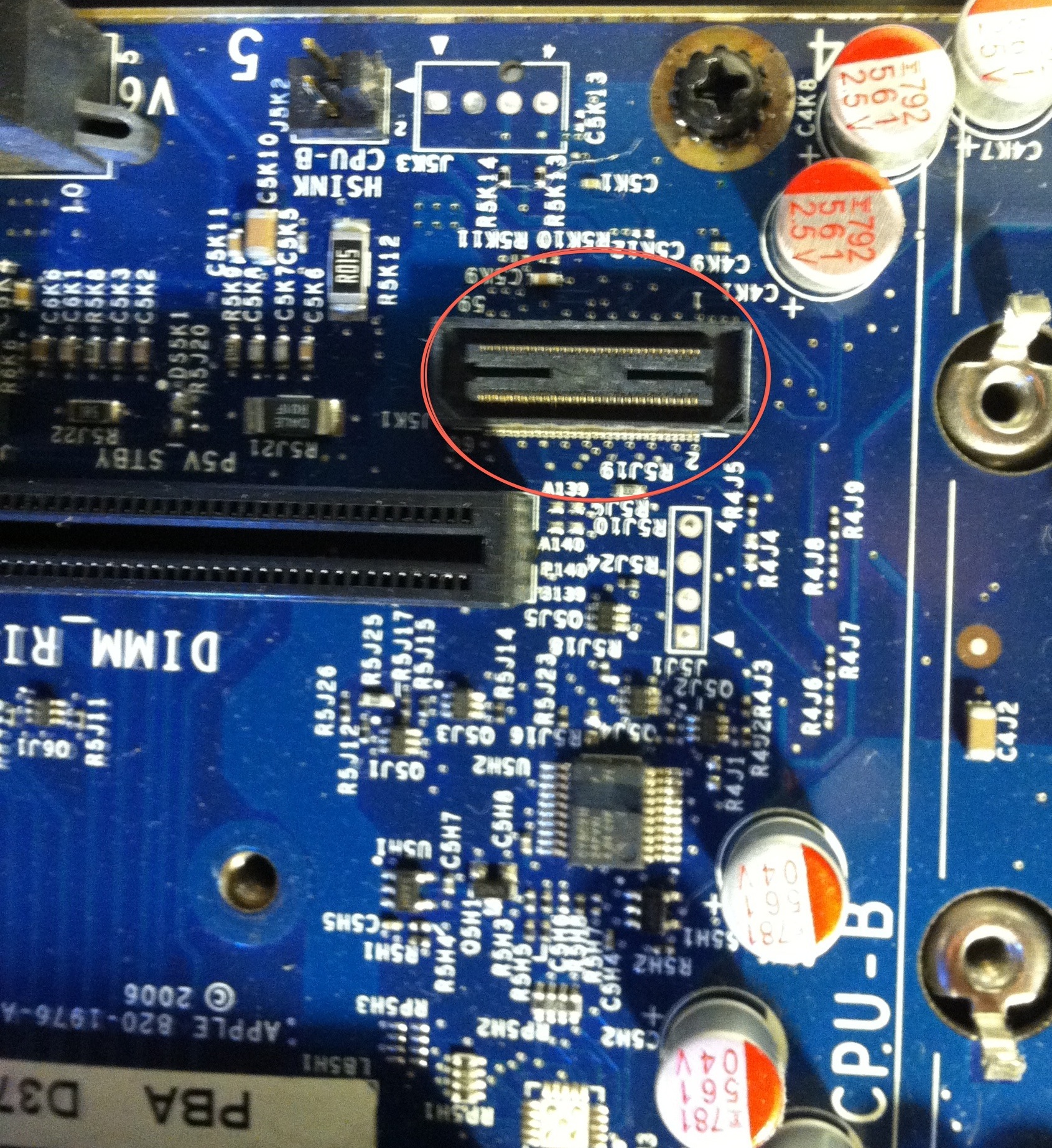

    I was looking around and cleaning the logic board when I did an upgrade and found this connector (circled in red). It isn't labeled.

    Can anyone tell me what it is for?

    Mac Pro 1,1 2006


    Attached Files:

  2. Tesselator macrumors 601

    Tesselator

    Joined:
    Jan 9, 2008
    Location:
    Japan
    #2
    It's an extended debug port or "XDP" for short.. All current Intel reference designs and CRB's have an XDP for use by internal Intel design and validation teams. You image is of the standard XDP connector: Samtec 60-pin BSH-030-01 series connector.

    Look up the IEEE 1149.1-2001 standard for more info.

  3. TheEasterBunny thread starter macrumors 6502

    Joined:
    Jan 22, 2013
    Location:
    Delaware
