What is this slot on iMac G3?

Discussion in 'PowerPC Macs' started by Alphabetize, Feb 9, 2014.

  1. Alphabetize macrumors 6502

    Alphabetize

    Joined:
    Oct 6, 2013
    #1

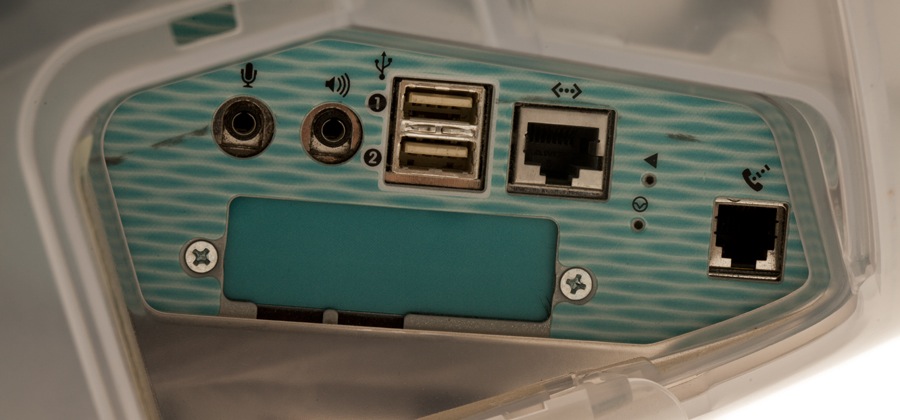

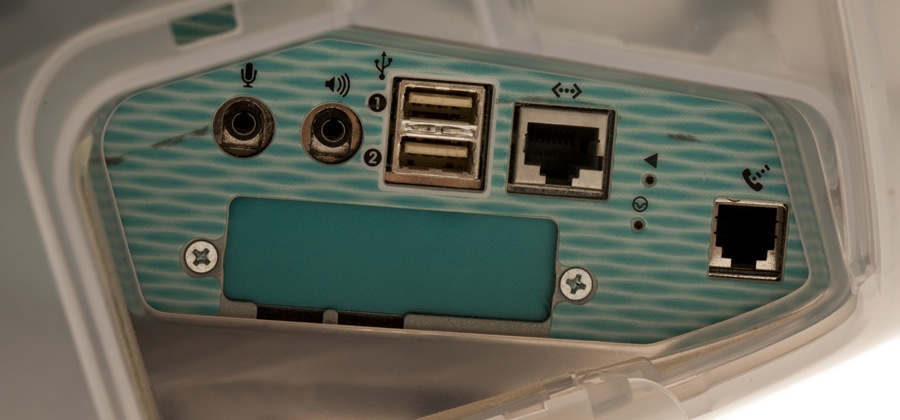

    I'm trying to figure out what this slot is on the iMac G3, it's held in by screws. What went there?


    Attached Files:

  2. Altemose macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #2
    I believe that is the cover for the Mezzanine slot. It was dropped in later G3s.

  3. G4fanboy macrumors regular

    Joined:
    Mar 9, 2013
    Location:
    Andalucia Spain
  4. Altemose macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #4
    There were two revisions of the 266. One had it, one didn't.

  5. G4fanboy macrumors regular

    Joined:
    Mar 9, 2013
    Location:
    Andalucia Spain
    #5
  6. Altemose macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #6
    So I was right? It was the Mezzanine cover for the slot. The physical Mezzanine port is on the Logic Board.

  7. Anonymous Freak macrumors 601

    Anonymous Freak

    Joined:
    Dec 12, 2002
    Location:
    Cascadia
    #7
    Correct - that is a cover that was used for Mezzanine slot cards. There were no "official" cards for this slot - Apple never published the pinout, and never sanctioned any Apple-made or third-party cards.

    However, there *ARE* cards that use it. My iMac G3 has a SCSI card, which uses the VHDCI SCSI connector. There was a Voodoo 2 video card, that necessitated the use of an external monitor for 3D-accelerated video, it's video port was there. Sonnet also made a CPU upgrade that put a FireWire port there.
