Where are the ports?

Discussion in 'Mac Pro' started by pianoman88, Jun 5, 2019.

  1. pianoman88 macrumors regular

    Joined:
    Aug 20, 2010
    #1
    My trashcan has one free USB port and one open Thunderbolt port.
    I have an eternal USB hub with 8 ports full. that comes to something like 16 ports being used.
    I would have thought that there would be a few more ports on the new mac pro.

  2. ct2k7 macrumors 603

    ct2k7

    Joined:
    Aug 29, 2008
    Location:
    London
    #2

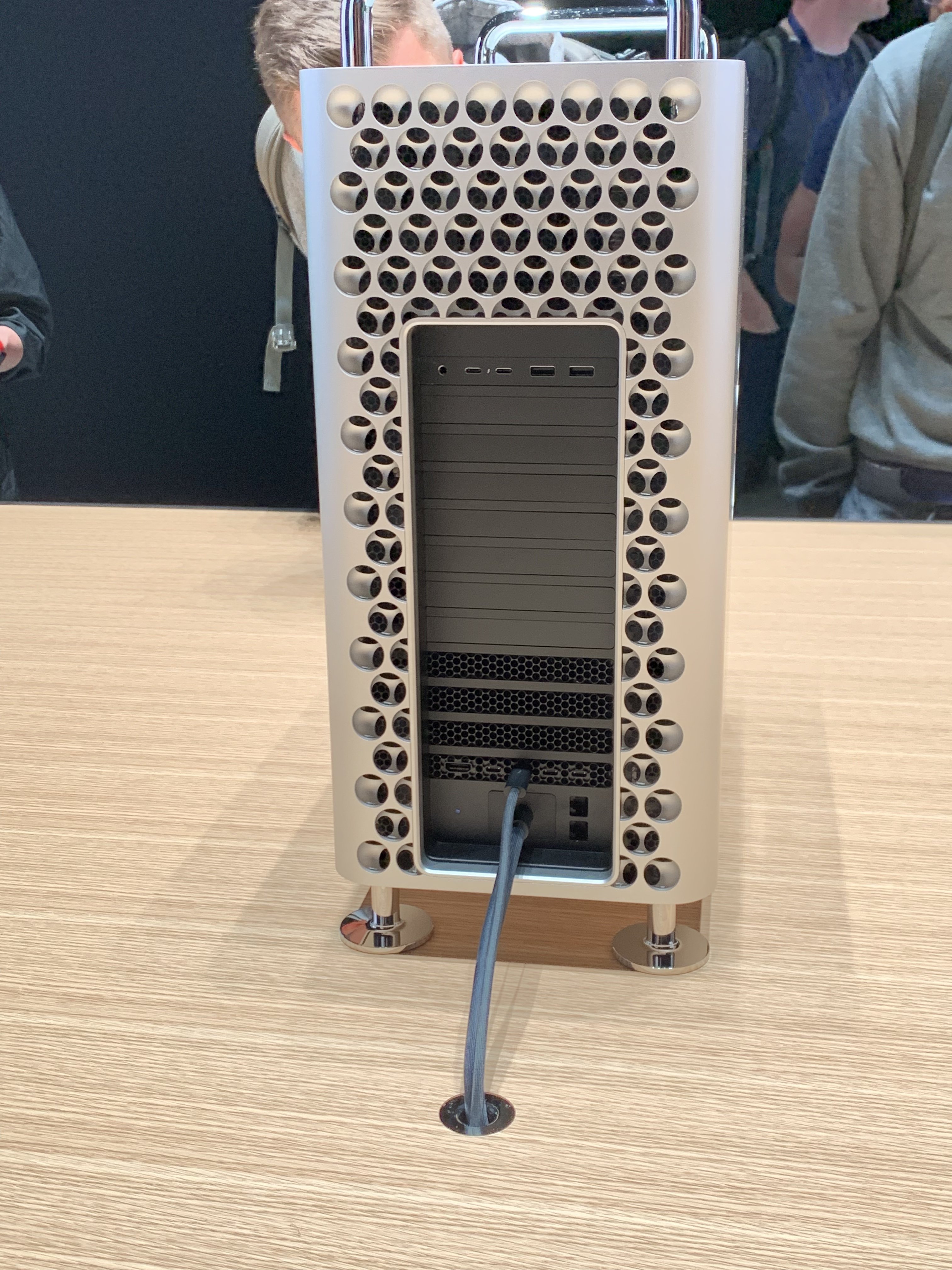

    At the back and two thunder old on top.

    See my photo


    Those are expansion slots, so you can likely find expansion cards with extra ports.

  3. crjackson2134 macrumors 601

    crjackson2134

    Joined:
    Mar 6, 2013
    Location:
    Charlotte, NC
    #3
    It has GOBS of internal expansion so it probably doesn’t really need it for most people. For those who do need it, you can add an inexpensive PCIe USB card...

  4. Slash-2CPU macrumors regular

    Joined:
    Dec 14, 2016
    Location:
    New Orleans, USA
    #4
    All those little ports on the GPU MPX are also Thunderbolt 3 / USB-C.

  5. deconstruct60, Jun 5, 2019
    Last edited: Jun 5, 2019

    deconstruct60 macrumors 604

    Joined:
    Mar 10, 2009
    #5
    If the stuff hanging off the hub works then it could still hang off the hub on the new system. So 8 system ports.

    The 'full size' MPX modules/cards ( not the base model with the 580X ) come with 4 more Thunderbolt v3 ports. That brings the total count to 4+2+2 TBv3 and two USB Type-A ports. Which is more than eight... but system cost is probably very substantially higher. [ If "need" to step up the graphics somewhat getting the 4 TB ports for 'free'. ]

    The standard Apple I/O card could be supplemented with a 4 port USB card which is another path ( 6 USB and 4 TB ) and probably way more affordable.

    Also somewhat depends upon what using the older TBv2 ports for. If mainly as "backward compatible" mini DisplayPort a GPU card with DP ports would probably work better as an addition.

    But yes.... will need to buy something. But with TBv2 ports and devices were gong to need to at least buy some adapters.


    I think they made a bit of a compromise in the entry configuration's MPX graphics card. They kept it short to not cover a slot that would be used to provision TB. However, since not provisioning TB the number of ports goes down.
    The trade-off is that there is another slot to add in whatever set of ports your context needs most. In, short the minimal entry model is somewhat a "barebones" system (just not an inexpensive 'barebones" ). The storage drive is a bit indicative of that too ( most folks are going to need to add either NAS/SAN , DAS , or internal storage. )
    --- Post Merged, Jun 5, 2019 ---
    Unfortunately, on the base configuration that has a known price ..... you don't get those. Just two HDMI ports and that is it.

    The Mac Mini has basically the same set of ports "out of the box" as this entry Mac Pro configuration. ( 4 TBv3 + 2 Type A ) along this "external data" dimension. [ Technically there is a USB Type A port inside the new Mac Pro. That might help if one of the current external usages is a DRM security dongle. ]
    --- Post Merged, Jun 5, 2019 ---
    That back isn't the same as the entry model with the 580X. It probably would have been incrementally better if Apple has added two Type-A sockets to the top also.


    The context though is that this a $6K system and from the start adding in an expansion card. [ MP 2013 has more out of the box. The MP 2009-2012 had 5 USB ( 7 if add the hub on the keyboard) and 3 firewire. ) . iMac Pro too starts off with a more complete set. ]

    Somewhat are paying more just to add-in what got out of the base systems configurations before. [ the upside being can add-in specifically what you need if there are expansion cards that exactly match. For example, if need 4 Firewire ports then probably happier. ]

  6. Slash-2CPU macrumors regular

    Joined:
    Dec 14, 2016
    Location:
    New Orleans, USA
  7. bsbeamer macrumors 68020

    Joined:
    Sep 19, 2012
    #7
    At the moment, it's not listed on any of the Apple pages or published documents so I would guess the answer is NO. A third party may step in to offer something, but that would likely be released weeks/months after initial release of MP7,1.

  8. Pressure macrumors 68040

    Pressure

    Joined:
    May 30, 2006
    Location:
    Denmark
    #8
    I'm sure we will see third party Titan Ridge cards like the one from Gigabyte.

  9. Slash-2CPU macrumors regular

    Joined:
    Dec 14, 2016
    Location:
    New Orleans, USA
    #9
    The Promise 3.5" RAID MPX isn't listed on any of Apple's pages either...

    I'm sure there will be TB3 cards.

    The fact that the TB3/USB ports at the top are on a PCIe card already should give some indication of where this is headed.

  10. deconstruct60 macrumors 604

    Joined:
    Mar 10, 2009
    #10
    Probably not DisplayPort feeds for that. ( conceptually the second MPX kit could supply that but how do you cleanly get the feeds through the main logic board to this new card. )

    Perhaps a 3rd party will sell a "loop back" external cable card, but doubtful Apple will.


    USB 4 may open some doors, but still probably wouldn't be an Apple card.
    --- Post Merged, Jun 6, 2019 ---
    It isn't called "3.5" RAID MPX" on the tech specs page.

    "...
    Storage
    • Promise Pegasus R4i 32TB RAID MPX Module Kit
    • Promise Pegasus J2i
    "
    https://www.apple.com/mac-pro/specs/


    The ones on the top of the case are built in. That there is an I/O card. Sure, they'll probably be following the USB4 as it evolves. But no Apple isn't likely going to be a big follower of the "data only" (un provisioned DP) Thunderbolt trend.
    As long as all of their monitors are TB docking stations, they really aren't inclined to drop video from the stream.
