Where is the istats menu "backside chip" on a powermac g5?

Discussion in 'PowerPC Macs' started by donzubeck, Mar 24, 2016.

  1. donzubeck macrumors newbie

    Joined:
    Feb 12, 2015
    Location:
    Warren,Mi.USA
    #1
    Does anyone know where the istats menu "backside chip" on a powermac g5?

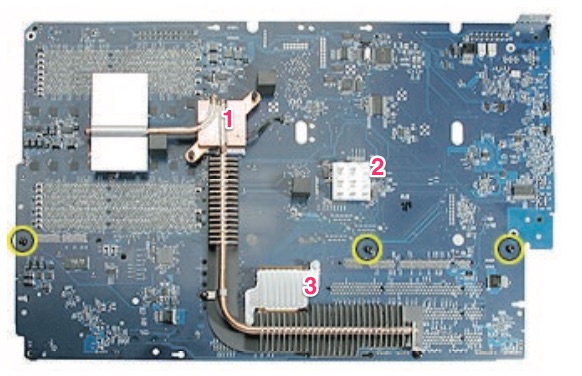

    I have a really high reading from that chip 399F. The drive bay reads over 8000F, I don't have a hole in my floor so I know that one is wrong. It is a Dual 2.0 June 2004 powermac g5 with 10.5.8. There is three chips with heatsinks on the back of the logic board. Is it the one under the pram battery by the pci-x slots with the medium size heatsink ? Is it 1 ,2 ,3 ?
    Thank you for any help. logicboard-g5.jpg

  2. 666sheep macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #2
    1. It's a common issue on this board. There is even thermal sensor cable visible on this pic.

  3. donzubeck thread starter macrumors newbie

    Joined:
    Feb 12, 2015
    Location:
    Warren,Mi.USA
    #3
    That is just a picture I found online it is the same board as mine but it is not my logic board. What do you mean by common issue on this board, is it common with istats menu or with the sensor, or the backside chip is bad?
    thanks for your reply.

  4. 666sheep macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #4
    Wrong temperature reading and failure of chip. Sometimes reflowing it helps for the latter.

  5. donzubeck thread starter macrumors newbie

    Joined:
    Feb 12, 2015
    Location:
    Warren,Mi.USA
    #5
    Thanks for the leads, I'll check them out when I get so time on Monday. Is there a temp. sensor somewhere for the backside on the logic board. I still am not sure where to look. Is it the small card on the top right of the logic board in the picture in the 1st post?
