Which enclosure for external SATA SSD storage...

gpspad

macrumors 6502a
Original poster
Feb 4, 2014
587
19
I finally pulled the trigger on a Samsung 860 EVO 2TB with SATA III. I have an 2015 iMac with USB3 and TB2 ports. This will be used to store work files and free the internal 512GB SSD for programs.

Speed is a consideration, but I also wanted to ditch the G-Tech drive that was kind of loud.

What enclosure should I get for it; a Sabernet USB3 enclosure or look into some kind of Thunderbolt2 enclosure?

A USB3 enclosure wouldn't require something else plugged in, but I guess I would be loosing some speed?


CoastalOR

macrumors 68020
Jan 19, 2015
2,486
907
Oregon, USA
I'm not sure of the kind of work files you will be placing on the external.

IMO, to store work files, then the Sabernet USB3 enclosure should work fine. Thunderbolt 2 is expensive and the actual performance is not that much better for your planned usage.


SaSaSushi

macrumors 601
Aug 8, 2007
4,084
479
Takamatsu, Japan
If the SSD is only going to be used for storage purposes I agree a USB3 enclosure would be fine.

I do recommend going with Thunderbolt for those planning to boot from external drives for the ability to enable TRIM.


Fishrrman

macrumors P6
Feb 20, 2009
17,398
5,631
USB3 is "all you need".

If you want a bulletproof enclosure, I suggest this one:
https://www.amazon.com/MiniPro-USB-C-External-Aluminum-Enclosure/dp/B01N52Z26D/ref=sr_1_fkmrnull_2?keywords=minipro+usb3.1+enclosure&qid=1551627421&s=gateway&sr=8-2-fkmrnull

I have the earlier USB3.0 version and it's built like a tank. It costs about $10 more than plastic enclosures, but it's money well-spent.

The 2015 has regular "USB-a" ports, right?
Then just use a cable with USB-c on one end and USB-a on the other.

  • Like
Reactions: xgman and chabig

gpspad

macrumors 6502a
Original poster
Feb 4, 2014
587
19
Thanks for the replies and the recommendations on the case.

The drive is going to be tucked inside a twelve south high-rise stand I use, other than the ruggedness, any reason to go with a powered case over a bus powered case?

If I am going with USB3 I figured I'd have one less power concern if I go with bus powered, unless there is a good reason to get a powered usb3 enclosure.


Fishrrman

macrumors P6
Feb 20, 2009
17,398
5,631
The Oyen digital enclosure I linked to in reply 4 has an input port for external DC power. I don't know if they sell a power block for it, but I'll bet you could find an external "wall wart" that would work just fine for $12 or even less.


gpspad

macrumors 6502a
Original poster
Feb 4, 2014
587
19
I did some digging, I guess its optional and doesn't seem to be needed for an SSD.

Not sure if there is any speed increase with power though?


Fishrrman

macrumors P6
Feb 20, 2009
17,398
5,631
The MiniPro drive that I have boots and runs fine from the USB bus power.
Full speed.


EugW

macrumors 604
Jun 18, 2017
7,327
4,721
I don’t recommend bus power unless it’s an external drive specifically built to run off USB power alone since some drive + enclosure + port combinations can be flaky on bus power alone. I’ve encountered this problem on more than one occasion, on both USB and on FireWire (even though FireWire provides even more power than USB). In this context I always recommend an enclosure that provides the option of external power.

However, overall I usually recommend dedicated external drives like the Samsung T5. Fast and small and specifically designed to run off bus power.

  • Like
Reactions: SaSaSushi

gpspad

macrumors 6502a
Original poster
Feb 4, 2014
587
19
The T5’s were more than I wanted in price, a SATA III in an enclosure would give the option to install it in a Mac mini if a better option pops up down the road.

Anyone have a link to a power chord for the Oyen case?

I am going to try running it off both and doing some speed tests, I also have a bus powered usb3 case, I’m going to test all three options.


BrianBaughn

macrumors 603
Feb 13, 2011
6,362
937
Baltimore, Maryland
I'm wondering what is the point of an enclosure for a SATA SSD. Isn't the SSD already "enclosed" in that it doesn't have any exposed circuitry like mechanical drives?

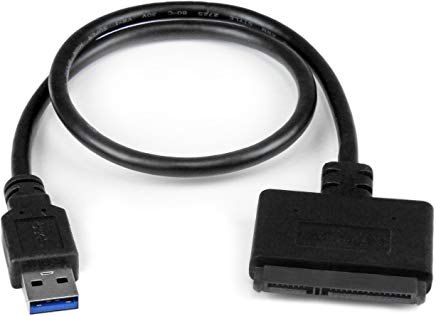

This type of connector works fine:
