Why are GPUs installed upside down??

Discussion in 'Mac Pro' started by Luba, Nov 17, 2013.

  1. Luba macrumors 6502a

    Luba

    Joined:
    Apr 22, 2009
    #1
    Why are GPUs installed upside down?? Or why is the label upside down??

  2. OrangeSVTguy macrumors 601

    OrangeSVTguy

    Joined:
    Sep 16, 2007
    Location:
    Northeastern Ohio
    #2
    Because the logic board is basically turned around. If you notice the door is on the right instead of left like a typical PC.

    This is also why the PCIe slots are on the top.

  3. sixrom macrumors 6502a

    Joined:
    Nov 13, 2013
    #3
    Medical tests reveal it prevents Acid Reflux. :)

  4. pastrychef macrumors 601

    pastrychef

    Joined:
    Sep 15, 2006
    Location:
    New York City, NY
    #4
    I always felt Mac Pros' orientation is correct because heat rises and I've always felt that the heatsink should be on top.

  5. AidenShaw macrumors P6

    AidenShaw

    Joined:
    Feb 8, 2003
    Location:
    The Peninsula
    #5
    Irrelevant if the graphics card has a fan.

  6. scottsjack macrumors 68000

    Joined:
    Aug 25, 2010
    Location:
    Arizona
    #6
    And for all they charge for Mac Versions neither NVIDIA nor AMD have molded Mac Pro specific covers with the lettering "right side up". That probably illustrates just how low the production levels are for Mac specific GPUs.

    I am really glad that NVIDIA made Mac Pro versions at all.

  7. pastrychef, Nov 17, 2013
    Last edited: Nov 17, 2013

    pastrychef macrumors 601

    pastrychef

    Joined:
    Sep 15, 2006
    Location:
    New York City, NY
    #7

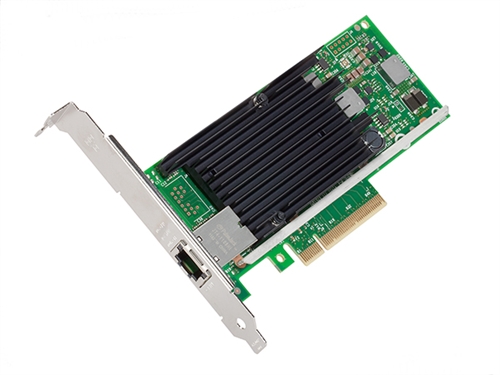

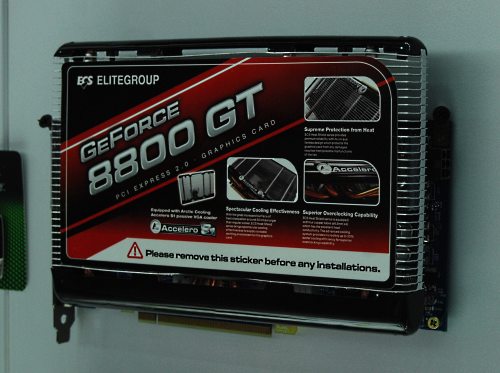

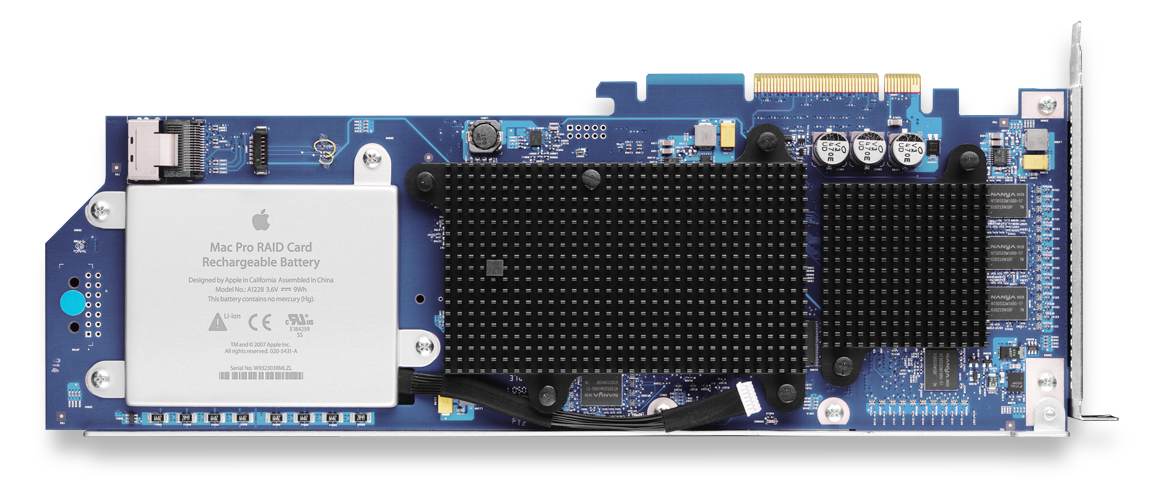

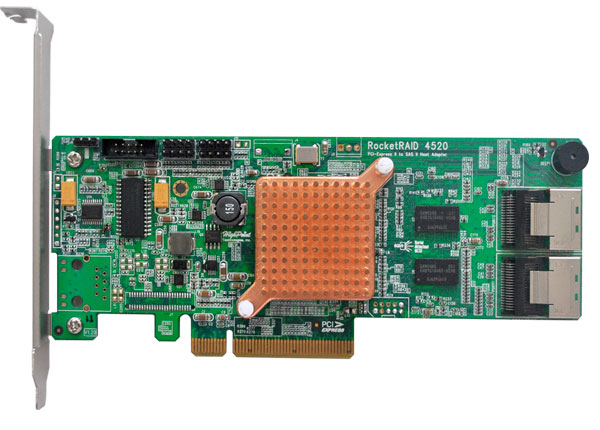

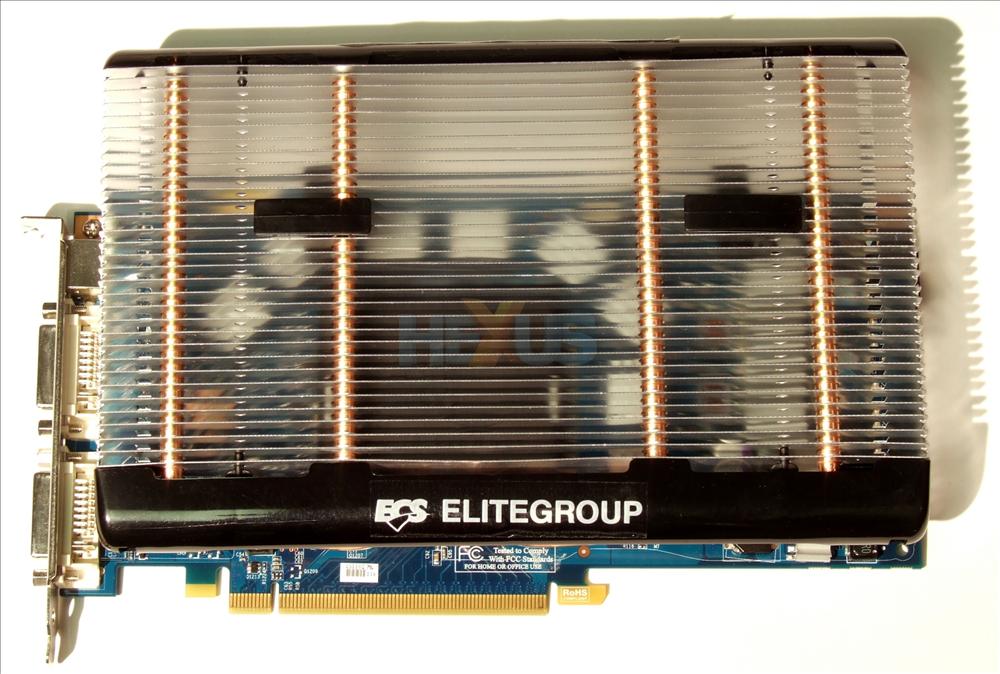

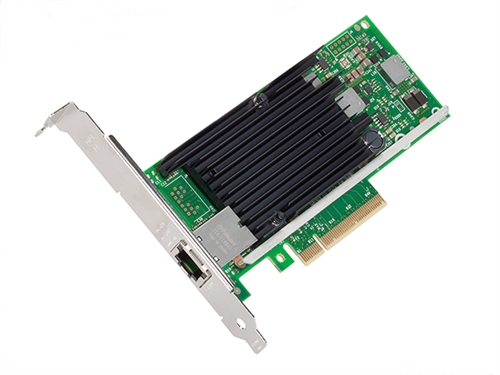

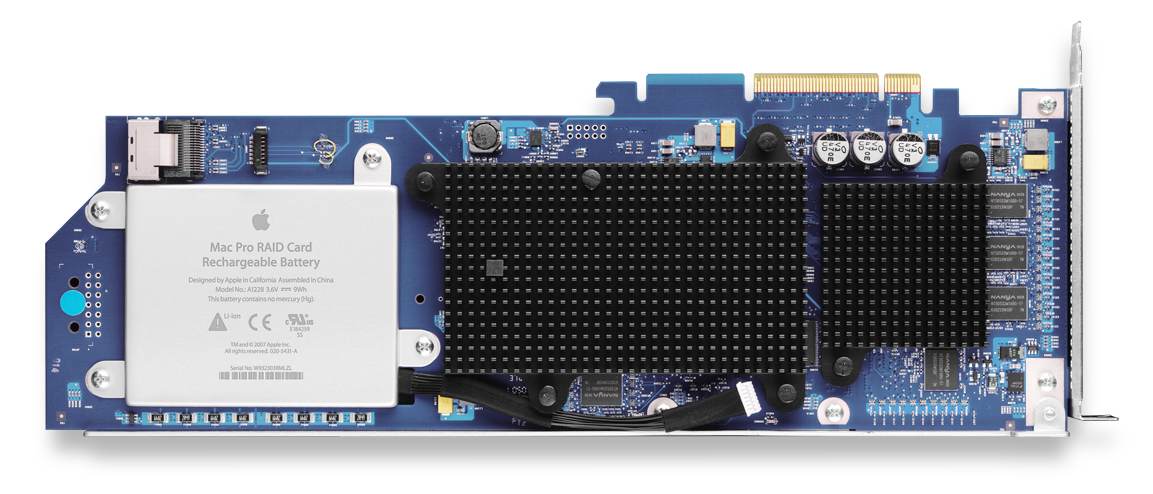

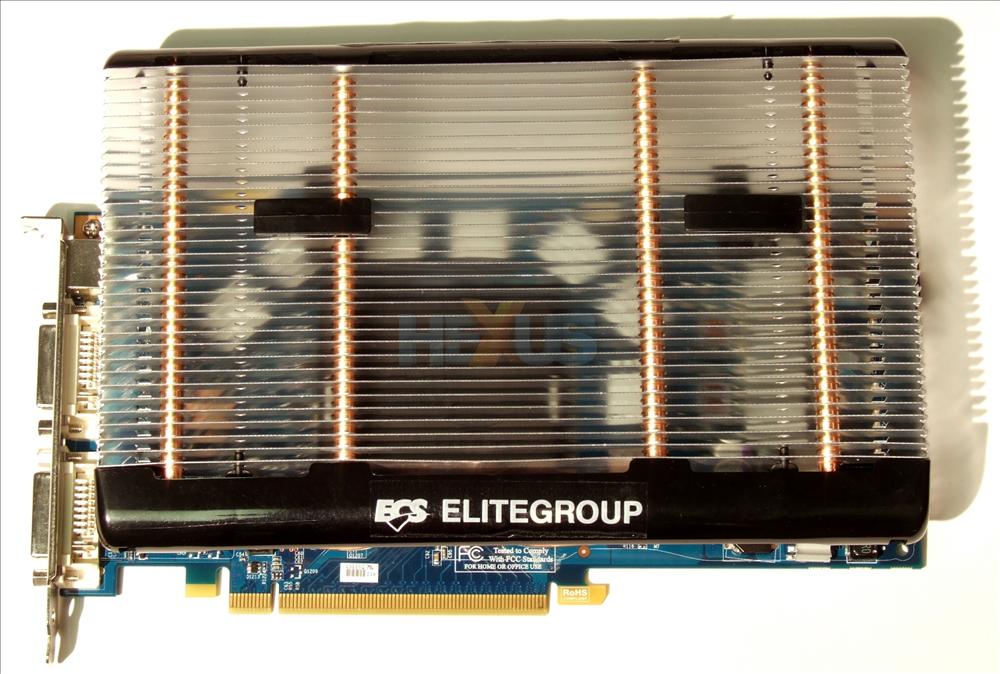

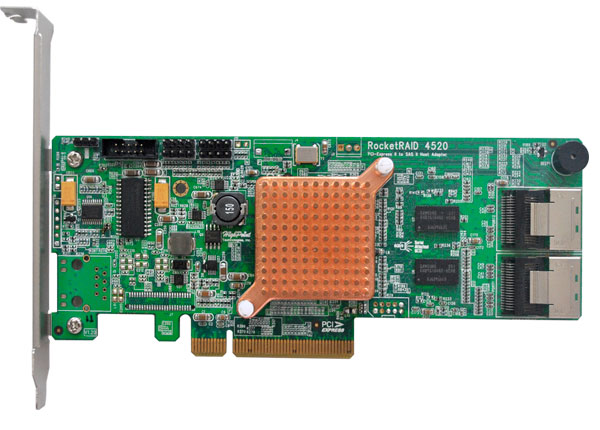

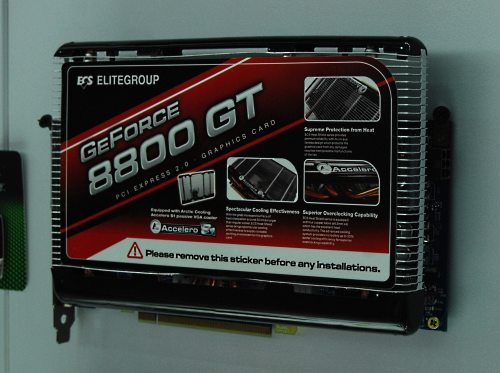

    There are passive coolers.


    Attached Files:

  8. Celedral macrumors 6502

    Celedral

    Joined:
    May 29, 2008
    Location:
    Los Angeles
    #8
    I always liked the Mac orientation since my early Lian Li days. It's aesthetically pleasing to see the gfx card facing up than down with the pcb board exposed.

  9. OrangeSVTguy macrumors 601

    OrangeSVTguy

    Joined:
    Sep 16, 2007
    Location:
    Northeastern Ohio
    #9
    Why what's the point? I leave my side panel on. I never see it anyways.
