Hi,
i cannot upgrade my Mac Pro 2009 with the firmware 5,1
When i reboot the Mac the firmware not changed...
Why?

I have:
- Asus GTX770 DirectCU II OC 2Gb
- Inatec KT4004 PCI-Express card USB 3.0
- SSD OCZ Vertex 3

I have cloned my SSD in a HD and is the same.
Thank's from Italy


Attachments

  • Schermata 2014-11-02 alle 11.35.38.png
    Schermata 2014-11-02 alle 11.35.38.png
    50.7 KB · Views: 142

h9826790

macrumors P6
Apr 3, 2014
16,606
8,531
Hong Kong
May be because you should shut down the machine and then start it from cold boot (from memory, you have to press and hold the power button), but not "restart".

Last edited:

LittlePaul

macrumors member
Original poster
Mar 15, 2014
52
1
I should shut down the machine and then start it put the button start until the LED starts blinking.

I have my old ATI 5770.
If i put it and upgrade the firmware, after I can put the GTX770?

Thank's


Synchro3

macrumors 68000
Jan 12, 2014
1,987
850
Yes, after the upgrade you can put in the GTX 770 again.

Only for the upgrade you need an EFI card.


LittlePaul

macrumors member
Original poster
Mar 15, 2014
52
1
upgrade ok but increment fan speed

I have change the Asus 770 with the Ati 5770 Mac edition and the upgrade firmware is ok.

I have a questions:
after the upgrade the fans speed is incremented and the minimum speed is 983.
It's normal?

thank's


EdDuPlessis

macrumors 6502
Nov 23, 2014
339
8
Your machine will still say 4,1 in OS X even with the 5,1 firmware update. In Windows it will say 5,1 because it reads the model identifier differently to OS X.


snorkelman

Cancelled
Oct 25, 2010
666
155
Your machine will still say 4,1 in OS X even with the 5,1 firmware update. In Windows it will say 5,1 because it reads the model identifier differently to OS X.

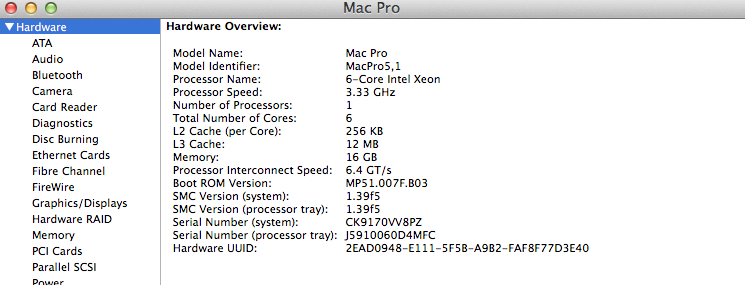

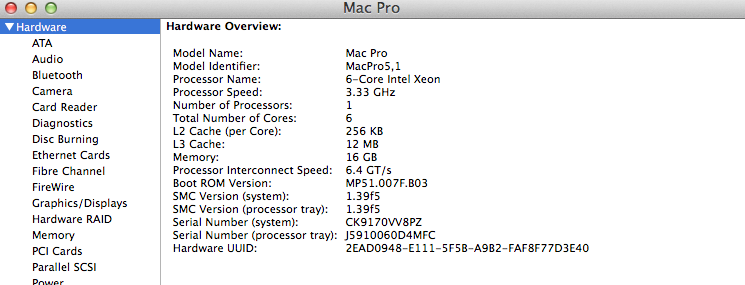

mine shows 5,1 in the equivalent screen shot to the one he posted (mine started out as quad core 2009)


Attachments

  • Mac_Pro.png
    59.5 KB · Views: 116

h9826790

macrumors P6
Apr 3, 2014
16,606
8,531
Hong Kong
after the upgrade the fans speed is incremented and the minimum speed is 983.
It's normal?

No, the minimum fan speed should not changed.

The very 1st thing to do will be a SMC reset. Which may or may not solve the problem. However, if the fan speed changed after the reset, but not fully back to normal, you may try to perform another SMC reset.

Also, if just the PCIe fan speed going high (this may induce the PSU fan speed also going high). A possible work around is to install some fan control software (e.g. SMCFanControl), manually set the fan speed to max, allow fews seconds for it to spin up, and then set the fan speed back to minimum. The PCIe fan speed will drop slowly, but eventually should go back to the stock minimum (unless there is some other issue, e.g. faulty graphic card).


h9826790

macrumors P6
Apr 3, 2014
16,606
8,531
Hong Kong
What does About this Mac window look like on yours?

The "About This Mac" will tell you it's a 2009 machine (but nothing said it's a 4,1 or 5,1).

However, the info in "System Information" will tell you it's a 5,1 (but nothing about 2009 or 2010, etc).'

You previous post said OSX will indicate itself as a "4,1", which may confuse the others assuming that you were talking about the into in the System Information.


snorkelman

Cancelled
Oct 25, 2010
666
155
What does About this Mac window look like on yours?

About this Mac overview lists it as Mac Pro Early 2009 Granted thats a 4,1 but its not the screen he posted/was referring to

edit - h9826790 beat me to it :)


Attachments

  • About_This_Mac_and_Why_i_cannot_upgrade_firmware_on_my_Mac_Pro__-_MacRumors_Forums.png
    About_This_Mac_and_Why_i_cannot_upgrade_firmware_on_my_Mac_Pro__-_MacRumors_Forums.png
    31.4 KB · Views: 112
  • About_This_Mac_and_Why_i_cannot_upgrade_firmware_on_my_Mac_Pro__-_MacRumors_Forums 2.png
    About_This_Mac_and_Why_i_cannot_upgrade_firmware_on_my_Mac_Pro__-_MacRumors_Forums 2.png
    78.9 KB · Views: 106

EdDuPlessis

macrumors 6502
Nov 23, 2014
339
8
The "About This Mac" will tell you it's a 2009 machine (but nothing said it's a 4,1 or 5,1).

However, the info in "System Information" will tell you it's a 5,1 (but nothing about 2009 or 2010, etc).'

You previous post said OSX will indicate itself as a "4,1", which may confuse the others assuming that you were talking about the into in the System Information.

Thanks you are correct. About this Mac says 2009 even after the upgrade. The identifier is updated to 5,1.


LittlePaul

macrumors member
Original poster
Mar 15, 2014
52
1
Fan speed regular

This morning the fan speed is regular at 804 RPM.

Better.

Next week i upgrade to 2 x 5680 xenon

:)


LittlePaul

macrumors member
Original poster
Mar 15, 2014
52
1
2 x 5680 ok but ram speed....

Hi,
i upgrade with 2 x 5680 but ram speed is at 1066 Mhz.
Why?????

thank's


Attachments

  • Schermata 2014-12-15 alle 11.22.08.png
    Schermata 2014-12-15 alle 11.22.08.png
    134.3 KB · Views: 80
  • Schermata 2014-12-15 alle 11.21.38.png
    Schermata 2014-12-15 alle 11.21.38.png
    119.2 KB · Views: 100

h9826790

macrumors P6
Apr 3, 2014
16,606
8,531
Hong Kong
Hi,
i upgrade with 2 x 5680 but ram speed is at 1066 Mhz.
Why?????

thank's

If those RAM support 1333 CL9, you may try 2 things.

1) Reset PRAM (think twice before you do that if you have 3rd party SSD with TRIM enabled).

2) Only install 6 sticks (in the optimum configuration) to check if they can run at 1333 (PRAM reset may be required).


LittlePaul

macrumors member
Original poster
Mar 15, 2014
52
1
Ssd + gtx770

Hi,
thank's for reply me.

2 questions:
1) i have a SSD OCZ with Chameleon trim enabled. It's ok?

2) I need utilizade the Ati 5770 original?


h9826790

macrumors P6
Apr 3, 2014
16,606
8,531
Hong Kong
1) Disable TRIM before you attemp any PRAM reset on Yosemite. You can re-enable that afterward.

2) AFAIK, graphic card is independent to this problem. No need to touch that.

If you have a bit worry about that. You may try the 6 sticks option without PRAM first. That's virtually no risk. However, for Yosemite, I still highly recommend you disable TRIM before any testing, just more safe.

For Mavericks, you are bulletproof, no need to disable TRIM. However, it seems you are with Yosemite now. So, be careful.

Last edited:

LittlePaul

macrumors member
Original poster
Mar 15, 2014
52
1
I's work

Thank's, Now it's work fine


Attachments

  • Schermata 2014-12-18 alle 10.23.00.png
    Schermata 2014-12-18 alle 10.23.00.png
    84.1 KB · Views: 86
  • Schermata 2014-12-18 alle 10.33.51.png
    Schermata 2014-12-18 alle 10.33.51.png
    231.9 KB · Views: 91
  • Schermata 2014-12-18 alle 10.39.02.png
    Schermata 2014-12-18 alle 10.39.02.png
    1.2 MB · Views: 130
  • Schermata 2014-12-18 alle 11.02.08.png
    Schermata 2014-12-18 alle 11.02.08.png
    2.6 MB · Views: 134

LittlePaul

macrumors member
Original poster
Mar 15, 2014
52
1
you have reason...
And so, why my is so poor?

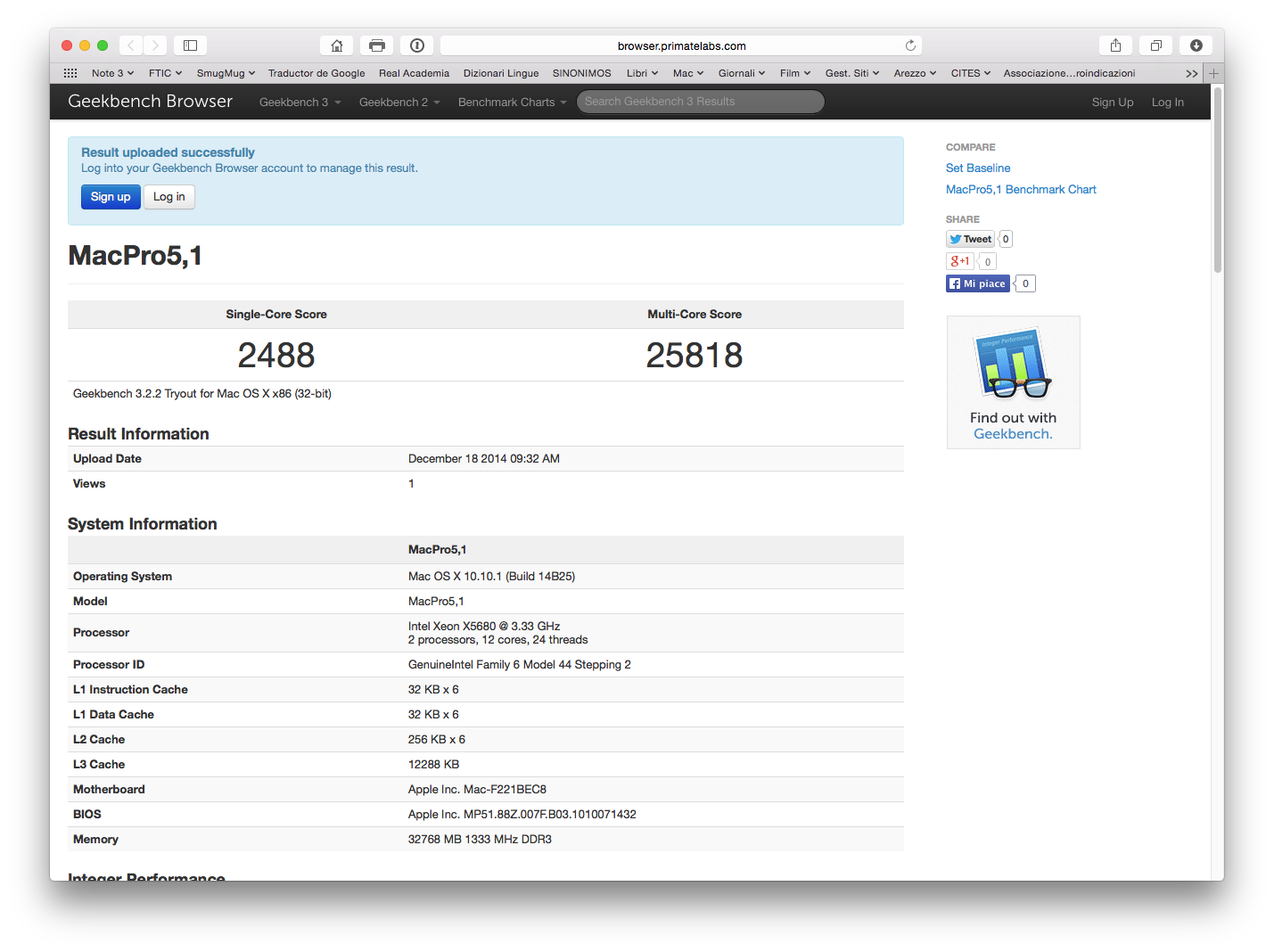

P.S. I have used a 32bit Geekbench 3.... Is it?


snorkelman

Cancelled
Oct 25, 2010
666
155
your geekbench scores are fine - the screen shot shows you're using 32-bit for the tests not 64-bit :)
