why i can't open disk utility?

Discussion in 'OS X El Capitan (10.11)' started by hei1011, Mar 4, 2016.

  1. hei1011, Mar 4, 2016
    Last edited: Mar 4, 2016

    hei1011 macrumors newbie

    hei1011

    Joined:
    Mar 4, 2016
    #1

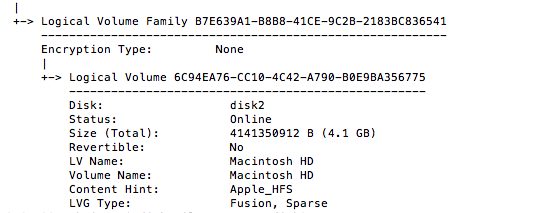

    is that second logical volume family? it need to be delete ?
    another question , i just made the fusion drive, but i can't restore from time machine
    i need to install clean OS, and use migration assistant to transfer my data(apps,file,photo) from my time machine, what had i miss step or make wrong step? sorry for my pool eng.
    my mac spec:
    2012 mid macbook pro(non retina display)
    16 gb ram
    PLEXTOR PX-256M6S+ SSD
    APPLE HDD HTS545050A7E362 500GB
    2.5 GHz Intel Core i5


    Screen Shot 2016-03-05 at 12.32.45 AM.png Screen Shot 2016-03-05 at 12.35.14 AM.png Screen Shot 2016-03-05 at 12.35.55 AM.png
    Screen Shot 2016-03-05 at 12.56.25 AM.png

  2. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #2
    You went wrong somewhere in the creation of the Fusion drive. You can try "diskutil cs delete disk2" to get rid of the extra logical volume, but then that will leave that 4GB unused. My suggestion would be to blow off the whole thing by running that same command I just gave you with disk2 and disk3 then start over using this guide.

    Then once you have the Fusion setup correctly, just option key boot from the Time Machine disk and restore.

  3. hei1011, Mar 5, 2016
    Last edited: Mar 5, 2016

    hei1011 thread starter macrumors newbie

    hei1011

    Joined:
    Mar 4, 2016
    #3
    Thanks for your reply,
    do I need open Terminal type command to disable the fusion drive ?but I did before is not working to disable Fustion Drive,is that command-line
    "diskutil coreStorage delete lvgUUID" correct?
    If I delete disk2 and disk3 will be working on disable Fusion Drive?
    Thanks
    best regard

  4. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #4
    This is all in Terminal. Just try "diskutil cs delete disk2" (without the quotes) to get rid of the extra volume, then if you want to start over do "diskutil cs delete disk3" to get rid of the entire Fusion drive. You can use either cs or coreStorage in that command... they both do the same thing. Just like using the lvgUUID or the disk label (like disk2) is the same thing and will have the same result.

  5. hei1011 thread starter macrumors newbie

    hei1011

    Joined:
    Mar 4, 2016
  6. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #6
    Good deal. Were you able to just remove those two volumes, or did you end up starting over?

  7. hei1011 thread starter macrumors newbie

    hei1011

    Joined:
    Mar 4, 2016
    #7
    @Weaselboy Yes, i did start it all over again:),owe you big time haha!
