Will we ever see a dGPU in a 13in Macbook?

Mac.User

macrumors 6502
Original poster
Aug 25, 2013
348
6
Personally I love and prefer the size of the 13in MacBook Pro, but due to my work I need a dGPU, also I occasionally game.

Do you guys think we will ever see a dGPU option on a 13in MacBook?


brdeveloper

macrumors 68020
Apr 21, 2010
2,472
161
Brasil
Personally I love and prefer the size of the 13in MacBook Pro, but due to my work I need a dGPU, also I occasionally game.

Do you guys think we will ever see a dGPU option on a 13in MacBook?
Not in the current scenario where integrated GPUs perform almost the same as dGPUs which equip high-end Macbooks. The last 13" Macbook equipped with a dGPU (although with shared RAM) was the 2010 13" one which had a built-in Geforce 320M.

Later, Intel applied some restrictions over 3rd-party chipsets. In the meantime, Intel was capable to evolve at the point of providing iGPUs almost as good as shared mem nVidia/AMD dGPUs. The current scenario is that nVidia and AMD must provide some kind of revolutionary architecture capable of leaving Intel in the dust.


TechZeke

macrumors 68020
Jul 29, 2012
2,363
1,974
San Antonio, TX
With even the 15" models starting to lose their dGPUs to the iris pro, there is almost no chance(zip, zero, nada,....) now that there will ever be a dGPU in the 13".


chabig

macrumors 603
Sep 6, 2002
5,894
3,143
Personally I love and prefer the size of the 13in MacBook Pro, but due to my work I need a dGPU, also I occasionally game...
I really doubt that you "need" a discrete GPU any more than you need a discrete clock chip, a discrete floating point coprocessor, or a discrete sound card--all of which used to be common.


hallux

macrumors 68030
Apr 25, 2012
2,774
485
I think it's more of a thermal issue. The 15" has space inside to add a second heatpipe and fan to cool the extra chip, the 13" doesn't.


Mac.User

macrumors 6502
Original poster
Aug 25, 2013
348
6
What dGPU's are you guys comparing against? No intel GPU is near as good as a good Dedicated.

You guys should try doing any rendering that makes use of a GPU and compare a good dedicated vs intel's.

At best I would say Intel's gpu's are "no longer worthless" but would never call them a replacement for a good dedicated GPU.


...then again Apple has never been known for using "good" GPU's just "top of the mid range"


yjchua95

macrumors 604
Apr 23, 2011
6,725
230
GVA, KUL, MEL (current), ZQN
What dGPU's are you guys comparing against? No intel GPU is near as good as a good Dedicated.

You guys should try doing any rendering that makes use of a GPU and compare a good dedicated vs intel's.

At best I would say Intel's gpu's are "no longer worthless" but would never call them a replacement for a good dedicated GPU.


...then again Apple has never been known for using "good" GPU's just "top of the mid range"
I hear you, mate.

When doing rendering, the Iris Pro in my 15" rMBP just doesn't cut it. So that's where the GT 750M GPU in it comes to play.

The Iris Pro is good enough for the regular consumer, but not for people who do heavy tasks like heavy 1080p (or 4K in my case) editing.


leman

macrumors G3
Oct 14, 2008
9,981
4,555
What dGPU's are you guys comparing against? No intel GPU is near as good as a good Dedicated.
You are certainly right, but what good GOU can you fit in a 13" laptop without sacrificing portability, battery or both? The Intel iGPUs perform better than the entry level discrete chips nowadays and they are almost as good as midrange ones.

They are also quite good for GPGPU workflows, as they provide a decent number if FLOPs which rival midrange cards.Actually, a well-written renderer which uses ray tracing will be faster on a Iris GPU than on an Nvidia one.


thundersteele

macrumors 68030
Oct 19, 2011
2,984
7
Switzerland
What dGPU's are you guys comparing against? No intel GPU is near as good as a good Dedicated.

You guys should try doing any rendering that makes use of a GPU and compare a good dedicated vs intel's.

At best I would say Intel's gpu's are "no longer worthless" but would never call them a replacement for a good dedicated GPU.


...then again Apple has never been known for using "good" GPU's just "top of the mid range"
If you need a desktop quality GPU, then you either have to build a desktop or look into the external GPU options. As you correctly noted, even the high end 15'' only uses mid-range graphics.

The Iris Pro in the 15'' can hold its weight against slightly lower range of dGPUs like the 640M - unless you need some specific graphics drivers that are only available from Nvidia or ATI.
The Iris in the 13'' is a bit weaker, but still beats the dGPUs of 2011 15'' MBPs I think.
The reason I'm saying this is to show that asking for a dGPU without any further specifications doesn't make sense. For lower mid-range graphics, it doesn't make sense anymore to include a dGPU in the limited amount of space that is available in the rMBPs.
On the other hand if the question is whether we will ever see high-end graphics in the 13'' rMBP, the answer is clearly no, unless they completely change their design principles.


alex0002

macrumors 6502
Jun 19, 2013
483
103
New Zealand
I hope not, or at least I hope it doesn't become a standard feature in the 13 inch. The dGPU seems to be the least reliable part in past macbook pro models and with Intel integrated graphics getting better with each generation, there is less need for them than before.


lord69

macrumors newbie
Jul 12, 2014
10
0
There are relatively powerful low-power dGPUs that apple can use in their 13 inch pros. Asus has several Zenbooks equipped with GT 840M. I even read somewhere that its power consumption is on par or even less than the iris 5100 which makes it an ideal candidate for 13 inch laptops.
But on the other hand I don't think apple will use dGPUs in the 13 inches anymore...


leman

macrumors G3
Oct 14, 2008
9,981
4,555

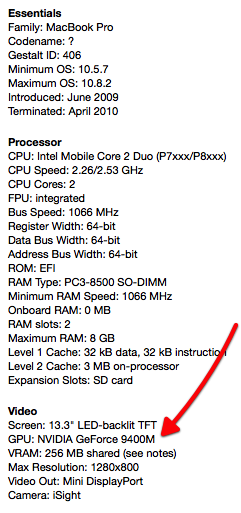

The early 13" MacBooks (not pro) had dGPUs in them - see apple-history
and the 2009 MBP had it as well -(I stopped checking at that point)

The 9400M is not a dGPU, its an integrated GPU. It is located in the mainboard chip instead of the CPU chip, but its still integrated. The GPUs on CPU die are quite a recent invention, for quite a long time all of the iGPUs (Intel, Nvidia, AMD) were all part of the mainboard chipset.


maflynn

Moderator
Staff member
May 3, 2009
63,853
30,369
Boston
The 9400M is not a dGPU, its an integrated GPU. It is located in the mainboard chip instead of the CPU chip, but its still integrated. The GPUs on CPU die are quite a recent invention, for quite a long time all of the iGPUs (Intel, Nvidia, AMD) were all part of the mainboard chipset.
My mistake - I saw nVidia and thought dGPU :)


Freyqq

macrumors 601
Dec 13, 2004
4,014
166
Personally I love and prefer the size of the 13in MacBook Pro, but due to my work I need a dGPU, also I occasionally game.

Do you guys think we will ever see a dGPU option on a 13in MacBook?
Nope, and even if they did, it wouldn't be as powerful as the 15" dgpu. Less room for cooling.

Last edited:

Mac.User

macrumors 6502
Original poster
Aug 25, 2013
348
6
Nope, and even if they did, it wouldn't be as powerful as the 15" dgpu. Less room for cooling.
That doesn't mean a whole lot. There are 14in laptops as thin as a retina that have a Quadcore + a GPU better than the 15in retina.

I'm sure it's possible, just tricky.


poematik13

macrumors 6502a
Jun 5, 2014
727
298
the iris and iris pro are more than enough power for 90% of general consumer tasks. its only the (vocal) minority of power users that need the dGPU for video editing, gaming, cad, etc


saturnotaku

macrumors 68000
Mar 4, 2013
1,924
51
That doesn't mean a whole lot. There are 14in laptops as thin as a retina that have a Quadcore + a GPU better than the 15in retina.

I'm sure it's possible, just tricky.
Those systems are highly specialized and appeal to only a niche clientele. If Apple saw a business case for offering such a configuration, they would.


leman

macrumors G3
Oct 14, 2008
9,981
4,555
That doesn't mean a whole lot. There are 14in laptops as thin as a retina that have a Quadcore + a GPU better than the 15in retina.
And these laptops usually have the fraction of rMBPs battery life. Look at the teardown photos of the Razer Blade and the 13" rMBP and compare the size of the battery and the cooling system. So sure, it is possible, but you can't have it all. Good battery life is not important for a gaming laptop, but a MacBook is a jack of all trades, where its a different story altogether.

I think your are forgetting the nvidia equipped MacBooks and pros. 13" included.
The 13" MacBooks (Pro or not) never had a discrete GPU. They used to have integrated Nvidia GPUs, sure, which were quite good for that time.


SarcasticJoe

macrumors 6502a
Nov 5, 2013
599
207
Finland
That doesn't mean a whole lot. There are 14in laptops as thin as a retina that have a Quadcore + a GPU better than the 15in retina.

I'm sure it's possible, just tricky.
Have you ever tried using one? Because they're generally loud-as-hell and in a metal frame would become pretty uncomfortable to use. When you're doing anything even slightly heavier Apple's Macbook Pro line already runs too hot to be comfortably used on your lap without pants on and putting worsening the heat-to-dissipation-area ratio will only make it worse.


whitedragon101

macrumors 65816
Sep 11, 2008
1,233
253
Hmm I wonder if they could have Iris Pro in the 13".

It seems the 5200 is just a 5100 + the eDRAM. I'm not sure but I don't think the eDRAM would generate much heat but it does add cost. I suspect its the cost that keeps it in the high end quad core chips only. I think a mid level GPU i.e Iris Pro on a mid level CPU like the i5 in the 13" would be winning.

Iris 5100 = 40 execution units @ 200-1200Mhz
Iris 5200 = 40 execution units @ 200-1300Mhz + eDRAM
