working Mac Pro 5,1 DIAG lights burn when unit off

Discussion in 'Mac Pro' started by JJJoneser, Dec 18, 2014.

  1. JJJoneser, Dec 18, 2014
    Last edited: Dec 18, 2014

    JJJoneser macrumors newbie

    Joined:
    Dec 18, 2014
    Location:
    Missouri
    #1

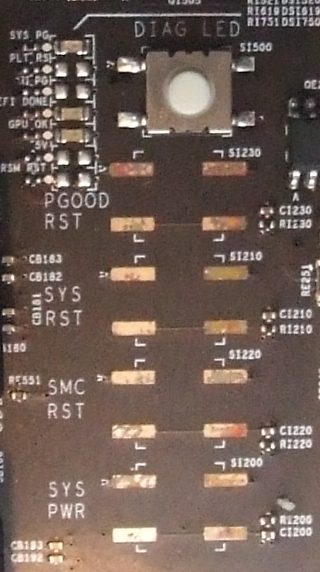

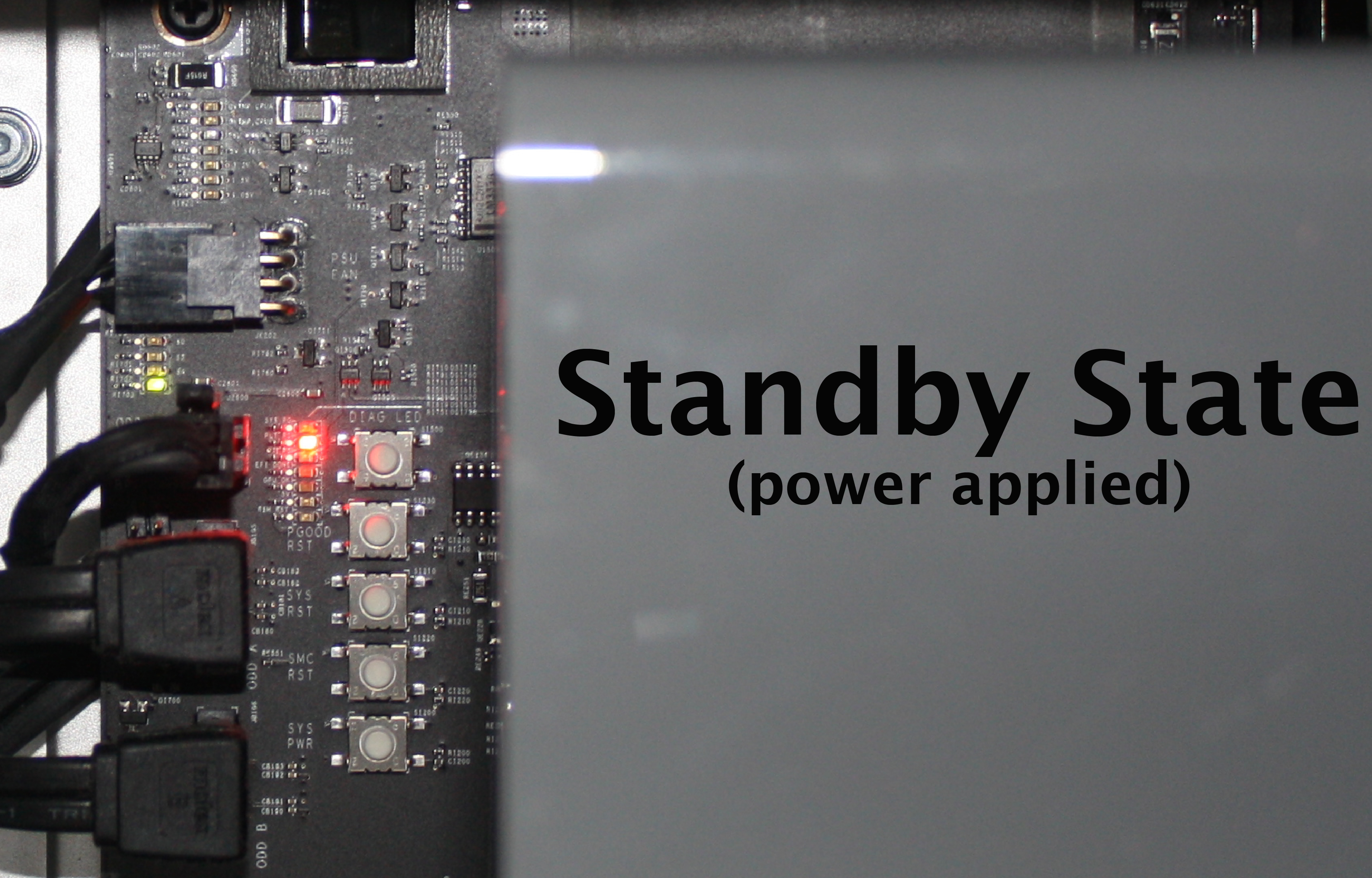

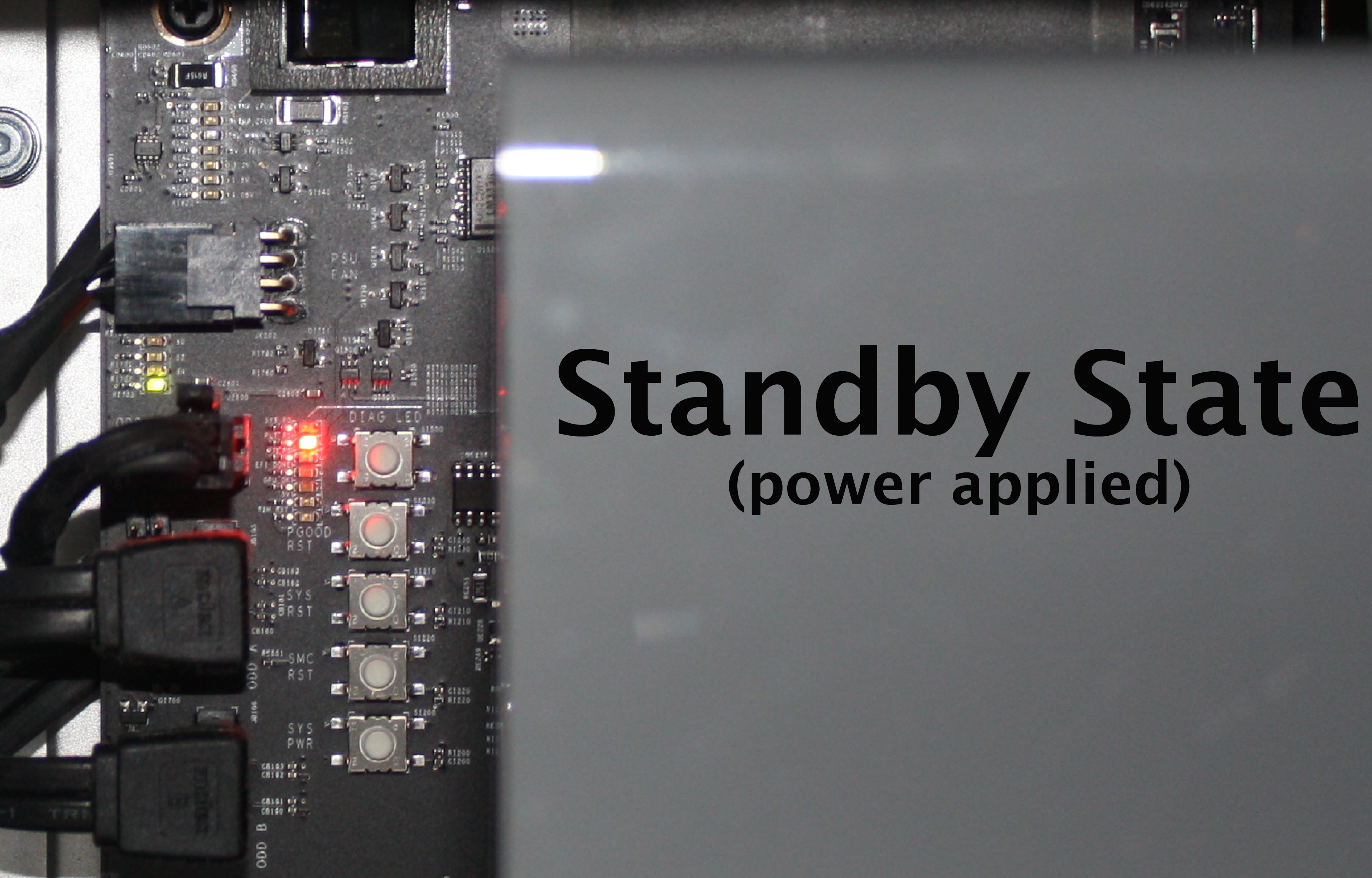

    hello. have an issue here. my newly acquired USED mac pro 5,1 runs perfectly; however, when the unit is NOT RUNNING (powered-off but plugged-in)… two status LED’S burn continuously: Green-LED on “S5”, and Red-LED “PLT RS” (the second LED down … two above the “EFI DONE” LED ... see attached pic). Then, when the unit has booted up… there are several green led’s two of which are on that same block as “EFI DONE” … but this time it’s the 3rd and 6th green lights (“X1 PG” and “5V”) or something like that). I've attached a jpg of the block I’m talking about … although the pic isn’t of my rig!

    Your opinion: IS THIS A POWER-SUPPLY RELATED PROBLEM? I've been searching internet for hours... and can't even find a FULL description of all the diag-lights and what they mean!!! Thanks for the feedback!!!

    Respectfully, Jay


    Attached Files:

  2. mikeboss macrumors 65816

    mikeboss

    Joined:
    Aug 13, 2009
    Location:
    switzerland
    #2
    google for apple technician guide mac pro (mid 2010) and the first hit should be the Service Guide PDF. pages 34 and following might be of interest for you. all of the LEDs are off on my machines. maybe the DIAG button on your logic board is stuck..?

  3. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #3
    Same suggestion by me.

    Anyway, your Mac Pro seems works fine, may be just press the DIAG button to check if it's stuck.

  4. m4v3r1ck macrumors 68020

    m4v3r1ck

    Joined:
    Nov 2, 2011
    Location:
    The Netherlands
    #4
    Handy-Candy-Guide! Thanks for sharing the link. ;)

  5. JJJoneser thread starter macrumors newbie

    Joined:
    Dec 18, 2014
    Location:
    Missouri
    #5
    Still missing my hero!

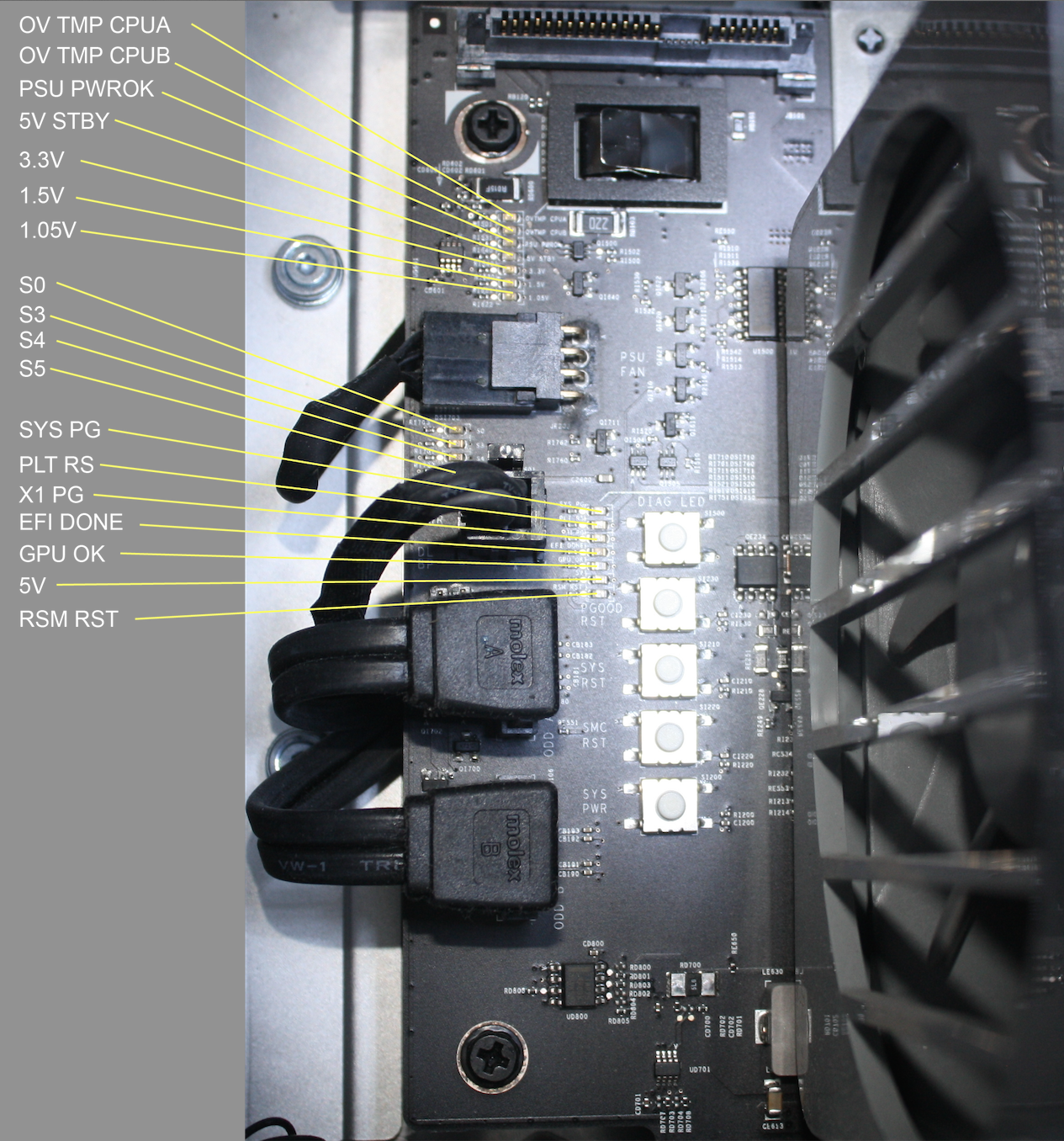

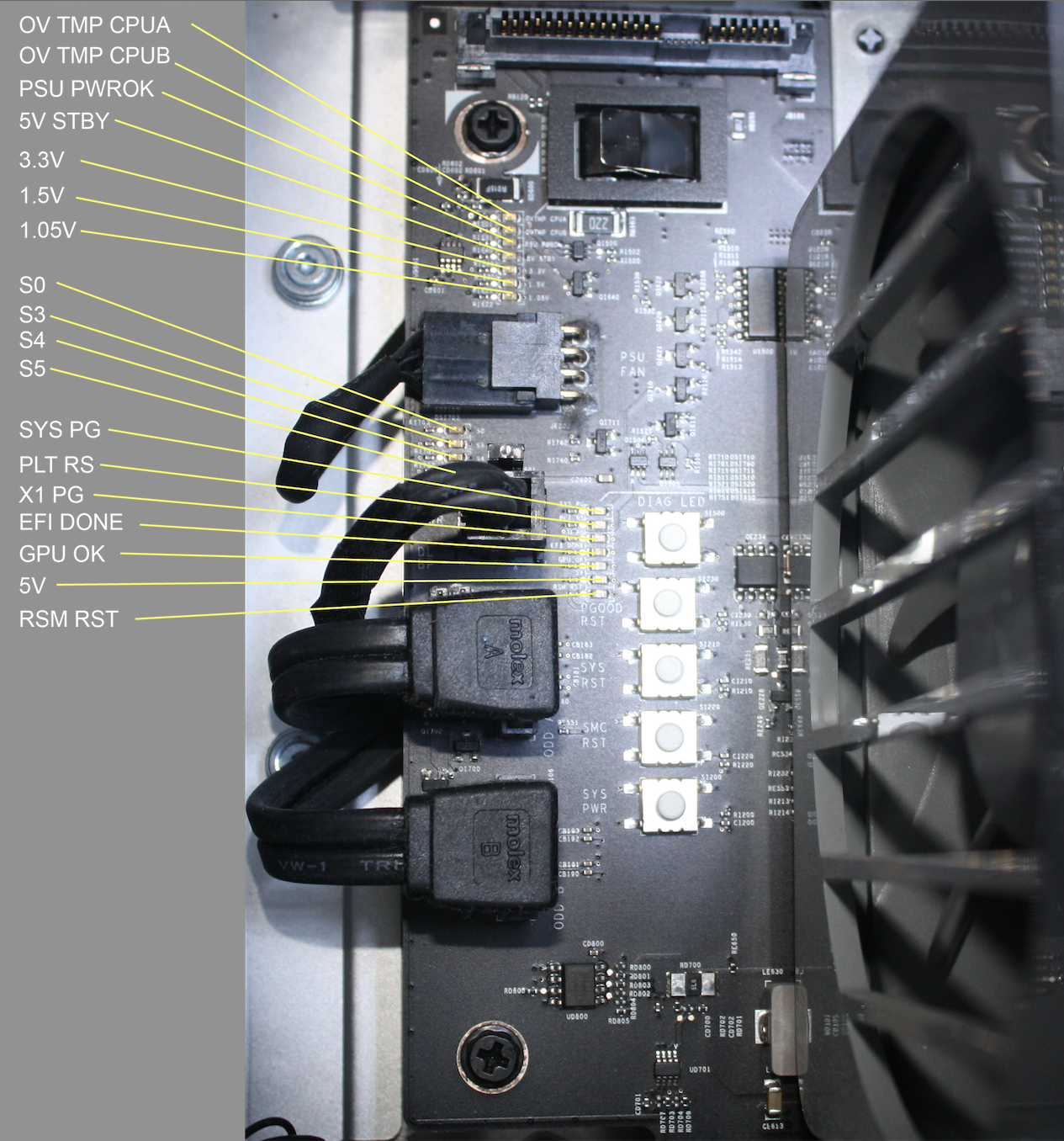

    THANK YOU to all that replied... BUT... I've already been through that. Here's the most complete image I've found (thanks to myself)... and I'm certain that parts of my annotation are incorrect. SURELY... SOMEONE has expertise with this subject enough to say "yay" or "nay"! Respectfully, jj


    Attached Files:

  6. mikeboss macrumors 65816

    mikeboss

    Joined:
    Aug 13, 2009
    Location:
    switzerland
    #6
    none of my Mac Pros (4,1 & 5,1) has this many buttons on the main logic board. maybe you do own a Mac Pro prototype without knowing it..?

  7. brand macrumors 601

    brand

    Joined:
    Oct 3, 2006
    Location:
    127.0.0.1
    #7
    Arrogant much.

  8. JJJoneser thread starter macrumors newbie

    Joined:
    Dec 18, 2014
    Location:
    Missouri
    #8
    Sigh; sorry if I've put others off because of my "arrogance"; :( I guess I'm over-expressing my frustration with my inability to locate ANY online documentation and expertise related to this matter. I'm a 55-yr-old that's never had this much trouble trying-to-find simple, straight-forward hunches or conjectures on what status-lights might indicate! I'd be HAPPY to eat all the arrogant words if anyone would PLEASE point me to some information.... or even innuendoes! (wink)

    BTW: I was told that this Mac Pro was used "as a server in an Apple store"; the Apple technician that sold me the unit stated that he's used the unit with the "Christmas lights" glowing for awhile. My main concern is that if nobody else has witnessed this behavior, and no online documentation exists explaining what the lights actually mean when glowing... then perhaps I have no business owning the device. Thanks for everyone's input... good, bad, or indeterminate.

    Respectfully, jj

  9. JJJoneser thread starter macrumors newbie

    Joined:
    Dec 18, 2014
    Location:
    Missouri
    #9

  10. JJJoneser, Jun 13, 2015
    Last edited: Jun 13, 2015

    JJJoneser thread starter macrumors newbie

    Joined:
    Dec 18, 2014
    Location:
    Missouri
    #10
    Hello; I'm just tagging this thread to THANK all of you that responded; my queries in the Apple community [last January] went without a single reply! :)
    https://discussions.apple.com/message/28396118#28396118

    I've recently determined that this device is INDEED an authentic Apple SERVER PROTOTYPE -- and that the observed behavior of the back-board status LEDs (expressed in my previous posts) precisely matches the specifications documented here: http://tim.id.au/laptops/apple/xserve/xserve_early2009.pdf

    Note that it was the ABSENCE of feedback from this board that fueled my persistence to HOLD ON to this device -- because if someone here doesn't know the answer -- chances are the experience is VERY MUCH UNIQUE! :)


    Attached Files:

  11. JJJoneser thread starter macrumors newbie

    Joined:
    Dec 18, 2014
    Location:
    Missouri
    #11
  12. JJJoneser thread starter macrumors newbie

    Joined:
    Dec 18, 2014
    Location:
    Missouri
  13. avkdm, Jul 7, 2015
    Last edited: Jul 7, 2015
  14. JJJoneser thread starter macrumors newbie

    Joined:
    Dec 18, 2014
    Location:
    Missouri
    #14
    before revising/deleting the post, at 18:23 on 7/7/2014 avkdm remarked: "Nice sales pitch, get people intrigued so they can look at purchasing your overpriced Mac Pro on EBAY. Did you come on this forum for advice or to attract buyers?"

    To which I reply:

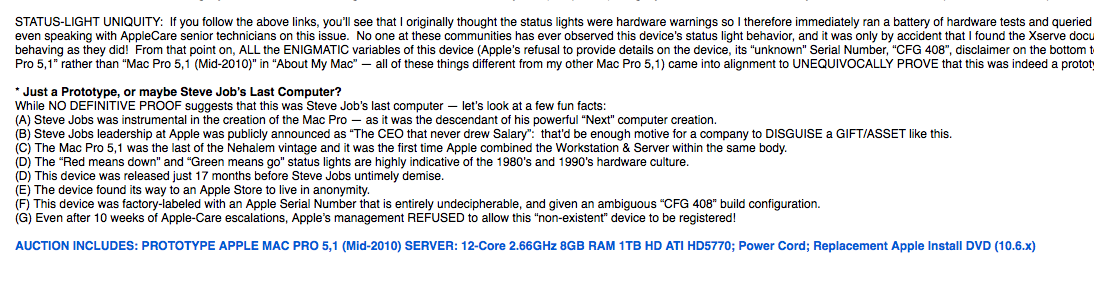

    Well, beside the fact that this thread has brought forth into common knowledge the technical insight that the majority of the Mac Pro 5,1 back-board status lights exist for a purpose they will never be used for — the only thing “intriguing” about wringing one’s hands for 6 months in belief that perhaps you have a DEFECTIVE and WORTHLESS scrap of hardware — is the IRONY that it took only PERSISTENCE & SHEER LUCK (as opposed to anyone's great wit and wisdom) to comprehend that the device is One-Of-A-Kind and MORE VALUABLE than an ordinary Mac Pro 5,1. I'm not a collector of rare uniquities, so that's why I'm selling.

  15. avkdm macrumors regular

    Joined:
    Feb 14, 2012
    #15
    I thought I might have been a bit harsh in my assumption, as the posts were six months apart so I deleted my comments not long after .... But since you are happy for everyone to see what I wrote, I will let others judge your drivel for themselves, on here and on EBAY. Your grandstanding about the origins of this computer on EBAY is astounding whether or not its based on fact.
    Just ask yourself one question - If its what you think it might be why wouldn't Apple buy it back off you or hadn't you thought of that yet?
    You can pay me a commission later.

  16. Lucas Godfrey macrumors 6502

    Lucas Godfrey

    Joined:
    Jul 12, 2010
    Location:
    Somewhere between Here and There
    #16

    You're asking for $7800? As a starting bid?
    HAHAHAH Oh christ my sides are in absolute orbit!!!
    How about you price it about 10% over the going rate for a normal 2010 12 core with a bent front foot?
    Good for my daily lol moment.:p

    --

    BUT WAIT, THERES MORE!
    i just read that you are making the suggestion in your listing that this could well have been Steve job's actual personal mac pro? AHAHAHAHAHA

    What on earth are you smoking!?

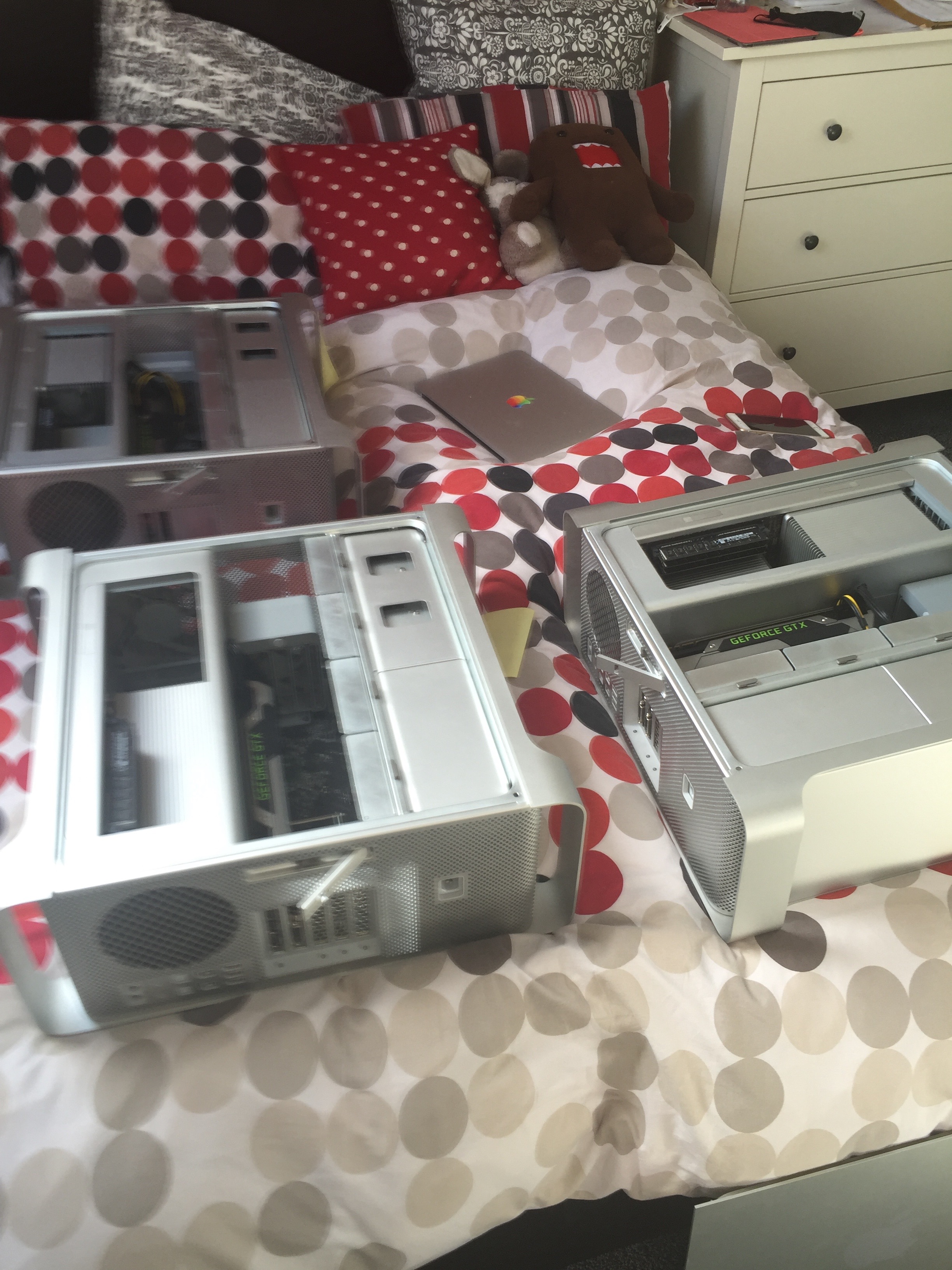

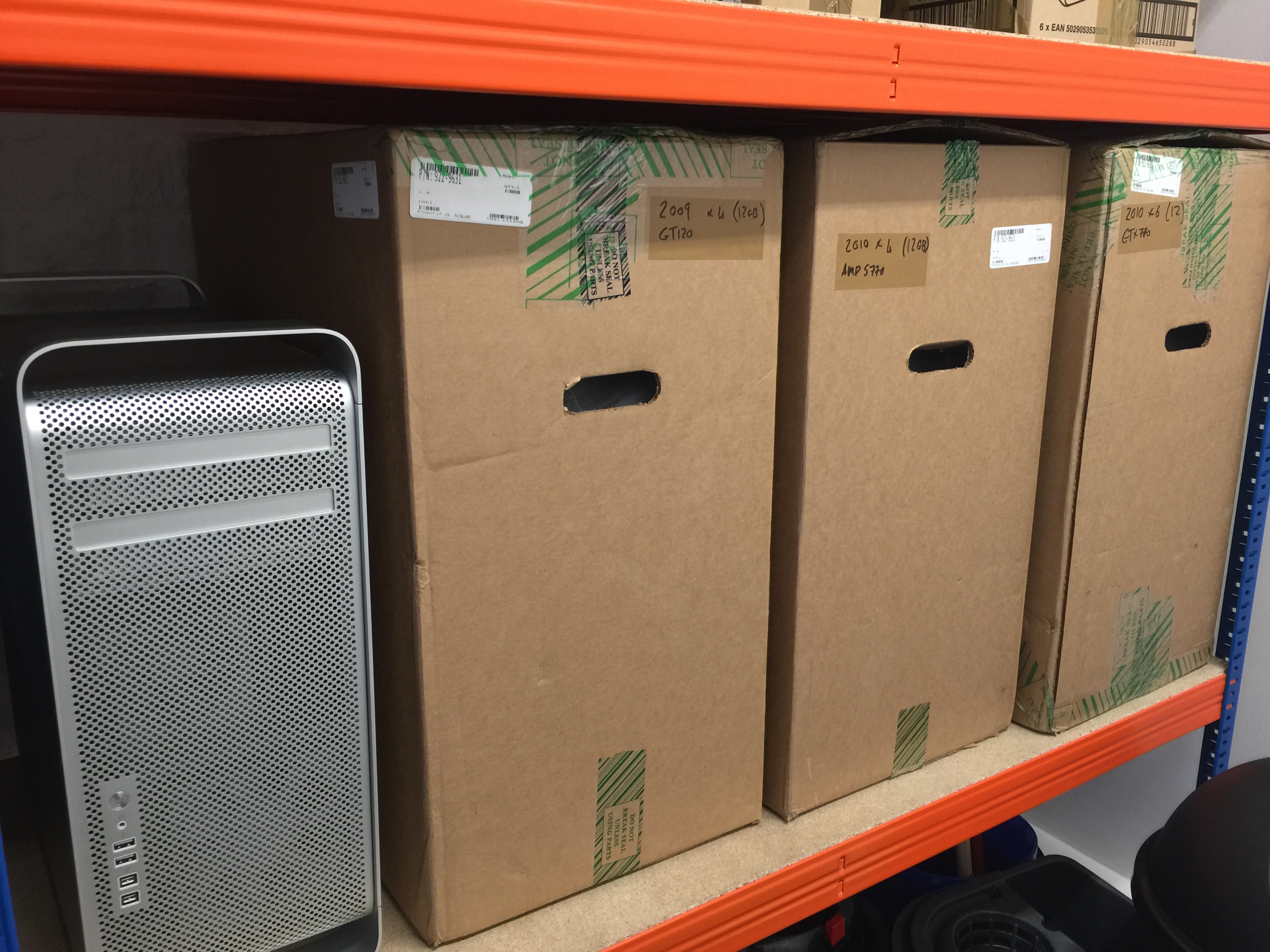

    Attached Files:
