Dear

I'm using a Mac Studio with latest Ventura release.
MacOS is showing me 5.4tb occupied space but I'm pretty sure it's not... I haven't done any recent action to increase the disk space used.

I downloaded and installed Disk Inventory X and pointed to the mentioned RAID the total allocated space is 3.8tb (this is what I expect).

By adding up the folders space showed the total amount from disk inventory x is 3.8tb. I used disk utility sos, removed spotlight indexing on the disk, restarted the system but nothing happen. I have around 1.6tb that I don't know where they are and where to look for.

Any hints on what to check? How do I force an update on disk space usage on external disk?

Thanks a lot.


CC88

macrumors 6502
Original poster
Sep 29, 2010
481
115
What does Disk Utility have to say about free space on RAID storage?
Hi thanks a lot for answering.

Disk Utility report 5.4tb used space and 2.6tb free space... I will give you screenshot asap.


CC88

macrumors 6502
Original poster
Sep 29, 2010
481
115
Here I am.

Below some screenshots from the system, disk utility and disk inventory x.

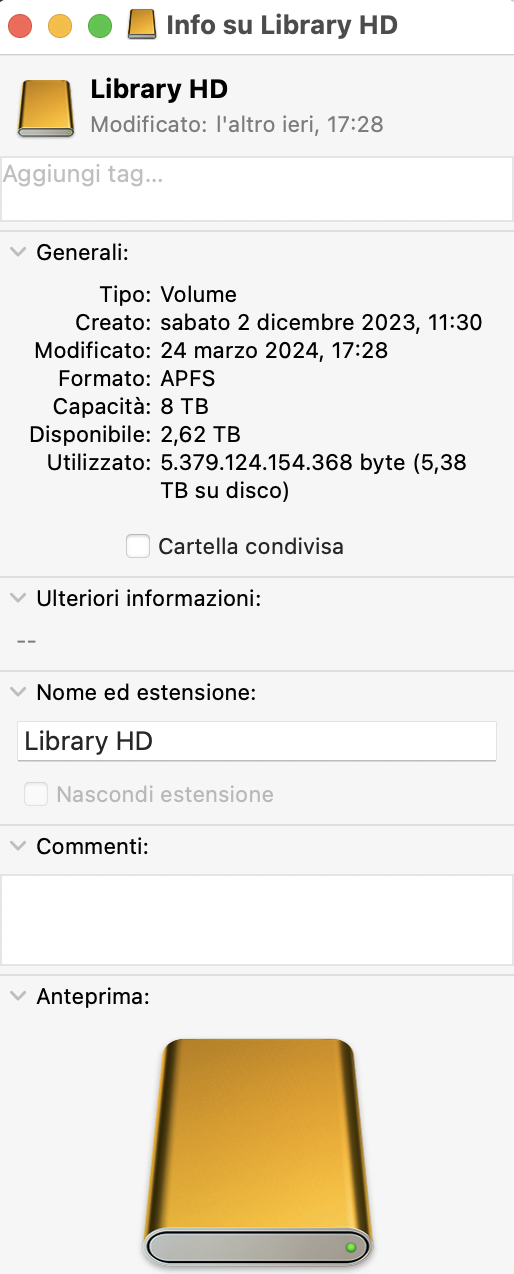

Info:

Screenshot 2024-03-26 alle 17.29.28.png

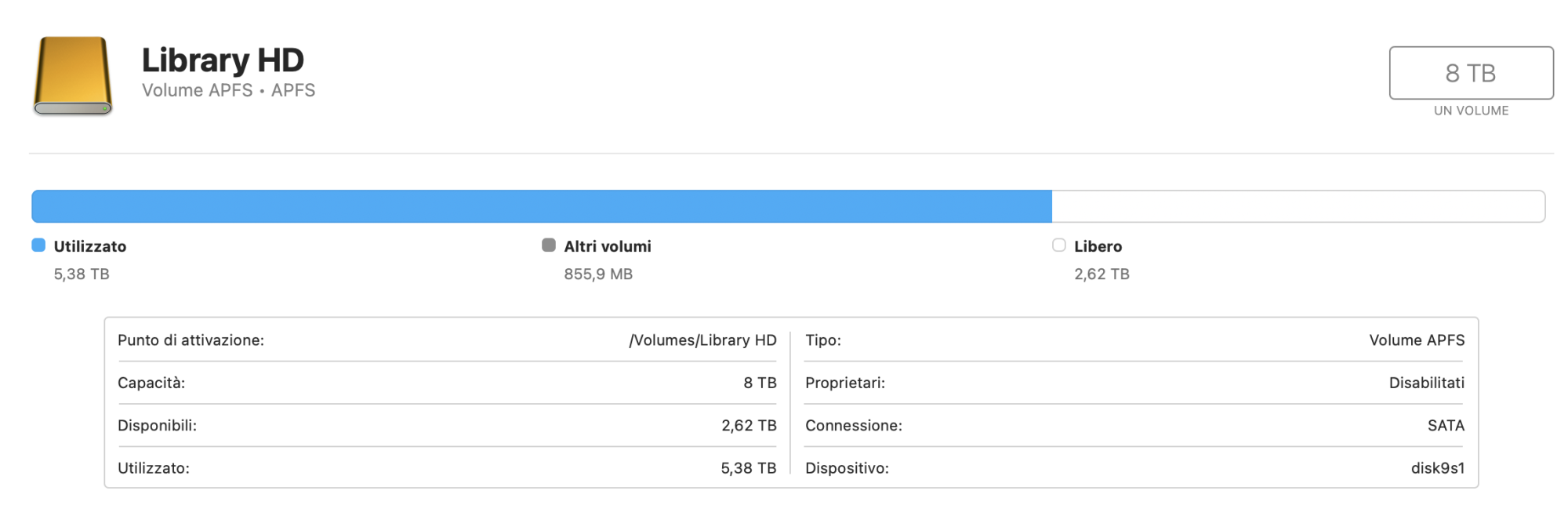

Disk Utility
Screenshot 2024-03-26 alle 17.30.00.png


Value showed by Disk Inventory X after program launch:
Screenshot 2024-03-26 alle 17.30.19.png

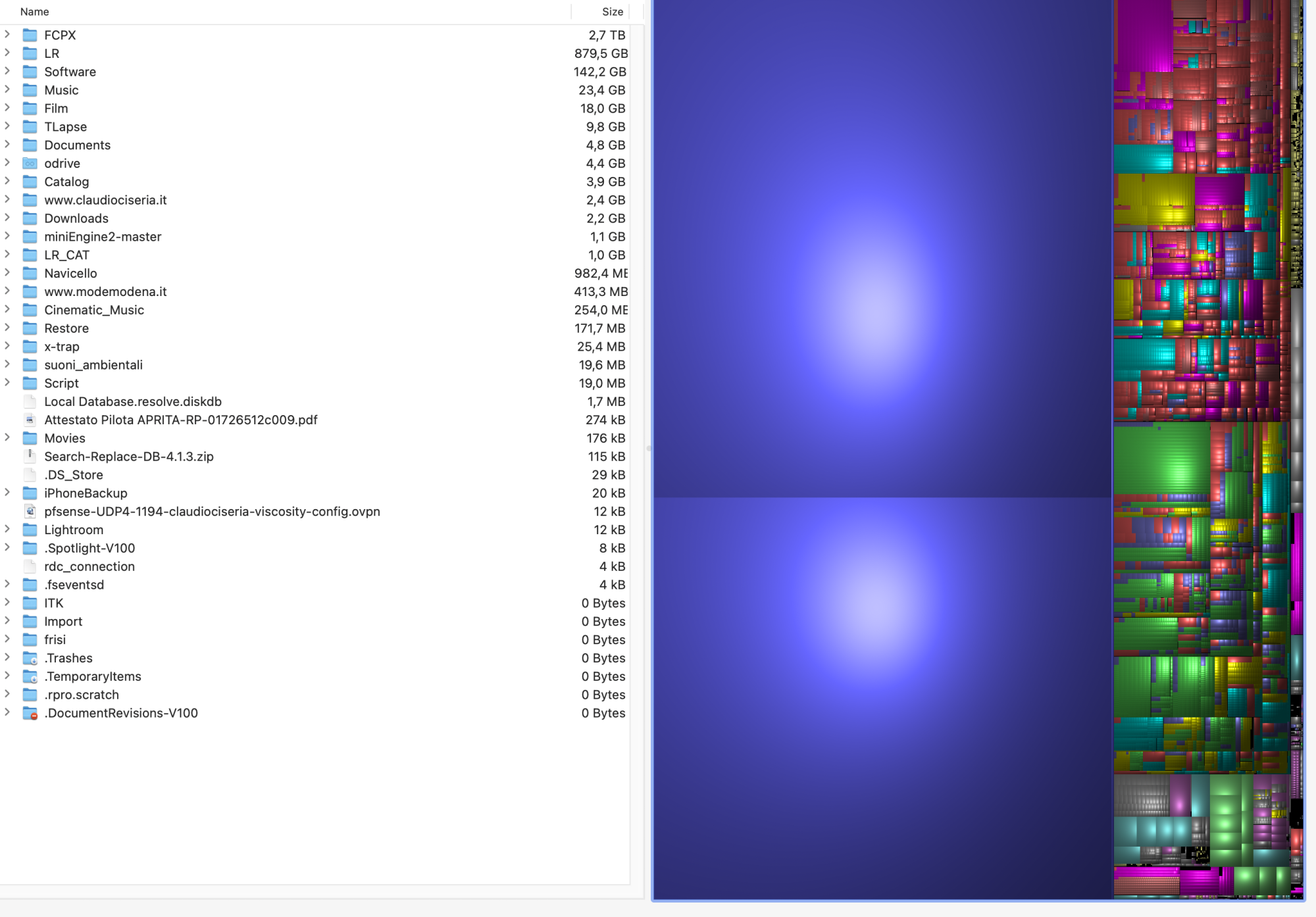

Disk Inventory X after scanning the drive. If you sum all the value showed the total amount can't reach 5.4tb of data. So I'm looking for around 1.4tb of data as a free space or a Disk Inventory X scan... Who is lying? Scanned size from Disk Inventory X or Finder?
Screenshot 2024-03-26 alle 17.30.54.png


Bigwaff

Contributor
Sep 20, 2013
2,091
1,400
In Disk Utility, select "Library HD". Now select menu.. View > Show APFS Snapshots. Are there any snapshots? Even though you may have deleted files, if the files are included in a snapshot, the files won't be truly deleted until the snapshot is deleted. Snapshots are used by Time Machine and other back up software.. like Carbon Copy Cloner. While you can delete snapshots, it's best to let macOS, Time Machine, and the software which created them, manage snapshot creation and deletion.

  • Like
Reactions: CC88

CC88

macrumors 6502
Original poster
Sep 29, 2010
481
115
Thank you very much.

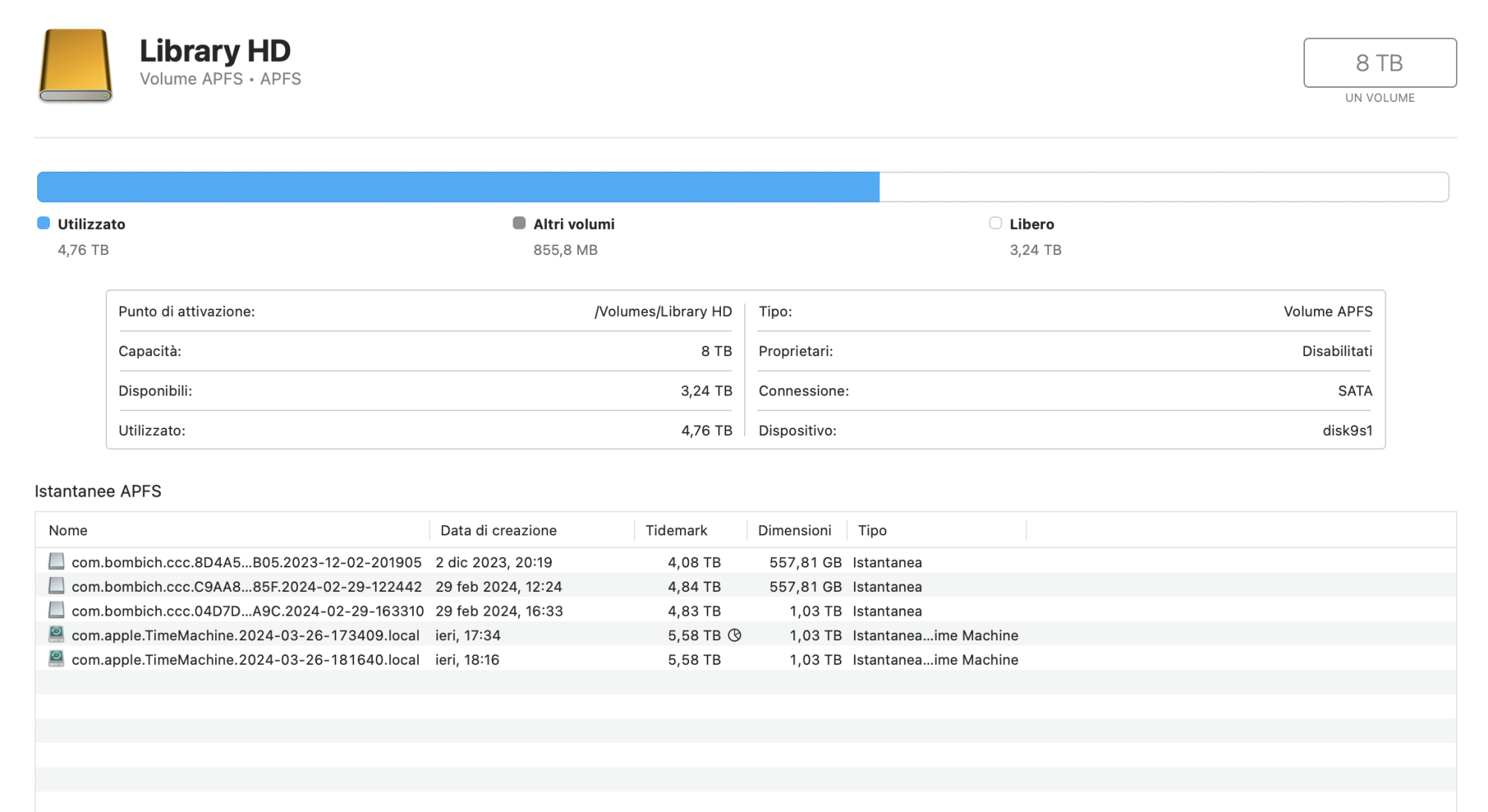

Below snapshot following your instruction. At time of writing the free space is now 3.24tb... I didn't use the machine from the previous screenshot with 2.62tb free.

Screenshot 2024-03-27 alle 21.01.09.png
