Wrong Motherboard.... Care To Help?

Discussion in 'iMac' started by stephenstud, Jul 2, 2014.

  1. stephenstud macrumors newbie

    Joined:
    Feb 10, 2009
    Location:
    Seattle
    #1

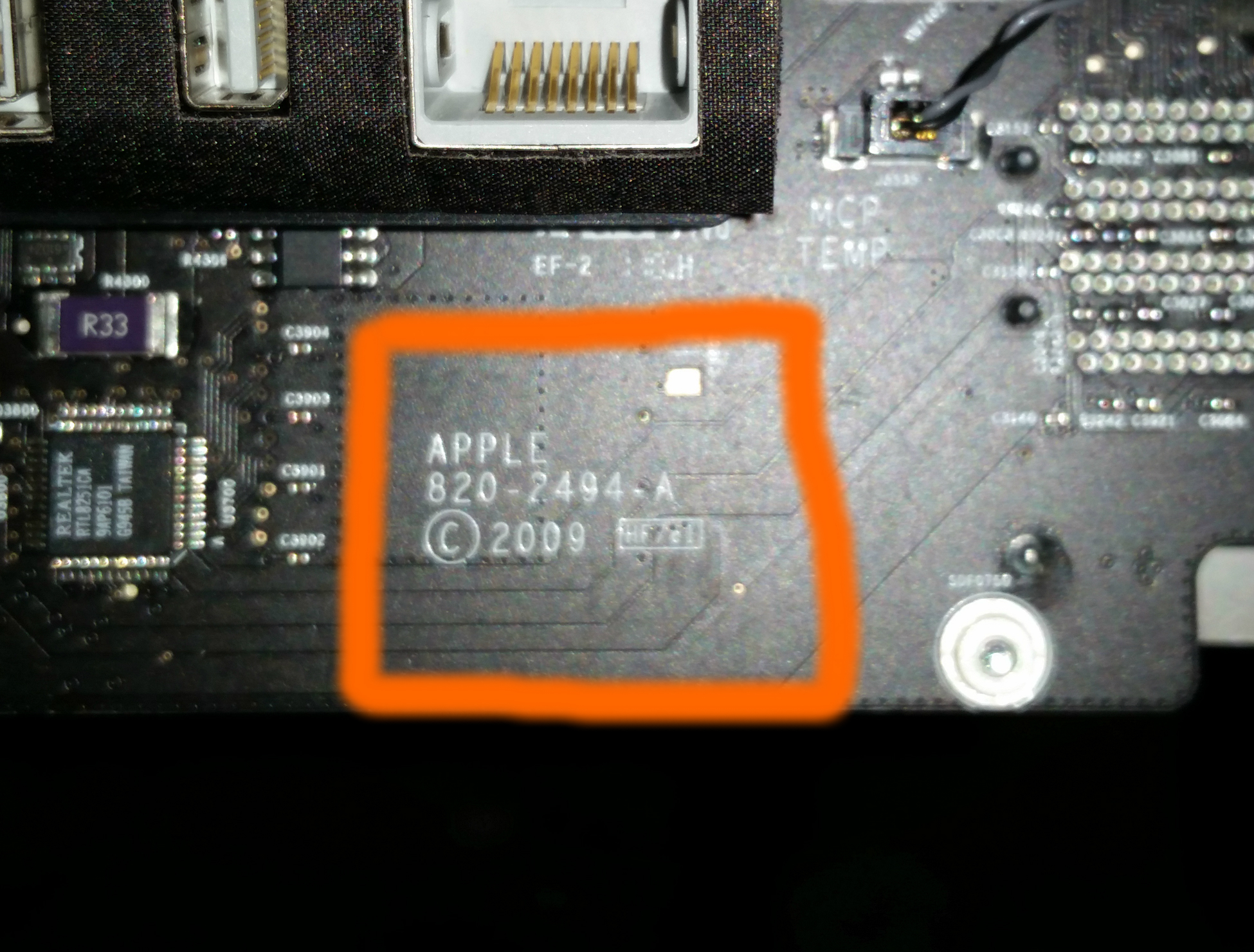

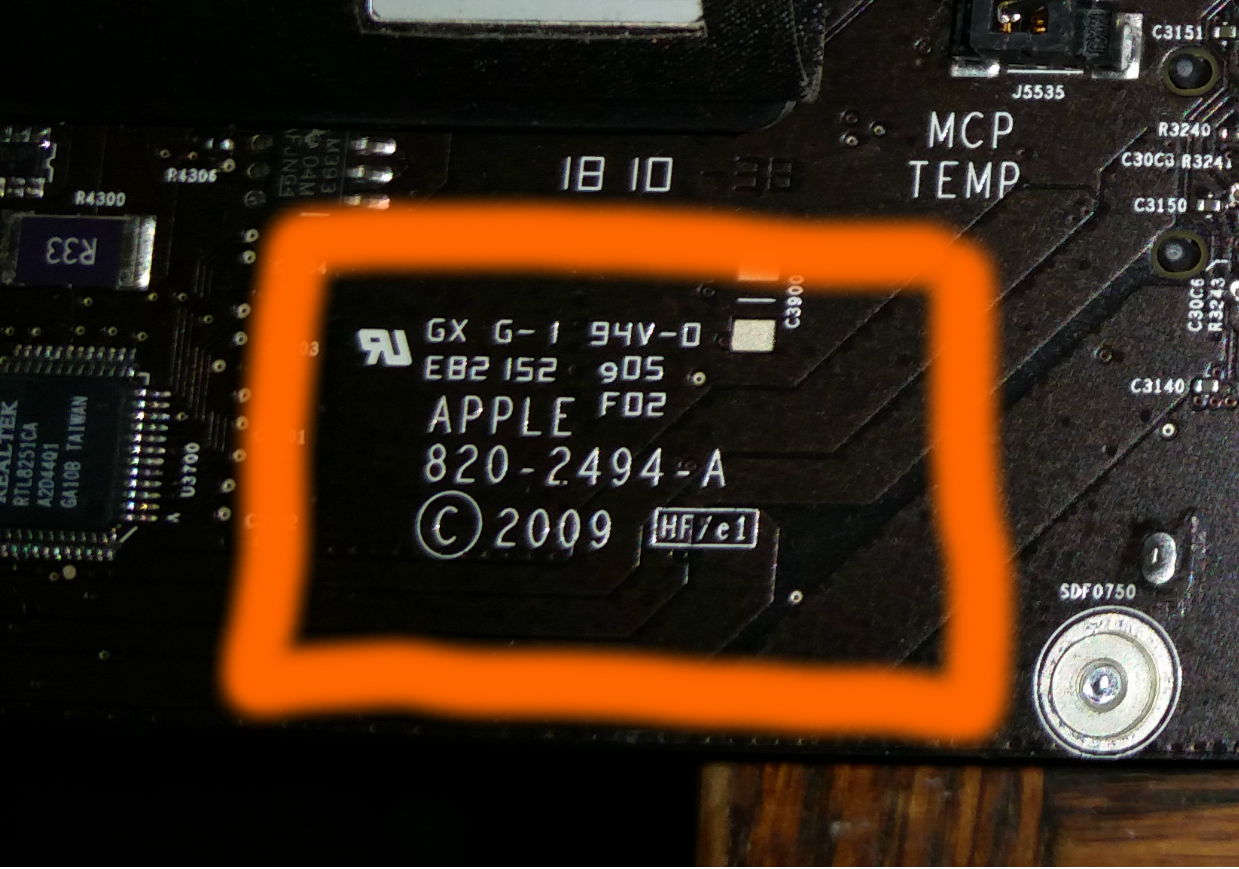

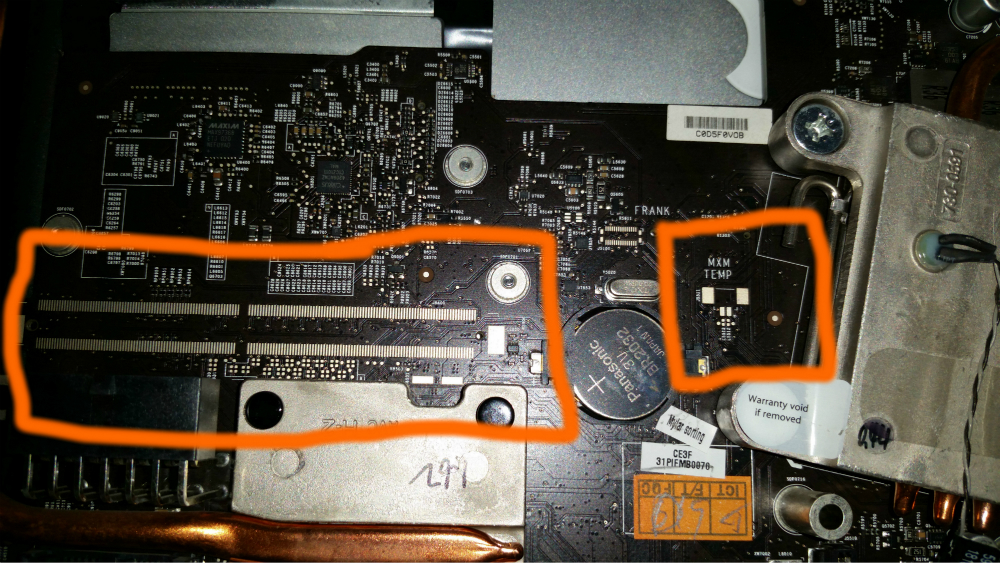

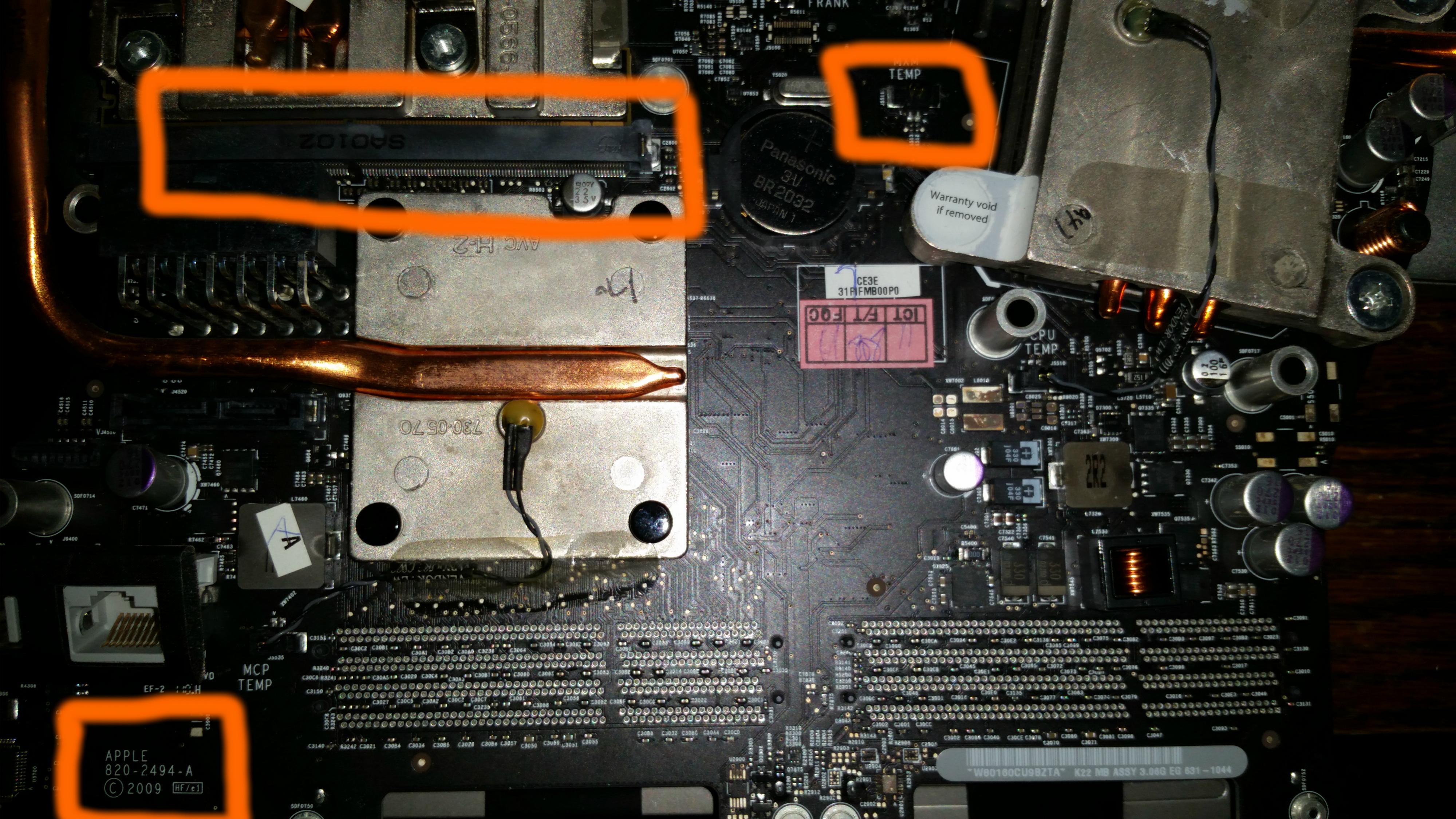

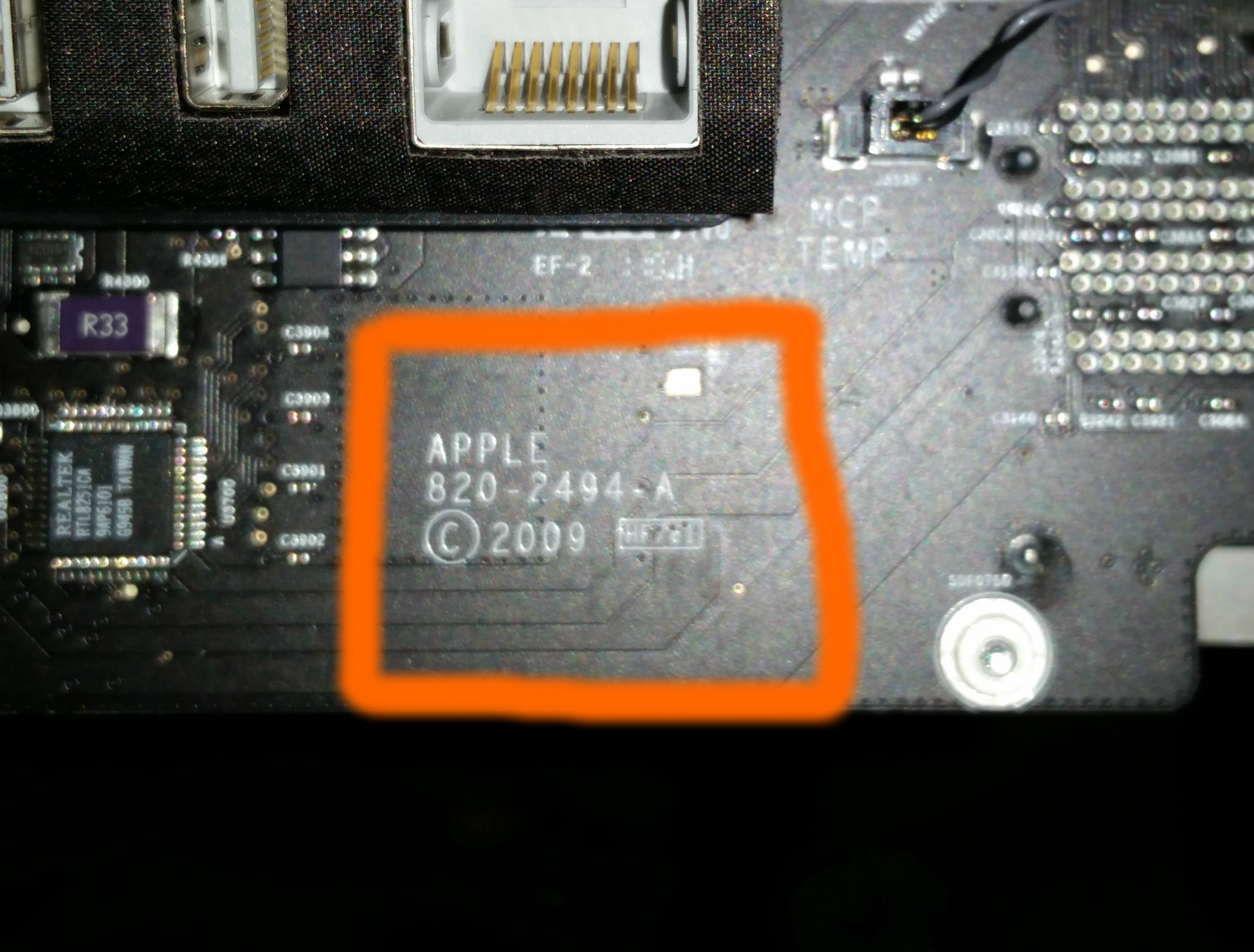

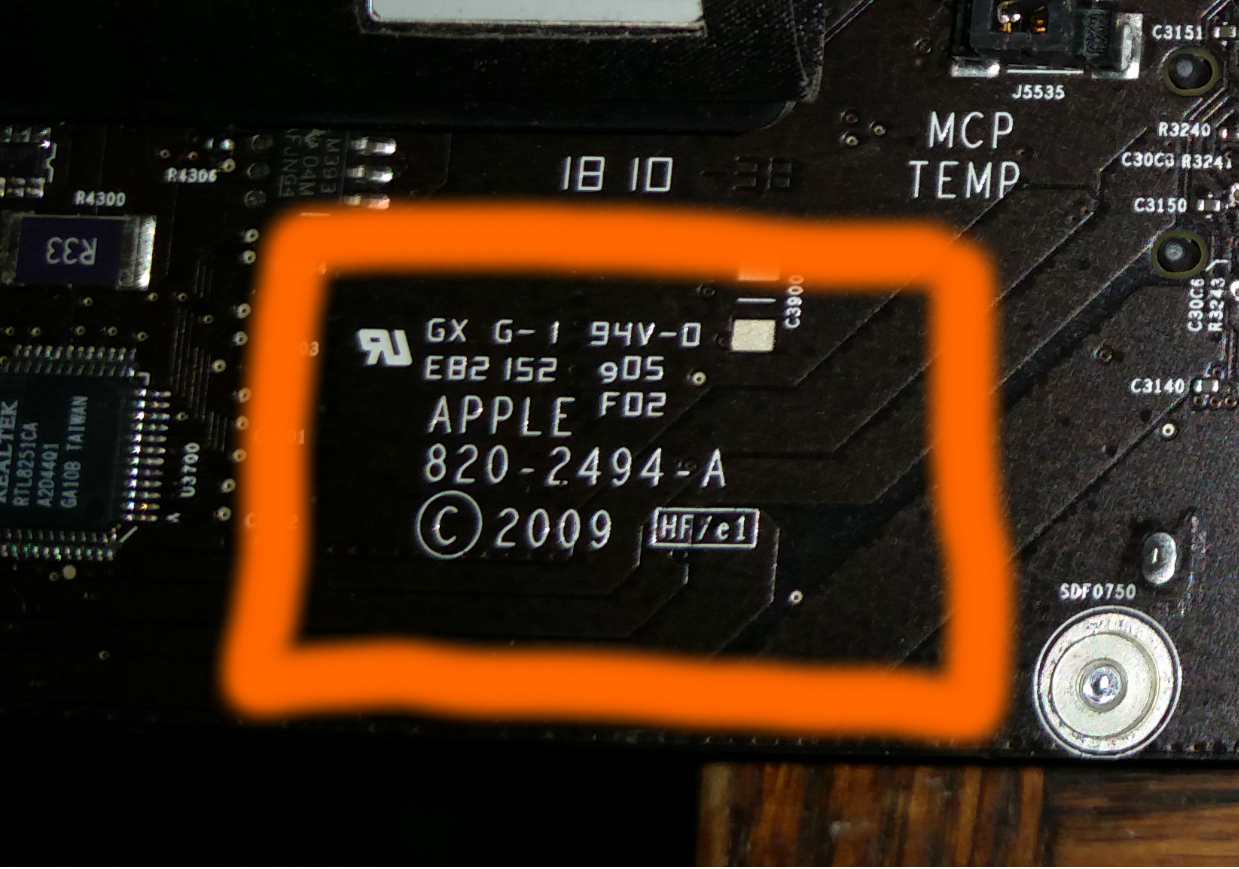

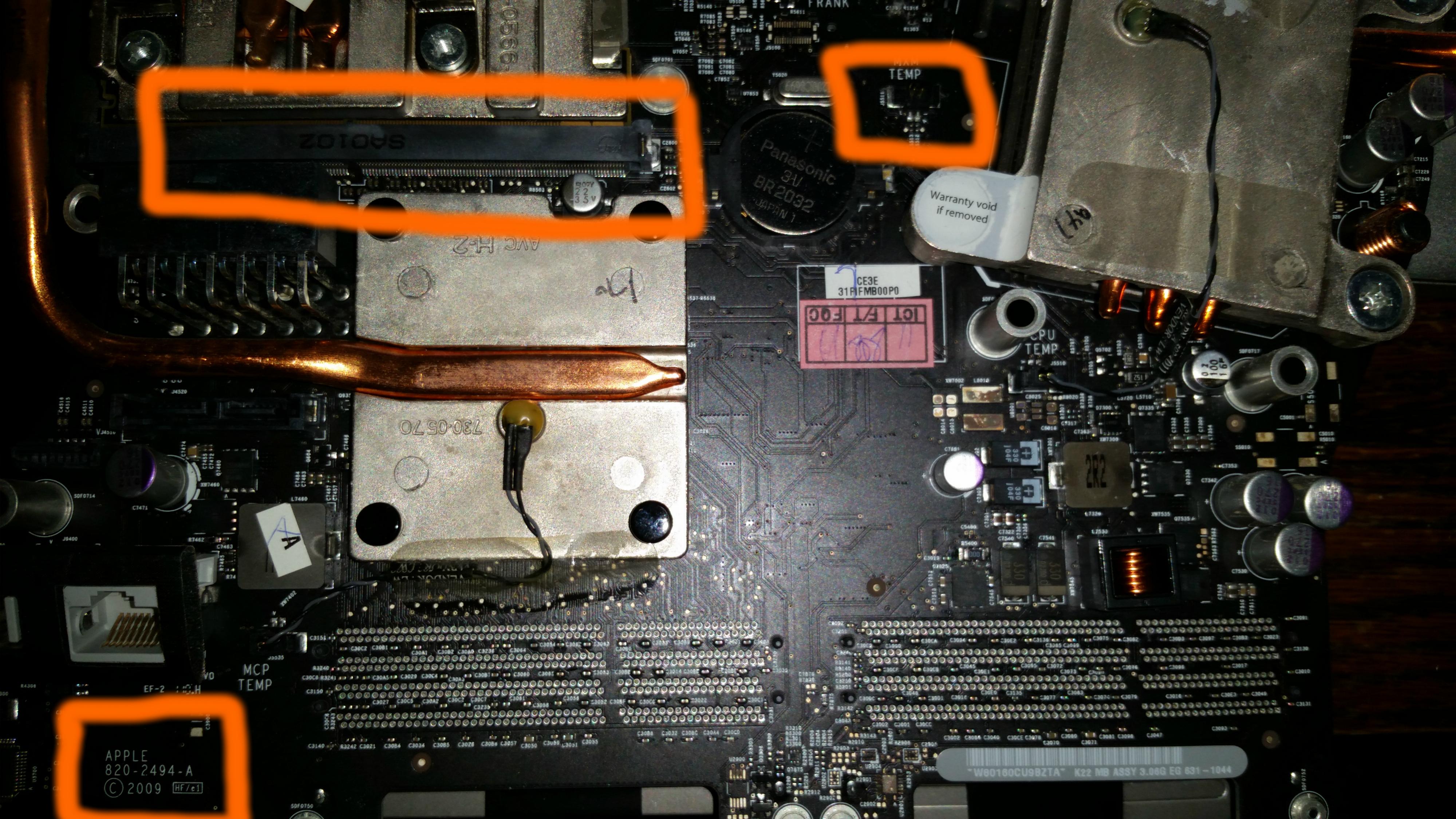

    Thank you for looking:) I have a friends iMac that I have worked on before. As you will see I have never replaced a logic board. I see that mac's are very specific on this. I did a lot of reading, at least I thought so. Everything seems to match up on the numbers, but its doesn't have the slot area or the temp sensor that I circled. Now I dont mind doing some soldering, but I think I just wasnt smart enough to read everything.... Would anyone care to chime in, and let me know what one I should have got? Thanks for any help.

  2. stephenstud, Jul 2, 2014
    Last edited: Jul 2, 2014

    stephenstud thread starter macrumors newbie

    Joined:
    Feb 10, 2009
    Location:
    Seattle
    #2
    Pics

    Sorry I forgot the most important part....


    Attached Files:
