16GB RAM modules

D

DeeEss

macrumors 6502a
Original poster
Jan 17, 2011
644
182
I'm considering 16GB RM Modules. 4 of them for my 3.3 6c Mac Pro for 48GB. I currently have 24GB

I could definitely use it as it's usually been gobbled up but I'm just wondering how much practical or real world difference there will be? I have a SSD Raid as a scratch for PS which seems to really pick up the pace when memory is running short.

Your thoughts?

Last edited:
DeeEss said:
I'm considering 16GB RM Modules. 4 of them for my 3.3 6c Mac Pro for 48GB. I currently have 24GB

I could definitely use it as it's usually been gobbled up but I'm just wondering how much practical or real world difference there will be? I have a SSD Raid as a scratch for PS which seems to really pick up the pace when memory is running short.

Your thoughts?
Click to expand...

I think you mean "3 of them" 16x3=48
So you get pages out? with PS How big are your files?
RAM is waaaaaaay faster than ssd

Why not try adding another 8 first? There really isn't a real world difference in performance between triple and dual channel memory. I'm also not certain that it will support that much, although it probably would.

JavaTheHut said:
I think you mean "3 of them" 16x3=48
So you get pages out? with PS How big are your files?
RAM is waaaaaaay faster than ssd
Click to expand...

Sorry, yes I meant 3. Files are massive, they come from a 60MP camera. You have a few of them open and it chews up the RAM. I need to keep them open when retouching so as a story of images they can be all balanced together.

alust2013 said:
Why not try adding another 8 first? There really isn't a real world difference in performance between triple and dual channel memory. I'm also not certain that it will support that much, although it probably would.
Click to expand...

Hmmmm...from what I read. Using the 4th slot slows things down a fair bit? Money is not really an issue here as it's a Tax Deduction.

philipma1957 said:
sit and stare at the activity monitor see the page outs. going from 24gb ram to 32gb ram may be enough. lot less then buy 3 sticks at 200 each
Click to expand...

Thanks. How do I look for Page Outs? I have just been going on available RAM.

Using the 4th slot is not going to slow things down to any degree you'll notice.

If you used the 4th slot for a 32MB ram chip (which they don't make anymore), then you'd notice a difference.

The performance boost of an additional 8GB of ram (assuming you'll use that much ram) will more than offset any performance hit from using the 4th slot.

DeeEss said:
Sorry, yes I meant 3. Files are massive, they come from a 60MP camera. You have a few of them open and it chews up the RAM. I need to keep them open when retouching so as a story of images they can be all balanced together.

Hmmmm...from what I read. Using the 4th slot slows things down a fair bit? Money is not really an issue here as it's a Tax Deduction.


Thanks. How do I look for Page Outs? I have just been going on available RAM.
Click to expand...

If money is no problem Hell go for the 3x16GB sticks I believe that the MAX you can go at this point is 3x16GB and OWC approves that config.

I read that the 4th slot penalty "out of tri channel config" is only about 2%~3% which is negligible compared the gain out of another +8GB if you went that route 4x8GB sticks.

Open Activity Monitor in Utilities to see the real world RAM usage.

----------
DeeEss said:
I have a SSD Raid as a scratch for PS
Click to expand...

Oh by the way how big is the SSD array 2x ? you should use that as a work area for speed

philipma1957 said:
sit and stare at the activity monitor see the page outs. going from 24gb ram to 32gb ram may be enough. lot less then buy 3 sticks at 200 each
Click to expand...

Agreed: 32GB (4x8GB) will run just under $300 and 48GB (3x16GB) is currently $600.

cheers
JohnG

DeeEss said:
...


Thanks. How do I look for Page Outs? I have just been going on available RAM.
Click to expand...
SEE MY THUMBNAIL

I have 660 mb page ins and 0 page outs. 32gb ram is more then enough for me.


Attachments

  • Screen shot 2011-10-28 at 6.01.47 PM.png
    Screen shot 2011-10-28 at 6.01.47 PM.png
    834.9 KB · Views: 163

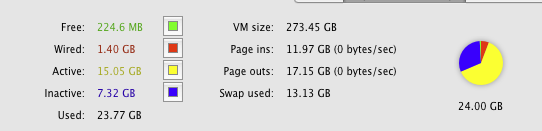

Hmmm...for me, 17GB of pages outs with 24GB of RAM.


Attachments

  • Screen Shot 2011-10-30 at 01.09.06.png
    Screen Shot 2011-10-30 at 01.09.06.png
    18.5 KB · Views: 85
netvis said:
Check this page:
http://macperformanceguide.com/Reviews-OWC-16GB-MacPro-ClockSpeed.html
Click to expand...

Thanks

This link is interesting too:
http://macperformanceguide.com/Reviews-OWC-16GB-MacPro-6core.html

So it seems, for tasks that 24GB is best when it's enough. But for times when the RAM is needed 48GB obviously kills the 24GB.

My work load is getting bigger all the time so I think I'm going to spring for the 48 as its also a tax deduction. That also means I won't have to close down all my other apps like Capture One and Lightroom etc while retouching.

Last edited:
Another thought is if you go 4x16GB and create a RAMDisk of 16GB as a scratch disk this may be advantages... but I can not say for sure if creating the RAMDisk leaves 3x16GB to remain isolated for best performance ie. 'Tri-Channel'. You would be a guinea pig unless someone here who knows more on memory matters can enlighten us. The RAMDisk speeds would be very fast comparable to 4SSD's in a stripe raid.

The ram would still be dual-channel. The RAM drive is at a higher level.

Would make more sense to use the 16GB as actual ram, and avoid swapping in the first place.

JavaTheHut said:
Another thought is if you go 4x16GB and create a RAMDisk of 16GB as a scratch disk this may be advantages... but I can not say for sure if creating the RAMDisk leaves 3x16GB to remain isolated for best performance ie. 'Tri-Channel'. You would be a guinea pig unless someone here who knows more on memory matters can enlighten us. The RAMDisk speeds would be very fast comparable to 4SSD's in a stripe raid.
Click to expand...

may not be stable someone had issues with 64gb in a sp cpu 48gb will work

I am going to give you some suggestions. First I'd like to know what your photoshop preferences look like. If you don't limit photoshop somewhat on how much ram it can use, it will starve the OS. Generally the default 70% is fine. Things which are cached from photoshop aren't included in this 70%. It's just the amount it addresses directly. Turn off thumbnails on all palettes. Close out the navigator and histograms. Assign a dedicated scratch drive. Keep your history settings low (under 20) or purge when you save a file.

This should help considerably :) I've dealt with plenty of files that size and larger.
