Anyone know the part number of the 1Tb SSD/flash storage module in the new Mac Pro (late 2013)? Do you know if they are the same part used in the late 2013 MacBookPro Retina? Some have appeared for sale that claim to work in both, I want to be sure before purchasing. The part number is listed as MZ-KPU1T0T/0A2 manufactured by Samsung.


TjeuV

macrumors 6502
Dec 14, 2011
306
4
Belgium
Anyone know the part number of the 1Tb SSD/flash storage module in the new Mac Pro (late 2013)? Do you know if they are the same part used in the late 2013 MacBookPro Retina? Some have appeared for sale that claim to work in both, I want to be sure before purchasing. The part number is listed as MZ-KPU1T0T/0A2 manufactured by Samsung.

Isn't it so that there's similar but yet different sockets so it won't fit in the new mac pro?


AndyUnderscoreR

macrumors 6502
Jul 11, 2008
261
200
It's definitely not the same part, if you look at the teardowns on ifixit you'll see the connectors are totally different.

It seems (judging by the use of 4 PCI lanes, the extra speed and the presence of about twice the number of pins) that the nNP SDD is doing something vaguely RAID-like to get extra performance.


Mike Biggen

macrumors member
Jun 23, 2010
53
0
The nMP doesn't have a 1 Terabit (Tb) drive option. No idea what the part number is for the Terabyte (TB) drive though.


dysert

macrumors regular
Original poster
Sep 4, 2006
133
8
Yes there is a 1TB PCIe SSD flash option for nMP

The nMP doesn't have a 1 Terabit (Tb) drive option. No idea what the part number is for the Terabyte (TB) drive though.

In looking at the pictures on line of the late 2013 MacBook Pro Retina SSD modules it is not obvious there are physical/connector differences. The part is on ebay and the seller is in Austin.


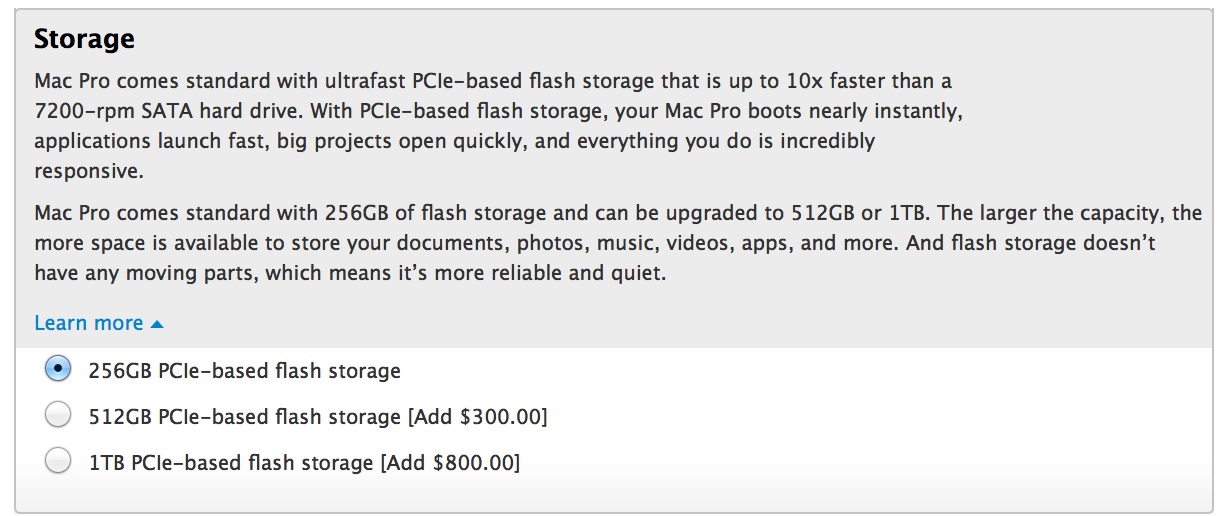

Attachments

  • PCIe storage.jpg
    PCIe storage.jpg
    155.8 KB · Views: 634

Mike Biggen

macrumors member
Jun 23, 2010
53
0
You missed my point which was that terabit (Tb) and terabyte (TB) are two completely different things. Capitalization matters.


TjeuV

macrumors 6502
Dec 14, 2011
306
4
Belgium
You missed my point which was that terabit (Tb) and terabyte (TB) are two completely different things. Capitalization matters.

You missed the point where your remark was totally irrelevant. You understood what he was trying to say. If you're going to reply on every typo you see in every topic ... This is just getting typical for some macrumors users.


deconstruct60

macrumors G3
Mar 10, 2009
9,622
2,118
....
It seems (judging by the use of 4 PCI lanes, the extra speed and the presence of about twice the number of pins) that the nNP SDD is doing something vaguely RAID-like to get extra performance.

The top end speed of the MP 2013's 1 TB SSD is indicative of them using 4 PCIe v2 lanes. The rMBP probably doesn't have 4 PCIe v2 lanes to provision its SSD with (if not 'stealing' lanes from GPU). So even if the rMBP SSD fit ( leaving 2 lane pins empty ) the capacity with be the same but the speed would not. ( if the c602 chipset doesn't mind two pins being 'dark' it may work; just slower. )

As for something RAID-like, if any SSD has similar write and read speeds then that means the SSD is doing something "RAID-lke". Flash write speeds are dramatically asymmetric from read speeds. The primary way to even them out is to do RAID-like work-arounds. About every SSD the Apple sells in BTO configs is doing RAID-like implementation.

Last edited:

Mike Biggen

macrumors member
Jun 23, 2010
53
0
You missed the point where your remark was totally irrelevant. You understood what he was trying to say. If you're going to reply on every typo you see in every topic ... This is just getting typical for some macrumors users.

It isn't merely a typo, it's a completely different number. Same thing when discussing internet connections or anything else using SI units. A connection capable of 5MB/sec is quite decent. 5Mb/sec is much less decent. A millilitre of water (mL) is far from a megalitre (ML). You'd think that such matters would be entirely relevant on a site focused on technology.


deconstruct60

macrumors G3
Mar 10, 2009
9,622
2,118
In looking at the pictures on line of the late 2013 MacBook Pro Retina SSD modules it is not obvious there are physical/connector differences.

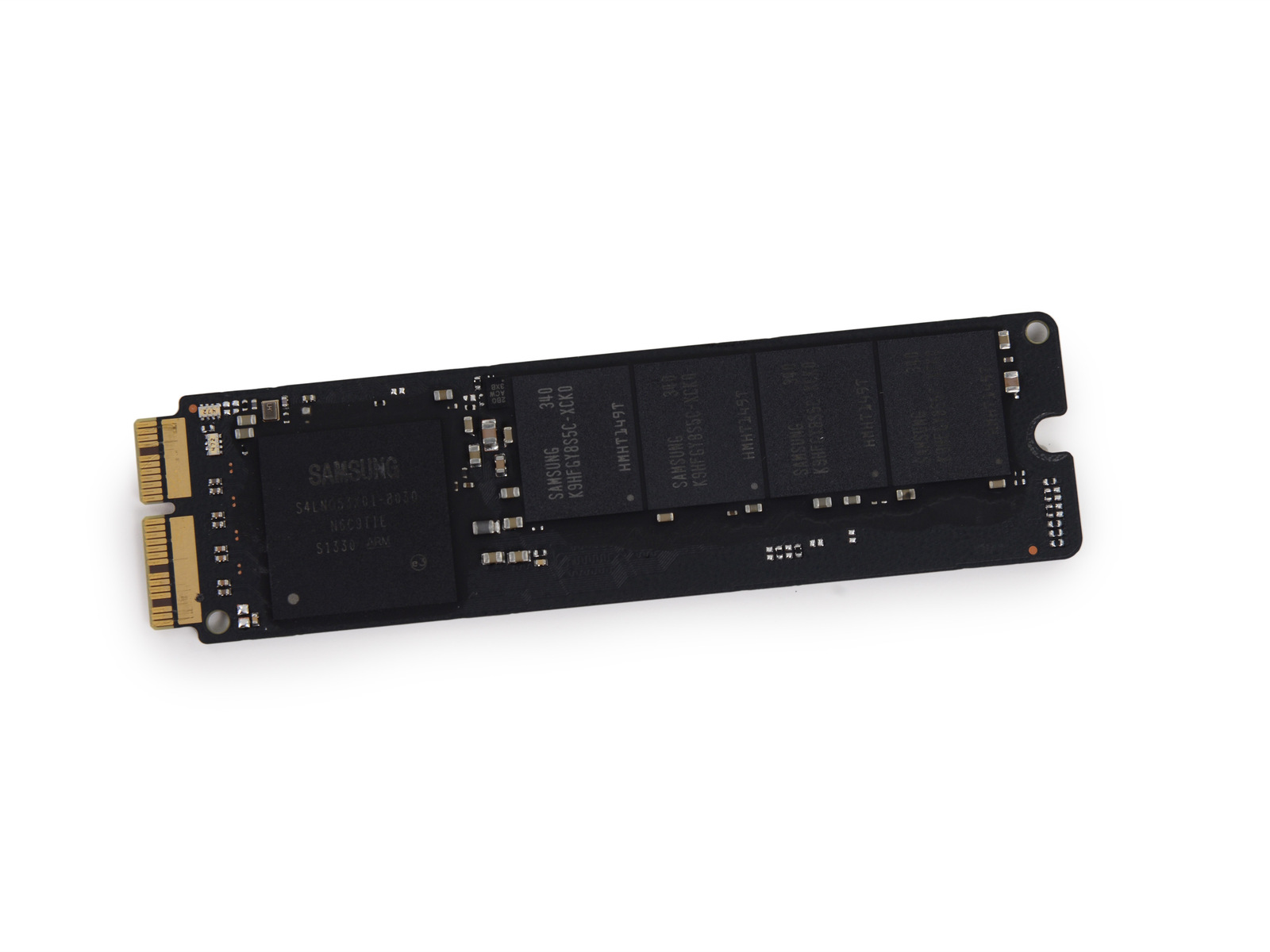

They do look the same number of pins (on both sides).

pJJEl35eTGDCapbU.huge

http://www.ifixit.com/Teardown/MacBook+Pro+15-Inch+Retina+Display+Late+2013+Teardown/18696/

yFKA62gfKhgwVbvT.huge

http://www.ifixit.com/Teardown/Mac+Pro+Late+2013+Teardown/20778


There doesn't have to be connector differences for there to be performance differences. Two sources.

A. the PCIe connection is different. They may share connectors but the rMBP may not connect all of the PCIe pins. Apple gets a common part/design that is adjusted for each device.

B. The flash controller is likely different. That can substantively influence performance. For example all 2.5" SATA SSDs have the same connector but not the same performance.


CH12671

macrumors 6502
Dec 29, 2013
350
0
Southern US
It isn't merely a typo, it's a completely different number. Same thing when discussing internet connections or anything else using SI units. A connection capable of 5MB/sec is quite decent. 5Mb/sec is much less decent. A millilitre of water (mL) is far from a megalitre (ML). You'd think that such matters would be entirely relevant on a site focused on technology.

The point is that a 1 Tb hdd doesn't exist...therefore, no need to point out a meaningless semantical error. Had both 1 TB AND 1 Tb hdd's exist, you would have a valid point.


Weaselboy

Moderator
Staff member
Jan 23, 2005
31,803
11,496
California
It isn't merely a typo, it's a completely different number. Same thing when discussing internet connections or anything else using SI units. A connection capable of 5MB/sec is quite decent. 5Mb/sec is much less decent. A millilitre of water (mL) is far from a megalitre (ML). You'd think that such matters would be entirely relevant on a site focused on technology.

Everybody knew exactly what the OP meant.


deconstruct60

macrumors G3
Mar 10, 2009
9,622
2,118
The point is that a 1 Tb hdd doesn't exist...

1,000Gb / 8 => 125GB which is pretty close to 128GB. It would be odd to refer it, or any other modern persistent storage drive, that way, but drives of approximately that capacity are around. But given storage drives are almost always in bytes, it is sloppy but not indecipherable.


CH12671

macrumors 6502
Dec 29, 2013
350
0
Southern US
1,000Gb / 8 => 125GB which is pretty close to 128GB. It would be odd to refer it, or any other modern persistent storage drive, that way, but drives of approximately that capacity are around. But given storage drives are almost always in bytes, it is sloppy but not indecipherable.

When you find yourself in a hole, you should quit digging!:cool:


rw3

macrumors 6502a
May 13, 2008
679
41
DFW, TX
Apple Part Number
15" Retina (Late 2013) 1TB PCIe SSD - 661-8142
Mac Pro (Late 2013) 1TB PCIe SSD - 661-7540

From what I understand, the 1TB PCIe SSD from the Late 2013 15" rMBP is a 4x PCIe card.


dysert

macrumors regular
Original poster
Sep 4, 2006
133
8
That's what they told me at the Apple Store today

Apple Part Number
15" Retina (Late 2013) 1TB PCIe SSD - 661-8142
Mac Pro (Late 2013) 1TB PCIe SSD - 661-7540

From what I understand, the 1TB PCIe SSD from the Late 2013 15" rMBP is a 4x PCIe card.

The guys told me the 1TB unit in the 15" late 2013 MBP retina is 4 lane. Now I wonder even though the part numbers are different if they are the same component?


rw3

macrumors 6502a
May 13, 2008
679
41
DFW, TX
The part number difference just has to do with the specific model that it is going in. Same thing happens for say iMac HDDs, where they are the same physical drive, but a different Apple Part #. As long as the EEE Code matches, it will work in the machine you are wanting to use it in.


theSeb

macrumors 604
Aug 10, 2010
7,459
1,859
Now-here
The guys told me the 1TB unit in the 15" late 2013 MBP retina is 4 lane. Now I wonder even though the part numbers are different if they are the same component?

The 1 TB unit from the 2013 rMBP is definitely 4 lane. I have read a couple of reviews which confirm that.


handheldgames

macrumors 68000
Apr 4, 2009
1,795
1,056
Pacific NW, USA
The best place I've found to look for Apple'a variant of PCIe Flash SSD's for a great price is Aliexpress.com They generally have product available from various locations in mainland china that cannot be found elsewhere.


The 1 TB unit from the 2013 rMBP is definitely 4 lane. I have read a couple of reviews which confirm that.

And yes.... Apple's flash is the same as the Samsung XP941, which is a 4-lane PCIe controller, except for the slot which has a different key and two pins that are swapped with data.

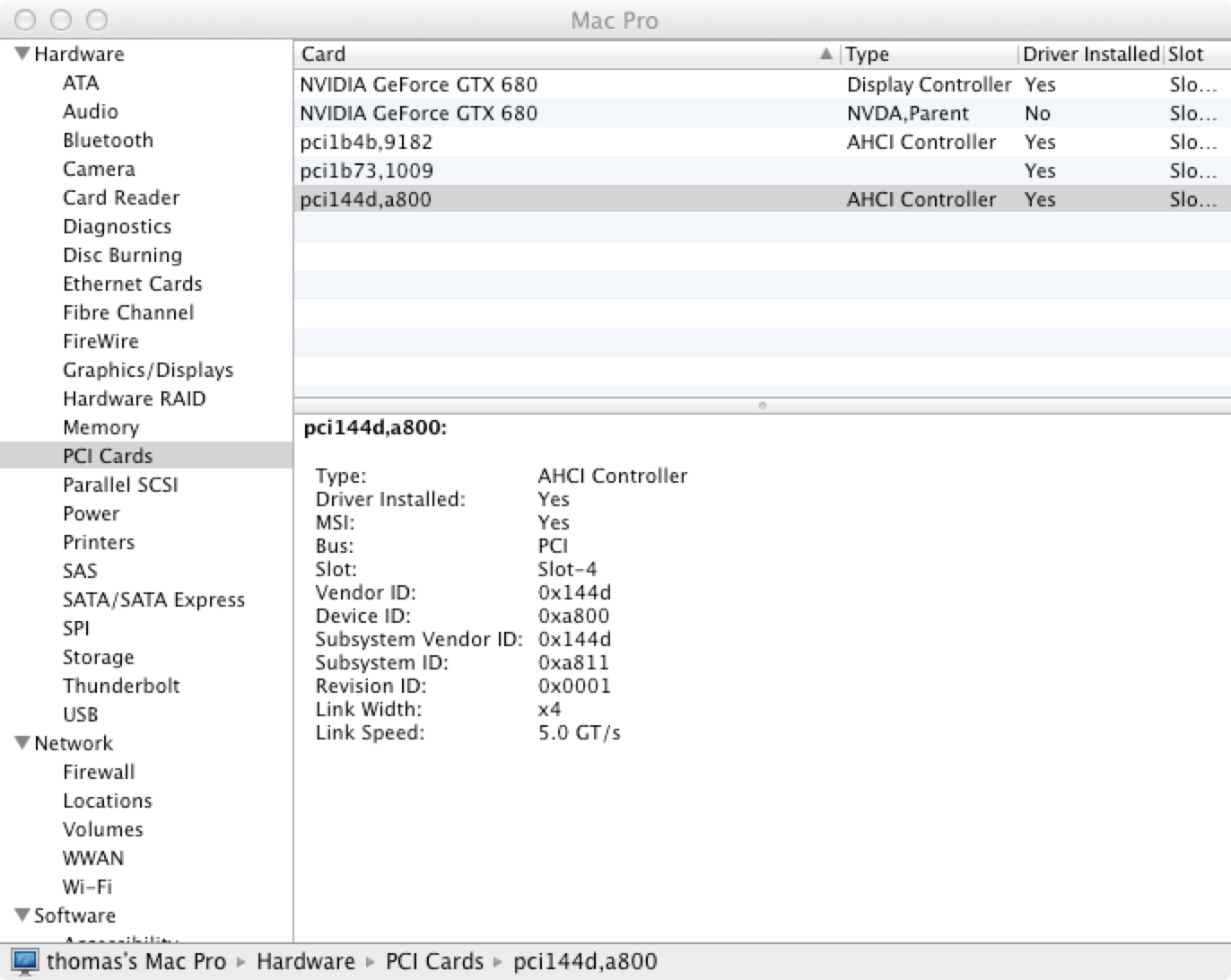

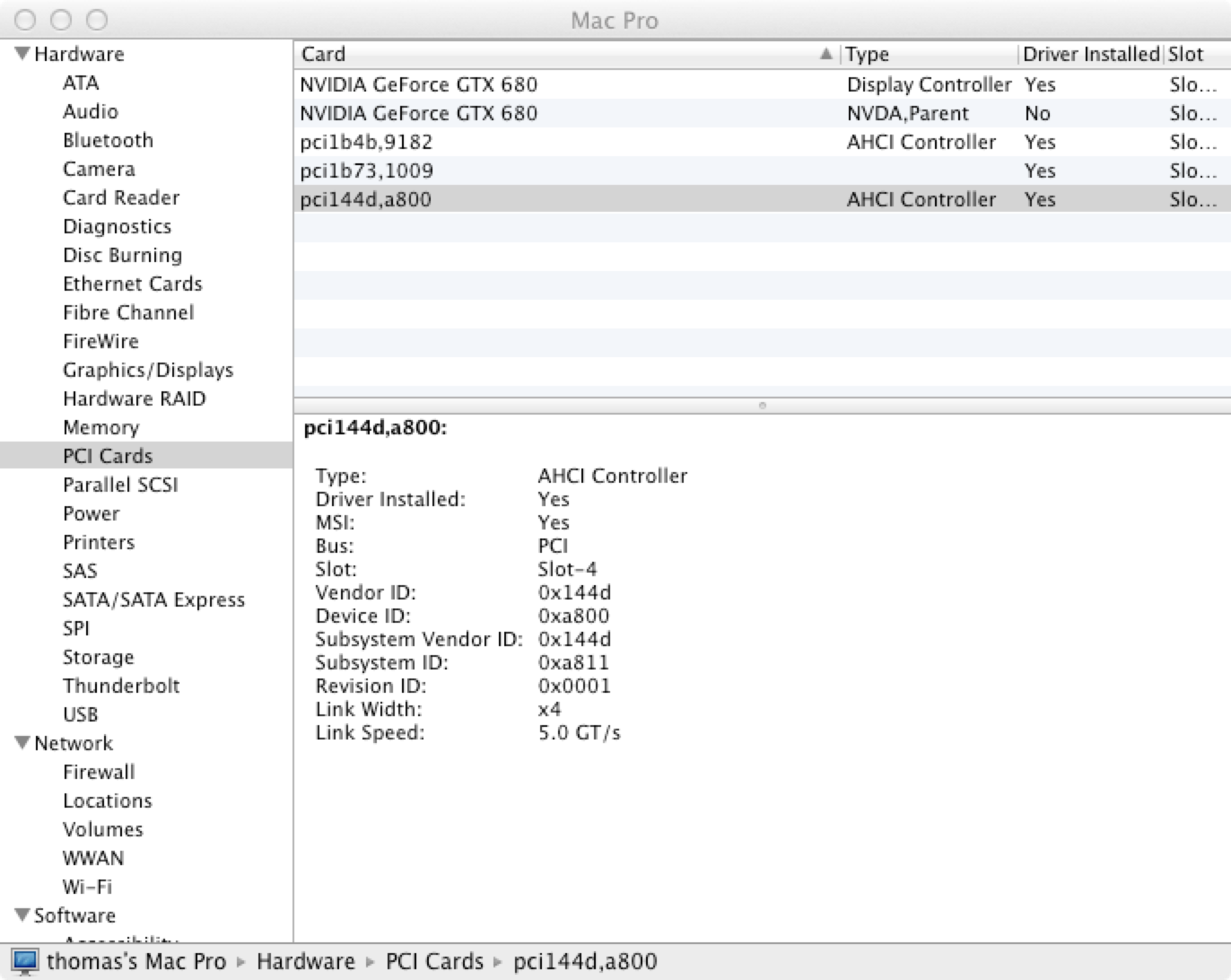

PCIe system profiler screenshot.png


looksee

macrumors newbie
Jul 3, 2010
3
0
Sheffield, United Kingdom

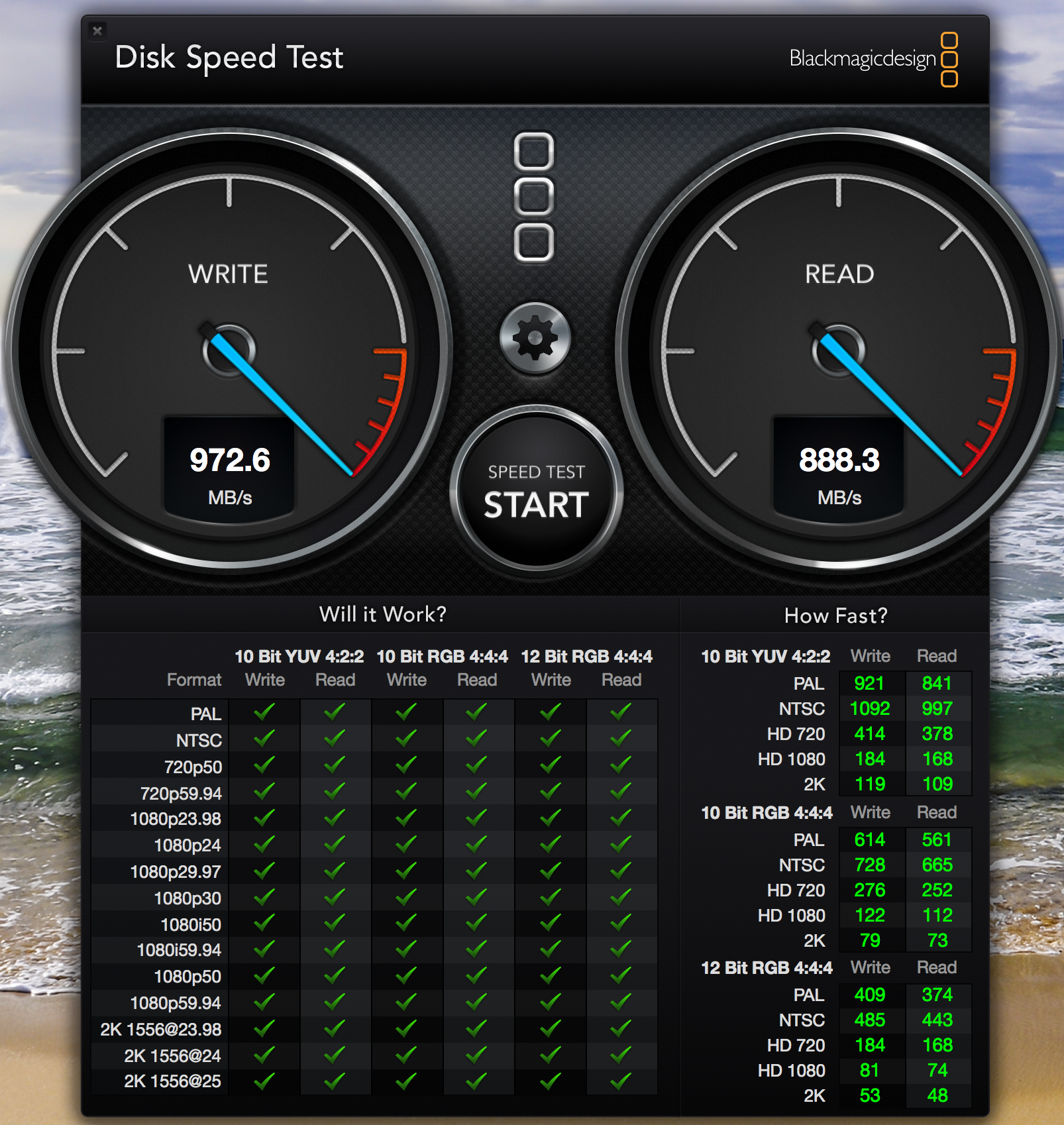

I bought 1TB SSD and its part number is "MZ-KPU1T0T/0A6". Even though it has no enclosure on SSD (You can find it when you remove the nMP's case), it works flawlessly. And its speed is as attached.


Attachments

  • Screen Shot 2014-02-23 at 9.11.01.png
    Screen Shot 2014-02-23 at 9.11.01.png
    3.2 MB · Views: 703
Last edited:

k-hawinkler

macrumors 6502
Sep 14, 2011
253
86
I bought 1TB SSD and its part number is "MZ-KPU1T0T/0A6". Even though it has no enclosure on SSD (You can find it when you remove the nMP's case), it works flawlessly. And its speed is as attached.

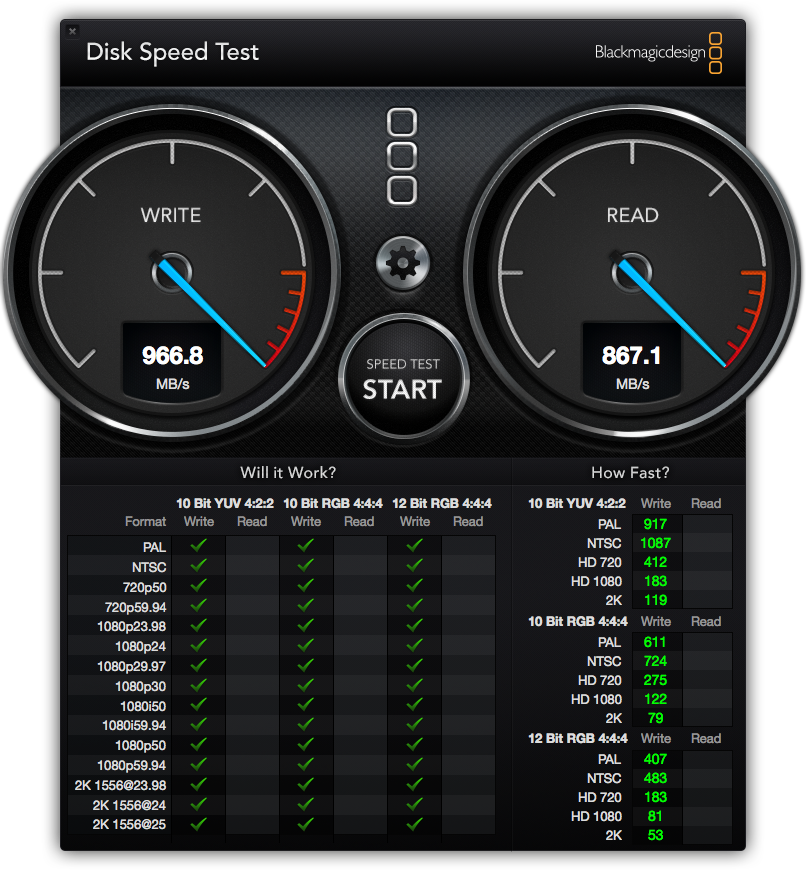

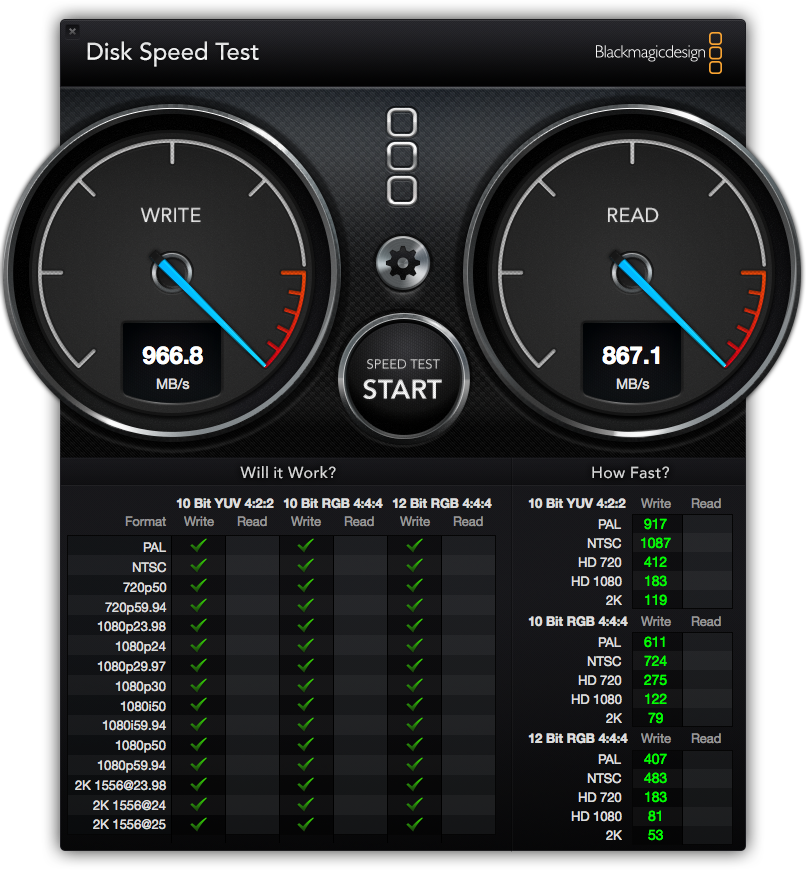

This is the speed of a 1 TB SSD in my 15" late 2013 rMBP.

KHW 2014.02.22_DiskSpeedTest.png


dysert

macrumors regular
Original poster
Sep 4, 2006
133
8
Where did you buy then 1TB SSD?

I bought 1TB SSD and its part number is "MZ-KPU1T0T/0A6". Even though it has no enclosure on SSD (You can find it when you remove the nMP's case), it works flawlessly. And its speed is as attached.

Did you buy the one on eBay or another source?
Thanks
