2006/2007 Mac Pro (1,1/2,1) and OS X El Capitan

Discussion in 'OS X El Capitan (10.11)' started by Mr. Zarniwoop, Jun 8, 2015.

  1. Ant3000 macrumors 6502

    Joined:
    Jul 20, 2015
    Location:
    UK
    #3876
    The only updates Apple have provided for El Capitan for a long time have been Security updates. So long as this latest update is ignored nothing has changed. We are still running a 10 year old Mac on an unsupported OS / Mac combination so have to expect the odd bump in the road. "Keep calm and carry on" seems appropriate at the moment.

  2. Macschrauber, Jan 26, 2018
    Last edited: Jan 26, 2018

    Macschrauber macrumors regular

    Macschrauber

    Joined:
    Dec 27, 2015
    Location:
    Germany
    #3877
    Seems I am to silly to quote on an ipad :-/
    @hwojtek
    >

    Does an El Capitan disk prepared installed and updated on an officially supported EC mac upto and including the latest security 2018-001, then manually boot piked and moved to 1.1/2.1, does that configuration work?
    No.



    Don't want to offend you, but you have tried it for yourself ? If so I am happy and not - I can spare the time trying it.

    On the other hand it sounds logical - they changed kernel things for Processors whose not supposed to run El Capitan for things those Processors never do - so they implemented things our old Xeons can't do...

  3. sOwL macrumors 6502

    sOwL

    Joined:
    Sep 25, 2007
    Location:
    Nerd Cave
    #3878
  4. MoerBoer macrumors member

    Joined:
    Jan 27, 2018
    #3879
    I also did the update before reading up and got the endless loop.

    Had to do a clean re-install to get it working again.

    One question, how do I get the latest Safari just before the 2018 security update? I don't see it now in the App Store updates, and I'm still on Safari 9 ( There might have been some other updates too? )

    I have updated to the last 2017 security updates, but my programs seem out of date.

    Thanks.

  5. MoerBoer macrumors member

    Joined:
    Jan 27, 2018
  6. pastimage macrumors member

    Joined:
    Aug 20, 2010
    #3882
    Found a page that said I could download Safari 11.0.2 from "here" and that just took me to the app store, grrrr/

    You wouldn't happen to have a link to say safari 11.0 for all the info in it or even 11.0.2, would you? I sure would appreciate it.

  7. hatrack71, Jan 27, 2018
    Last edited: Jan 27, 2018

    hatrack71 macrumors newbie

    hatrack71

    Joined:
    Jan 27, 2018
    Location:
    Helena, MT
    #3883
    Same here with my 1,1. Bootlooped after 2018-001. I actually have three 1,1s and I have Lion on all of them as well to have access to a working OS. I only updated one though to find the bootloop. The others are unupdated still. I cloned the original El Capitan drive from my 4,1 and then swapped out boot efis with the Pikify folders in both places on the cloned drive. Luckily that drive has never changed as I keep it on an external to copy from it to internal Mac Pro drives and then upgrade those. I use SuperDuper! for all the cloning. It works in both Lion and El Capitan. Takes a while but I was able to get my system back after 2018-001 in about an hour. I also made a backup copy internally that boots. Very reliable application that has never left me an unbootable drive... ever. I HIGHLY recommend SuperDuper! It works well with external usb hdds.

    But I can see problems ahead for El Capitan updates with hacked machines so it might be easier with other operating systems now....or maybe not. Has anyone ever had success getting 64bit Ubuntu 16.0.4 LTS to run stable on a Mac Pro 1,1/2,1 32 bit EFI? Or any other flavor of Linux distro.. big or small? I love Linux and would love to find something I could keep up to date.

  8. Ant3000 macrumors 6502

    Joined:
    Jul 20, 2015
    Location:
    UK
    #3884
    I thought the latest version of Safari would run OK - people seem to have updated Safari and iTunes without a problem - only the security update causing the boot loop.

  9. Iron Bridge macrumors newbie

    Iron Bridge

    Joined:
    Jan 24, 2018
    #3885
  10. hatrack71 macrumors newbie

    hatrack71

    Joined:
    Jan 27, 2018
    Location:
    Helena, MT
    #3886
    I can confirm the Safari and iTunes updates work fine. They are implemented on this machine. It is the security update for sure.

  11. pveatx macrumors newbie

    pveatx

    Joined:
    Mar 23, 2016
    Location:
    Netherlands
    #3887
    This is really weird. I got into the boot loop after unadvisedly installing the 2018-001 security update. I had to get into recover mode, re-install Lion on one of the hard drives. Then I needed to redo the whole Pikify thing. When it had reinstalled itself on the borked HD, everything came back automatically... but now it shows this in the app store...

    But it can't have...

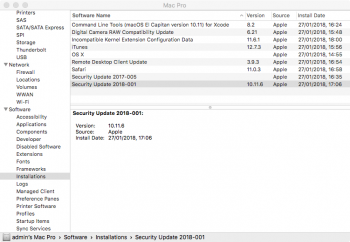

    Screen Shot 2018-01-27 at 14.42.05.png

  12. hwojtek macrumors 65816

    hwojtek

    Joined:
    Jan 26, 2008
    Location:
    Poznan, Poland
    #3888

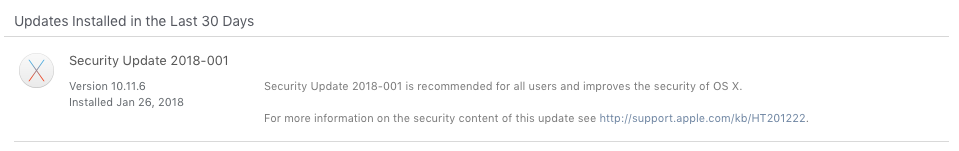

    Yes, when you install this update (and kill your ElCap in the process) the install receipt is written to the disk before restarting. This is normal.
    Bear in mind, ElCap will try to download this update again so make sure you disabled all automation from the App Store system preference pane.

  13. hatrack71, Jan 27, 2018
    Last edited: Jan 27, 2018

    hatrack71 macrumors newbie

    hatrack71

    Joined:
    Jan 27, 2018
    Location:
    Helena, MT
    #3889
    By redo the whole Pikify thing.. do you mean just swapping out the boot efi folders in two places? Not sure I understand. I just recloned my entire drive over again from a prevoiusly pikified version. I can ignore the little "1" on the App store for now,

  14. sOwL macrumors 6502

    sOwL

    Joined:
    Sep 25, 2007
    Location:
    Nerd Cave
    #3890
    Guys, I know it's a cliche, but consider keeping a bootable backup of your system drive. We are running tweaked software on unsupported machines and things can go south randomly like this. Whenever I read someone had to re-install from scratch it hurts a bit inside :(

  15. mani girafe macrumors member

    mani girafe

    Joined:
    Aug 12, 2016
    Location:
    FRANCE
    #3891
    do you updated with last security 2018-001 ?
    --- Post Merged, Jan 27, 2018 ---
    Updated Safari and iTunes without a problem = i confim
    --- Post Merged, Jan 27, 2018 ---
    yep it s security

  16. sOwL macrumors 6502

    sOwL

    Joined:
    Sep 25, 2007
    Location:
    Nerd Cave
    #3892
    I did but got stuck in bootloop. I recovered from a backup soon after. That link had a list of Intel CPUs affected by meltdown/spectre and it seems that the 5300 series (which I'm using) are not affected.

  17. hatrack71 macrumors newbie

    hatrack71

    Joined:
    Jan 27, 2018
    Location:
    Helena, MT
    #3893
    Anyone ever had success with Ubuntu 16.0.4 LTS 64bit and keeping it up to date on one of these machines?

  18. AL1630 macrumors regular

    AL1630

    Joined:
    Apr 24, 2016
    Location:
    Idaho, USA
    #3894
    Definitely this. I have a spare drive with lion installed in my Pro and that's how I recovered El Cap after installing. Instead of spending a couple days reinstalling tons of stuff, I was able to reinstall 10.11 and restore files from a backup, so I got it running in a couple hours.

  19. hwojtek macrumors 65816

    hwojtek

    Joined:
    Jan 26, 2008
    Location:
    Poznan, Poland
    #3895
    It will end up in a bootloop once you put that disk into the Pro 1,1/2,1.
    While this system will run on a supported Mac (provided a suitable 64-bit boot.efi), it has a kernel that is not compatible with the old Mac Pro. Therefore an attempt to thoroughly update El Capitan on a supported Mac, replace the boot.efi with Piker's one and booting in a 1,1/2,1 will render exactly the same outcome as inadvertently updating on such a Mac Pro in the first place. There is actually no need to empirically prove it because that is exactly what happened when we updated. Different kernel = bootloop. In order to keep an old Pro running El Capitan, this 2018-001 update that uses an incompatible kernel needs to be avoided.

  20. rthpjm, Jan 27, 2018
    Last edited: Jan 28, 2018

    rthpjm macrumors 6502a

    rthpjm

    Joined:
    Jan 31, 2011
    Location:
    U.K.
    #3896
    Hello everyone,

    So I'm back home from working away, and I've tested with a spare partition. I installed a fresh copy of 10.11.6. Updated everything except Security Update 2018-001. To make sure I was as close to a typical starting point as possible I downloaded Security Update 2017-005 from the Apple > Support > Downloads web site pages, and applied that.

    BTW, once you install the 2017-005 Security Update, the App Store will present Safari 11.0.3....

    I then allowed the App Store to update my test partition with Security Update 2018-001.

    Yes, i did hit the boot loop.

    I noticed it was "crashing" very early on (using verbose boot). I guessed the reason - there is no other explanation.

    I made my modification based on my guess, and here I am with 10.11.6 and Security Update 2018-001 installed.


    So what was my guess, and how did I do it?

    My guess was that the kernel had been modified, and the classic MacPro couldn't cope with the modification (I see @hwojtek mentions "incompatible kernel" in a post above). A reasonable guess, since I had already downloaded the standalone Security Update 2018-001 file from the Apple > Support > Downloads web site, and opened it in Pacifist. Sure enough the file sizes differ between the copy in Security Update 2017-005 and Security Update 2018-001.

    I simply booted into a different partition, I used my Recovery HD (which was NOT affected by the 2018-001 install by the way), and copied the kernel file from the 2017-005 update into position.

    Reboot success.

    Now I've also taken a more detailed look at the content of the 2018-001 package. There are a lot of changes, in particular a large number of the kernel extensions (kexts) have also been updated. Putting the older kernel back in place "might" cause some future instability/incompatibility problems. All I can say, for now my machine seems to be performing just fine.

    If anyone wants to also try this, here are the steps:

    Assumptions:
    1. I am assuming that your copy of El Capitan is working.
      • You have not yet attempted to install Security Update 2018-001
      • or you have reverted back after failing
    Steps:
    • Make sure you have a second working copy of MacOS, because you're going to need it to fix the broken partition after Security Update 2018-001 is applied!
      • I used my Recovery HD, but any working copy should be okay - test it is working before going further!
    ================ EDIT ==================

    FIRST STEP NEEDS TO BE:
    • boot from your other partition! Perform the commands below from your other partition.
    ALTERNATIVELY:
    • Turn off SIP first
    ================ END EDIT ===============
    • Make a copy of of the current kernel file
      • Use the Finder to Duplicate it, or open a terminal
    The name of my main partition is "Macintosh HD", change this to suit your machine
    Code:
    sudo -s
    You will be asked for your password, what you type is not echoed to the screen so type carefully
    Code:
    cp /Volumes/Macintosh\ HD/System/Library/Kernels/kernel /Volumes/Macintosh\ HD/System/Library/Kernels/kernel2017
    • Go to the App Store Updates tab, and install Security Update 2018-001
      • If you have hidden the update to avoid temptation, unhide it
    • When your machine reboots hold down the Alt key when you hear the chime
    • From the boot selector choose your other working partition
      • If your graphics card doesn't show boot screens, try using a VGA screen with an adaptor, or use the arrow key to move left or right then press enter - if you hit it lucky you will choose a working partition!
    • Open a Terminal
    • Move out of the way the current (non-functional) kernel file - just for fun!
    Code:
    sudo -s
    You will be asked for your password, what you type is not echoed to the screen so type carefully
    Code:
    mv /Volumes/Macintosh\ HD/System/Library/Kernels/kernel /Volumes/Macintosh\ HD/System/Library/Kernels/kernel2018
    • Now link to the 2017 version of the kernel
    Code:
    ln /Volumes/Macintosh\ HD/System/Library/Kernels/kernel2017 /Volumes/Macintosh\ HD/System/Library/Kernels/kernel
    • (The ln link command without the -s switch performs a "hard link", btw)
    • Reboot
    P.S. if you can't see the boot chooser, but you do have another machine, you could put the MacPro into Target Disk mode, or pull the disk and connect to the other machine. Make the kernel change from there.

    P.P.S. If you have an unrecovered "bricked by Security Update 2018-001" classic MacPro, then try to boot into another partition, or if you have another machine attach to that other machine as above... You can download the Security Update 2017-005 from the Apple > Support > Downloads web site pages, and extract the /System/Library/Kernels/kernel from there (using Pacifist or Flat Package Editor)


    Last disclaimer - this really is a hack. The kernel is now out of step with the kexts and possibly other Apps. We really are on the ragged edge now. I don't believe we NEED Security Update 2018-001, however, this approach gives us all of the rest of the update, just reverting the kernel. If you are at all concerned, don't perform the update, hide it in the App Store....

  21. fabounio macrumors newbie

    Joined:
    Jan 1, 2016
    Location:
    Valence, France
    #3897
    I also had the infinite boot loop after uptatibg security update.
    i noticed that my recovery boot partition was not affected, and could boot on it.
    i did a complete restore from my time Machine backup and it worked.
    Back to App Store menu updates, then clicked on details, decided to hide le security update and
    did the safari and itunes updates only.

    Time machine is your best friend :p

  22. Sko, Jan 27, 2018
    Last edited: Jan 27, 2018

    Sko macrumors 6502

    Sko

    Joined:
    Oct 17, 2009
    Location:
    Germany
    #3898
    Neither Finder nor Terminal would let me duplicate the kernel. I had to boot to Recovery to do that. Any chance you have SIP disabled on your machine?

    Edit: also I didn't have any luck with linking the old kernel, had to copy it.

  23. Argyboy macrumors member

    Argyboy

    Joined:
    Feb 26, 2017
    Location:
    Dublin, Ireland
    #3899
  24. jbarley, Jan 27, 2018
    Last edited: Jan 27, 2018

    jbarley macrumors 68040

    jbarley

    Joined:
    Jul 1, 2006
    Location:
    Vancouver Island
    #3900
    @rthpjm
    Try as I may, followed your steps exactly, going as far as to rename my boot drive to "Macintosh HD" so I could copy/paste your instructions to eliminate any errors/typos, but I'm still stuck with a boot/loop on my MacPro1,1.
    Not really a big deal as I keep good backups and enjoy passing the time messing around with my hobby machines, but still can't understand why it won't work for me.:mad:

    edit: typo corrected, 3,1- >1,1
