ispperformance

macrumors newbie
Original poster
Oct 4, 2011
4
3
I am upgrading my 2011 iMac to a SSD drive, and seen a post somewhere about a temp sensor? Something about the fans will run on high if you do not get a special cable with a temp sensor in it to stick on the SSD?

I am ordering all the stuff I need today to swap the drive, can anyone shed some light on this temp sensor thing for me?


ZenSurfeur

macrumors 6502
Feb 25, 2020
263
102
hi this is the solution no noisy fan and this form the power on :) enjoy :)

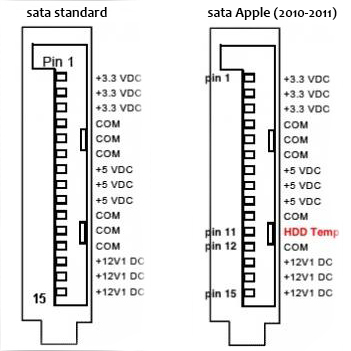

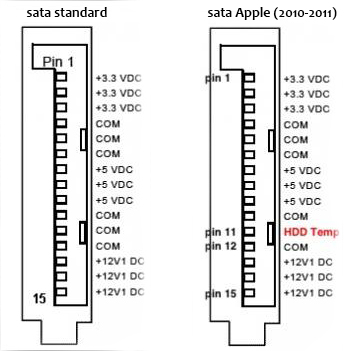

you have to make a connexion between pin 11 and 12

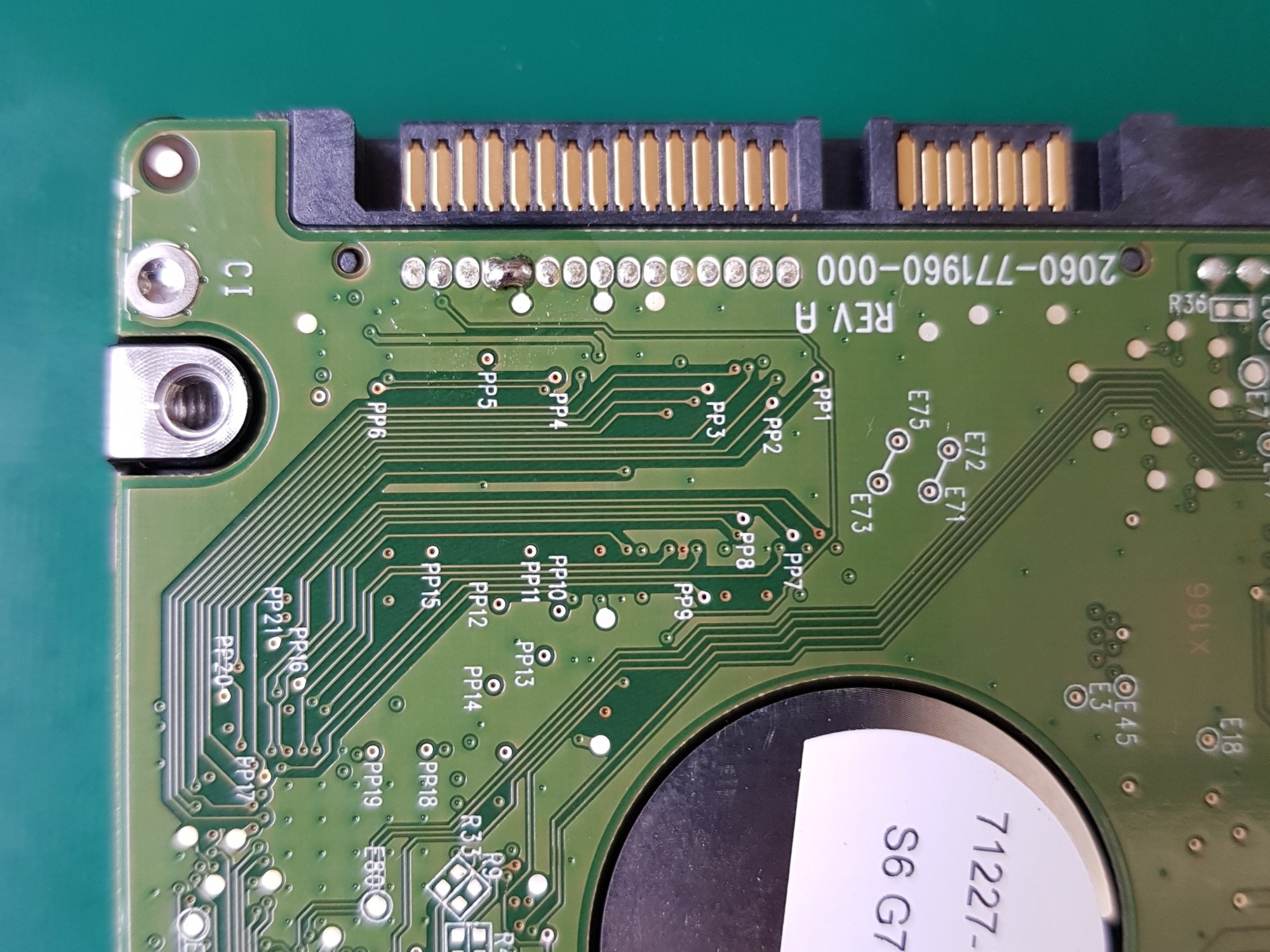

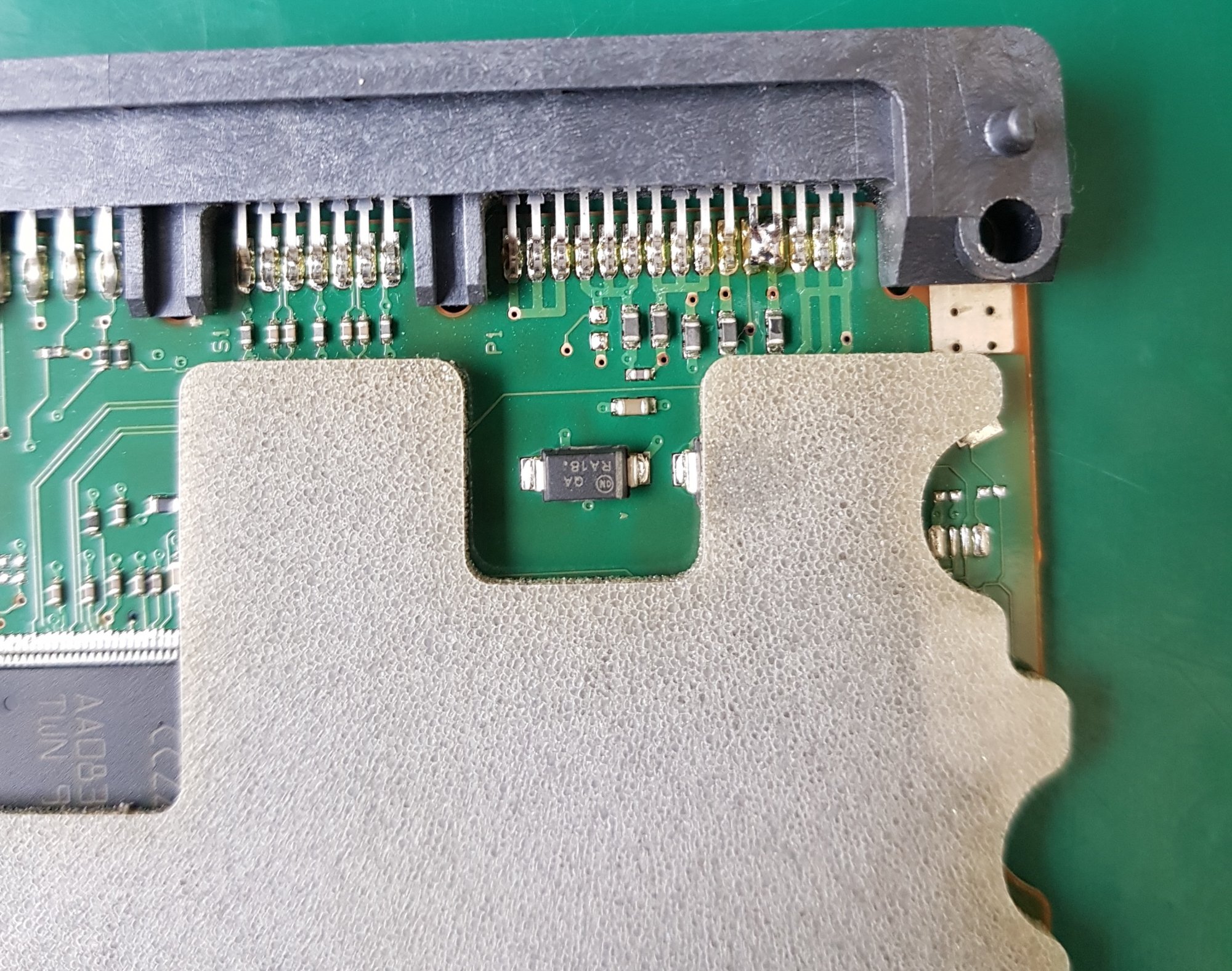

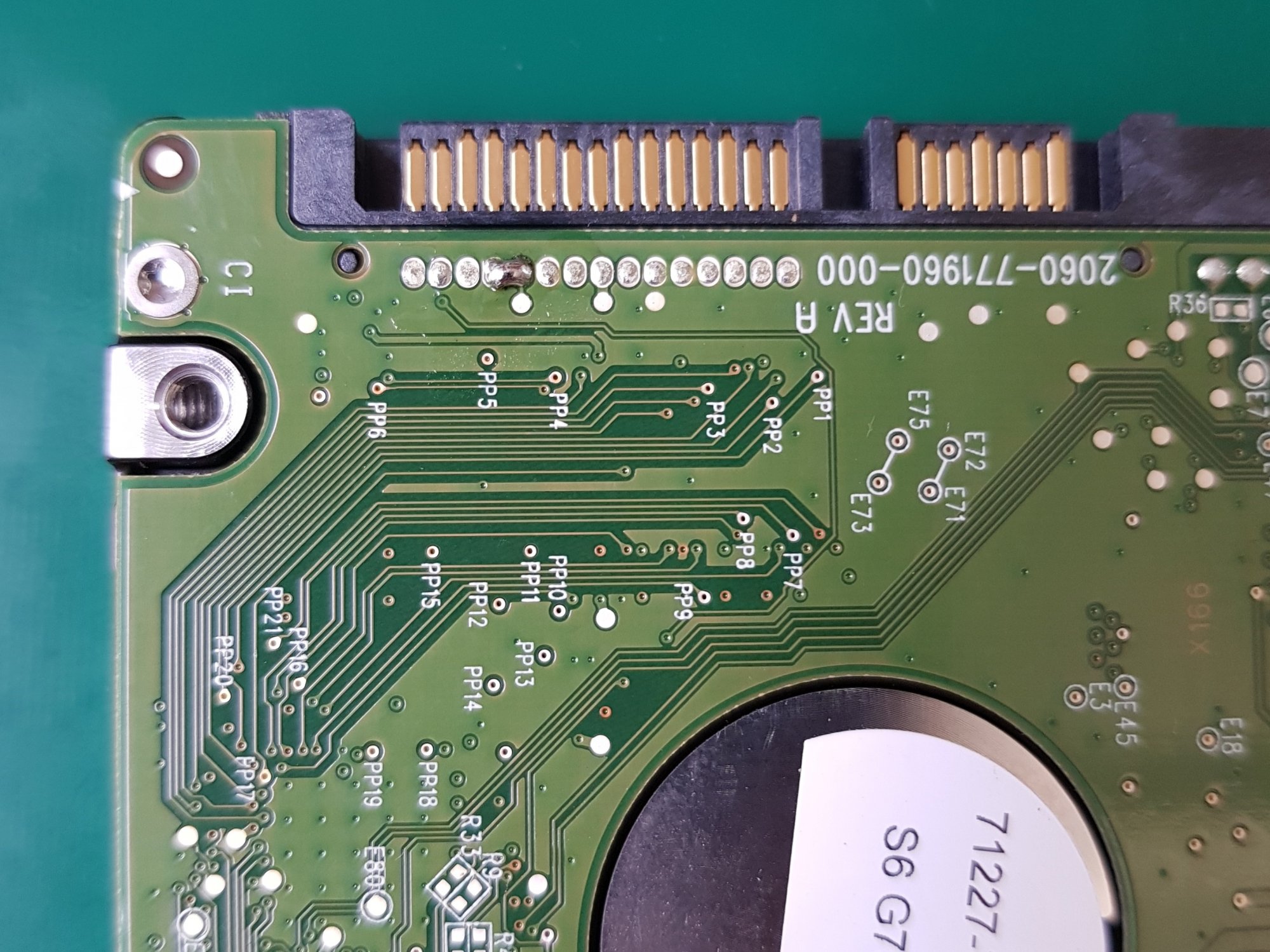

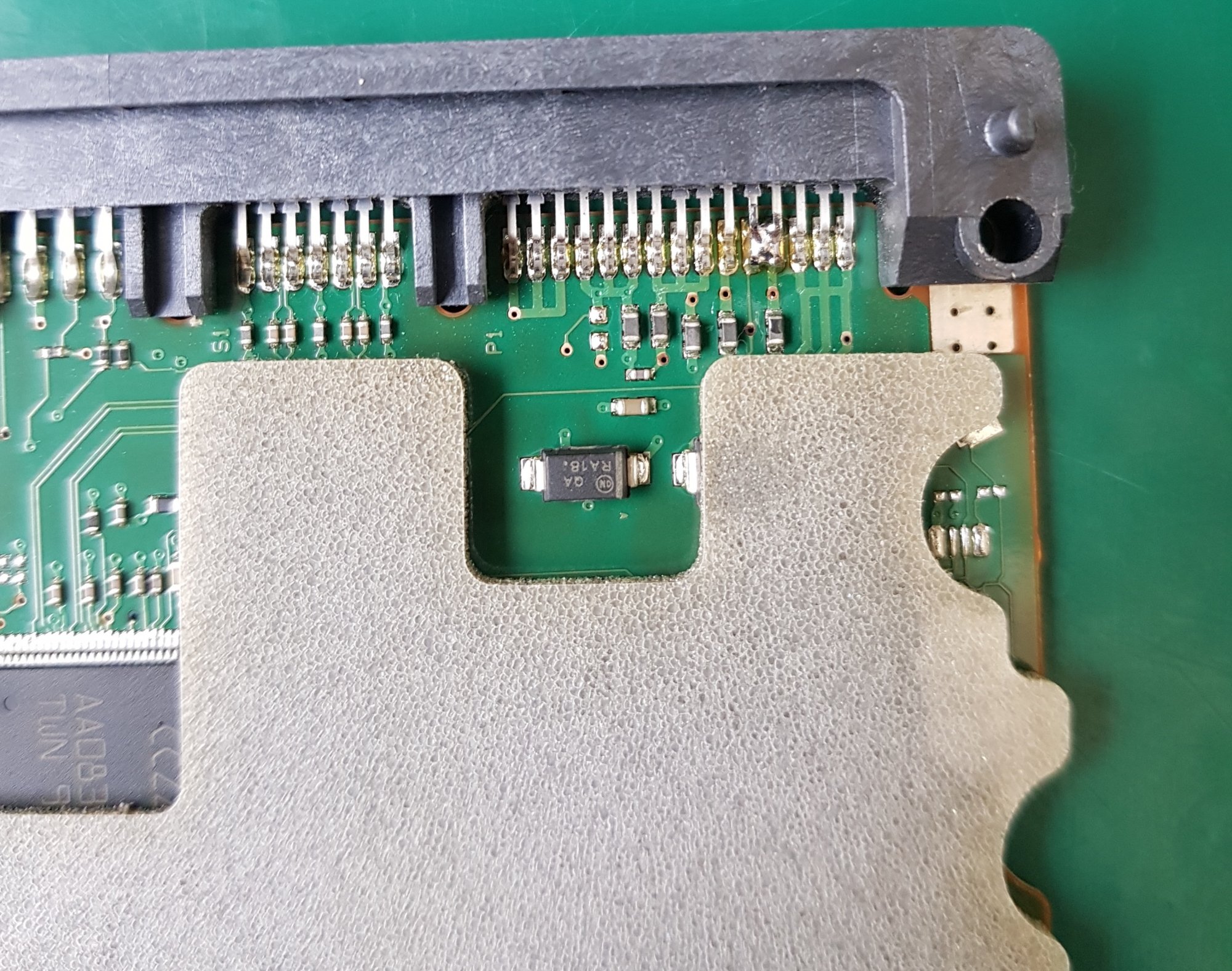

photos are for example, it depends how the easiest way is, and if this is SSD or HDD




Jumme_Cph

macrumors member
Jan 14, 2018
78
15
Last edited:

ispperformance

macrumors newbie
Original poster
Oct 4, 2011
4
3

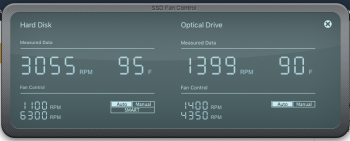

Ok, so I installed the new SSD, and installed the fan control software. Where is the software getting the temp reading for the SSD? System related? Also, what is the usual temps and fan speeds for the 2011 iMac? Just want to make sure that the software is the option for the long run, I don't mind buying the temp sensor if its a better route to go.


Attachments

  • Screen Shot 2020-04-24 at 6.39.01 PM.png
    Screen Shot 2020-04-24 at 6.39.01 PM.png
    249.6 KB · Views: 252

rc3105

macrumors member
Oct 30, 2019
79
23
Set the speed/temp for whatever you're comfortable with.

I have mine fairly aggressive so the fans are at 95% at 140F and that's about as hot as it ever gets. The cpu is fine at 175 but I like to keep the psu cool as well.

Fwiw the hdd fan seems to make the most noise with the least contribution to cooling so maybe cap it at 75%.


Jumme_Cph

macrumors member
Jan 14, 2018
78
15
Ok, so I installed the new SSD, and installed the fan control software. Where is the software getting the temp reading for the SSD? System related? Also, what is the usual temps and fan speeds for the 2011 iMac? Just want to make sure that the software is the option for the long run, I don't mind buying the temp sensor if its a better route to go.
Press the “SMART” button on the left.
Done deal.

SMART value is read by the SSD internally. It literally has a thermometer (die) built in.
