2012 MBP - Kernel Panic - Cant find cause

Discussion in 'macOS' started by brye.townsend, Aug 25, 2016.

  1. brye.townsend macrumors newbie

    Joined:
    Aug 25, 2016
    #1

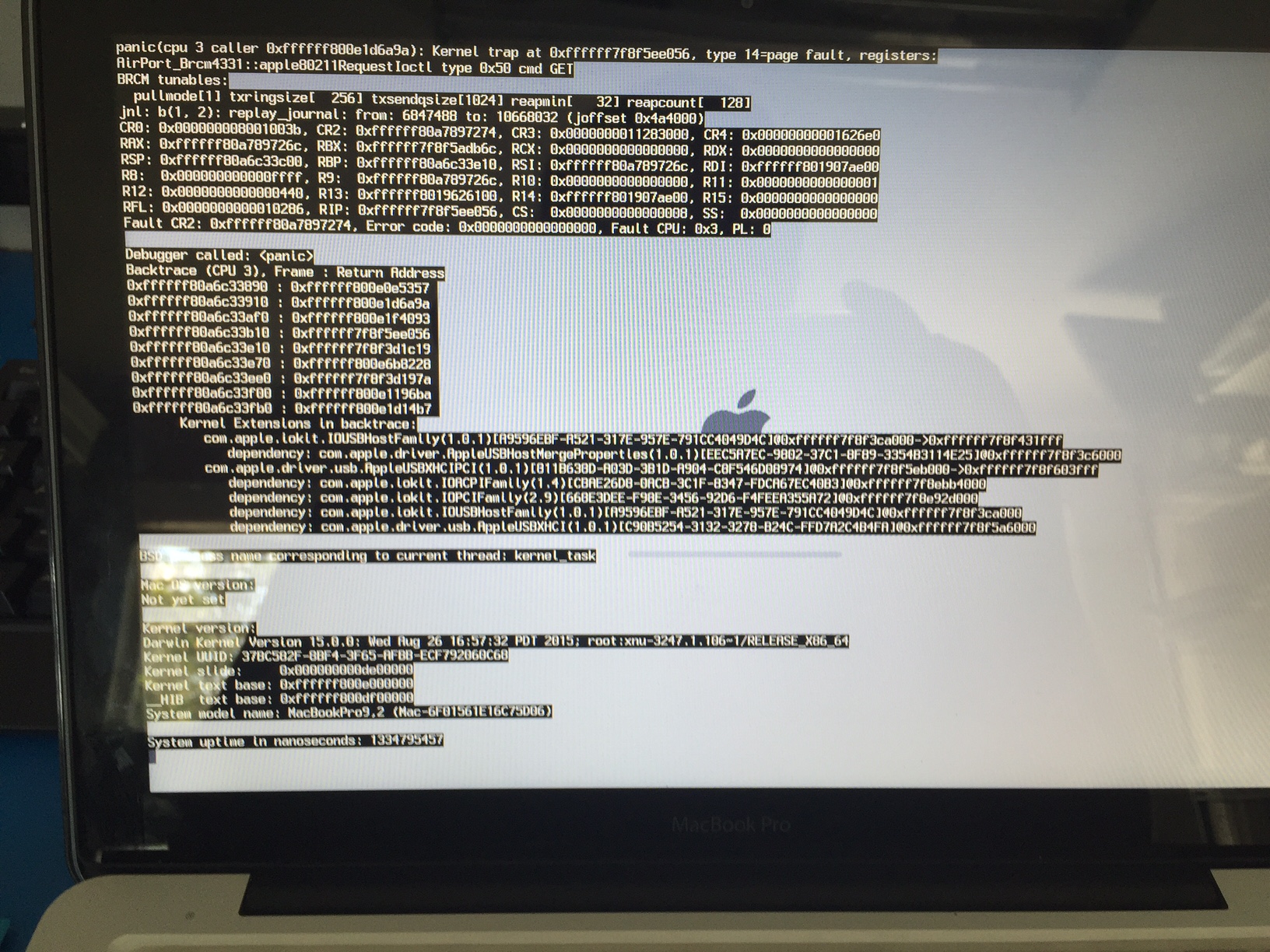

    Hey folks! One of my clients has a 2012 Macbook Pro, not sure of the OS. It is having a Kernel Panic on boot every time. Tried new RAM, new HDD with clean install, it is continuing to happen. If I post a photo will that help?



    [​IMG]

  2. JohnDS macrumors 65816

    Joined:
    Oct 25, 2015
    #2
  3. brye.townsend thread starter macrumors newbie

    Joined:
    Aug 25, 2016
    #3
    Thank you for your response John, but unfortunately that is not the problem with this one. It is not under warranty and most of the GPU issues I've seen are with the 15" and 17"'s from that year, this is a 13.3". Thank you for the idea though.

  4. JohnDS macrumors 65816

    Joined:
    Oct 25, 2015
    #4
    The panic log suggests the problem is with the USB interface. If there are any connected USB devices, try disconnecting them.

  5. brye.townsend thread starter macrumors newbie

    Joined:
    Aug 25, 2016
    #5
    Oooo I might love you. Both of her USB ports are not working. Both they are soldered to the Lobo. Hmm.. Maybe take the lobo out and look for corrosion?
    --- Post Merged, Aug 26, 2016 ---
    and if you don't mind me asking, what line of the panic log are you seeing that indicates USBs?

  6. JohnDS macrumors 65816

    Joined:
    Oct 25, 2015
    #6
    After the line "Kernel Extension in Backtrace". Next item is com.apple.iokit.IOUSBHostFamily.

    IOUSB means input-output-USB.

  7. brye.townsend thread starter macrumors newbie

    Joined:
    Aug 25, 2016
    #7
    Very good, thank you. I took the board out, everything looks fine. I have a buddy who does some micro-soldering work for us coming to take a look but there does appear to potentially be a small chip that is burnt up on the underside of the board near the USBs. I imagine this has to be a hardware issue, but do you have any experience with what might be causing this? I didn't see any damage to the USB ports (no bent pins, the little plate was still in tact, no noticeable liquid damage), but if we kind find a burnt chip on the board I would imagine the next step would be soldering some new USBs on there? Not really sure where to go from here.

  8. JohnDS macrumors 65816

    Joined:
    Oct 25, 2015
    #8
    Sorry, but I have never attempted hardware repairs.

  9. brye.townsend thread starter macrumors newbie

    Joined:
    Aug 25, 2016
    #9
    Oh hey no problem man you've been super-enlightening, thank you. I owe you a beer. Or an apple. HAH! Ugh... Anyway, thanks.

  10. brye.townsend thread starter macrumors newbie

    Joined:
    Aug 25, 2016
    #10
    Ok! Fixed it! There was a burnt up chip somewhere underneath or near the USBs. We put this thing under a microscope and examined it to find it. Replaced that chip and the non-functional power rail (# 5 I believe) and the thing is working great now. Thanks to those of you who tried to help.
