2018 Mac Mini with a large display?

MikeGS3

macrumors newbie
Original poster
Dec 29, 2018
22
4
London, England
Hi guys,

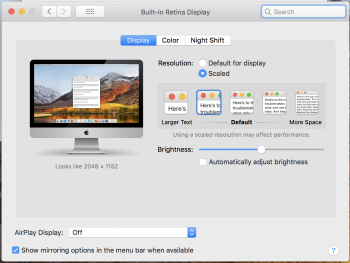

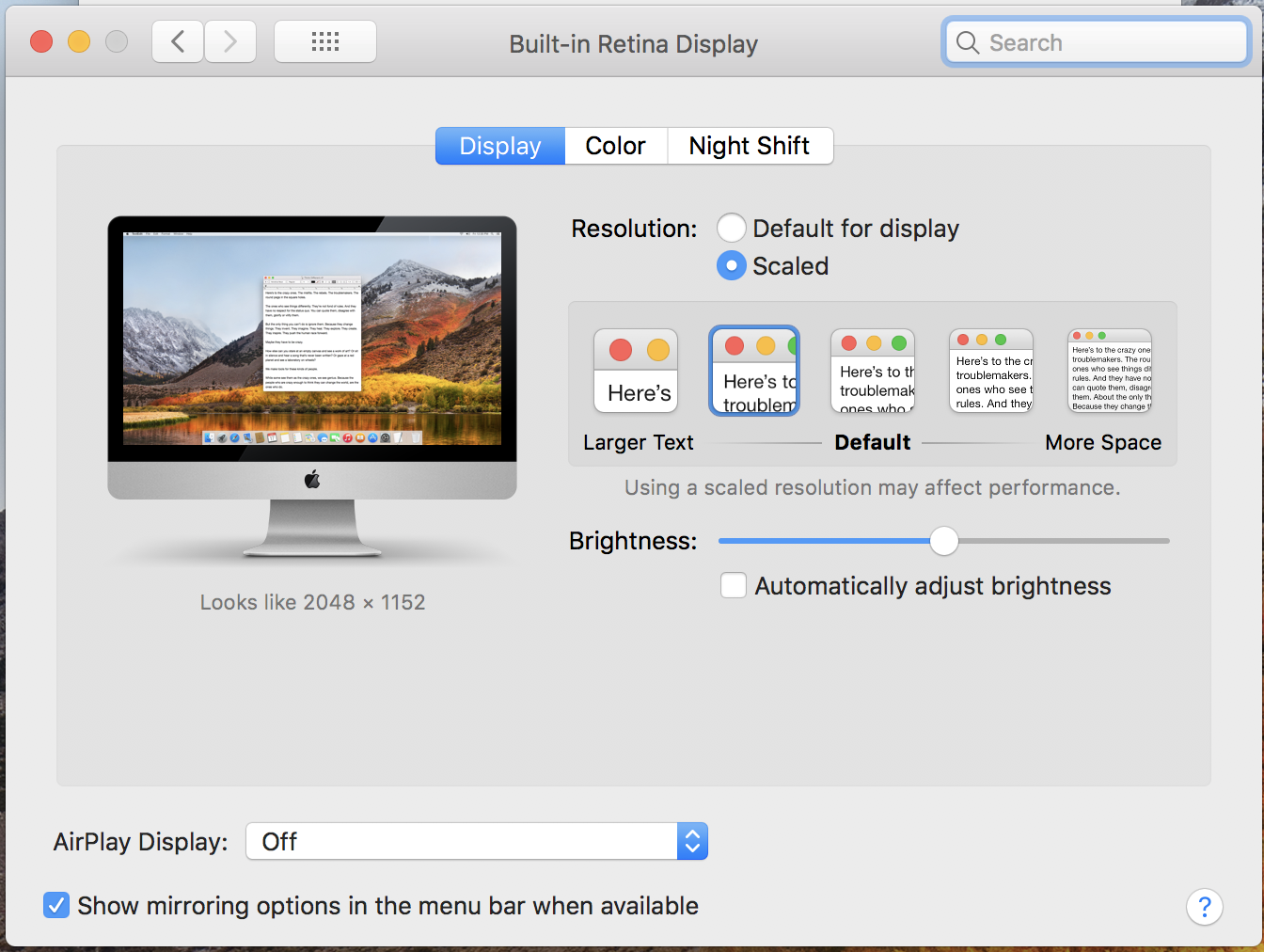

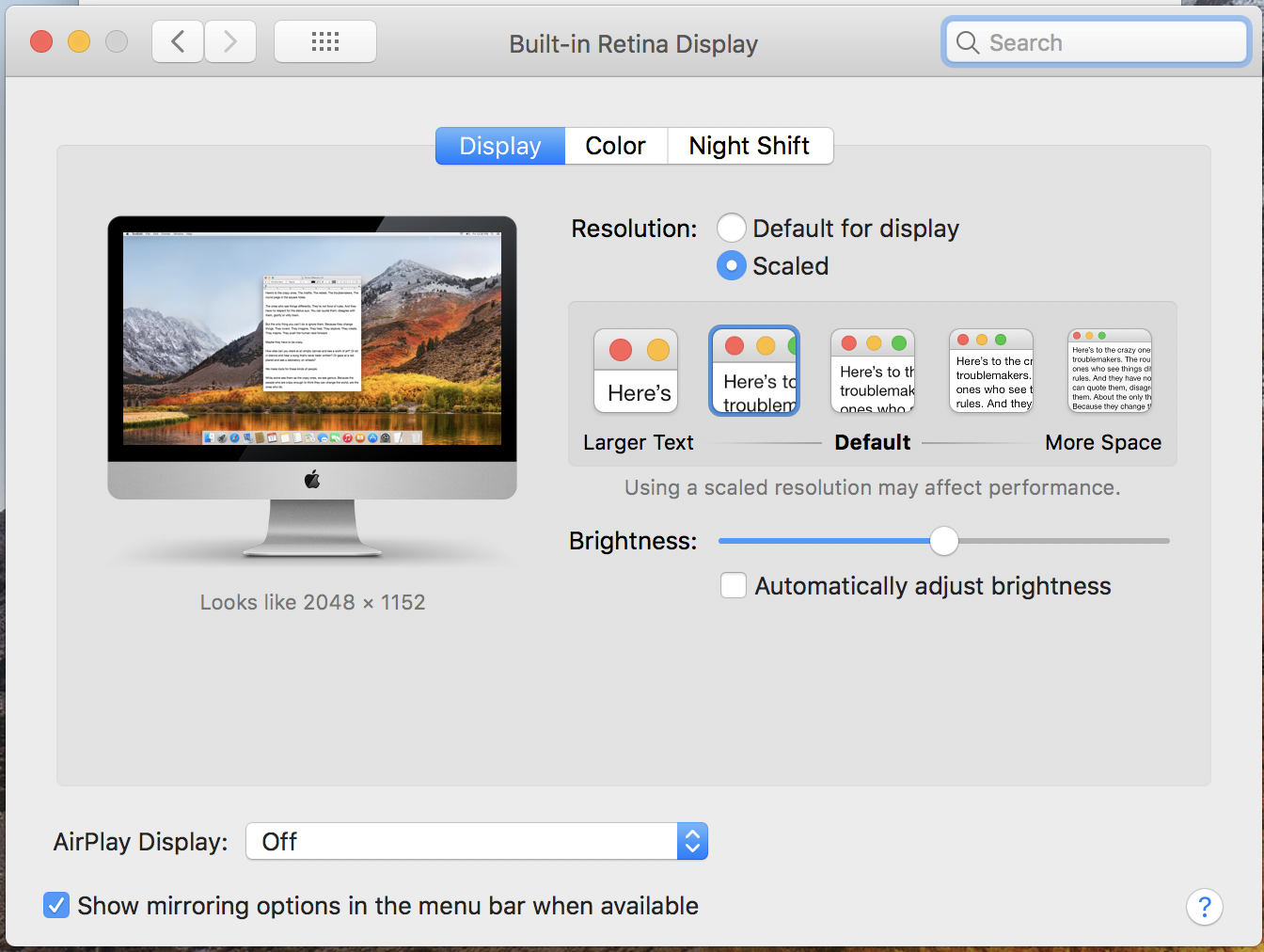

I’m looking for some help. I want to replace my 2015 27inch 5k iMac with a new Mini and monitor. I run my iMac resolution at 2048 x 1152 (as below) and sit just over a meter away. But ideally I want a larger monitor that I could still give a similar resolution. I’m happy to go as large as 43 or 46, and setting it further back. Can the Mini support that size and a suitable resolution without an extenal GP?

I'm pretty useless on monitor tech (deu to using iMacs for the last 6 years), so don't really understand all this resolution stuff. I don't really care about 5k necesarill, it's mor important for me to get a large display and be able to sit further away (for optimized mixing stuido ergonmics and accoustics purposes).

Any advice appreciated


Attachments


bigtomato

macrumors regular
Feb 28, 2015
156
122
I would agree you need the 16gb of ram. I have a setup with 4k but with 32" monitor and works great. At the end of the day don't think it makes a difference what size of monitor because 4k pushes the same amount of pixels regardless. Thus far work like a charm. I opted for the i3, quad core and have done video editing and other things with no problem. Very inexpensive compared to iMac.

  • Like
Reactions: MikeGS3

Fishrrman

macrumors P6
Feb 20, 2009
17,398
5,632
If you want a LARGE display, you might consider full 4k (running pixel-for-pixel) on a 43"-50" display... possibly a high quality 4k tv.

For anything smaller than 43" (you might get away with 40"), I would think 4k (at full resolution) would be just "too small" to be useful or pleasant on the eyes.

Speaking only for myself (with 70-year-old vision), I prefer 1080p on 27", or 1440p on 32".
But that's just me.

  • Like
Reactions: a2jack and MikeGS3

MikeGS3

macrumors newbie
Original poster
Dec 29, 2018
22
4
London, England
Thanks guys that’s great. I know what to start looking for now!

I plan on buying the i7 6 Core Mac Mini with 8GB of Apple Ram, and upgrading it with 2 x 16GB sticks from Crucial.

I will be using it mostly for music production using Logic Pro.

  • Like
Reactions: mickgonzo

gusping

macrumors 6502a
Mar 12, 2012
619
138
London, UK
Thanks guys that’s great. I know what to start looking for now!

I plan on buying the i7 6 Core Mac Mini with 8GB of Apple Ram, and upgrading it with 2 x 16GB sticks from Crucial.

I will be using it mostly for music production using Logic Pro.
Sounds perfect, enjoy! Decided on the screen size yet? A nice 32" 4K monitor should be good enough for you. I don't think you need to go all out and go 40+"


MikeGS3

macrumors newbie
Original poster
Dec 29, 2018
22
4
London, England
So I think I may settle on this 4k TV. Seems to have good reviews whereever I search.

Samsung UE43NU7400 43-Inch 4K Ultra HD HDR Smart TV

https://www.amazon.co.uk/dp/B07D769GTS/?coliid=I2NNKIQ7BV2RX0&colid=3J27Z54ORQCPB&psc=1&ref_=lv_ov_lig_dp_it
[doublepost=1551640341][/doublepost]
Sounds perfect, enjoy! Decided on the screen size yet? A nice 32" 4K monitor should be good enough for you. I don't think you need to go all out and go 40+"

Cheers. I'm not sure how big I need to go, so I thought about going 43 to position the monitor a good 1 meter 25cm away. I'm nostsure I could easily read the fonts in Logic that far away on a 32 inc, but I just don't know at this stage, so might be a bit of trial and error.


mickgonzo

macrumors newbie
Dec 28, 2016
1
0
Thanks guys that’s great. I know what to start looking for now!

I plan on buying the i7 6 Core Mac Mini with 8GB of Apple Ram, and upgrading it with 2 x 16GB sticks from Crucial.

I will be using it mostly for music production using Logic Pro.
I don’t think the new Mac Mini’s are upgradable. Your pretty much stuck however you buy it. I believe everything is soldered onto the logic board.


Robejazz

macrumors member
Jun 14, 2013
48
7
PA
So I think I may settle on this 4k TV. Seems to have good reviews whereever I search.

Samsung UE43NU7400 43-Inch 4K Ultra HD HDR Smart TV

https://www.amazon.co.uk/dp/B07D769GTS/?coliid=I2NNKIQ7BV2RX0&colid=3J27Z54ORQCPB&psc=1&ref_=lv_ov_lig_dp_it
[doublepost=1551640341][/doublepost]

Here’s a question I have .... I’m not very monitor knowledgeable either :) so maybe someone can chime in. Would the TV linked above work as a Smart TV And a monitor ? Not at the same time, of course, but I’d like to have both options on my desk. How it displays my computer is important to me .... I have the LG 4K that Apple sells. Will this look similar as a monitor.

Thanks.

Last edited:

harriska2

macrumors 65816
Mar 16, 2011
1,113
572
Oregon
I have the older 40” 4k Samsung version and yes, it works as a full on smart tv. I hook an ethernet to it and it lets me connect to netflix, amazon, etc. using a nice remote. No picture-in-picture while using it on a computer - it might be different with the newer version. Mine has this external hdmi connector box and using the remote, I can switch between 4 computers. Sadly, I have 3 connected. Geez, I’m a computer hog. I love it. Pretty good quality, not as nice as my son’s mbp retina but it is very useable.

  • Like
Reactions: MikeGS3

MikeGS3

macrumors newbie
Original poster
Dec 29, 2018
22
4
London, England
Hi Guys,

I ended up buying this Samsung 40inchSamsung UE40NU7120.

I haven't got my Mini yet, that should arrive next week sometime. I've tested it with my work Dell laptop running Windows 10, the display settings says it's running at 3840 x 2160 at 60Hz, I'm using this HDMI cable: [URL='https://www.amazon.co.uk/gp/product/B00FK0YGLO/ref=ppx_yo_dt_b_asin_title_o01_s01?ie=UTF8&psc=1']HDMI Cable 4K Ultra HD -4m HDMI Cord - compatible with (HDMI 2.0a/b, 2.0, 1.4a, 4K HDMI Cable, HDMI to HDMI, 4K@60HZ,1080p FullHD, UHD, 3D, High Speed[/URL], which says it should be able to run at 60Hz up to 3ft... but the cable is actually 4ft. And the resolution the Samsung UE40NU7120 is reporting is only 30Hz.

Would this be solely down to the cable, do you think or could there be something else at play?

So far it looks like the screen size fits my needs, but will only know fully once I get the Mac Mini and test it with that.

Thanks for all the help so far.


harriska2

macrumors 65816
Mar 16, 2011
1,113
572
Oregon
My 40” Samsung had to be set to - is it UHD? - to do 60. Look through the Samsung menu or google it. My mini and 2 other Windows 7 machines all do 60 at 38xx x 2xxx


MikeGS3

macrumors newbie
Original poster
Dec 29, 2018
22
4
London, England
Hi Guys,

My Mini arrived a little over a week ago. I spec'd it as i7 6 core, 512 SSD and added 32GB of Crucial RAM. As mentioned in a previous post, I'm running it with this Samsung 40'" monitor Samsung UE40NU7120 at 3480 x 2160 @ 60HZ.

I am finding however when on the web especially forums such as this, or busy websites, when loading new or refreshing pages, the fans are running quite loud. Does anyone think getting an eGPU would help improve on this?

I also use the machine to run Logic Pro music production sessions and the fans are running quite hard when I have a relatively busy session going. So I'm keen to try and improve on this even if it means paying out. I've looked into:

Sapphire Pulse Radeon RX 580 8G GDDR5 Dual HDMI/DVI-D/Dual DP Graphics Card and
Sonnet eGFX Breakaway Box, Thunderbolt 3-to eGPU PCIe Card Expansion System (GPU-350W-TB3Z)

Thanks in advance


adamk77

macrumors 6502a
Jan 6, 2008
510
149
Hi Guys,

My Mini arrived a little over a week ago. I spec'd it as i7 6 core, 512 SSD and added 32GB of Crucial RAM. As mentioned in a previous post, I'm running it with this Samsung 40'" monitor Samsung UE40NU7120 at 3480 x 2160 @ 60HZ.

I am finding however when on the web especially forums such as this, or busy websites, when loading new or refreshing pages, the fans are running quite loud. Does anyone think getting an eGPU would help improve on this?

I also use the machine to run Logic Pro music production sessions and the fans are running quite hard when I have a relatively busy session going. So I'm keen to try and improve on this even if it means paying out. I've looked into:

Sapphire Pulse Radeon RX 580 8G GDDR5 Dual HDMI/DVI-D/Dual DP Graphics Card and
Sonnet eGFX Breakaway Box, Thunderbolt 3-to eGPU PCIe Card Expansion System (GPU-350W-TB3Z)

Thanks in advance
You have the exact set up I'm working towards (including the 40"+ screen) , so I'm really curious as to why your fan is working overtime. When you hear your fan running hard, would you mind posting a screenshot of your activity monitor, sorted by CPU? Let activity monitor run for 30 seconds or so before you take the screenshot.

Usually for me, when the fan is roaring and I'm browsing the web, it's some tab on my browser that's eating up the CPU (It's usually Chrome. Safari's better about it.)

  • Like
Reactions: MikeGS3

harriska2

macrumors 65816
Mar 16, 2011
1,113
572
Oregon
I’ve never heard my fan and I have a 40” Samsung running at the same resolution. Even when converting movies I don’t hear it. And I certainly can hear high frequencies. Weird.


macdos

macrumors regular
Oct 15, 2017
221
295
Might be an Adblock extension going at 100% on a core. Take a look in the Activity monitor.

I switched to Ad and stuff blocker when I saw that Adblock behaved like this.

Hi Guys,

My Mini arrived a little over a week ago. I spec'd it as i7 6 core, 512 SSD and added 32GB of Crucial RAM. As mentioned in a previous post, I'm running it with this Samsung 40'" monitor Samsung UE40NU7120 at 3480 x 2160 @ 60HZ.

I am finding however when on the web especially forums such as this, or busy websites, when loading new or refreshing pages, the fans are running quite loud. Does anyone think getting an eGPU would help improve on this?

I also use the machine to run Logic Pro music production sessions and the fans are running quite hard when I have a relatively busy session going. So I'm keen to try and improve on this even if it means paying out. I've looked into:

Sapphire Pulse Radeon RX 580 8G GDDR5 Dual HDMI/DVI-D/Dual DP Graphics Card and
Sonnet eGFX Breakaway Box, Thunderbolt 3-to eGPU PCIe Card Expansion System (GPU-350W-TB3Z)

Thanks in advance

  • Like
Reactions: MikeGS3

MikeGS3

macrumors newbie
Original poster
Dec 29, 2018
22
4
London, England
You have the exact set up I'm working towards (including the 40"+ screen) , so I'm really curious as to why your fan is working overtime. When you hear your fan running hard, would you mind posting a screenshot of your activity monitor, sorted by CPU? Let activity monitor run for 30 seconds or so before you take the screenshot.

Usually for me, when the fan is roaring and I'm browsing the web, it's some tab on my browser that's eating up the CPU (It's usually Chrome. Safari's better about it.)
I will do. Also I’ll give Safari a go. I typically use Firefox.


MikeGS3

macrumors newbie
Original poster
Dec 29, 2018
22
4
London, England
Hi Guys,

It seems as though either with just doing a restart of the Mini (not the fist one, but maybe I had installed a few audio apps since the last) or with the latest version of OSX Mohave 10.14.4, this has drastically improved the fan issues. They are literally whisper quiet now, on both web browsing and running Logic Pro.

In the release notes Apple do say they fixed some issues with various Macs running external displays, so something tells me this might be related. Thought I'd update as it may help other users too.

Anyway for now I am definitely in the happy camp with my purchases. Hopefully it will stay that way.

  • Like
Reactions: IngerMan

petercw2

macrumors regular
Mar 1, 2003
125
15
this is a helpful thread as I've been considering a Mini w/ a 43" 4K/HDR display from Vizio or TCL (crazy good bargains) - but worry what the trade offs will be. *subscribed*


petercw2

macrumors regular
Mar 1, 2003
125
15
Do you have links to the specific displays you're considering?
Sure

TCL 43" 5 Series
Vizio 43" e-Series

Both of these can be had for well under $500. Both are not just 4K and HDR but Dolby Vision compatible. I have the 55" 6series TCL and it is the most ridiculous bang for the buck I've ever found in all my snobby audio/video-phile existence. What I'm concerned about is 1) the mini's ability to run this without tons of fan noise/heat and 2) the resolution/DPI/font issue. This will be mounted on a wall about 24" from my desk chair and I fear the only way I'll ever know is to just buy the stuff, set it up and try it. But always lurk around these forums for like-minded people who may have already done that.
[doublepost=1553870448][/doublepost]
I'll add what I've commented on in other similar threads. The DPI for these is 102, which is basically the same as my 2011 27" iMac (109), and I'm happy with so I assume I would be with these as well. But the new iMacs at 5K 27" are pushing >200DPI - but I love screen property and the idea of a 43" screen with different windows for multitasking (hey, the 2pm EPL game in an upper window!) seems to be a dreamy solve. but. I'm sure there are many here who would encourage otherwise and those are the reasons I am seeking out.
