27" 2013 BTO - Arrived, Performance & Observations

Discussion in 'iMac' started by bp1000, Oct 2, 2013.

  1. bp1000 macrumors 65816

    Joined:
    Jul 7, 2011
    #1
    My BTO 2013 Haswell iMac turned up this morning. Love it, here are some performance stats and observations.

    27" 2013 iMac
    Haswell 3.4Ghz i5
    16GB Ram
    780m GPU
    256SSD

    [​IMG]



    SSD

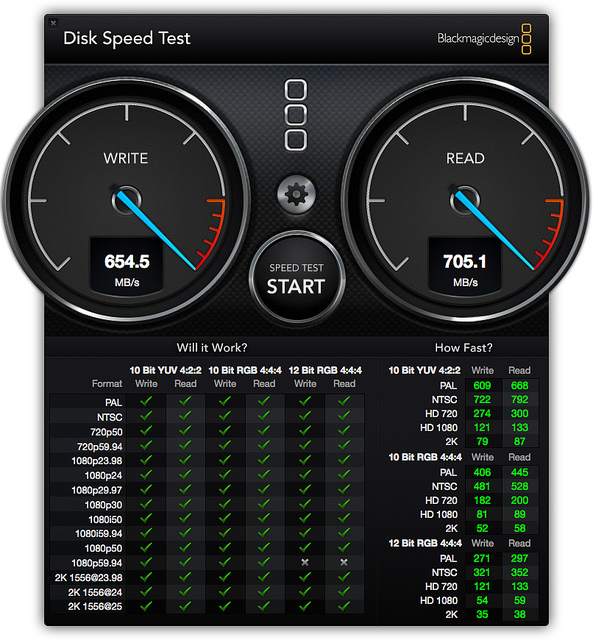

    Black Magic speed test
    [​IMG]

    Boot time to desktop = 14.48s
    Shut down to screen off = 6.14s


    Geekbench

    I only have the tryout version so 32bit only.

    Single Core =3493
    Multi-core =11042

    GB page here : http://browser.primatelabs.com/geekbench3/96605

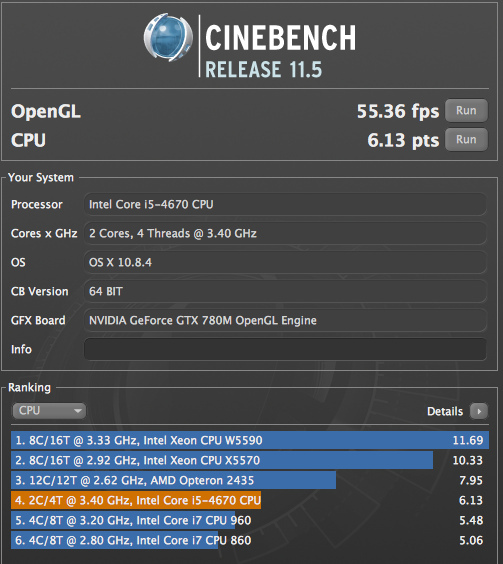

    Cinebench 11.15

    CPU = 6.13 pts
    [​IMG]

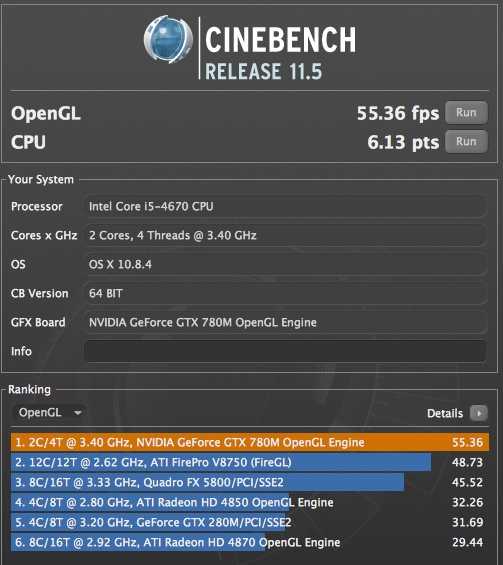

    GPU =55.36 fps
    [​IMG]

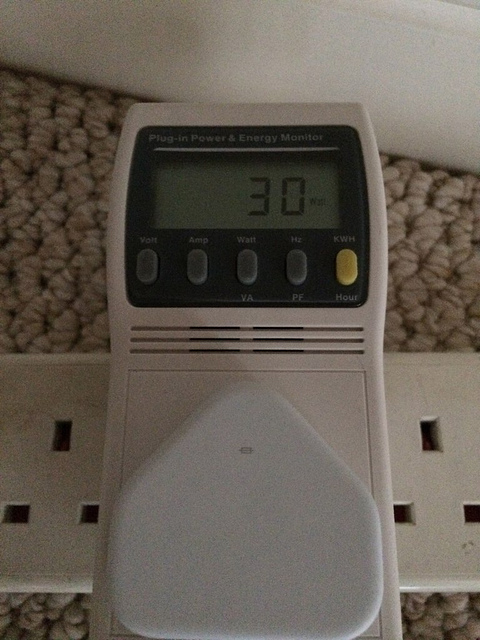

    Power consumption

    Amazing, quite unbelievable

    Off standby = 1Watt

    Idle desktop = 30Watt

    [​IMG]

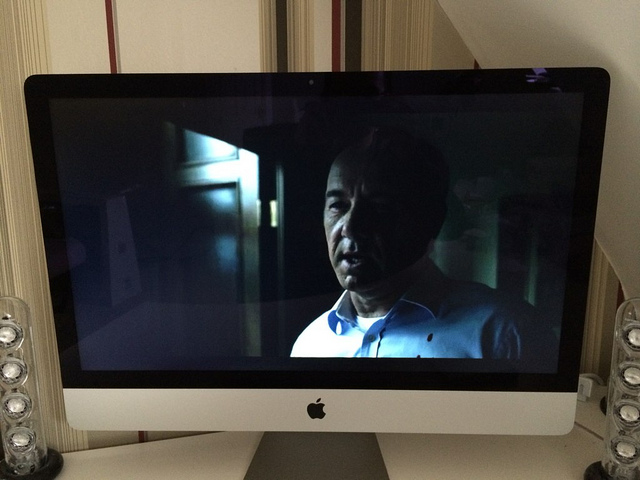

    Screen bleed

    Hardly any, slight bleed from the corners but well within acceptable range, not even noticeable unless you are looking in unrealistic circumstances or very odd angles. I can notice a yellow cast if i put my head on the desktop and look up to the top left. Which is frankly ridiculous

    Just over half brightness - which was boosted from auto sensing which put it at just under half brightness.

    [​IMG]

    Pictures taken with 5s so low noise ;) - I think the noise of phone sensors probably exaggerated the issue as noise is colour tinted.


    Other observations

    Fan made no noticeable change in speed or volume as it was running the benchmarking tests. It is hardly noticeably, it isnt inaudible like my MBA but its still very quiet.


    Hope everyone else is happy with their 27" iMacs. I know people are worried about their screens with bleed and casting, mine is showing no concerning signs.

    Enjoy!

    ----------

    Sunspider browser benchmarking is indecently quick

    ============================================
    RESULTS (means and 95% confidence intervals)
    --------------------------------------------
    Total: 123.4ms +/- 5.3%
    --------------------------------------------

    Everything feels instant

    There is no point trying to benchmark opening programs like iPhoto - its under a second from fully closed.

  2. gCloud macrumors 6502a

    Joined:
    Mar 9, 2012
    Location:
    United Federation of Planets
    #2
    Glad u r happy with your imac they are great machines, hope you continue to enjoy it for years to come.

  3. Laucian Nailor macrumors member

    Laucian Nailor

    Joined:
    Oct 24, 2012
    Location:
    UK
    #3
    Congratulations, it looks fantastic :D

    Mine was delivered this morning, but I'm not home until tomorrow, so it will just sit in it's box :(

    Disc speed is 'insane'; just a comment that Cinebench is showing this as a dual-core chip, when it's actually quad-core. I'm not familiar with Cinebench, so not sure how/if its effecting your results.

    I'm looking forward to getting home....

  4. tomnavratil macrumors 6502a

    tomnavratil

    Joined:
    Oct 2, 2013
    Location:
    Litovel, Czech Republic
    #4
    Congrats and thanks for a quick overview. I'm looking forward to receive my one in 10 days hopefully so I'll be able to inform as well :).

  5. Confusius macrumors regular

    Joined:
    Mar 24, 2012
    Location:
    New York
    #5
    Great job, thank you! Two observations though: that's some serious screen glare/reflection and you bear an uncanny resemblance to Kevin Spacey.

  6. II BISTRO II macrumors member

    Joined:
    Sep 25, 2012
    #6

    how the hell are you getting these speeds with just a single SSD in there?

    I'm looking to upgrade my 1tb hdd to a SSD but I'll only be getting about 500/520 with a samsung 840 pro

  7. Laucian Nailor macrumors member

    Laucian Nailor

    Joined:
    Oct 24, 2012
    Location:
    UK
    #7
    I think this could be something to do with upgrading the SSD connector from SATA to PCIexpress?

  8. II BISTRO II macrumors member

    Joined:
    Sep 25, 2012
    #8
    now I'm considering buying a SSD from a MBA if those are the speeds and make a fusion drive with my 1 tb hdd and 256 gb ssd

  9. theRevIsNotDead macrumors member

    theRevIsNotDead

    Joined:
    Aug 17, 2013
    #9
    Awesome!

    Excellent and very informing post, thanks for sharing!!

  10. Tanax macrumors 6502a

    Joined:
    Jun 15, 2011
    Location:
    Stockholm, Sweden
    #10
    I thought the i5 didn't have HyperThreading, yet it says it has 4 threads? :confused:

  11. Erphern macrumors 6502

    Joined:
    Mar 6, 2013
    Location:
    UK
    #11
    It's still quad core, hence four threads. The i7 has two threads per core, thus eight. I believe. Someone correct me. :)

  12. Laucian Nailor macrumors member

    Laucian Nailor

    Joined:
    Oct 24, 2012
    Location:
    UK
    #12
    You are right, however, I pointed out above CB is calling it out as a dual core, hence the confusion of 4 threads. I think its just a CB display error.

  13. cateye macrumors member

    cateye

    Joined:
    Oct 18, 2011
    #13
    That SSD speed is insane. So glad I opted for the 512GB SSD upgrade. This will be a hell of an update from my current 2009 27" and its pokey 1TB spinny disk.

  14. bp1000, Oct 2, 2013
    Last edited: Oct 2, 2013

    bp1000 thread starter macrumors 65816

    Joined:
    Jul 7, 2011
    #14
    Thanks guys glad some of you found it useful

    SSD is now 5% faster after installing some of my apps

    Read : 740MB/Sec
    Write : 680MB/Sec

    So yes pretty insane!


    I noticed that cinebench issue too, perhaps its not correctly reporting the Haswell chips, i tried to get the latest download of it.

    Power consumption monitoring is off now but at idle desktop / reading web pages it ranges from 25 watts min screen brightness to 70w max brightness. That is damm impressive.


    And yes my screen bleed test did have major reflections, there is a window to the left of the iMac shining on the glossy desk but very pleased with screen.

    With most of my apps installed i only used 19GB of space! :D - i think it would be a different story if i stored my photos on the internal drive of which i have over 200GB. I also have 400GB of music but its all itunes matched now. My photos will live on my external drive when it turns up. I anticipate my Aperture cache and meta data to be around 30GB on the SSD.


    edit//

    Memory : i opted for factory 16GB. I know many of you will install it yourself but its good to know Apple installed 2x 8GB so i'm free to install a further 16GB kit if i wish. So no wasted sticks.

  15. Maziar macrumors 6502

    Joined:
    May 22, 2010
    #15
    Congrats on your purchase,can you post some gaming benchs ?

  16. Mac32 macrumors 6502a

    Joined:
    Nov 20, 2010
    #16
    Do you use Windows7/Bootcamp? If so, a 3dmark11 test would be great to see the performance difference compared to 680MX.
    Anyways, congratulations with you new iMac, it's a great machine! :)

  17. tomnavratil macrumors 6502a

    tomnavratil

    Joined:
    Oct 2, 2013
    Location:
    Litovel, Czech Republic
    #17
    I can sign that too, I'm switching from a MBP mid-2010 with 8GB ram and any idea how this would perform on Mac-native games would be much appreciated.

  18. NCWildcat macrumors member

    NCWildcat

    Joined:
    Oct 12, 2011
    #18
    Good info, thanks! Also, I have those IKEA lamps on my bedside tables. About every two months the threading on the pulls comes loose and I yank 'em right out.

  19. bp1000, Oct 2, 2013
    Last edited: Oct 2, 2013

    bp1000 thread starter macrumors 65816

    Joined:
    Jul 7, 2011
    #19

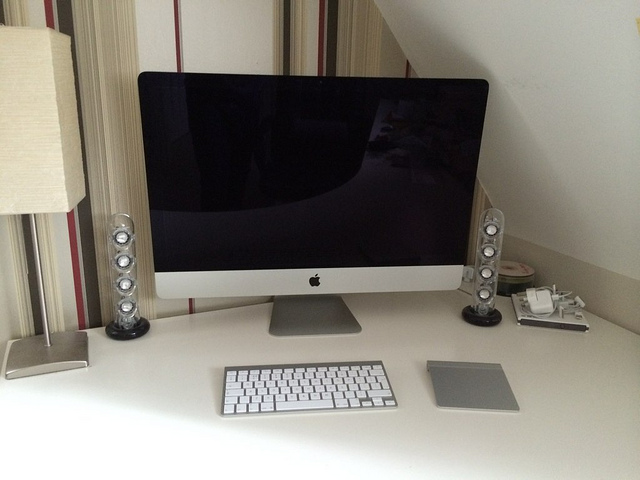

    I like the hue those lamps give off in the evening. Nice warm temperature :)

    [​IMG]

    I am happy to do gaming benches, however do you actually mean in game benches or is there a program i can use?

    I dont have bootcamp set up yet, i dont have a copy of windows (it has been a while). But i am planning on setting bootcamp / windows up for some gaming in the near future. I'm sure you will have yours by the time i get around to it.

  20. Johnf1285, Oct 2, 2013
    Last edited: Oct 2, 2013

    Johnf1285 macrumors 6502a

    Johnf1285

    Joined:
    Dec 25, 2010
    Location:
    New Jersey
    #20
    Awesome - can't wait to give my own review later this afternoon (will include D3 and Wow in the review). I have a somewhat similar config:

    i7, 8gb, 512ssd, 780M

  21. StephenCampbell macrumors 65816

    Joined:
    Sep 21, 2009
    #21
    I was initially surprised by your geekbench score, but then realized you got the i5. I don't understand why anybody wouldn't upgrade to the i7. Last years i5 27" was a 10,643, about 500 less than yours, so that makes sense now.

    Last years i7 was a 13,772.

  22. djholman macrumors newbie

    Joined:
    Jul 15, 2013
    #22
    Actually a bit faster. I just got 14191 in 64 bit mode with Geekbench 2, this with Safari, iTerm2, Colloquy, Mail, Citrix and Tweetbot all open.

  23. bluescale macrumors member

    Joined:
    Sep 27, 2013
    #23
    Because many of us will never utilize the benefits the i7 will give us outside of wonderful benchmark scores.

  24. tomnavratil macrumors 6502a

    tomnavratil

    Joined:
    Oct 2, 2013
    Location:
    Litovel, Czech Republic
    #24
    Very true, with tight budget many people would rather go for better GPU or better storage - Fusion, SSD rather than seeing a different between i5 and i7 but all depends on the workload.:)

  25. Davnet75 macrumors newbie

    Joined:
    Oct 2, 2013
    #25
    Original ram's brand

    Hallo. Which ram's brand has Apple choice for the new iMac 27"?
    Thank's!
