Resolved Airport Exteme Card for Power Mac G5 Late 2005...which one?

Discussion in 'PowerPC Macs' started by tevion5, Apr 16, 2013.

  1. tevion5, Apr 16, 2013
    Last edited: Jun 12, 2013

    tevion5 macrumors 68000

    tevion5

    Joined:
    Jul 12, 2011
    Location:
    Ireland
    #1
    Can somebody please tell me the model number of the Airport Exteme wifi+Bluetooth Card for Power Mac G5 Late 2005?

    Want to get one cheap somewhere but there are so many I'm afraid ill mistakenly get the AGP one or one of the laptops ones!

  2. Mac Hammer Fan macrumors 6502

    Mac Hammer Fan

    Joined:
    Jul 13, 2004
    Location:
    Belgium
    #3
    Does an Airport card from a PowerMac G5 dual 1.8 from 2004 work in a PowerMac G5 Late 2005 Dual Core 2.3?

  3. Colpeas macrumors 6502

    Colpeas

    Joined:
    Sep 30, 2011
    Location:
    Prague, Czech Rep.
    #4
    no.

  4. Mac Hammer Fan macrumors 6502

    Mac Hammer Fan

    Joined:
    Jul 13, 2004
    Location:
    Belgium
    #5
    Are there any cheap Pci-e cards that enable Wifi on this Mac?

  5. rabidz7 macrumors 65816

    rabidz7

    Joined:
    Jun 24, 2012
    Location:
    Ohio
    #6
    No. You need an EDR card.

  6. MisterKeeks macrumors 68000

    MisterKeeks

    Joined:
    Nov 15, 2012
    #7
    And one that fits.

  7. MisterMorse macrumors newbie

    Joined:
    Mar 24, 2013
    Location:
    Windsor, VT
    #8
  8. rabidz7 macrumors 65816

    rabidz7

    Joined:
    Jun 24, 2012
    Location:
    Ohio
    #9
    Will this work woth kismac on a powerbook?
    I need a wireless card because... Well, I thought the airport traces were MSB_PLL cpu clock control pins, and... Desoldered them.
    When I used my old USB wifi card, it worked great, and then someone decided it was a powerbook "handle"; they picked up the powerbook by the wifi card and broke it in half.

  9. LarsG5 macrumors member

    LarsG5

    Joined:
    Aug 10, 2016
    #10
    It works as long as you're able to grab an antenna cable form a compatible Powerbook or older Power Mac.
    I've done that and it works perfectly fine.

  10. RhianB, Nov 9, 2016
    Last edited: Nov 9, 2016

    RhianB macrumors 6502

    RhianB

    Joined:
    Sep 3, 2016
    Location:
    Albuquerque, NM USA
    #11

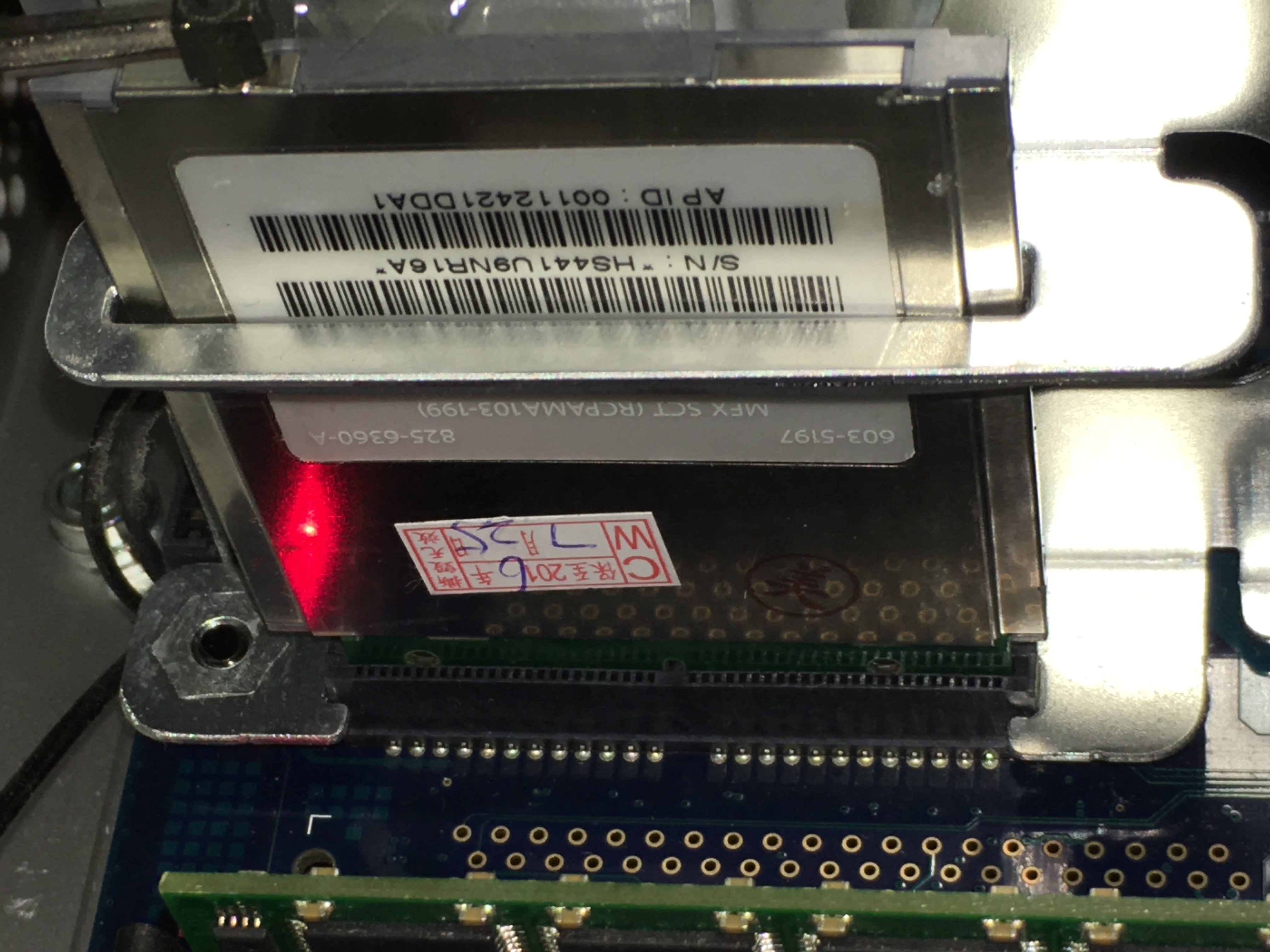

    The A1026 airport extreme card works like a charm assuming you have the corresponding antenna that plugs into the back. Without it ime your airport extreme will be rendered effectively useless with a range of maybe a foot or two. In that scenario, you'll want to make a hillbilly antenna (is what I use to great results) out of a wire Twisty tie. That or drop some decent cash on the apple powermac G5 antenna from ebay.


    Attached Files:

  11. Hack5190 macrumors 6502

    Hack5190

    Joined:
    Oct 21, 2015
    Location:
    Stuck on Earth in the USA
    #12
    Check my thread here for a 3rd party antenna that fits perfect and works much better than a wire-tie.

  12. MisterKeeks macrumors 68000

    MisterKeeks

    Joined:
    Nov 15, 2012
    #13
    Late 2005 G5s have the antenna built in to a white plastic strip on the back of the computer and therefore have no antenna port.

  13. RhianB macrumors 6502

    RhianB

    Joined:
    Sep 3, 2016
    Location:
    Albuquerque, NM USA
    #14
    Ya learn something new each day. What was sold to me as a late 2005 PMG5 is in fact an early 2005 (week 19 so week3 of April 2005 after checking the SN). Thanks for the clarification.

    Hack5190 - Do these antennas work for the BT port as well? Same MCX spec? Unfortunately, this PM does not have a BT card in it so I'd have to buy one but I want to have BT on this box.

  14. Hack5190 macrumors 6502

    Hack5190

    Joined:
    Oct 21, 2015
    Location:
    Stuck on Earth in the USA
    #15
    Like you I don't have a blue tooth card to test them, sorry. However since these old wifi cards operate in the 2.4 GHz range and bluetooth operates from 2.4 to 2.485 GHz it should work.

  15. RhianB macrumors 6502

    RhianB

    Joined:
    Sep 3, 2016
    Location:
    Albuquerque, NM USA
    #16
    I just ordered a BT card for $7.95 shipped and a set of your linked antennas so we'll see :D

  16. RhianB, Nov 17, 2016
    Last edited: Nov 17, 2016

    RhianB macrumors 6502

    RhianB

    Joined:
    Sep 3, 2016
    Location:
    Albuquerque, NM USA
    #17

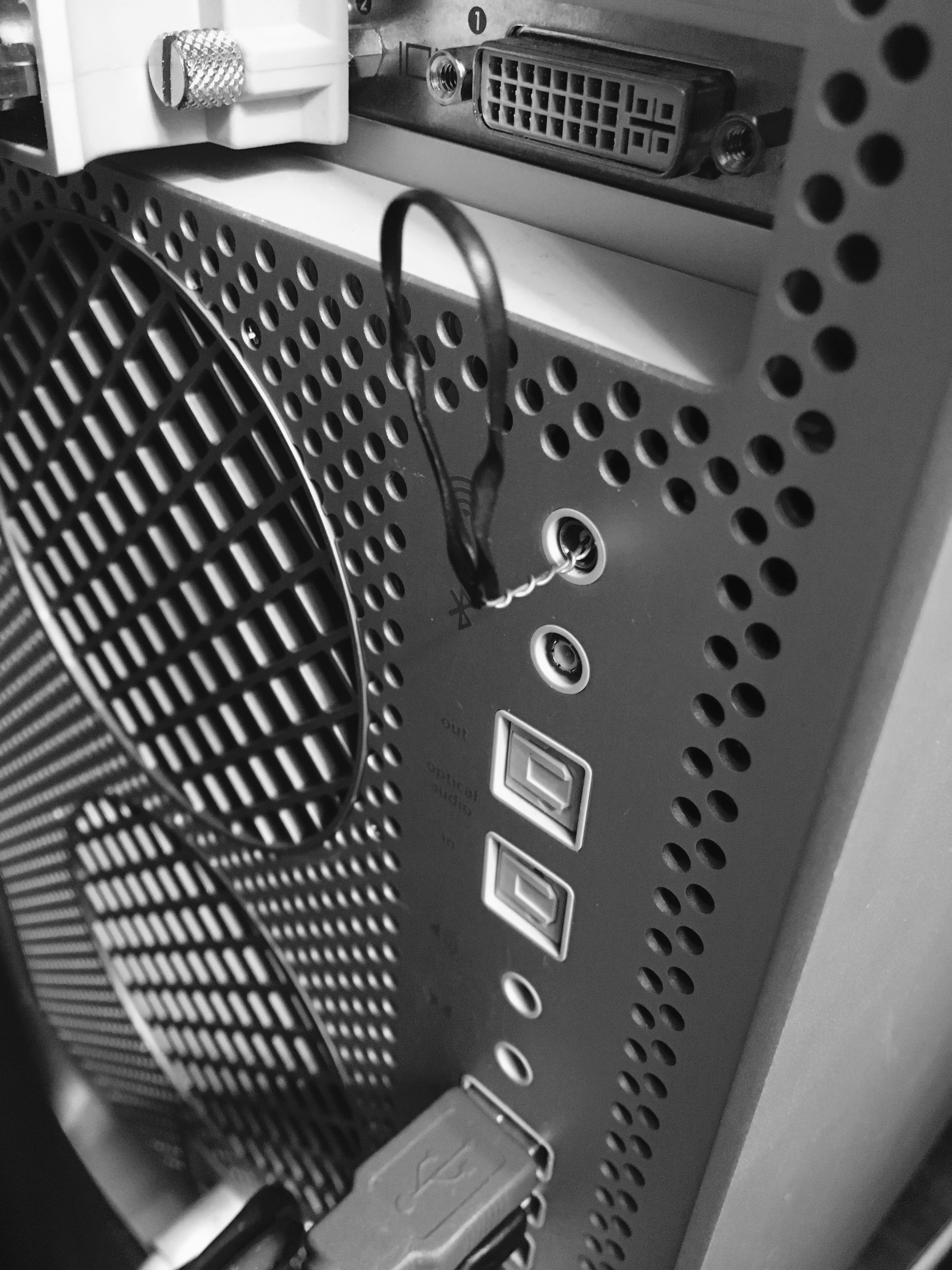

    I'm still awaiting on the Chinese antennas but my Apple BT card came in for my PMG5 so I installed that. I needed an "antenna" (I use that term very loosely lol) so I came up with this. I tried a couple designs but this worked best with the best range - about 2ft max from the antenna port w/accurate tracking. It's a twisty tie stuck into the port with 4 springs (the springs from under a single coil or bucker electric guitar pickup) stuck around it. IMG_1591.JPG
    Serious low-budget Mickey Mouse fix but when in a pickle, this pig tail works & I'm still getting great bandwidth from that twisty tie wifi antenna as well :D
