Does it give any advantage over getting a cheap Airport Express and connecting it with Ethernet though?
Yes.

The AirPort card has built in Bluetooth, which is supported by OF. This means you can use a Magic keyboard to wake the G5 from sleep or to dig into OF/Boot selector screen if you need to. If you aren't bothered by wireless keyboards and mice then not so much.

Yes.

The AirPort card has built in Bluetooth, which is supported by OF. This means you can use a Magic keyboard to wake the G5 from sleep or to dig into OF/Boot selector screen if you need to. If you aren't bothered by wireless keyboards and mice then not so much.
Also to get any real speed advantages from airport express you would need a wifi n model, i would think it's probably more convenient to use usb wifi than anything.

Just to be sure, anyone knows what are the best wifi and bluetooth protocols supported under tiger/leopard? Also, is really not possible to find an internal wifi+bt card for the pcie g5?

Wouldn't the easiest and cheapest way be a PCIe to miniPCIe adapter with antennas and a BCM94322MC card?
Reviving this old thread. This sounds intriguing! The BCM94322MC is a standalone 802.11a/b/g/n card. Can someone confirm if there are drivers for this card under Tiger/Leopard? Also, we would need to find a compatible PCIe card with 2 antenna connectors to connect the 2x2 MIMO configuration.

FYI: I've tried using an A1026 AirPort Extreme card and an antenna from an old AirPort Extreme Base station. I'm literally 30 ft from my WiFi receiver and I barely get 1, sometimes 2 bars in my PMG5. Usually after coming out of deep sleep, it refuses to connect. I swapped the AirPort Extreme card to no avail.

Reviving this old thread. This sounds intriguing! The BCM94322MC is a standalone 802.11a/b/g/n card. Can someone confirm if there are drivers for this card under Tiger/Leopard? Also, we would need to find a compatible PCIe card with 2 antenna connectors to connect the 2x2 MIMO configuration.

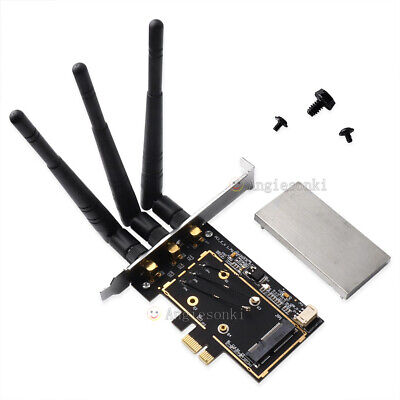

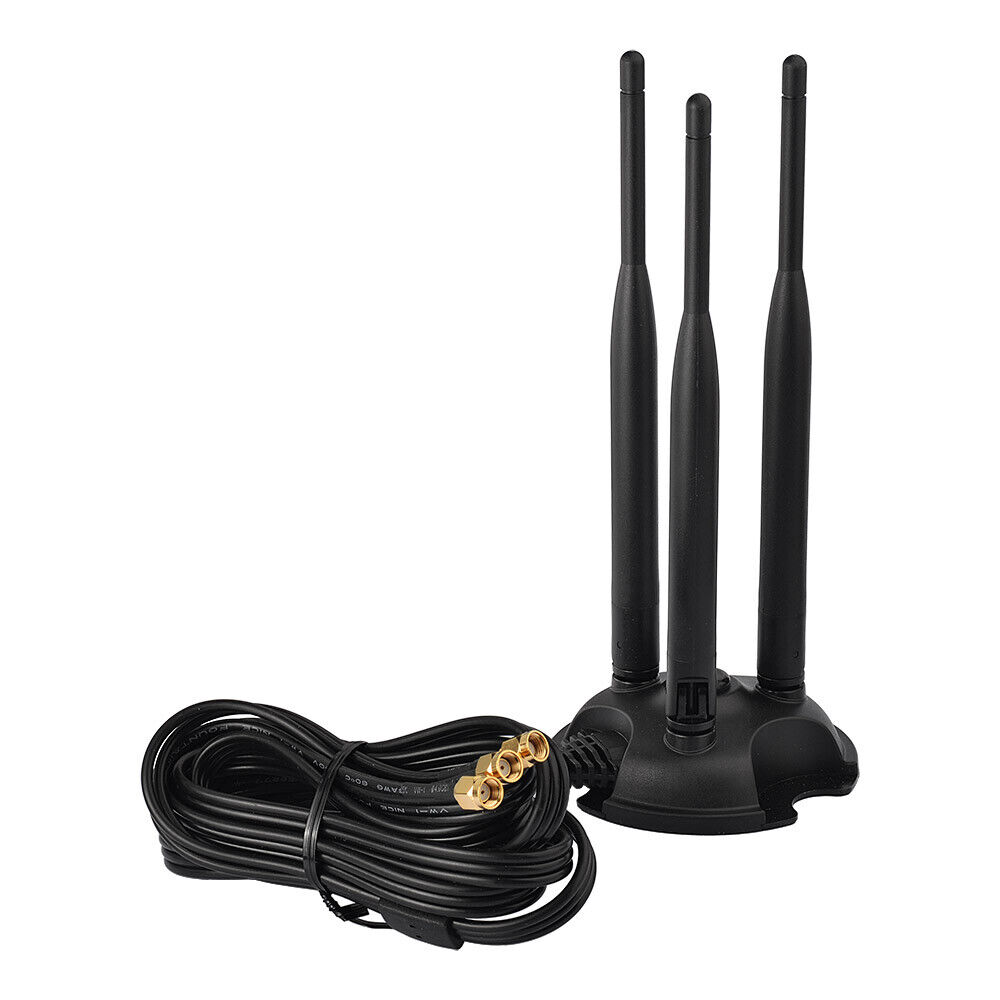

When I did mine, you could get carrier cards with three aerial connectors quite easily. I also got an impressive external tri-cable aerial with 1-2m of cabling to plug into. Something like these pics.




You might find reading this thread useful for your other questions: https://forums.macrumors.com/threads/802-11n-wifi-on-pci-e-g5.2289744/

  • Like
Reactions: sheapuppy
When I did mine, you could get carrier cards with three aerial connectors quite easily. I also got an impressive external tri-cable aerial with 1-2m of cabling to plug into. Something like these pics.

View attachment 2480977View attachment 2480978



You might find reading this thread useful for your other questions: https://forums.macrumors.com/threads/802-11n-wifi-on-pci-e-g5.2289744/
No support was not added until 10.7 lion and believe it first shipped towards rhe end of the cheesegrater(1st gen design) life like around the 2012 Mac Pro timeframe

No support was not added until 10.7 lion and believe it first shipped towards rhe end of the cheesegrater(1st gen design) life like around the 2012 Mac Pro timeframe
@Tankerthebuberz bummer! so does that mean I need a Mac Pro 1,1 > 5,1 to support 802.11n, right? Just so that I'm clear:

The PCIe adapter card may be supported in a G5 using Tiger 10.4 / Leopard 10.5, BUT only a compatible 802.11b/g (not n) card will be supported?

Please correct me if I'm wrong.

Thanks....JP

Last edited:
@Tankerthebuberz bummer! so does that mean I need a Mac Pro 1,1 > 5,1 to support 802.11n, right? Just so that I'm clear:

The PCIe adapter card may be supported in a G5 using Tiger 10.4 / Leopard 10.5, BUT only a compatible 802.11b/g (not n) card will be supported?

Please correct me if I'm wrong.

Thanks....JP
I have no idea what Tankerthebuberz is trying to say but 802.11n is supported in Leopard and Tiger for Intel. My Macbook Pro Santa Rosa (2007) shipped with Tiger and had a 802.11n card inside. The Mac Pro 1,1 in 2006 came with an optional 802.11n card. That also shipped with Tiger. I have a 1,1 and that runs the faster card. From what I can remember, they ran initially at 802.11g speeds as the cards Apple implemented had not fully passed the 802.11n specification, being somewhat experimental at the time, so Apple released a paid-for firmware update later on to unlock the cards. That caused a bit of a stink at the time. Still four years before Lion was released.

The restriction is on the PPC side of things. 802.11n support is restricted to certain Broadcom cards in retail Leopard and one Broadcom card in Tiger Server 10.4.7 (universal).

In short, he's wrong.

  • Like
Reactions: sheapuppy
