Aluminum iMac Disassembled and First Impressions

MacRumors

macrumors bot
Original poster
Apr 12, 2001
46,722
8,940

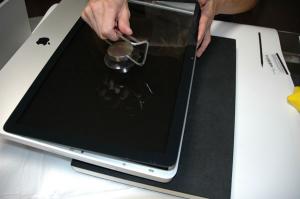

Kodawarisan posted a set of disassembly photos of the new aluminum iMac released yesterday:





Meanwhile, Gizmodo has posted some first impressions about the new iMac. Some highlights are provided:

- The keyboard cable is just high enough that it won't bump into the metal base of the iMac if you push them together on your desk.
- The iMac's aluminum chassis is stamped from a single piece of aluminum.
- The speakers are on the bottom, pointing down at the desk, where the sound bounces off nicely. (They're loud.)
- Can't wall mount the 20". The 24" has an optional VESA mount.
- Screen is extremely glossy

MacRumors readers are discussing the iMac in our iMac forum.



Article Link


kitki83

macrumors 6502a
Mar 31, 2004
803
0
Los Angeles
Let the science BEGIN!!!!

I love the design of the new imac, the black trim is good for movie viewing. Also seems you can paint the black area.


Daniel75

macrumors member
May 5, 2007
58
0
Edinburgh
At least now we know which panel is hidden there:

Model Name LM201WE3(TN)
Active Area [mm] 433.4 x 270.9
Outline Dimension [mm] 459.4 x 296.4
Thickness [mm] 16.5
Resolution 1680 x 1050
Aspect Ratio 16:10
Pixel Pitch [mm] 0.258
Number of Colors 16.7 M, 8bit(FRC)
Luminance [cd/?] 300
Color Saturation (%) 72%
Weight [g] 2500
Contrast Ratio 1000:1
Interface LVDS
Viewing Angle [?,U/D/L/R] 160/160
Color Temperature [K] 6500
Response Time [ms] 5


I wonder if that means that 24'' is using LM240WU3?
Specs


mkrishnan

Moderator emeritus
Jan 9, 2004
29,777
12
Grand Rapids, MI, USA
^^ How is that any different than the previous iMac?

Mmm, I still won't be able to see one till Tuesday at least, but I dunno. As more photos, the back continues to look ugly to me. The front, on the other hand, is slowly growing on me. :)


Eidorian

macrumors Penryn
Mar 23, 2005
29,080
287
Indianapolis
^^ How is that any different than the previous iMac?

Mmm, I still won't be able to see one till Tuesday at least, but I dunno. As more photos, the back continues to look ugly to me. The front, on the other hand, is slowly growing on me. :)
The internals look the same to me.


mklos

macrumors 68000
Dec 4, 2002
1,896
0
My house!
Does the back panel come off like the last gen imac to gain access to the hard drive?
The last gen iMacs didn't have the feature either. You're thinking of the first gen iMac G5 where the entire back came off to get to the RAM, AirPort Card, Hard Drive, etc. The last gen iMacs you could only take a couple of screws off and get access to the RAM slots under the display, similar to the this new iMac.

I'm wondering how they got that glass out. Does it just pull out with the proper tools? If so I see a potential issue with the glass falling out of the enclosure without any warning.


illicium

macrumors regular
Jul 31, 2007
132
0
New iMac and RAM

I saw in the presentation that there is only one screw to remove to get to the RAM. I am planning on buying a new 24" iMac when Leopard comes out and I would like it to be outfitted with 2 Gigs of RAM but it is $135 in the Apple Store on-line to upgrade to 2 Gigs. What is anyone's experience with buying cheap 3rd party RAM for their iMacs? Currently on newegg there are prices as low as $35 for TechWorks and as low as $45 for Corsair 1 Gig modules. Should it send up a red flag that there is THAT much of a price difference? OR should I be completely safe going with one of those sticks for my upgrade to 2 Gigs?


jsfried

macrumors newbie
Jul 9, 2007
15
0
Ann Arbor
The last gen iMacs didn't have the feature either. You're thinking of the first gen iMac G5 where the entire back came off to get to the RAM, AirPort Card, Hard Drive, etc. The last gen iMacs you could only take a couple of screws off and get access to the RAM slots under the display, similar to the this new iMac.

I'm wondering how they got that glass out. Does it just pull out with the proper tools? If so I see a potential issue with the glass falling out of the enclosure without any warning.

You sure about there? The store I work at has the last gen 24inch on demo and the back comes off to access the hard drive.


bennyboi

macrumors regular
Jun 1, 2006
133
0
West Coast
RE: New iMac and RAM

What is anyone's experience with buying cheap 3rd party RAM for their iMacs? Currently on newegg there are prices as low as $35 for TechWorks and as low as $45 for Corsair 1 Gig modules. Should it send up a red flag that there is THAT much of a price difference? OR should I be completely safe going with one of those sticks for my upgrade to 2 Gigs?
Yes, u can purchase cheap ram, but there are horror stories of doing so and people's macs get fried. The bad news, the warranty is voided because you installed 3rd party hardware. I don't know if it's u installing and/or the 3rd party ram that does it, the warranty does get x'd.
I'm a careless cowboy with my toys, and I install my own ram, but I at least try to purchase the same ram apple uses. memoryx.com will tell you which ram to get if u want to match ram and install yourself.
I could see an unethical person purchasing such ram, and if occuring any troubles, uninstalling such ram and taking it in for repairs? I think I'm just the same as you and would like to pinch some pennies when I don't necessarily have to spend a fortune :rolleyes:

Good luck!


maccompaq

macrumors 65816
Mar 6, 2007
1,152
3
I saw in the presentation that there is only one screw to remove to get to the RAM. I am planning on buying a new 24" iMac when Leopard comes out and I would like it to be outfitted with 2 Gigs of RAM but it is $135 in the Apple Store on-line to upgrade to 2 Gigs. What is anyone's experience with buying cheap 3rd party RAM for their iMacs? Currently on newegg there are prices as low as $35 for TechWorks and as low as $45 for Corsair 1 Gig modules. Should it send up a red flag that there is THAT much of a price difference? OR should I be completely safe going with one of those sticks for my upgrade to 2 Gigs?
Go to OWC to get a 2 Meg stick for $114. 1 meg is $50. Very reliable memory.

I want to take those components and put them in a mini tower with much better cooling to prolong the life of the logic board that seems to haunt iMacs. Anyone else?


beer.coffee

macrumors member
Aug 1, 2007
72
0
Gold Coast, Australia
I saw in the presentation that there is only one screw to remove to get to the RAM. I am planning on buying a new 24" iMac when Leopard comes out and I would like it to be outfitted with 2 Gigs of RAM but it is $135 in the Apple Store on-line to upgrade to 2 Gigs. What is anyone's experience with buying cheap 3rd party RAM for their iMacs? Currently on newegg there are prices as low as $35 for TechWorks and as low as $45 for Corsair 1 Gig modules. Should it send up a red flag that there is THAT much of a price difference? OR should I be completely safe going with one of those sticks for my upgrade to 2 Gigs?

Dont skimp on money when it comes to memory! You definitely get what you paid for. I've run numerous memory checks and the cheap stuff definitely has more errors. More errors, more more hang ups and crashes, especially if your doing a lot of video/photo editing or playing games.

My advice is that the extra 20 bucks is well worth it. Your talking about one of the most vital aspect in determining computer performance! Dont skimp!


BIGIRON

macrumors newbie
Aug 8, 2007
6
0
I want one of these so bad but the upgradeable nature of the mac pro is calling my name...whats a nerd to do.....


sluthy

macrumors regular
May 13, 2002
180
0
Bundaberg, Qld. Australia
Hmm, don't like glossy screens...I'll have to see it in person.

24in, full HD, decent graphics, ability to dual boot Windows (when will Boot Camp allow Linux dual booting/triple booting? Will the 'final' BC have this?). This iMac's starting to sound pretty good, and good value compared to Macs of old. Still don't know if it's value enough compared to PCs though for my next computer.


coumerelli

macrumors 6502
Apr 7, 2003
295
80
state of confusion.
I saw in the presentation that there is only one screw to remove to get to the RAM. I am planning on buying a new 24" iMac when Leopard comes out and I would like it to be outfitted with 2 Gigs of RAM but it is $135 in the Apple Store on-line to upgrade to 2 Gigs. What is anyone's experience with buying cheap 3rd party RAM for their iMacs? Currently on newegg there are prices as low as $35 for TechWorks and as low as $45 for Corsair 1 Gig modules. Should it send up a red flag that there is THAT much of a price difference? OR should I be completely safe going with one of those sticks for my upgrade to 2 Gigs?
www.crucial.com - fantastic in my experience. They've got a nifty "Memory Advisor tool" to help you pick. This is inexpensive RAM as opposed to cheap RAM - there's a difference.


nostaws

macrumors 6502
Jan 14, 2006
447
209
www.crucial.com - fantastic in my experience. They've got a nifty "Memory Advisor tool" to help you pick. This is inexpensive RAM as opposed to cheap RAM - there's a difference.
Good Advice - I too really like crucial - very easy to find the exact ram you need for your mac. I have never had a problem with their RAM

I really like the new iMac - This is the first iMac (since the movable arm/desktop lamp version (I wish I could get that with an intel processor) that may cause me to get a desktop machine.


autechre

macrumors newbie
Jan 30, 2007
20
0
Any thoughts on Kingston? I want to upgrade to 4gb and thought about getting this stuff from my local computer store. I know Kingston is a reputable manufacturer. I would get Micron or Samsung from OWC, but I'm not sure yet, especially because I'm in Canada and have reservations about warranty/customs. And is the warranty really void if you buy third party? That doesn't make sense to me.

Honest thoughts, plz.:D
