Amfeltec x16 PCIe with 4 SSDs: 5900+ MB/s

Discussion in 'Mac Pro' started by cerberusss, Nov 9, 2015.

  1. cerberusss macrumors 6502a

    cerberusss

    Joined:
    Aug 25, 2013
    Location:
    The Netherlands
    #1
    Just read an interesting review of a PCIe card which accepts four flash blades:
    http://barefeats.com/hard210.html

    Intro from the article:
    "Our readers have been frustrated by the inability to get more than 1500MB/s from Samsung SM951 flash blades mounted in slots 3 and 4 of the 2009-2012 Mac Pro tower. The x16 slot 2 has not been a helpful -- until now. One of those frustrated readers turned us on to a new x16 PCIe M.2 carrier board by Amfeltec in Canada. We obtained a sample which we populated with four SM951s. After striping them (RAID 0), we ran our storage benchmarks."

    [​IMG]

  2. SoyCapitanSoyCapitan macrumors 68040

    SoyCapitanSoyCapitan

    Joined:
    Jul 4, 2015
    #3
    Highly recommendable for professionals who need a disk especially for multi-layer 4K workflows.

    Getting that data into the computer will always be much slower. It's too bad this adapter doesn't have I/O ports for video feeds.

    Just be weary that using that kind of bandwidth frequently on that poorly cooled X58 chipset will reduce the life of the system. Apple's implementation already runs 20C above Intel recommendations.

  3. lowendlinux Contributor

    lowendlinux

    Joined:
    Sep 24, 2014
    Location:
    North Country (way upstate NY)
    #4
    I sent a request for a quote we'll see how much this thing costs

  4. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #5
    Thanks for the info. I am not familiar with this, may I know how to monitor this X58 chipset's temperature. Is this parameter available in iStat?

  5. SoyCapitanSoyCapitan macrumors 68040

    SoyCapitanSoyCapitan

    Joined:
    Jul 4, 2015
    #6
    Yes it's the PCH/IOH reading. Idle temperature in cMP is 70-75c. Intel's manual recommends 20c less and the EVGA SR-2 had the proper cooling system for the X58 chipset to stay under 60C.

    If you get this adapter I'd recommend 2 X RAID0 sets for the most practical multiplayer 4K editing. There are also limits to how well the viewport in Premiere and After Effects perform. There comes a point where no matter how fast the drive you use the viewport won't perform any better because it is held back by CPU, GPU and media APIs.

  6. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #7
    I see, so the "north bridge" is actually the x58 chipset?

    From memory, intel says that chip can work up to something like 105C, isn't it? So, even though our idle temperature is much higher, but still far from the upper limit, am I right?

  7. SoyCapitanSoyCapitan macrumors 68040

    SoyCapitanSoyCapitan

    Joined:
    Jul 4, 2015
    #8
    Over 95C the system will become unstable and shut off. Running it close to those temperatures daily will just reduce the lifespan of the chipset. Also the Barefeats article notes that a RAID that fast causes the SSDs to operate at their maximum recommended temperatures. These SSDs haven't been on the market long enough to tell how well they handle this heat in long term.

  8. lowendlinux Contributor

    lowendlinux

    Joined:
    Sep 24, 2014
    Location:
    North Country (way upstate NY)
    #9
    Here's the quote:

    SKU-086-01 SQUID PCIe Carrier Board for M.2 SSD modules 1 $ 297.38 USD (M.2 key M)

  9. LightBulbFun macrumors 6502a

    LightBulbFun

    Joined:
    Nov 17, 2013
    Location:
    London UK
    #10
    the Mac Pro 4,1/5,1 does not use the X58 chipset thats a common misconception it uses the a Server/workstation chipset from intel that uses the same CPUs (I don't remember the model number exactly im sure others can chip in) but I have never seen a North bridge die on a Mac pro 4,1/5,1 (apart from when the Plastic rivets break and the heat sink falls off)

  10. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #11
    E8500?

  11. lowendlinux Contributor

    lowendlinux

    Joined:
    Sep 24, 2014
    Location:
    North Country (way upstate NY)
  12. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #13

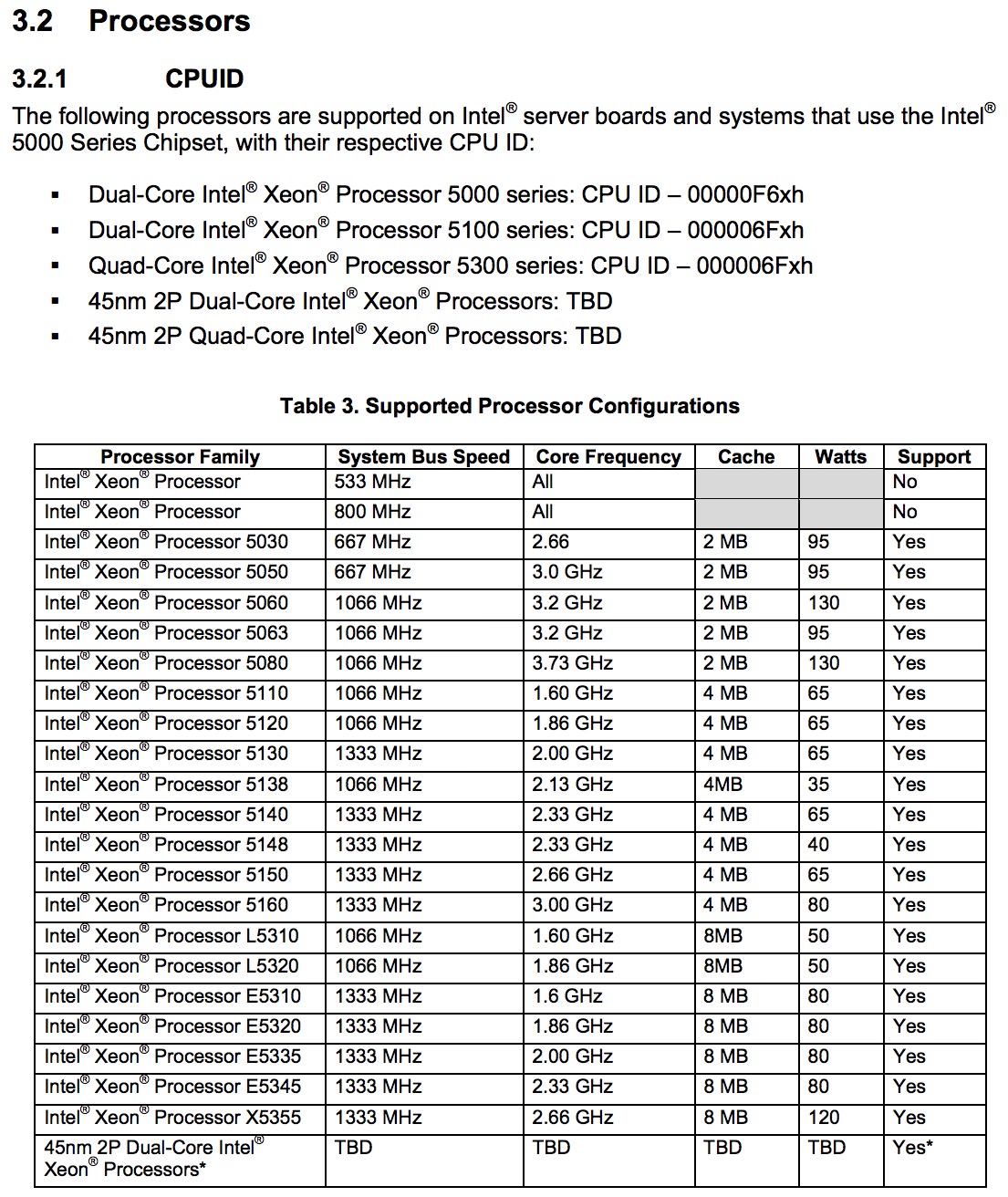

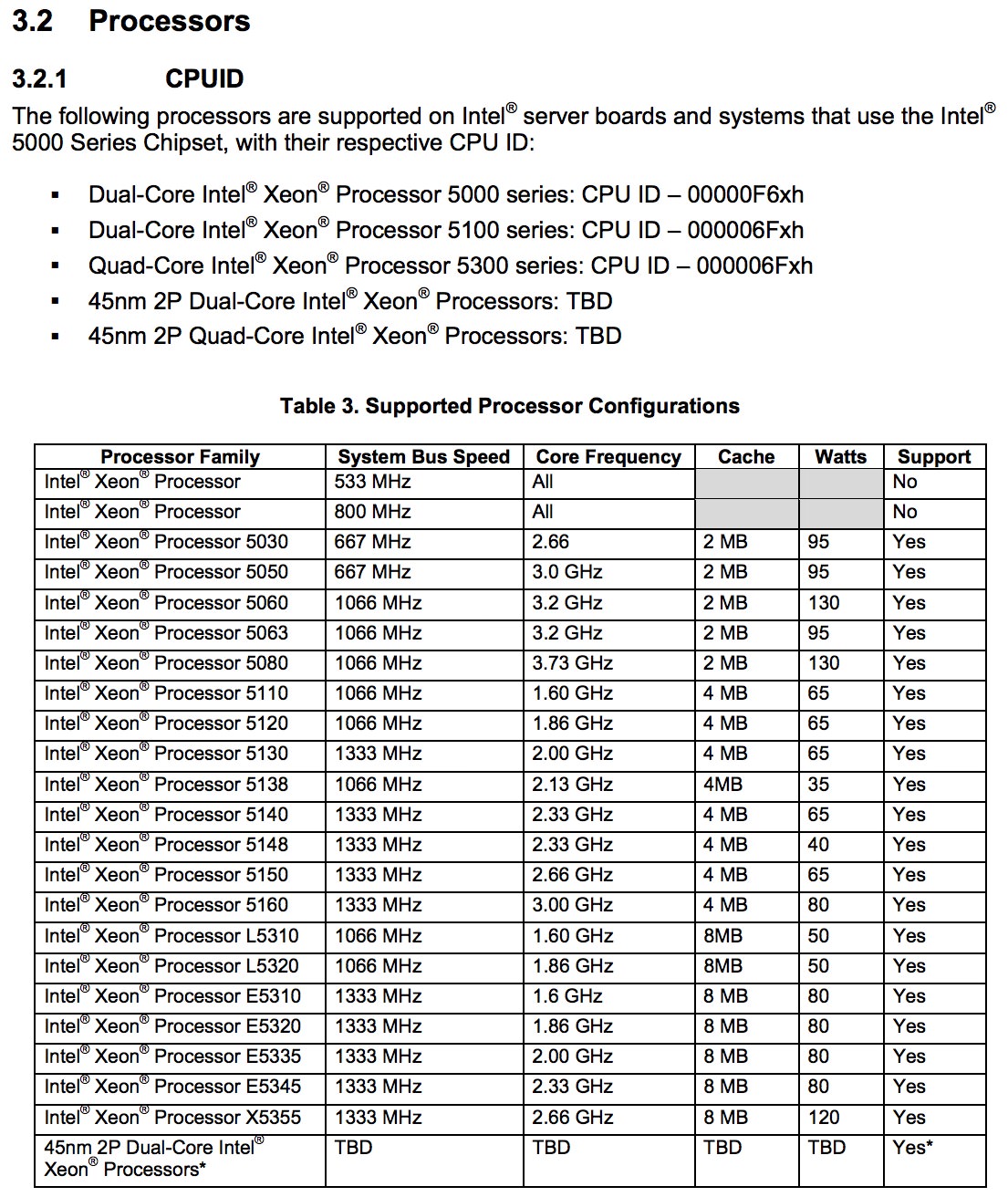

    Doesn't look right. Both W36xx and X56xx are not on the list.
    Screen Shot 2015-11-10 at 04.04.28.jpg

  13. SoyCapitanSoyCapitan, Nov 9, 2015
    Last edited: Nov 9, 2015

    SoyCapitanSoyCapitan macrumors 68040

    SoyCapitanSoyCapitan

    Joined:
    Jul 4, 2015
    #14
    Because you have never seen a Northbridge using PCIE RAIDs, x5690 upgrades and modern GPU upgrades long enough, therefore you should maintain precaution. In the last year enthusiasts have been pushing the chipset beyond what it was meant for. That's OK if some people have money to throw away, but they should also give good advice to people on a budget.

    Yes I meant Intel 5520 chipset,(this is what Windows reports), but it basically has the same spec sheet as X58 so sometimes on PC and Mac forums they are used interchangeably, though it does help to be specific. The EVGA SR2 I mentioned is based on Intel 5520 and runs a lot cooler.

    95c maximum allowed.

    http://ark.intel.com/products/36783/Intel-5520-IO-Hub

  14. lowendlinux, Nov 9, 2015
    Last edited: Nov 9, 2015

    lowendlinux Contributor

    lowendlinux

    Joined:
    Sep 24, 2014
    Location:
    North Country (way upstate NY)
    #15
    https://en.wikipedia.org/wiki/Intel_Xeon_chipsets

    Dual processor Nehalem-based Xeon chipsets[edit]
    The Nehalem-based Xeons for dual-socket systems, initially launched as the Xeon 55xx series, feature a very different system structure: the memory controllers are on the CPU, and the CPUs can communicate with one another as peers without going via the chipset. This means that the 5500 and 5520 (initial codename Tylersburg-EP) chipsets are essentially QPI to PCI Express interfaces; the 5520 is more intended for graphical workstations and the 5500 for servers that do not need vast amounts of PCI Express connectivity

    Launch name Codename QPI ports QPI speed Fast I/O IOCH Other features
    5500 Tylersburg-24S,
    Tylersburg-24D[13] 1,
    2 4.8, 5.86 or 6.4 GT/s 1 ×16 PCIe Gen 2, 2 ×4 PCIe Gen 1 to talk to southbridge ICH10 (ICH9 also possible) Integrated Management Engine with its own 100 Mbit Ethernet [14]
    5520 Tylersburg-36S,
    Tylersburg-36D 1,
    2 4.8, 5.86 or 6.4 GT/s 2 ×16 PCIe Gen 2, 1 ×4 PCIe Gen 1 to talk to southbridge ICH10 (ICH9 also possible) Integrated Management Engine with its own 100 Mbit Ethernet[14]

    ===

    Single processor Nehalem-based Xeon chipsets[edit]
    The 3450 chipset is also compatible with an Intel Core i5 or Intel Core i3 processor.

    Product name Codename DMI Fast I/O Other features
    3400 Ibex Peak 1.0, 100 MHz PCI Express 6 ×1 ports, single 32-bit 33 MHz PCI bus, DMI for processor 8× USB 2.0, 4× SATA, Integrated LAN
    3420 Ibex Peak 1.0, 100 MHz PCI Express 8 ×1 ports, single 32-bit 33 MHz PCI bus, DMI for processor 12× USB 2.0, 6× SATA, Integrated LAN
    3450 Ibex Peak 1.0, 100 MHz PCI Express 8 ×1 ports, single 32-bit 33 MHz PCI bus, DMI for processor 14× USB 2.0, 6× SATA, Integrated LAN

    Last I knew all 4,1 and 5,1 were on Tylersburg

  15. SoyCapitanSoyCapitan macrumors 68040

    SoyCapitanSoyCapitan

    Joined:
    Jul 4, 2015
    #16
    Yes that's what AIDA64 reports on Windows.

  16. AidenShaw, Nov 9, 2015
    Last edited: Nov 9, 2015

    AidenShaw macrumors P6

    AidenShaw

    Joined:
    Feb 8, 2003
    Location:
    The Peninsula
    #17

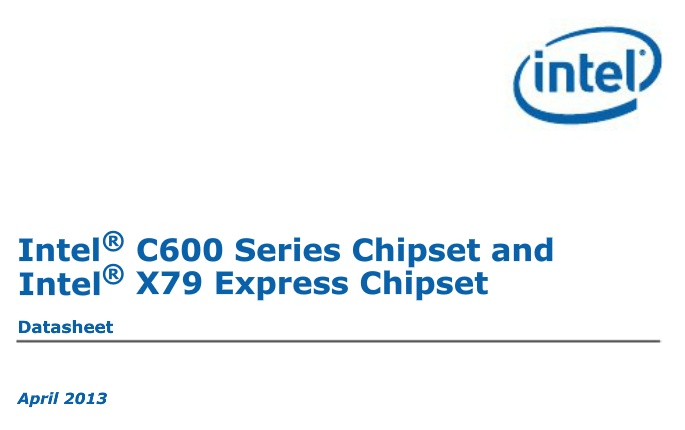

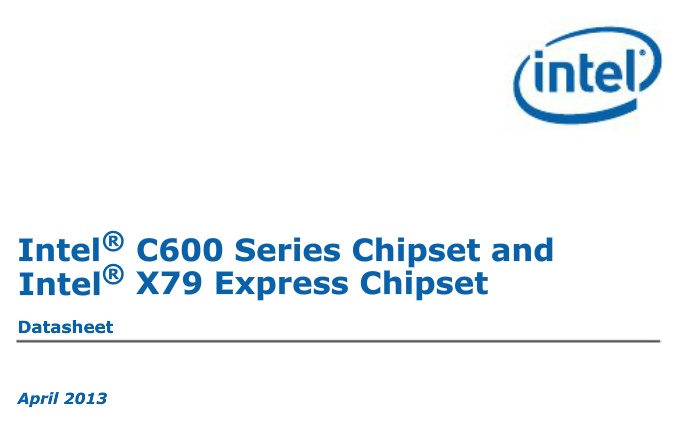

    The X-series chipsets for the high end Core CPUs are nearly the same as the Xeon chipsets for the same socket. In fact, Dell says that my E5-1650v2 Precision Workstation has a C602 chipset. CPU-Z reports it as an X79.

    I suppose that's OK, since Intel puts them on the same datasheet. http://www.intel.com/content/www/us/en/chipsets/c600-series-chipset-datasheet.html

    (Note that this is a 1000 page PDF that details physical parameters, socket pinouts, signals, electrical and thermal parameters for the chipset - to use the same datasheet the C600 and X79 have to be basically the same silicon with some market segmentation.)

  17. SamPotts macrumors regular

    SamPotts

    Joined:
    Sep 25, 2010
    Location:
    Sydney, Australia
    #18
    Shame that adapter is so massively overpriced. Hopefully the price drops a bit.

  18. AidenShaw macrumors P6

    AidenShaw

    Joined:
    Feb 8, 2003
    Location:
    The Peninsula
    #19
    Less than $75 per drive port - that seems to be very reasonable.

  19. SamPotts macrumors regular

    SamPotts

    Joined:
    Sep 25, 2010
    Location:
    Sydney, Australia
    #20
    True. I guess it's just our piss weak Aussie Dollar that makes it seem so bad.

  20. handheldgames macrumors 6502a

    handheldgames

    Joined:
    Apr 4, 2009
    #21
    I have one on the way,
    IMO.. compared to the cost of external expansion, its worth the price. it allows my cmp to have 4 x4 m.2 ssd's, usb 3.1, sata 3. etc.

  21. SamPotts macrumors regular

    SamPotts

    Joined:
    Sep 25, 2010
    Location:
    Sydney, Australia
    #22
    True. When you look at it like that it's not too bad. I guess we were just spoilt with the super cheap SinTech adapters etc. Reckon an adapted Apple 1TB blade will mount on there? That plus 2 256GB SM951s in RAID0 would be pretty decent.

  22. handheldgames macrumors 6502a

    handheldgames

    Joined:
    Apr 4, 2009
    #23
    in theory, with the correct adapter the apple ssd should. i have 2 apple ssd -> m2 adapters on the way and will report back on the fitting.

  23. box185 macrumors member

    box185

    Joined:
    Sep 12, 2013
    #24
    Based on what I have seen, I expect fit issues with the larger 1TB Apple blades and the adapters you write about. Looking forward to seeing the results of your investigation though - thank you for investing in the hardware to report your findings.

  24. handheldgames macrumors 6502a

    handheldgames

    Joined:
    Apr 4, 2009
    #25
    Yep. The lack of space between the m.2 slots is super tight and limits functionality. Ill know more once i have the board and adapters in hand. there may be m2 extender boards, but again the clearance is tight.
