CalDigit recently came out with the TS5 Plus, which is designed to work with Apple's Thunderbolt 5 Macs.


The TS5 Plus looks like CalDigit's prior docks, featuring a simple rectangular shape and an aluminum build with some ridging at the top, bottom, and sides for visual interest and heat dissipation.

It's a black aluminum color that matches the Space Black of the M4 MacBook Pro models, and it comes with a hefty 330W power brick. In fact, the power brick is longer than the dock itself, but it's flat and tucks away under a desk fairly well. The TS5 Plus is six inches long, five inches wide, and 1.8 inches thick, while the power brick is seven inches long, 3.5 inches wide, and a little under an inch thick.


After using Anker's Thunderbolt 5 dock with a built-in power supply, I am disappointed with the large size of the CalDigit power brick. There's a power supply cable that attaches to the power brick, and then the power brick has a cable that plugs into the dock. CalDigit includes a high-quality 3.3ft Thunderbolt 5 cable with a braided design, and a set of rubber feet.


Though I am complaining about the power brick compared to the Anker Prime's more compact design with included power supply, the CalDigit TS5 Plus has six more available ports, faster Ethernet, and more charging power for accessory devices.


At the front of the dock, there's a 10Gb/s USB-A port that can provide 7.5W to charge AirPods or an Apple Watch, along with two 10Gb/s USB-C ports, one that supplies 7.5W and a second that supplies 36W, which is enough to fast charge an iPhone or iPad, and even enough power for a MacBook Air. The front also has an SD card slot and a microSD card reader, plus there's an audio combo jack and a small LED that lets you know when the dock has power. The card slots support UHS-II transfer speeds at up to 312MB/s.


The rest of the ports are on the back, and include the following:
  • 3 10Gb/s USB-C data ports that can provide 7.5W
  • 4 10Gb/s USB-A ports that can provide 7.5W
  • 10GbE Ethernet port
  • Audio in
  • Audio out
  • DisplayPort 2.1
  • Two downstream 80Gb/s Thunderbolt 5 ports that supply 36W
  • One upstream Thunderbolt 5 port that supplies 140W to the host machine (with the included TB5 cable)
  • One security slot
  • DC in
There are enough ports to connect a ton of peripherals and multiple displays, but this isn't a dock that has an HDMI port. If you need HDMI, you can get an appropriate DisplayPort to HDMI adapter or just use the Mac's HDMI port.

I like the port arrangement. It's been useful having a 36W USB-C port front and center, and the SD card slot on the front is convenient for transferring photos from my camera. The USB-C ports charge my devices even when I don't have my MacBook connected, so the TS5 Plus also works as a charging station.


It's useful to have three 36W USB-C ports available on the TS5 Plus because I can charge an iPhone, iPad Pro, Apple Watch, AirPods, and MacBook Air all at the same time while still charging my MacBook Pro and powering multiple displays. I did get the full fast charging for the 16-inch MacBook Pro, and plugging in more devices didn't drop the power levels.

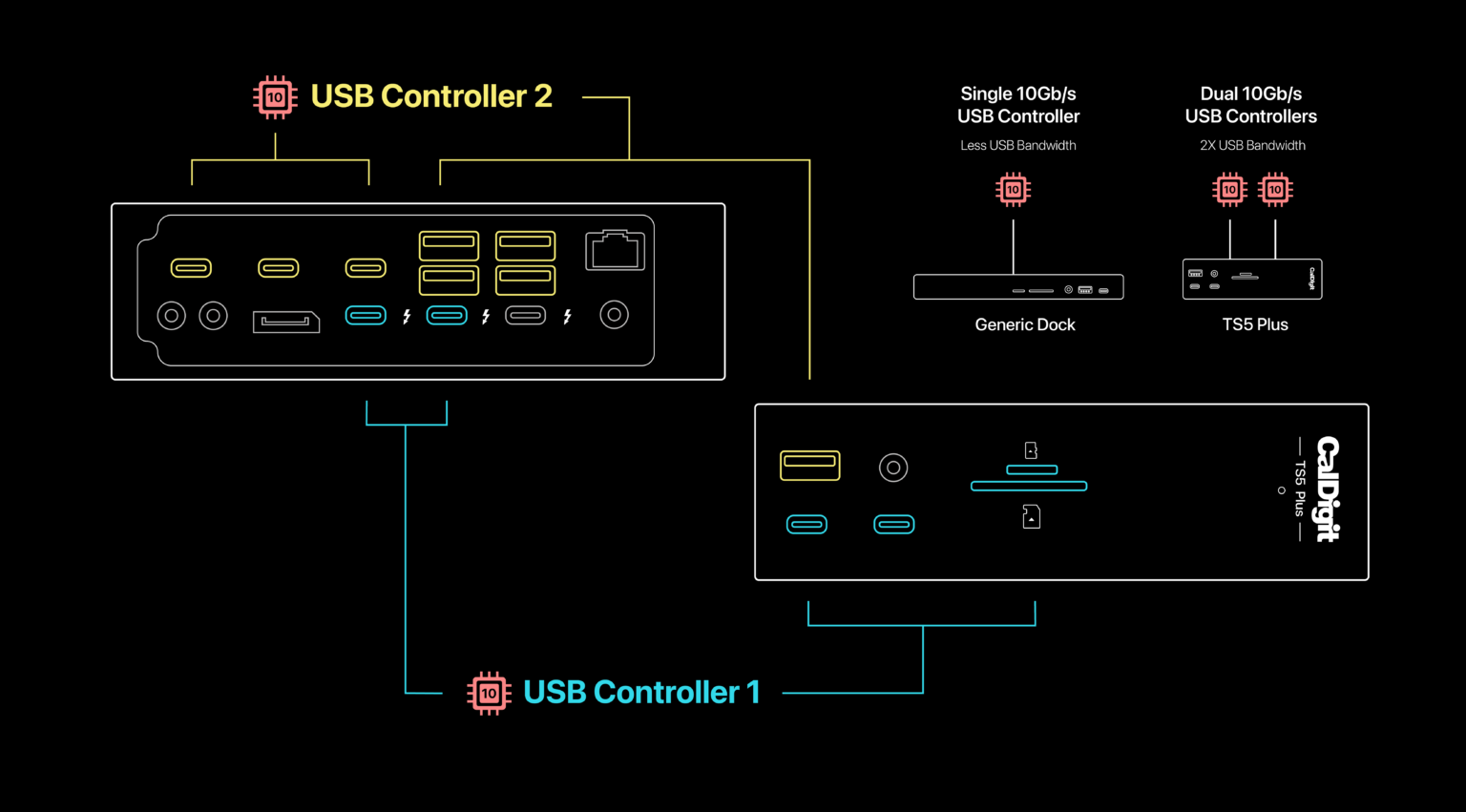

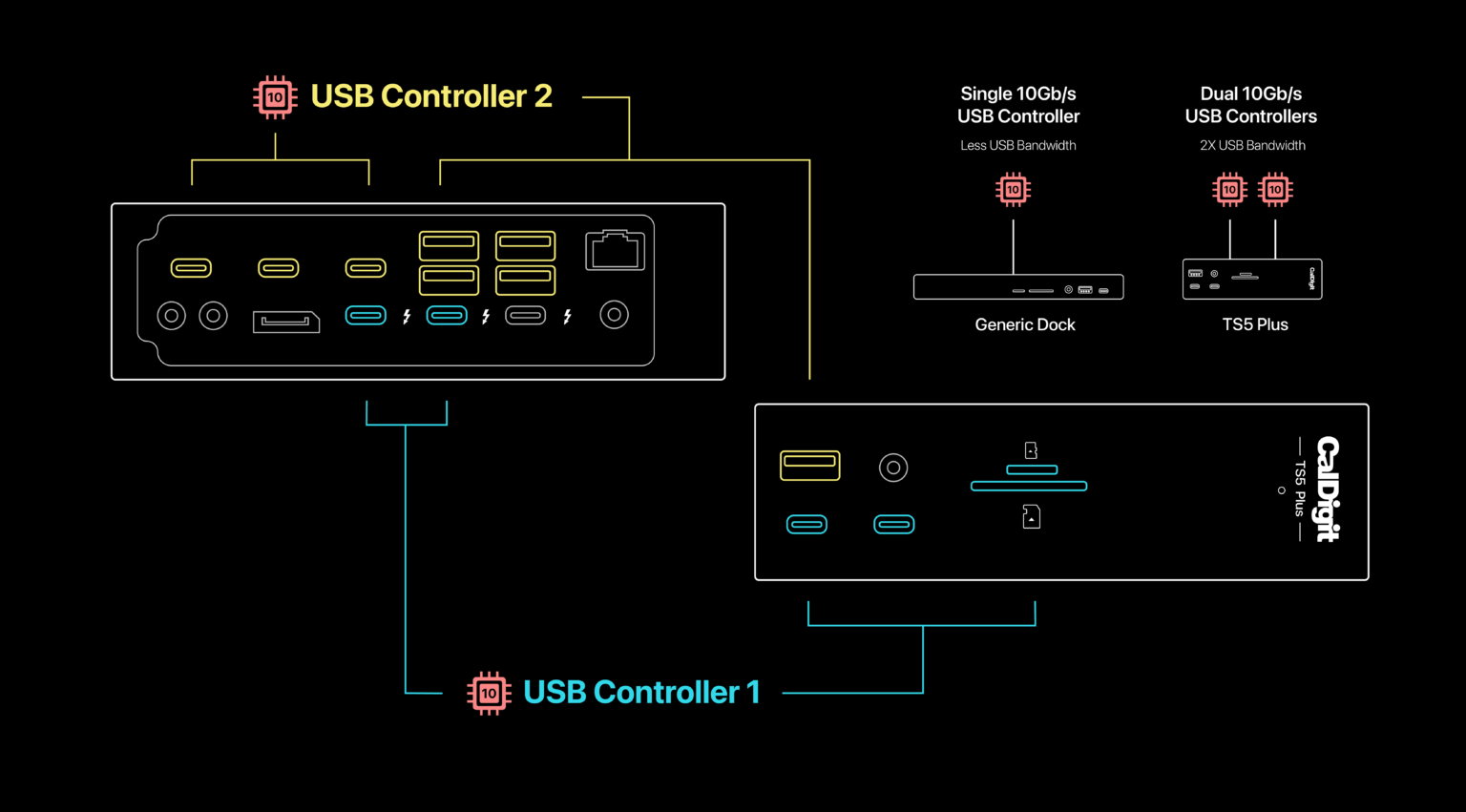

The TS5 Plus has dual USB controllers inside (one for the front and one for the back), and there's no throttling with multiple devices plugged in and transferring data at the same time. I tested with the Thunderbolt 5 SSD and two additional USB-C SSDs, and I didn't see any drop off in transfer speeds.


Since there is no fan inside, the TS5 Plus can get warm to the touch. It's not hot enough to burn, but it would warm your hands in the winter, and I wouldn't want to put a chocolate bar on top. The aluminum ridges do dissipate heat, but it won't run as cool as the Anker Prime. On the plus side, operation is silent because it doesn't have a fan.

Thunderbolt 5 supports 80Gb/s speeds with a bandwidth boost of up to 120Gb/s for displays, so it's twice as fast as Thunderbolt 4, which maxes out at 40Gb/s. There's also more bandwidth available for SSDs, which allows for faster data transfers.

Using the TS5 Plus and the Thunderbolt 5 Envoy Ultra from OWC, I was able to get maximum speeds of 4,647MB/s write and 5,154MB/s read. Speeds were just a little slower than the SSD plugged in directly to my MacBook Pro.

Thunderbolt 5 supports up to three displays on PCs, but not on Macs. On the Mac, you're still going to max out at two displays over a single Thunderbolt 5 connection (aka run through a dock) because of GPU limitations. With the TS5 Plus, you can use two 8K displays at 60Hz, two 6K displays at 60Hz, a 5K and a 6K display, two 4K displays at 240Hz, and several other display combinations depending on which Mac you have and what it supports.

With the M4 Pro or M4 Max, you can actually run up to four displays, but you'll either need two Thunderbolt 5 docks for that setup, or you'll need to use the other Thunderbolt and HDMI ports you have available on your machine.

For higher resolutions, the M4 Pro only supports a single 8K display, so that's what you're limited to with the dock. The M4 Max can support two 8K displays at 60Hz, two 6K displays at 60Hz and one 8K display at 60Hz, or four displays at 6K 60Hz. CalDigit says you can run two 8K displays through the TS5 Plus, but you might test bandwidth limits if you have other devices like SSDs connected. You'd probably get better performance plugging one 8K display into the dock and then connecting the other 8K display to a different Thunderbolt 5 port or the Mac's HDMI port

I don't have a dual 6K or 8K dual display setup available, so I wasn't able to push the TS5 Plus to its limits. I normally use my MacBook Pro with just a single 5K Studio Display connected over Thunderbolt, but I added a 4K 144Hz Samsung display for testing with the TS5 Plus. I didn't run into any issues with two displays, even with multiple SSDs and other peripherals connected... Click here to read rest of article

Article Link: CalDigit TS5 Plus Dock Review: Maximum Ports, Maximum Power

Next time please put the price in the first paragraph. Forcing readers to go on a treasure hunt, including linking to an article continuation, is just bad journalism. Otherwise this was a useful article about a solid product, thank you. Personally I prefer a fat power brick like this one remoting power supply heat away from the dock itself.

Last edited:
  • Like
Reactions: theorist9
Thank you for mentioning the power brick. If the Mac Mini and the Mac Studio can house an inverter, so can these docks.

Next time please put the price in the first paragraph. Forcing readers to go on a treasure hunt, including linking to an article continuation, is just bad journalism. Otherwise this was a useful article about a solid product, thank you.
Maybe the $500 price tag at the top would make people lose interest in reading the rest of the article.

  • Like
Reactions: _Mitchan1999
I've experienced a few problems with CalDigit products in the past, and their customer service has been unresponsive. This is completely unprofessional and only damages their brand. Just do a little google search and you will see that this has been an issue for a couple of years. Be careful.

Last edited:
** Did not work with usb-c output from tb5 ports to usb-c input on Dell U3818DW 38-inch monitor **. I tried it with multiple cords, thunderbolt 5, 4, and usb-c, and nothing worked… on two mac’s! MacBook Pro m4 max, and MacBook Air m4. Cables worked when plugged directly in to Mac’s but not through hub. DisplayPort connection to Dell also disconnected periodically, so that wasn’t happening. Updated firmware and everything. I really wanted it to work because of the 10G Ethernet, but it’s going back to Amazon. My old caldigit tb4 hub works, no problemo.

  • Sad
Reactions: novagamer
PSA an Amazon review mentions "coil whine". I have a TS3 and connecting a USB-C audio interface to it was a mess, it worked fine for data but it introduced a lot of line noise. I wound up buying Apple's pro thunderbolt cables and running them directly to the laptop. I think Caldigit may not be using the highest quality PSUs on these which is unfortunate given the price.

I hope someone else makes one with this new chipset, it's nearly perfect otherwise as far as ports go but I'd like something integrated as others have mentioned.

Curious if other people with this have noticed any issues. I'm going to get another Apple Display within the next 6 months and having a dock would be nice for that, I know this new chipset is much more robust to the point I wish everyone had waited to launch any docks so we wouldn't have to refine searches to account for the older less powerful versions.

** Did not work with usb-c output from tb5 ports to usb-c input on Dell U3818DW 38-inch monitor **. I tried it with multiple cords, thunderbolt 5, 4, and usb-c, and nothing worked… on two mac’s! MacBook Pro m4 max, and MacBook Air m4. Cables worked when plugged directly in to Mac’s but not through hub. DisplayPort connection to Dell also disconnected periodically, so that wasn’t happening. Updated firmware and everything. I really wanted it to work because of the 10G Ethernet, but it’s going back to Amazon. My old caldigit tb4 hub works, no problemo.
Since you probably tried a lot of combinations make sure you did use the Thunderbolt 5 cable with the M4 Max, your M4 Air doesn't support TB5 and may have been limiting the capability. I'd return it too, but it's worth double checking if you haven't sent it off yet.

330 watt brick? Common, put in a internal power supply with a inverter. I have a TB3 caldigit, works fine gets really warm even when not doing anything.

I think the choice to move the PS to a separate enclosure, and to make the dock's enclosure large, were good ones, since together they enable it to operate fanlessly.

I own the TS4, so the previous generation. Obviously, I don’t have any reason to upgrade, but my experience is that it’s a solid dock and expect the TS5 to be even better.
My TS4 runs everything I throw at it. 4K monitor, Ethernet, multiple peripherals, charging iPhone, Logitech camera, etc. Very reliable piece of hardware.
Sure, it’s an investment with a hefty price tag, but this thing delivers, day after day.
