Cannot remove former bootcamp partition

zerozoneice

macrumors regular
Original poster
Jun 26, 2013
225
13
Hi all,
i tried to install Win10 using bootcamp assistant in Sierra. To my surprise it didn't need an USB stick as before, but only had to point to the Windows ISO.

Started the windows install and could not use the 400GB partition i created for bootcamp, for some reason.
From this point on i started reformatting it, deleting it, recreating, etc....don't ask the steps because i can't remember.

At this point i removed all other partitions created in the process but i'm left with a big 400GB chunk of something. I can format it to whatever i want, NTFS, FAT, Mac Journaled, etc...however i can't remove it and reuse the space (extend my other 1.6GB OSX partition).

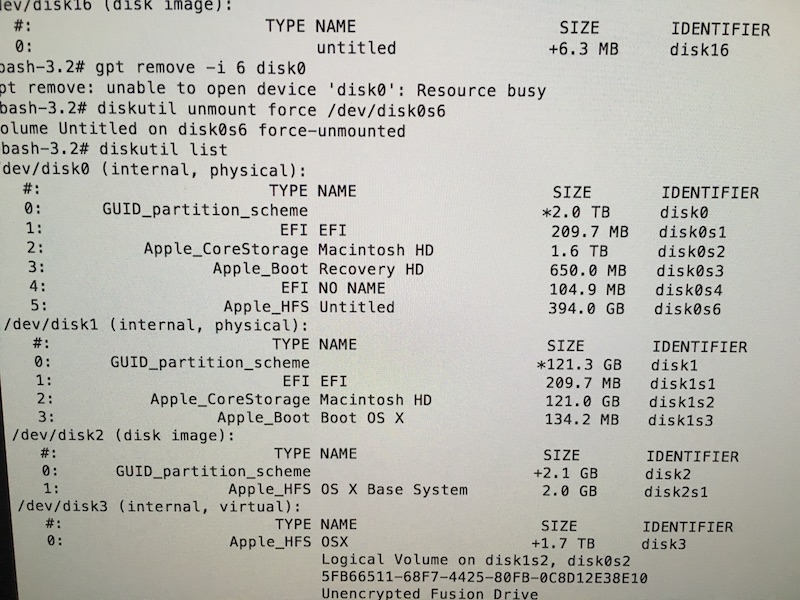

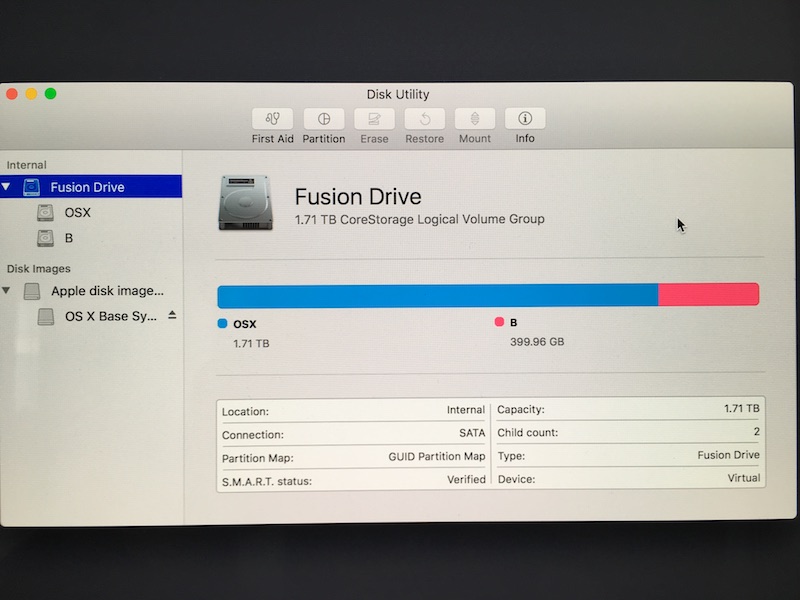

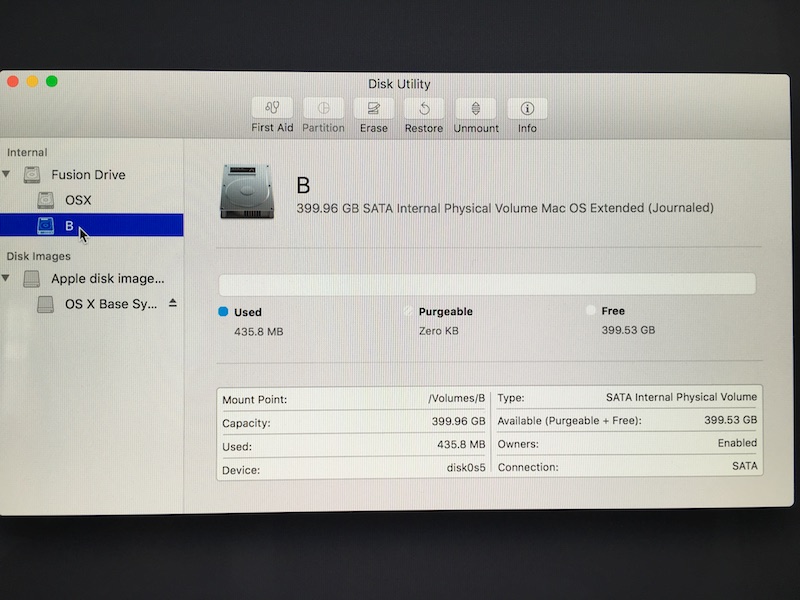

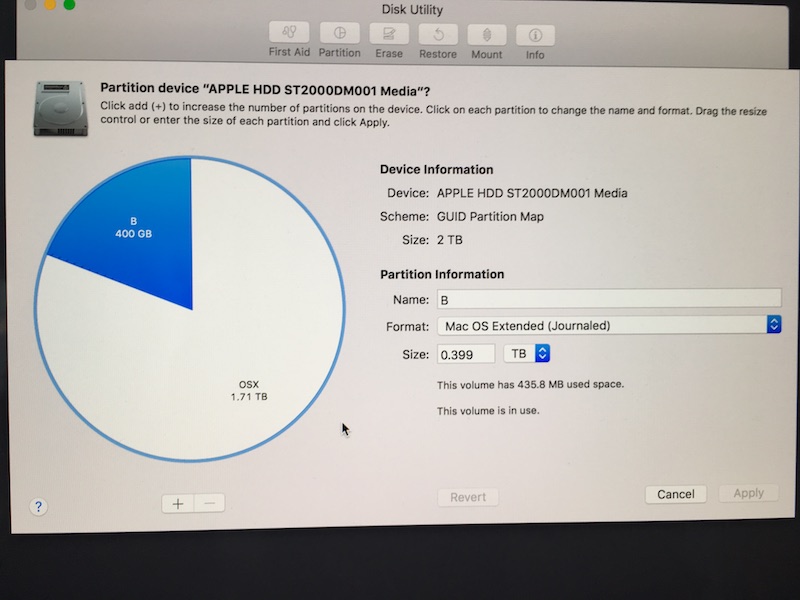

The drive is a Fusiondrive 2TB on an 27 iMac 5K Late 15. Below are screenshots taken from disk utility in recovery mode. How can i delete the 400GB partition and extend the existing OSX one? Basically revert to whatever was before initiating bootcamp install? Thanks!


Attachments


zerozoneice

macrumors regular
Original poster
Jun 26, 2013
225
13
bump?
had 3 chats with apple support, got passed from a firstline guy to a senior adviser, who asked for a diskutil list output and said he needs to consult with engineering team...that was 2 days ago.

I am willing to crack & rebuild the fusiondrive and install Sierra from scratch, but what the hell.....how do i do it?
Somehow the 400GB partition got ejected from fusion and is seen as separate physical drive for some reason.

And it so pisses me off that it became so damn complicated to install Win in bootcamp, GPT workarounds, re-format of partitions, etc etc.


tomjleeds

macrumors 6502a
Jul 19, 2004
510
198
Manchester, UK
Hmm.

I've had fun in the past with Disk Utility not wanting to do anything to any partition on a disk with a journaled file system. In this example it was an external USB disk, half used for storage and half for Time Machine. From what I could find at the time, it appeared to be a bug in Disk Utility rather than anything wrong with the disk or the way it was set up.

Unfortunately I can't for the life of me remember how I got around it...it involved hoop-jumping, but I'm pretty sure I didn't have to format the whole disk. I'll try to remember to have a play with it later and come back to you.


Weaselboy

Moderator
Staff member
Jan 23, 2005
29,120
8,801
California
had 3 chats with apple support, got passed from a firstline guy to a senior adviser, who asked for a diskutil list output and said he needs to consult with engineering team...that was 2 days ago.
Run each of these commands in Terminal and post up the output and I'll try and walk you through this. Also make sure you have a good backup before we start.

Code:
diskutil list

diskutil cs list


zerozoneice

macrumors regular
Original poster
Jun 26, 2013
225
13
/dev/disk0 (internal, physical):

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *2.0 TB disk0

1: EFI EFI 209.7 MB disk0s1

2: Apple_CoreStorage Macintosh HD 1.6 TB disk0s2

3: Apple_Boot Recovery HD 650.0 MB disk0s3

4: EFI NO NAME 104.9 MB disk0s4

5: Apple_HFS O 400.0 GB disk0s5


/dev/disk1 (internal, physical):

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *121.3 GB disk1

1: EFI EFI 209.7 MB disk1s1

2: Apple_CoreStorage Macintosh HD 121.0 GB disk1s2

3: Apple_Boot Boot OS X 134.2 MB disk1s3


/dev/disk2 (internal, virtual):

#: TYPE NAME SIZE IDENTIFIER

0: OSX +1.7 TB disk2

Logical Volume on disk1s2, disk0s2

5FB66511-68F7-4425-80FB-0C8D12E38E10

Unencrypted Fusion Drive
[doublepost=1475513187][/doublepost]CoreStorage logical volume groups (1 found)

|

+-- Logical Volume Group B329760F-CF5F-4BD6-B701-28C99104E8EA

=========================================================

Name: Macintosh HD

Status: Online

Size: 1711855501312 B (1.7 TB)

Free Space: 253952 B (254.0 KB)

|

+-< Physical Volume C25E5350-6D2B-47A9-B914-ACA7EE7F062E

| ----------------------------------------------------

| Index: 0

| Disk: disk1s2

| Status: Online

| Size: 120988852224 B (121.0 GB)

|

+-< Physical Volume 0DD38F98-5DF6-4B9C-B070-9978AD724D0A

| ----------------------------------------------------

| Index: 1

| Disk: disk0s2

| Status: Online

| Size: 1590866649088 B (1.6 TB)

|

+-> Logical Volume Family 945CF081-8609-4E27-B888-A895BE7FFF72

----------------------------------------------------------

Encryption Type: None

|

+-> Logical Volume 5FB66511-68F7-4425-80FB-0C8D12E38E10

---------------------------------------------------

Disk: disk2

Status: Online

Size (Total): 1705999990784 B (1.7 TB)

Revertible: No

LV Name: OSX

Volume Name: OSX

Content Hint: Apple_HFS

LVG Type: Fusion, Sparse
[doublepost=1475513379][/doublepost]The "B" partition in the screenshots is now "O", as in disk0s5.


Weaselboy

Moderator
Staff member
Jan 23, 2005
29,120
8,801
California
Again... make sure you are backed up if this goes south.

command-option-r boot to Internet recovery (not command-r recovery). Then open Terminal from the Utilities menu and enter the following commands one by one.

Code:
diskutil unmountDisk disk0
Code:

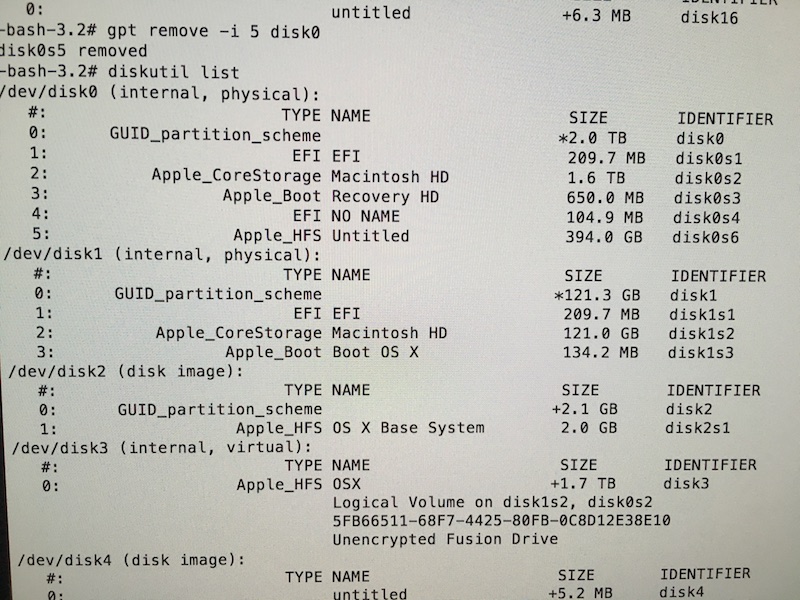

gpt remove -i 5 disk0
This should unmount the disk then remove the 400GB partition.

Then run this to expand the Fusion drive.

Code:
diskutil cs resizeStack 5FB66511-68F7-4425-80FB-0C8D12E38E10 0g
This should make the Fusion volume expand to fill all empty space.

If this does not work, let me know and we will just wipe everything and rebuild the Fusion drive and restore. What are you using for backup?


zerozoneice

macrumors regular
Original poster
Jun 26, 2013
225
13
nothing for backup. Saved my photo library and stuff to an external drive already.
I'm gonna try the commands above and post back. Thx.

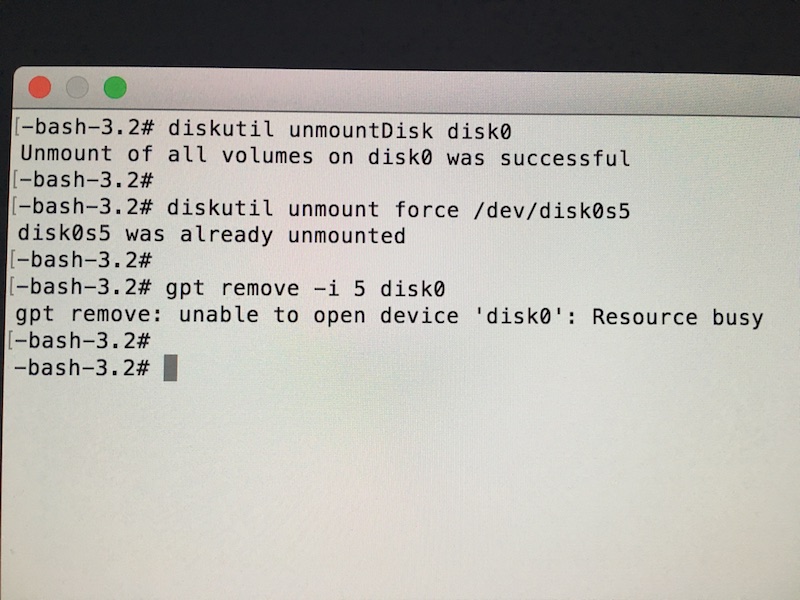

edit: unmounted disk0 succesfully but could not remove via gpt command, says resource is in use. I assume it's talking about slice 5...

Last edited:

Weaselboy

Moderator
Staff member
Jan 23, 2005
29,120
8,801
California
I never got a notification since you edited the post rather than a new post.

Try this to unmount.

Code:
diskutil unmount force /dev/disk0s5

  • Like
Reactions: zerozoneice

Voenix Rising

macrumors member
May 1, 2013
76
34
I'm no expert on fusion drives, so take this for what it's worth...and proceed AYOR.

Coming from my Windows experience, I can suggest that you download DBAN (Darik's Burn and Nuke) utility and put it on a DOS bootable USB stick or CD. Boot into that and run the utility (it will work on a Mac; I've done it--albeit only with a single drive). This should allow you to completely zero out your hard drive(s), letting you to do the internet recovery as described above.


zerozoneice

macrumors regular
Original poster
Jun 26, 2013
225
13

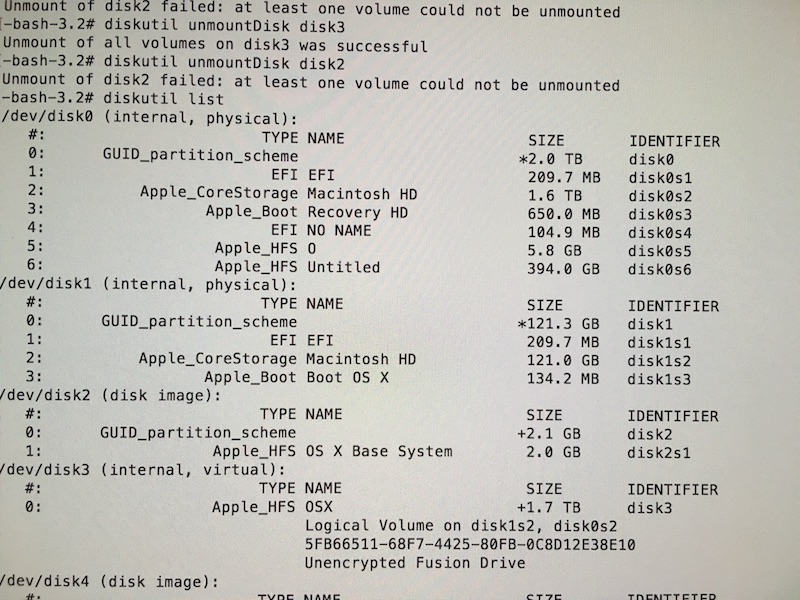

Gah! Try doing the unmount on all the disks. Do this for 1, 2, and 3.

Code:
diskutil unmountDisk disk0
nop. disk0s6 (yea, it's slice 6 now) still can't be removed via gpt command or force unmount, resource in use.
all disks (0-4) can be unmounted
[doublepost=1475696427][/doublepost]
I'm no expert on fusion drives, so take this for what it's worth...and proceed AYOR.

Coming from my Windows experience, I can suggest that you download DBAN (Darik's Burn and Nuke) utility and put it on a DOS bootable USB stick or CD. Boot into that and run the utility (it will work on a Mac; I've done it--albeit only with a single drive). This should allow you to completely zero out your hard drive(s), letting you to do the internet recovery as described above.
i'm not sure how zero-ing out the drive can help removing this partition and resize the fusion drive...


Attachments

Last edited:

Weaselboy

Moderator
Staff member
Jan 23, 2005
29,120
8,801
California
nop. disk0s6 (yea, it's slice 6 now) still can't be removed via gpt command or force unmount, resource in use.
all disks (0-4) can be unmounted
I think it is time to just wipe it all and start over.

Go back to Internet recovery then do this command in Terminal to wipe/break the Fusion volume.

Code:
diskutil cs delete "OSX"
Then in Disk Utility you should now be able to see the individual physical drives. Go to the erase tab then select each drive at the top of the tree (above the partitions) and format to Mac OS Extended. That should leave you with two physical drives, each formatted to one large partition each.

Then create the Fusion drive following my post #14 in this thread.

Then reinstall the OS.

  • Like
Reactions: zerozoneice

zerozoneice

macrumors regular
Original poster
Jun 26, 2013
225
13
hmm, i tried once more to unmount and remove disk0s6 via gpt and it worked.
it's gone now from diskutil list...
what i did before this was to reformat the 400GB partition to NTFS using the Paragon NTFS applet in System Settings...

the problem is that it's gone to hell, i cant see the space anywhere?!
disk utility shows one single disk as 1.7TB (OSX) and no spare space to extend to..where are the 400GB gone? :)
[doublepost=1475700467][/doublepost]diskutil cs remove "OSX" spits out: OSX does not appear to be a valid core storage logical volume group uuid or name
[doublepost=1475700573][/doublepost]I used Macintosh HD for cs name and it worked
[doublepost=1475701085][/doublepost]Hmm if i create the fusion now, it will use disk0s2 which is the HDD part but it has 1.6GB according to diskutil list

Nevermind, i quit terminal, entered diskutility and formatted/erased both ssd and hdd with macos journaled. The hdd finally shows 2tb ffs

Now onto fusing them....
SUCCESS!!!!
I was never so glad to have destroyed all my data....:))

MANY THANKS!!!
Now.....Internet OSX install and tomorrow ill try bootcamp again...suicidal
[doublepost=1475701246][/doublepost]Crap it downloads El Capitan....should have kept my Sierra bootable USB

Last edited:
  • Like
Reactions: Weaselboy

Voenix Rising

macrumors member
May 1, 2013
76
34
nop. disk0s6 (yea, it's slice 6 now) still can't be removed via gpt command or force unmount, resource in use.
all disks (0-4) can be unmounted
[doublepost=1475696427][/doublepost]

i'm not sure how zero-ing out the drive can help removing this partition and resize the fusion drive...
It deletes the partition tables.


Voenix Rising

macrumors member
May 1, 2013
76
34
Yeah... Internet recovery installs the OS version that came from the factory. You can just install Sierra over top of it though.

Glad you got it all fixed up. :)
hmm, i tried once more to unmount and remove disk0s6 via gpt and it worked.
it's gone now from diskutil list...
what i did before this was to reformat the 400GB partition to NTFS using the Paragon NTFS applet in System Settings...

the problem is that it's gone to hell, i cant see the space anywhere?!
disk utility shows one single disk as 1.7TB (OSX) and no spare space to extend to..where are the 400GB gone? :)
[doublepost=1475700467][/doublepost]diskutil cs remove "OSX" spits out: OSX does not appear to be a valid core storage logical volume group uuid or name
[doublepost=1475700573][/doublepost]I used Macintosh HD for cs name and it worked
[doublepost=1475701085][/doublepost]Hmm if i create the fusion now, it will use disk0s2 which is the HDD part but it has 1.6GB according to diskutil list

Nevermind, i quit terminal, entered diskutility and formatted/erased both ssd and hdd with macos journaled. The hdd finally shows 2tb ffs

Now onto fusing them....
SUCCESS!!!!
I was never so glad to have destroyed all my data....:))

MANY THANKS!!!
Now.....Internet OSX install and tomorrow ill try bootcamp again...suicidal
[doublepost=1475701246][/doublepost]Crap it downloads El Capitan....should have kept my Sierra bootable USB

There are days I'd LOVE to go back to Lion (the version that came with my MBP), LOL.


zerozoneice

macrumors regular
Original poster
Jun 26, 2013
225
13
just tried to clean install Win10 again....i got the same ****ing errors in windows setup that "we couldn't create a new partition...." when clicking "next". The partition is already selected, it's not called BOOTCAMP anymore, btw...

I solved it with restoring to single partition again (via bootcamp), clear PRAM, do the bootcamp assistant again and it simply worked....wtf.

  • Like
Reactions: hxlover904
