Changed RAM have wire I can't hook up?

Discussion in 'Mac mini' started by rwhit11, Mar 14, 2013.

  1. rwhit11 macrumors newbie

    Joined:
    Jun 6, 2009
    #1
    I have a late 2009 Mini that I am changing ram in. When I boot all I get is a file folder. I put old ram back in and get the same thing. In looking at everything I found a wire that is taped to the bottom of the hard drive, connected to the board at the front of the hd but not connected to anything on the other end.

    Could this be the problem and does anyone know where it goes?

  2. balamw Moderator

    balamw

    Staff Member

    Joined:
    Aug 16, 2005
    Location:
    New England
  3. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #3
    It sounds like you knocked the drive cable off the logic board. Look at step 12 in this teardown. Maybe that can help you figure out where to plug it back in.

  4. rwhit11 thread starter macrumors newbie

    Joined:
    Jun 6, 2009
    #4
    That is the wire, it came off of the end away from the logic board and I cannot see where to plug it back in. It looks like it has to go to the HD.

  5. balamw Moderator

    balamw

    Staff Member

    Joined:
    Aug 16, 2005
    Location:
    New England
    #5
  6. rwhit11 thread starter macrumors newbie

    Joined:
    Jun 6, 2009
    #6
    Yes thats it so I am assuming that is not my problem. Now what am I getting the file folder when I try to boot up. I put the old ram back in and I am still getting it.

    I get the boot sound and the monitor changes to the pale color but instead of getting the cog wheel I get a file folder. Did I screw up the hard drive some how?

  7. balamw Moderator

    balamw

    Staff Member

    Joined:
    Aug 16, 2005
    Location:
    New England
    #7
    I believe that should just drive your fans up to full speed. It's possible you damaged where the cable came from on the interface board.

    B

  8. rwhit11 thread starter macrumors newbie

    Joined:
    Jun 6, 2009
    #8
    They look good on that end. Would they stop the system from booting?

  9. philipma1957 macrumors 603

    philipma1957

    Joined:
    Apr 13, 2010
    Location:
    Howell, New Jersey
  10. rwhit11 thread starter macrumors newbie

    Joined:
    Jun 6, 2009
    #10
    Yes the one end is connected to the lard and the other is loose.

  11. Darby67 macrumors 6502

    Joined:
    Jul 5, 2011
    Location:
    the corner of Fire and Brimstone
    #11
    What is the "lard"

  12. rwhit11 thread starter macrumors newbie

    Joined:
    Jun 6, 2009
    #12
    Sorry fat finger, small key board should be board

  13. philipma1957, Mar 14, 2013
    Last edited: Mar 14, 2013

    philipma1957 macrumors 603

    philipma1957

    Joined:
    Apr 13, 2010
    Location:
    Howell, New Jersey
    #13

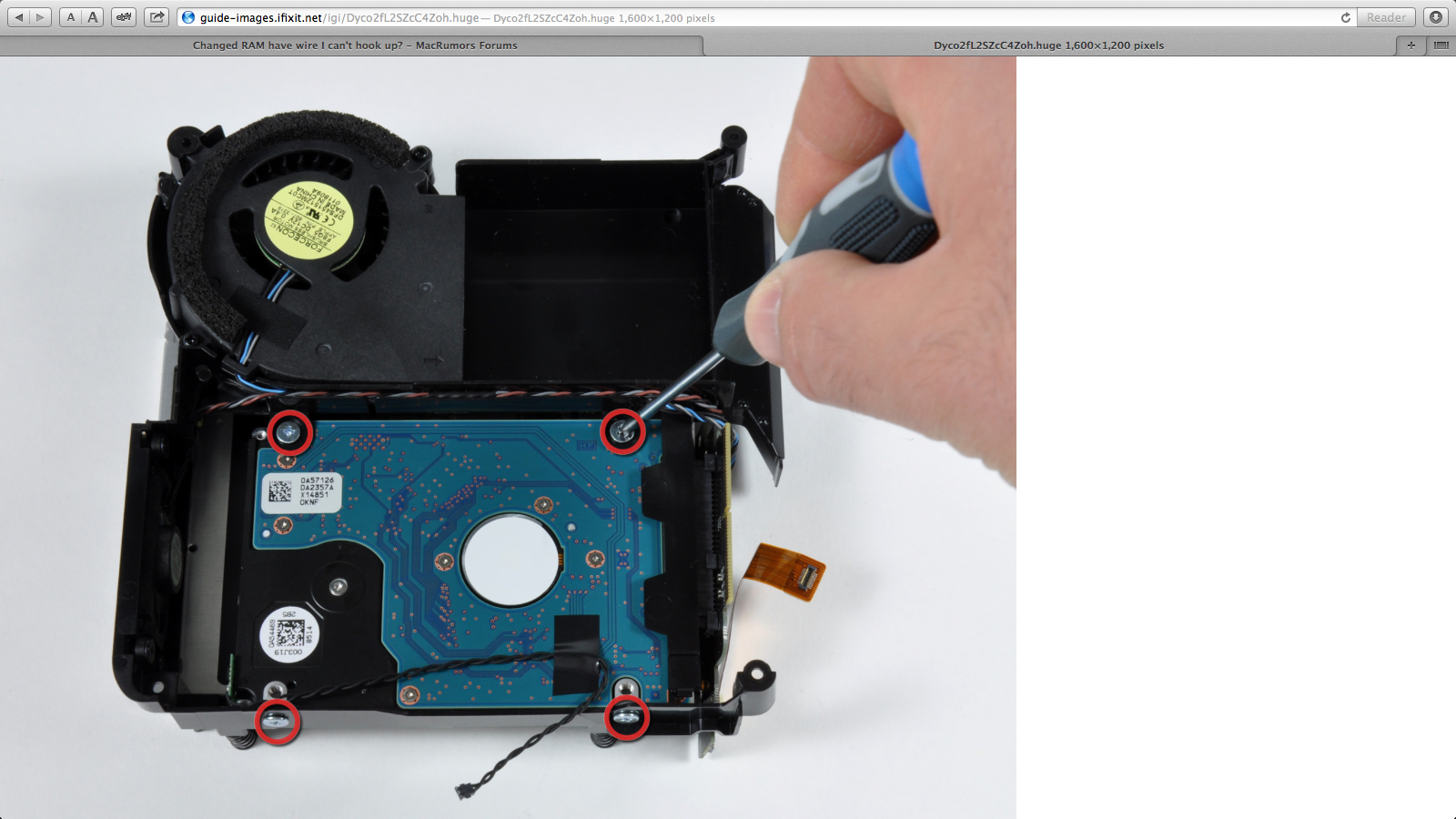

    so you have the same loose end as the photo I posted ?

    that loose end goes on the edge of the hdd it measures the temp of the hdd.

    it is not the cause of your{ hdd ? folder} screen.

    the cause of the folder ?

    is a disconnection of the hdd . the hdd connects to a bridge card one part of the card is to the dvd the other part is to the hdd. I will find a photo.

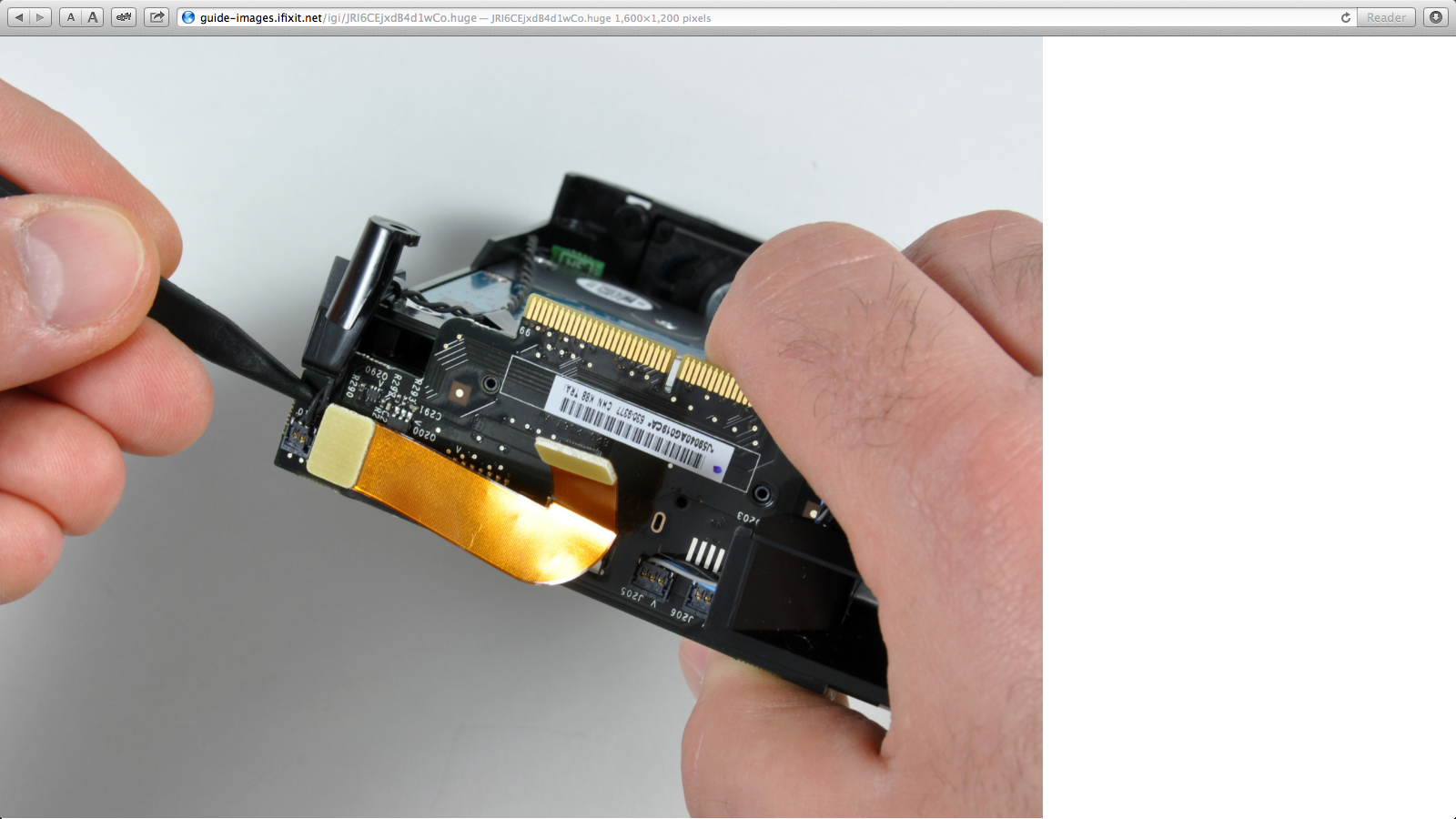

    the right hand pointer finger is on the part of the sata bridge that plugs into the mobo. he should not have his finger on those contacts. i think this is not sitting in your mobo causes the lack of an hdd. BTW just above his black pry tool is the edge of the hdd where you stick the end of that wire. one more link in a minute.

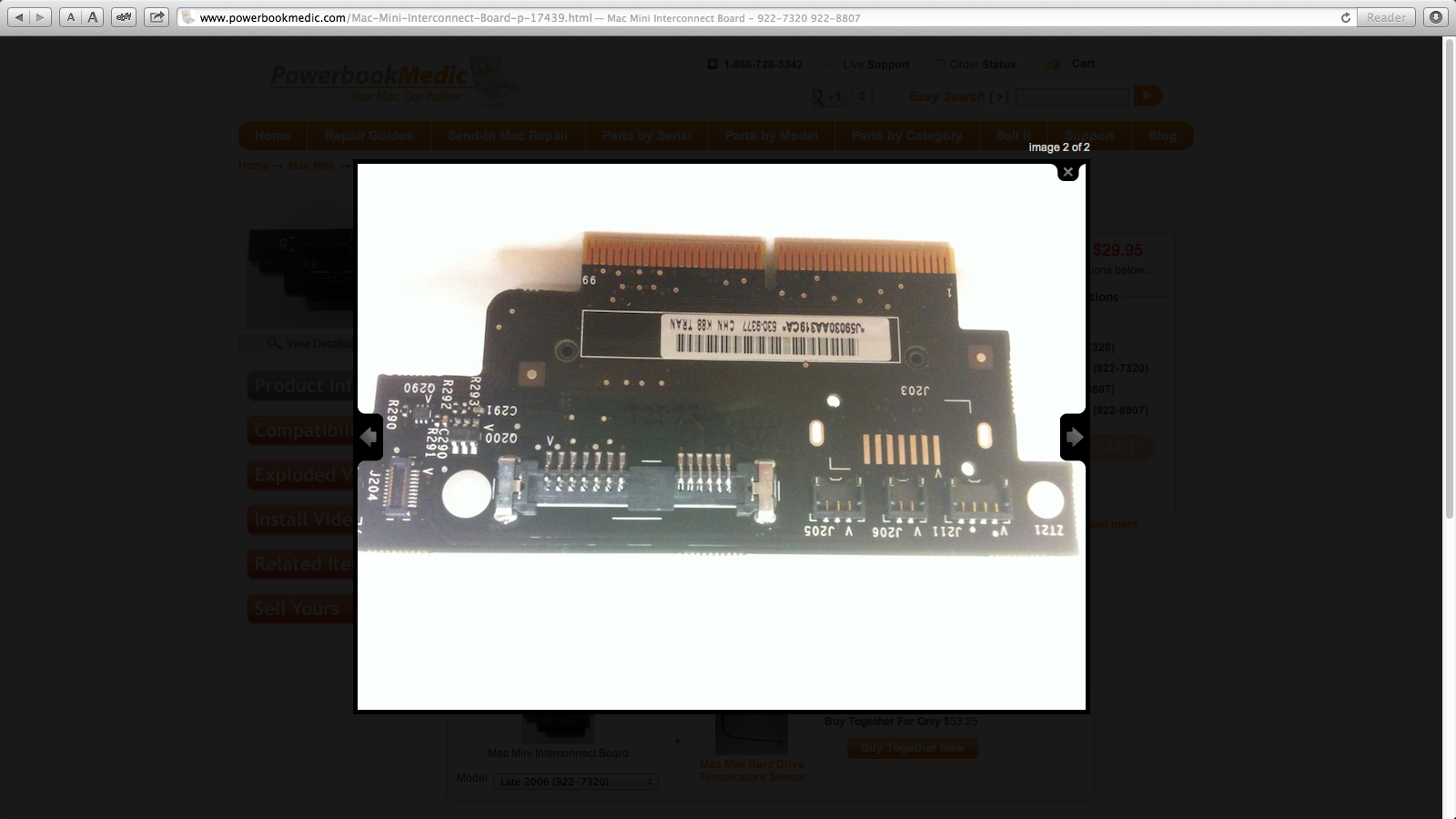

    http://www.powerbookmedic.com/Mac-Mini-Interconnect-Board-p-17439.html

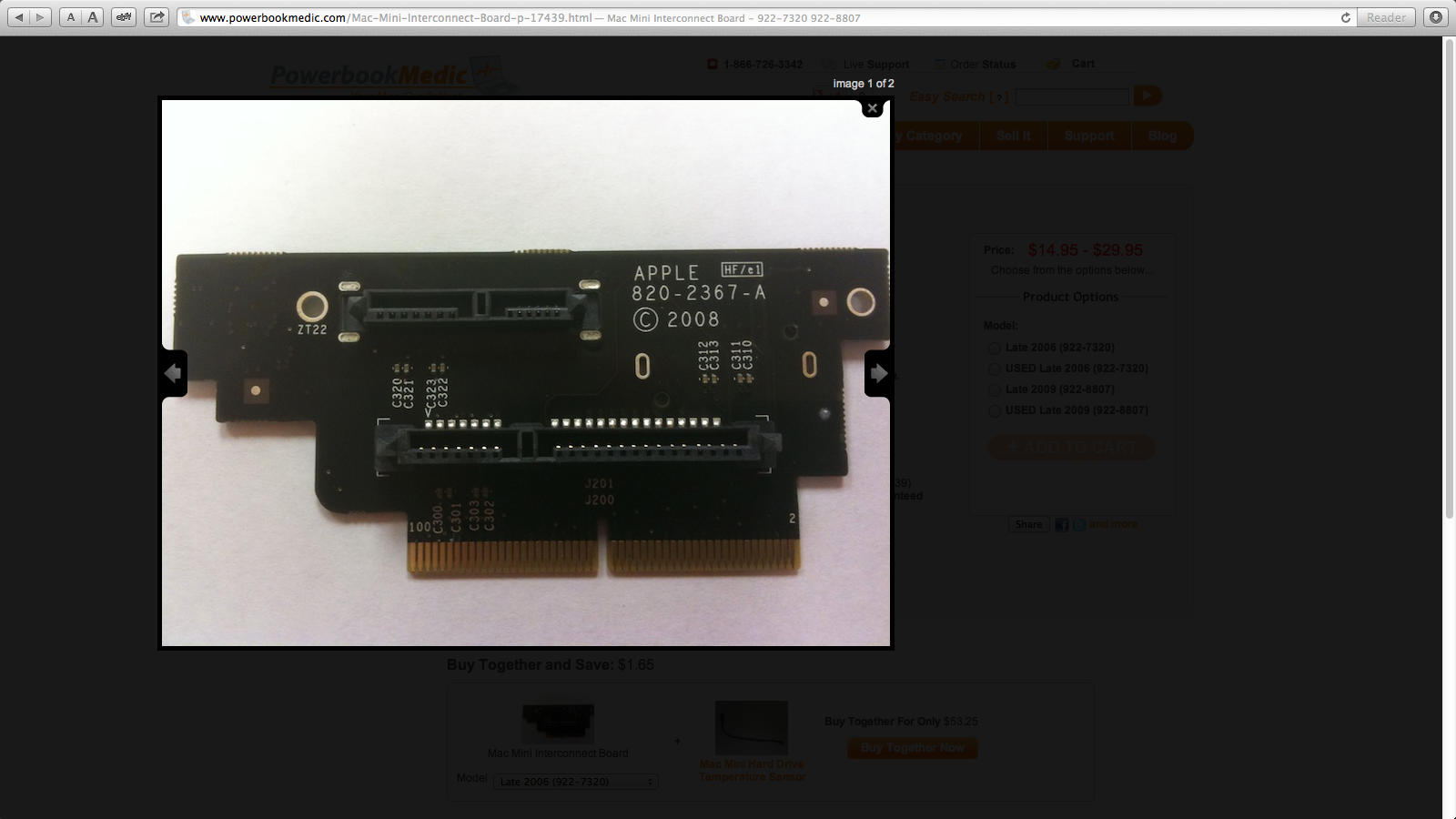

    this bridges the hdd and the dvd to the mobo.. I think you did not set it in the mobo correctly.


    Attached Files:

  14. rwhit11 thread starter macrumors newbie

    Joined:
    Jun 6, 2009
    #14
    Thanks, I may not have seated it properly when I installed the new ram. Will check it out tonight.
