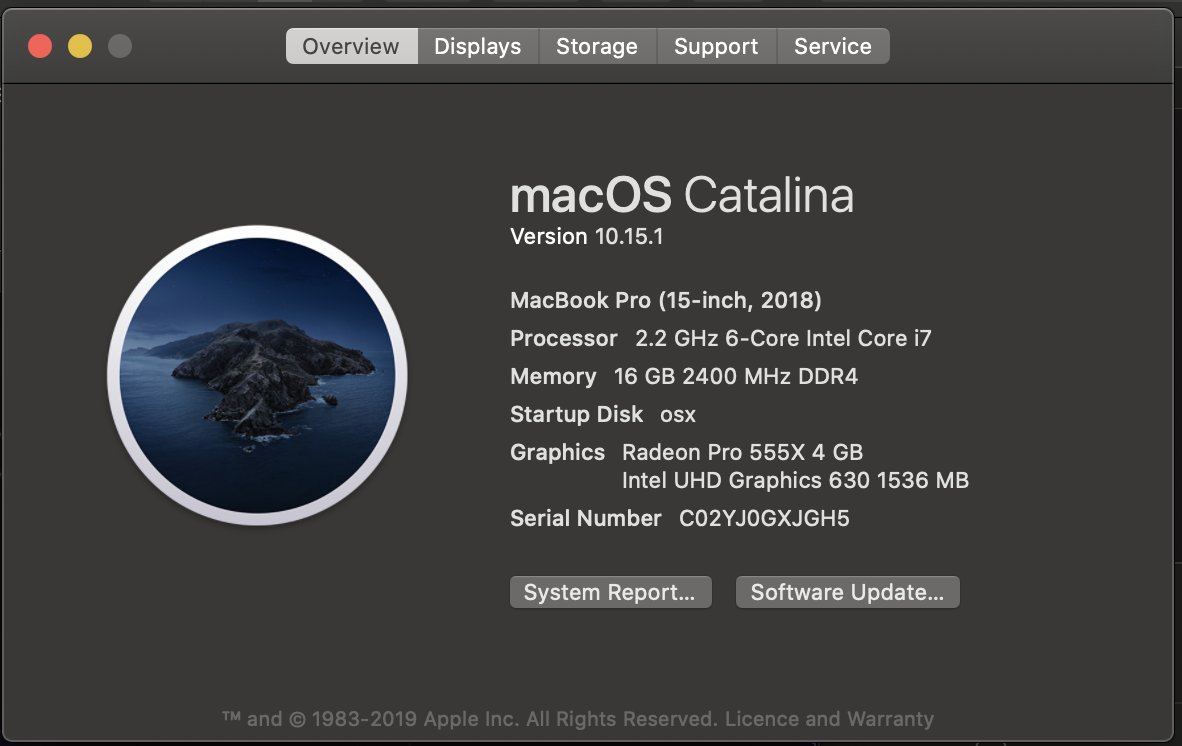

AMD Radeon Pro 555X and Intel(R) UHD Graphics 630.

I supposed the AMD 555X would be superior in performance compared to the Intel(R) UHD Graphics 630.

However, I observed a huge performance difference for Metal Performance Shaders (MPS) between the two GPUs.

The Intel GPU performs the simple test code (a MPSMatrixMultiplication) 3 times faster compared to the AMD 555X.

You can compile the attached code in a Terminal by 'swiftc -O matrixMul.swift'

and run it by executing './matrixMul'

In the test code, I can select execution on the AMD 555X with the statement

let device = devices[0] // AMD Radeon Pro 555X

and I get the following:

start calculation on GPU-device <BronzeMtlDevice: 0x1071bf000>

name = AMD Radeon Pro 555X

...

GPU execution time = 12.612 seconds

The Intel(R) UHD Graphics 630 is selected by

let device = devices[1] // Intel(R) UHD Graphics 630

and I get

start calculation on GPU-device <MTLIGAccelDevice: 0x10f9c5000>

name = Intel(R) UHD Graphics 630

...

GPU execution time = 3.735 seconds

As you can see the Intel UHD 630 performed the MPSMatrixMultiplication

**3 times faster**than the AMD 555X.

I thought the AMD 555X would be more powerful than the Intel UHD 630, but this test shows the opposite.

I wonder why? Any idea?

-------------------- test code

import Metal

import Accelerate

import MetalPerformanceShaders

let devices = MTLCopyAllDevices()

print("available GPUs")

for d in devices {

print(d)

}

// select one of the two GPS by commenting out one of the two

let device = devices[0] // AMD Radeon Pro 555X

//let device = devices[1] // Intel(R) UHD Graphics 630

// commandQueue and commandBuffer

let commandQueue = device.makeCommandQueue()!;

let commandBuffer = commandQueue.makeCommandBuffer()!;

// Matrix dimensions

let n = 8192 // matrix dimension (n x n)

let rowsA = n

let columnsA = n

let rowsB = n

let columnsB = n

let rowsC = n

let columnsC = n

// matrix A data

var arrayA = [Float](repeating: 0, count: rowsA * columnsA)

for i in 0..<arrayA.count { // set random data

arrayA

*= Float(2 * drand48() - 1)*

}

// matrix B data

var arrayB = [Float](repeating: 0, count: rowsB * columnsB)

for i in 0..<arrayB.count { // set random data

arrayB

}

// matrix B data

var arrayB = [Float](repeating: 0, count: rowsB * columnsB)

for i in 0..<arrayB.count { // set random data

arrayB

*= Float(2 * drand48() - 1)*

}

// MTL data buffers for Matrices A,B,C

let bufferA = device.makeBuffer(bytes: arrayA,

length: rowsA * columnsA * MemoryLayout<Float>.stride,

options: [])!;

let bufferB = device.makeBuffer(bytes: arrayB,

length: rowsB * columnsB * MemoryLayout<Float>.stride,

options: [])!;

let bufferC = device.makeBuffer(length: rowsC * columnsC * MemoryLayout<Float>.stride,

options: [])!;

// Matrix descriptions

let descA = MPSMatrixDescriptor(dimensions: rowsA, columns: columnsA,

rowBytes: columnsA * MemoryLayout<Float>.stride,

dataType: .float32);

let descB = MPSMatrixDescriptor(dimensions: rowsB, columns: columnsB,

rowBytes: columnsB * MemoryLayout<Float>.stride,

dataType: .float32);

let descC = MPSMatrixDescriptor(dimensions: rowsC, columns: columnsC,

rowBytes: columnsC * MemoryLayout<Float>.stride,

dataType: .float32);

// MTL matrix buffers

let matrixA = MPSMatrix(buffer: bufferA, descriptor: descA);

let matrixB = MPSMatrix(buffer: bufferB, descriptor: descB);

let matrixC = MPSMatrix(buffer: bufferC, descriptor: descC);

let matrixMultiplication = MPSMatrixMultiplication(device: device,

transposeLeft: false, transposeRight: false,

resultRows: rowsC, resultColumns: columnsC,

interiorColumns: columnsA, alpha: 1, beta: 0);

matrixMultiplication.encode(commandBuffer: commandBuffer, leftMatrix: matrixA,

rightMatrix: matrixB, resultMatrix: matrixC);

print("start calculation on GPU-device \(device)")

let start = DispatchTime.now().uptimeNanoseconds;

commandBuffer.commit()

commandBuffer.waitUntilCompleted()

let end = DispatchTime.now().uptimeNanoseconds

let execTime = String(format: "%.3f", 1e-9 * Double(end - start))

// we look at the result

let rawPointer = matrixC.data.contents();

let count = matrixC.rows * matrixC.columns;

let typedPointer = rawPointer.bindMemory(to: Float.self, capacity: count);

let bufferedPointer = UnsafeBufferPointer(start: typedPointer, count: count);

// Print the first 10 results, to make sure it's not all 0s or NaNs.

print("\nFirst 5 elements:")

for i in 0..<5 {

print("element \(i) =", bufferedPointer}

// MTL data buffers for Matrices A,B,C

let bufferA = device.makeBuffer(bytes: arrayA,

length: rowsA * columnsA * MemoryLayout<Float>.stride,

options: [])!;

let bufferB = device.makeBuffer(bytes: arrayB,

length: rowsB * columnsB * MemoryLayout<Float>.stride,

options: [])!;

let bufferC = device.makeBuffer(length: rowsC * columnsC * MemoryLayout<Float>.stride,

options: [])!;

// Matrix descriptions

let descA = MPSMatrixDescriptor(dimensions: rowsA, columns: columnsA,

rowBytes: columnsA * MemoryLayout<Float>.stride,

dataType: .float32);

let descB = MPSMatrixDescriptor(dimensions: rowsB, columns: columnsB,

rowBytes: columnsB * MemoryLayout<Float>.stride,

dataType: .float32);

let descC = MPSMatrixDescriptor(dimensions: rowsC, columns: columnsC,

rowBytes: columnsC * MemoryLayout<Float>.stride,

dataType: .float32);

// MTL matrix buffers

let matrixA = MPSMatrix(buffer: bufferA, descriptor: descA);

let matrixB = MPSMatrix(buffer: bufferB, descriptor: descB);

let matrixC = MPSMatrix(buffer: bufferC, descriptor: descC);

let matrixMultiplication = MPSMatrixMultiplication(device: device,

transposeLeft: false, transposeRight: false,

resultRows: rowsC, resultColumns: columnsC,

interiorColumns: columnsA, alpha: 1, beta: 0);

matrixMultiplication.encode(commandBuffer: commandBuffer, leftMatrix: matrixA,

rightMatrix: matrixB, resultMatrix: matrixC);

print("start calculation on GPU-device \(device)")

let start = DispatchTime.now().uptimeNanoseconds;

commandBuffer.commit()

commandBuffer.waitUntilCompleted()

let end = DispatchTime.now().uptimeNanoseconds

let execTime = String(format: "%.3f", 1e-9 * Double(end - start))

// we look at the result

let rawPointer = matrixC.data.contents();

let count = matrixC.rows * matrixC.columns;

let typedPointer = rawPointer.bindMemory(to: Float.self, capacity: count);

let bufferedPointer = UnsafeBufferPointer(start: typedPointer, count: count);

// Print the first 10 results, to make sure it's not all 0s or NaNs.

print("\nFirst 5 elements:")

for i in 0..<5 {

print("element \(i) =", bufferedPointer

*);*

}

print("...")

print("last element =", bufferedPointer[n * n - 1]);

print("...")

print("GPU execution time = \(execTime) seconds")

exit(0)

------------------ end test-code}

print("...")

print("last element =", bufferedPointer[n * n - 1]);

print("...")

print("GPU execution time = \(execTime) seconds")

exit(0)

------------------ end test-code
