Acronym

macrumors 68000
Original poster
Apr 26, 2008
1,521
3
Ok so you all know i made the guide to Custom Ringtones now i think its about time that i make a Custom SMS tone to go with the Ringtones so that people can have there Crazy SMS tones and not the boring Factory Tri-Tone

****TABLE OF CONTENTS****

POST 1 --- JailBreaking and OpenSSH

POST 2 --- Creating Custom SMS Sounds


***JAILBREAKINGING AND INSTALLING OpenSHH***

STEP 1A) first of all you need to Jail Break your Iphone 3G and to do that you need this

http://mirrors.nsa.co.il/iphone/QuickPwn22.zip

***THE LINKS PROVIDED BELOW ARE FOR 3.0 JAILBREAKING SOFTWARE PROVIDED BY THE DEV TEAM***

Redsn0w for Windows users

Redsn0w for Mac Users

JailBreaking iPhone/ipod touch 1G 2G 3G VIDEO

once you have the desired 3.0 program you can use limewre to download the file itself

STEP 1B) then follow this guys video (i dont want to re-JailBreak)

http://www.youtube.com/watch?v=sdwh6HBjBUM

STEP 2) once you have jailBroken Your iphone 3G/2G you need to open Cydia



STEP 3) Click "Featured Pacakges"

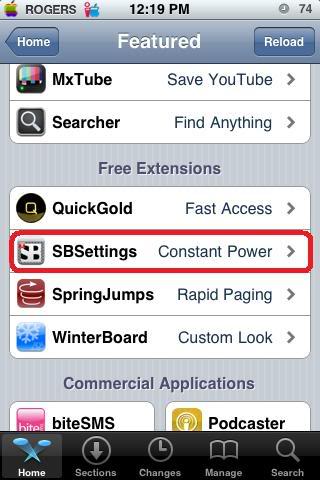

STEP 4) Scrolldown to "SBSettings" and click it



STEP 5) it will bring up a menu such as this click the "install button, Mine says modify because i have already installed it.



STEP 6) Click the Install Button on the pull up tab, mine says reinstall cause i have already installed it.

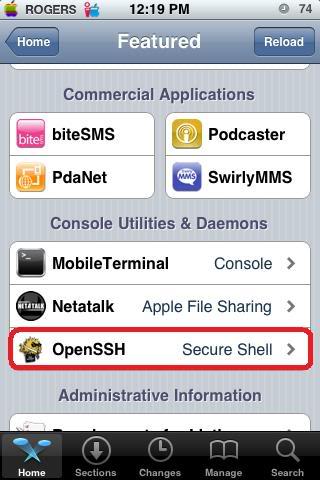

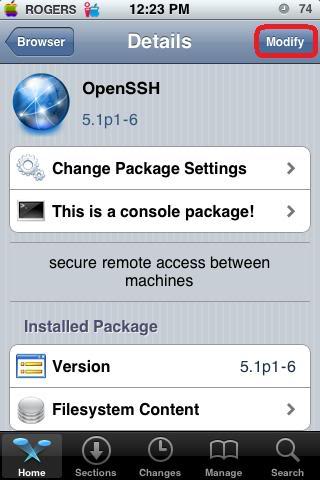

STEP 7) once installed go back to the list of featured packages and scroll down to OpenSSH and click it



STEP 8) another install menu is shown click the install button, then confirm, mine says modify because i've already installed it.



STEP 9) Click Install, mine says Reinstall because i've already installed it.



STEP 10) go back to your home screen and swipe left or right accross the status bar.



STEP 11) Make sure the SSH button is green and not red



STEP 12) Download Iphone Tunnel

http://www.makkiaweb.net/itunnel/data/its_setup.exe

STEP 12B) follow this guys video on setting up your SSH

http://www.youtube.com/watch?v=59CghsFGVqc

Post 2

ok so now that we finaly have openSSH set up and we can get ito our iphone via usb which is way!!! faster then wifi, so lets begin making the sms tone


STEP 1) Download wavepad, install it and run it

http://www.nch.com.au/components/wpsetup.exe


STEP 2) find a audio clip you want for your sms and open it in wavepad



****NOTE****
SMS TONES DONT STOP TILL THE CLIP IS FINISHED PLAYING IF YOU PICK A 15 SECOND CLIP IT WILL PLAY IT ALL NO MATTER WHAT
****NOTE****


STEP 3) Alter the clip to your liking longer, shorter, louder, quiter have fun with it

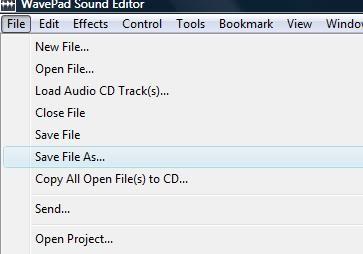

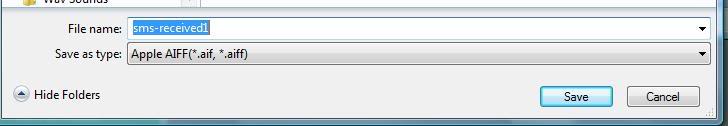

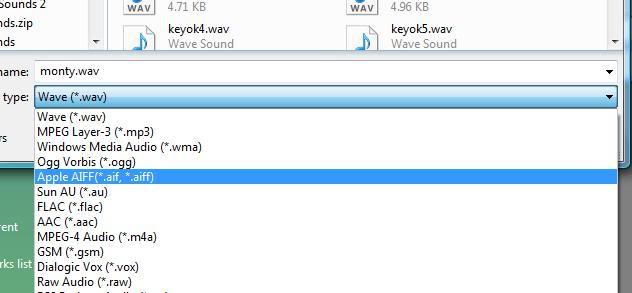

STEP 4) Save the file as sms-received1-6.aif choosing 1 2 3 4 5 6 depending on which sms tone you want to replace. for example sms-received1







STEP 5) go to your sms-received1 and change the file extension from .aif to .caf

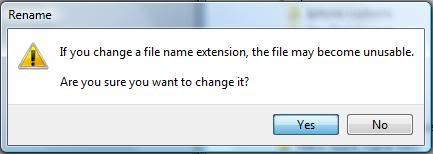

STEP 5B) Click yes

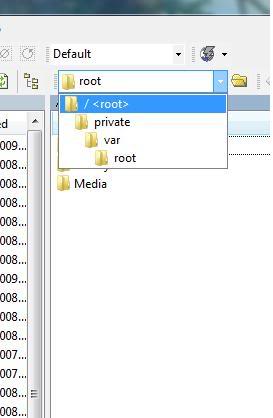

open up iphone tunnel and SSH into your iPhone, and go to the main root directory

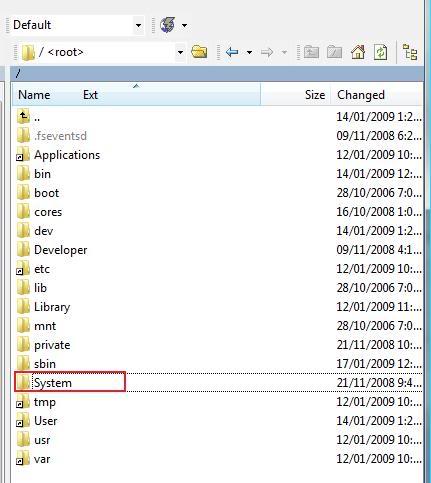

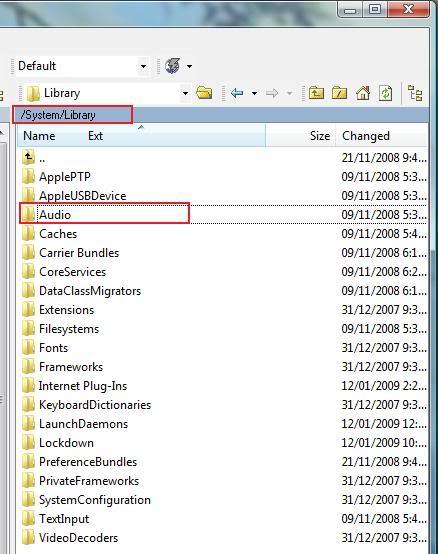

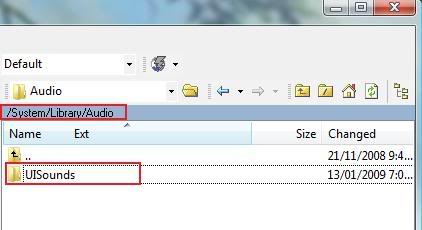

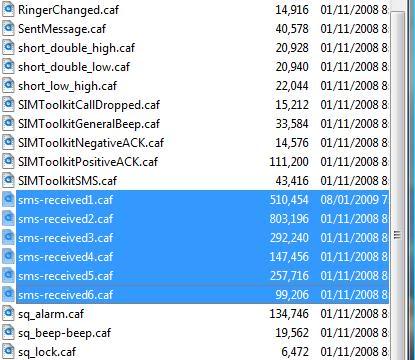

STEP 6) go to System/Lybrary/Audio/UISounds and find the sms-received1,2,3,4,5,6









****NOTE**** IF YOU WANT TO BE ABLE TO REVERT TO THE IPHONES STOCK SMS SOUNDS BACK THEM UP!!!! ****NOTE****

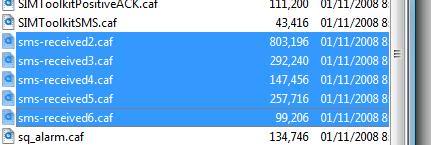

STEP 7) find the sms-received1



STEP 8)delete it



STEP 9) then drag your custom sms-received1 file into the iphone side of the WinSCP



Step 8) Restart Your phone for the new sms to take effect

Last edited:
as apposed to restarting your iphone you can use SBSettings neat feature of respringing your springboard which should enable the custom sms sound

Good job!

Thank you very much for this guide. The Iphone is a marvelous peace of technology, and being able to change things around make the Iphone very interesting.

Thank you very much for this guide. The Iphone is a marvelous peace of technology, and being able to change things around make the Iphone very interesting.

your welcome nothing is more important then making your iphone sound and look like how you want it to sound/look

Thanks for the guide, worked perfectly and now i have the metal gear solid codec sound for my texts. :D

I have a question, if you make a custom one, and it goes off, and you open the txt, will it stop playing or does it play out until the end?

I have a question, if you make a custom one, and it goes off, and you open the txt, will it stop playing or does it play out until the end?

From the second post:
****NOTE****
SMS TONES DONT STOP TILL THE CLIP IS FINISHED PLAYING IF YOU PICK A 15 SECOND CLIP IT WILL PLAY IT ALL NO MATTER WHAT
****NOTE****

ok so now that we finaly have openSSH set up and we can get ito our iphone via usb which is way!!! faster then usb lets begin making the sms tone


STEP 1) Download wavepad, install it and run it

http://www.nch.com.au/components/wpsetup.exe


STEP 2) find a audio clip you want for your sms and open it in wavepad



****NOTE****
SMS TONES DONT STOP TILL THE CLIP IS FINISHED PLAYING IF YOU PICK A 15 SECOND CLIP IT WILL PLAY IT ALL NO MATTER WHAT
****NOTE****

STEP 3) Alter the clip to your liking longer, shorter, louder, quiter have fun with it

STEP 4) Save the file as sms-received1-6.aif choosing 1 2 3 4 5 6 depending on which sms tone you want to replace. for example sms-received3







STEP 5) go to your sms-received1 and change the file extension form .aif to .caf



STEP 5B) Click yes



open up iphone tunnel and SSH into your iPhone, and go to the main root directory



STEP 6) go to System/Lybrary/Audio/UISounds and find the sms-received1,2,3,4,5,6









****NOTE**** IF YOU WANT TO BE ABLE TO REVERT TO THE IPHONES STOCK SMS SOUNDS BACK THEM UP!!!! ****NOTE****

STEP 7) find the sms-received1



STEP 8)delete it



STEP 9) then drag your custom sms-received1 file into the iphone side of the WinSCP



Step 8) Restart Your phone for the new sms to take effect


if you don't feel like downloading anything, just go to www.audiko.net and you can either upload the song yourself, and choose which part you want as the ringtone, or you can copy and paste the url where the song is at, like if you want a youtube video as your ringtone, you just upload the url onto the site, and then choose which section.. super easy, and you don't have to download anything..and the fact that you can take the audio from a video is cool...and ontop of that, there is already a good selection of ringtones..

if you don't feel like downloading anything, just go to www.audiko.net and you can either upload the song yourself, and choose which part you want as the ringtone, or you can copy and paste the url where the song is at, like if you want a youtube video as your ringtone, you just upload the url onto the site, and then choose which section.. super easy, and you don't have to download anything..and the fact that you can take the audio from a video is cool...and ontop of that, there is already a good selection of ringtones..

yes but audiko.net is for ringtones not custom sms tones

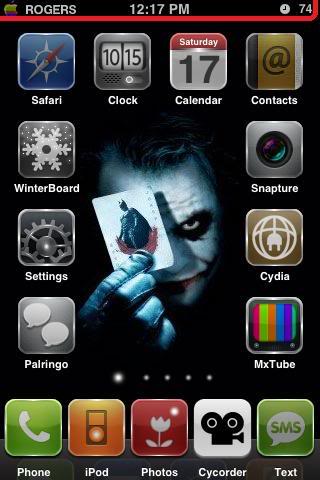

Wow nice post! Will look into it when I have some time. Now, can you share how you made your screen look like that? (Icons only on the sides) :D

Wow nice post! Will look into it when I have some time. Now, can you share how you made your screen look like that? (Icons only on the sides) :D

download a program through cydia called iBlank i think its through the stefwiz repo but download that to install blank applications so that you can organize your springboard how you like it

anyone have any sms tones they'd like to share? i want to gather all the custom sms sounds and make a huge zip file full of them.

remember though keep them short and sweet.

For all of those who don't want to go through the tedious process of SSHing into your phone (either from laziness or ineptitude) try this:


If your phone is jailbroken, you can download a program in Cydia called ToneFX. After you download the program, you can then go to any Mac or PC and download the computer version for FREE. This simple program on the comp opens up an idiot-proof mp3 loader that can cut any song into a ringtone OR SMS tone of your choice.

Then simply plug your iPhone into the computer, and it is automatically sent to your phone. That's right, no SSH, making a ringtone through any myriad of ways, finding the ringtone or SMS directory, and praying you don't screw something up.

Have to try this! Its great. ToneFX

here you go i hope this is what you are looking for.

took me for ever to find this.

enjoy!!


Attachments

  • BB sms Sounds.zip
    488.7 KB · Views: 596
has anyone tried adding a 7th sms tone?
Nope the number of available tones is limited to six because your only changing the sound, as apposed to adding a new sound I the list.

Its only working with certain songs its pretty annoying any clue?
Songs can't be from iTunes otherwise it won't work.
