Resolved Disable a failed AMD GPU on a 2011 MacBook Pro [GRUB solution]

Discussion in 'MacBook Pro' started by brainshutdown, Nov 11, 2017.

  1. brainshutdown, Nov 11, 2017
    Last edited: Nov 22, 2017

    brainshutdown macrumors regular

    Joined:
    Jul 16, 2012
    #1
    Installing GRUB

    Follow the steps described in this guide:
    https://gist.github.com/blackgate/17ac402e35d2f7e0f1c9708db3dc7a44

    Installing the attached kext to prevent the GPU from waking up from sleep (optional)

    WARNING: This kext should only be used with the GRUB solution in place, otherwise it will kernel panic.

    The attached kext is unsigned, if you have a kext signing certificate, you can build it yourself and sign it (don't forget to share :)). You can find the source code here.

    Mavericks
    Copy the kext to /System/Library/Extensions and then run the following commands from terminal:
    Code:
    sudo chmod -R 755 /System/Library/Extensions/AMDGPUWakeHandler.kext
    sudo chown -R root:wheel /System/Library/Extensions/AMDGPUWakeHandler.kext
    sudo touch /System/Library/Extensions

    Yosemite
    Copy the kext to /Library/Extensions and then run the following commands from terminal:
    Code:
    sudo nvram boot-args="kext-dev-mode=1"
    sudo chmod -R 755 /Library/Extensions/AMDGPUWakeHandler.kext
    sudo chown -R root:wheel /Library/Extensions/AMDGPUWakeHandler.kext
    sudo touch /Library/Extensions

    El Capitan and later
    You need to have SIP disabled (view the guide to see how you can disable it).
    Copy the kext to /Library/Extensions and then run the following commands from terminal:
    Code:
    sudo chmod -R 755 /Library/Extensions/AMDGPUWakeHandler.kext
    sudo chown -R root:wheel /Library/Extensions/AMDGPUWakeHandler.kext
    sudo touch /Library/Extensions



    Attached Files:

  2. mcbeej macrumors member

    Joined:
    Jun 7, 2007
    #2
    Thanks for this solution. It's not yet working for me - I have got as far as step 3.5, getting the UUID and putting it into the grub config (either during grub boot, or saving it in the cfg file).

    In either case, trying to boot MacOS from grub doesn't work, it just goes to a black screen here.

    The UUID I'm using is the MacOS partition UUID as listed from grub, but I have tried others with no success either.
    Any things I can try to get MacOS booting from grub?

    El Capitan BTW

  3. brainshutdown thread starter macrumors regular

    Joined:
    Jul 16, 2012
    #3
    @mcbeej The problem you describe reminds me of a problem I had when I tried the grub solution without changing the nvram variable (first step in the guide). You can try to reset the NVRAM and repeat the first two steps in the guide.

  4. mcbeej, Nov 11, 2017
    Last edited: Nov 11, 2017

    mcbeej macrumors member

    Joined:
    Jun 7, 2007
    #4
    Thanks for the help - I had been resetting the nvram variable (it's the only way my machine will boot) but this time I tried to reset it then *immediately* on the reboot boot into grub, ie:

    - boot into single user mode
    - reset the nvram gpu prefs
    - reboot, while holding option to go into EFI boot for grub

    This time the behaviour of grub changes - if I try to launch MacOS from the menu option (the config file already has my uuid in it), the menu goes away from about ten seconds, then I come back to the menu. If I "e" into edit mode, then fn F10 from there to boot, the screen goes away, and then after about ten seconds I get an "error: unknown error" back from grub. (Always the most useful of error reports (!) )...

    Will try a full nvram reset and report how I get on, thanks for the tip.

    Edit: Ok, after a full nvram reset, I repeated the above procedure exactly and got the same results from grub...

  5. brainshutdown, Nov 11, 2017
    Last edited: Nov 11, 2017

    brainshutdown thread starter macrumors regular

    Joined:
    Jul 16, 2012
    #5
    @mcbeej
    Double check the uuid of your macOS partition, and make sure you choose the correct one. If you choose an uuid for a partition that doesn't have macOS it won't boot.

    If you are still having trouble booting, you can use the menu entry used for High Sierra. The only "problem" is that you can only boot one macOS partition.

  6. carlsson macrumors 6502

    carlsson

    Joined:
    Jul 18, 2001
    #6
    I am thinking; Since I am able to boot on the failed computer with the help of target mode, could I disable SIP that way? That would save a lot of work...
    But I guess not. Recovery mode is always performed on the computer that you are starting from, right?

    Just a thought.

  7. brainshutdown thread starter macrumors regular

    Joined:
    Jul 16, 2012
    #7
    @carlsson Unfortunately no. It needs to be done in recovery mode.

  8. mcbeej, Nov 11, 2017
    Last edited: Nov 11, 2017

    mcbeej macrumors member

    Joined:
    Jun 7, 2007
    #8
    Yes, it was definitely correct, but still wouldn't work for some reason. Presumably there was something causing the correct partition to fail to be booted from.

    I tried this version, and after a little bit of funkiness, i finally got it to boot and the graphics card is hidden, and Photoshop runs without freaking the computer out, which is *major* progress! Thank you - I will continue on with the other steps to get it to boot without the USB stick.

    Really grateful for this procedure and the help, thank you!

    Edit: Having some problems with the usb-less boot though, and can no longer boot into single user mode. I followed the procedure without problems. Grub has again stopped booting macOS. And I’m not sure if the new boot stuff can be reverted..?

  9. brainshutdown thread starter macrumors regular

    Joined:
    Jul 16, 2012
    #9
    Are you using the High Sierra menu entry or the one with the UUID? Can you paste the menu entry here? And BTW can you paste here your UUID?

  10. mcbeej macrumors member

    Joined:
    Jun 7, 2007
    #10
    Currently using the High Sierra one yes, as that's the only one I got to boot (but it has since stopped working again).

    My MacOS UUID is db683969dd679b2c and the previous grub.cfg file I was using was exactly as the example, but with "db683969dd679b2c" in place of the YOUR_UUID placeholder, but I never got it to work.

    Current:
    (I left the font stuff is as it made it easier to read the ls -l drive listing - with the font stuff taken out, this overran the window a bit.

    Version I got to boot once:

    Code:
    if loadfont /boot/grub/font.pf2 ; then
        set gfxmode=auto
        insmod efi_gop
        insmod efi_uga
        insmod gfxterm
        terminal_output gfxterm
    fi

    set menu_color_normal=white/black
    set menu_color_highlight=black/light-gray

    menuentry "macOS" {
        outb 0x728 1
        outb 0x710 2
        outb 0x740 2
        outb 0x750 0
        exit
    }

    Previous version
    Code:
    if loadfont /boot/grub/font.pf2 ; then
        set gfxmode=auto
        insmod efi_gop
        insmod efi_uga
        insmod gfxterm
        terminal_output gfxterm
    fi

    set menu_color_normal=white/black
    set menu_color_highlight=black/light-gray

    menuentry "macOS" {
       insmod hfsplus
       outb 0x728 1
       outb 0x710 2
       outb 0x740 2
       outb 0x750 0
       search --no-floppy --fs-uuid --set=root db683969dd679b2c
       chainloader /System/Library/CoreServices/boot.efi
    }

    By luck I've managed to boot into MacOS normally, so if there is a way to temporarily undo the permanent boot efi changes, that would be useful, as booting from the USB stick is better than nothing, for now..!

  11. brainshutdown thread starter macrumors regular

    Joined:
    Jul 16, 2012
    #11
    Ok, try this:
    Code:
    if loadfont /boot/grub/font.pf2 ; then
       set gfxmode=auto
       insmod efi_gop
       insmod efi_uga
       insmod gfxterm
       terminal_output gfxterm
    fi

    set menu_color_normal=white/black
    set menu_color_highlight=black/light-gray

    menuentry "macOS" {
       insmod hfsplus
       outb 0x728 1
       outb 0x710 2
       outb 0x740 2
       outb 0x750 0
       search --set=root --file /System/Library/CoreServices/boot.efi
       chainloader /System/Library/CoreServices/boot.efi
    }

    This will try to find the first /System/Library/CoreServices/boot.efi and then boots it.

    To remove grub, this should be enough:
    Code:
    cd /Volumes
    sudo mkdir efi
    sudo mount -t msdos /dev/disk0s1 /Volumes/efi
    sudo rm -rf /Volumes/efi/boot/grub/
    sudo rm -rf /Volumes/efi/EFI/grub/


  12. mcbeej, Nov 11, 2017
    Last edited: Nov 11, 2017

    mcbeej macrumors member

    Joined:
    Jun 7, 2007
    #12
    Thanks, will try this shortly.

    Edit, some additional information as I have started to understand the behaviour a bit more:

    Firstly, I'm using your modified grub.cfg posted above, but I think the following would work with the previous ones as well. SIP is left disabled here, at least for now. I removed the boot stuff for now with your instructions above.

    When I have been booting from grub, and the screen goes black, what's happening here is that the nvram gpu-power-prefs has been reset back to the default (this seems to happen quite a lot, at least while doing boot tests etc). I *know* when gpu-power-prefs has been reset, because if I do a normal boot, I get the same old behaviour - ie, the machine mostly hangs on boot because of the state of the dGPU.

    When gpu-power-prefs has been correctly modified, the machine will boot normally (as the boot procss is ignoring the dGPU state) - and also, the grub boot will work correctly (no more black screen, macOS boots, and the dGPU is gone).

    What was causing me problems - not being able to get into single user mode (or verbose mode) - is that since originally modifying the USB boot procedure to not use the USB stick, the initial white screen on boot now adds 10-20 seconds *before* the command-S/whatever keys will start to have any effect (I've no idea why). If I literally hold command-S down while turning the machine on and waiting for 20 seconds or so on a white screen, it will eventually go into single user mode - where I can modify the gpu-power-prefs setting, and then whatever boot method I choose will work.

    So, I think for now, I'm going to stick with this system - with no USB stick, the machine will do a normal boot and not hang, with the dGPU active, or, I can boot from the USB stick using grub, and disable the dGPU completely (which is obviously how I will be mostly running from now on.)

    Maybe I'll play with this some more and give the permanent boot another go, but at least for now, I have a working system, and should a boot fail, I know to go back into single-user mode and reset the nvram gpu-power-prefs (which is just in the command line history state, so no typing involved).

    I also have the wake handler kext installed as well.

    This has been *immensely* helpful, thanks to everyone who's been investigating this and conjuring up the deep black voodoo to find solutions. I hope some of my observations might be helpful to others in a similar situation.

    And thanks for the support - this machine's behaviour over the last month or so has been incredibly frustrating and unproductive, and now I have a genuine workable solution until I get a hardware fix.

    Thank you!

  13. brainshutdown thread starter macrumors regular

    Joined:
    Jul 16, 2012
    #13
    @mcbeej Do you have more than one HDD/SSD on your mac? The 20 seconds wait is a known issue with grub when there are more than one HDD/SSD.

  14. b0fh666 macrumors 6502a

    b0fh666

    Joined:
    Oct 12, 2012
    Location:
    south
    #14
    aint clover (hackintosh bootloader) better for this?

  15. brainshutdown, Nov 12, 2017
    Last edited: Nov 12, 2017

    brainshutdown thread starter macrumors regular

    Joined:
    Jul 16, 2012
    #15
    You can use clover, but I don't think is better for this. I've tried changing the DSDT to achieve a similar result with clover and I was able to boot, but I had problems with the battery.

  16. tmanx macrumors newbie

    Joined:
    Nov 1, 2017
    #16
    Hi @brainshutdown

    Thanks for the revised instructions. Have used the new kext and Maverick code to install. Got the same error as in my other post #1133 - but to the path /System/Library/Extensions. Restarted and it has not popped up again - but on returning from sleep am not convinced it's working (e.g. iStat GPU VCore reading is 1.12V). How can I check for sure?

    thanks a lot

  17. mcbeej macrumors member

    Joined:
    Jun 7, 2007
    #17
    Yes, I have both an SSD (system drive) and an HD in place of the optical drive...

  18. brainshutdown thread starter macrumors regular

    Joined:
    Jul 16, 2012
    #18
    @tmanx The first time the kext is loaded on mavericks, a message is displayed because it's unsigned, but it loads nevertheless. With the kext loaded, the temperature of the GPU die shouldn't increase with respect to the values after booting (You can use iStat or Macs Fan Control to check the temperature), and the battery shouldn't drain faster.

  19. tmanx macrumors newbie

    Joined:
    Nov 1, 2017
    #19
    @brainshutdown temp has never been a major concern - it's the power loss.

    I'm wondering if the kext has loaded though? I'm having basically the same behaviour as before applying AMDGPUWakeHandler/kext

    Battery time remaining on istat after restart is about 4 hrs at 56% and GPU VCore is 0.00. But after sleep it seems to be shooting down quite quickly (e.g. then says about 2 hrs) and GPU VCore changes to 1.12V (as if the GPU is waking up / power is being drawn) or have I misunderstood?

    Thanks very much

  20. nsgr, Nov 12, 2017
    Last edited: Nov 12, 2017

    nsgr macrumors regular

    Joined:
    May 22, 2017
    #20
    Ways to Disable SIP:

    1 - Recovery Mode (Graphical Mode): Command + R

    2 - Recovery Mode (Text Mode): Command + R + S

    3 - Pendrive with the installer of El Capitan, Sierra and High Sierra -> press Option key at boot.

    4 - Internet Installer: Option + Command + R

    https://support.apple.com/en-us/HT204904


    If you have a problem with the Recovery Mode (graphic mode) or pendrive installer Mac OS or Internet Installer Mac OS (AMD gpu freezes on the gray screen), then you have to enter text mode with the command:

    sudo nvram fa4ce28d-b62f-4c99-9cc3-6815686e30f9:gpu-power-prefs=%01%00%00%00


    The gray screen freezing problem is in the AMD6000Controller.kext and AMDRadeonX3000.kext.

    In the Mac OS installer (pendrive, recovery mode, Internet) there is only the AMD6000Controller.kext. This problem with the AMD6000Controller.kext is resolved with the nvram gpu-power-prefs command above.

    To get a normal boot with the system installed, just by moving the AMDRadeonX3000.kext to another folder.

    AMD6000Controller.kext: full power AMD GPU -> decrease battery life and increase temperature system.

    AMDRadeonX3000.kext: Loaded when Intel gpu is as primary gpu. -> low power AMD gpu -> increase battery life and decrease temperature system.

    With normal boot and the system running without problem, it is easier to try the grub solution with AMDGPUWakeHandler.kext.


    Update:

    SIP is stored in the variable nvram csr-active-config. If this variable is listed by Linux (AppleMacFinder method), then SIP can be disabled in ArchLinux or another Linux distribution.

    http://osxarena.com/2015/10/guide-details-apples-system-integrity-protection-sip-for-hackintosh/

    https://i0.wp.com/osxarena.com/wp-content/uploads/2015/10/csr-active-config.png


    SIP enable:

    nvram -p

    csr-active-config %10%00%00%00


    SIP disable:

    nvram -p

    csr-active-config w%00%00%00

  21. brainshutdown thread starter macrumors regular

    Joined:
    Jul 16, 2012
    #21
    To check if it's loaded run this on terminal:
    Code:
    kextstat | grep AMDGPUWakeHandler

    If it returns something, then it's loaded.

    I haven't really tested on Mavericks directly, but using a VM. I suspect it may be related to the location(/System/Library/Extensions) that is raising it's priority and making it run before the bit of code that triggers the activation of the AMD GPU.

    Can you test if reloading the kext by running:
    Code:
    sudo kextunload /System/Library/Extensions/AMDGPUWakeHandler.kext
    sudo kextload /System/Library/Extensions/AMDGPUWakeHandler.kext

    and then putting it to sleep and waking it up works?

  22. tmanx macrumors newbie

    Joined:
    Nov 1, 2017
    #22
    cheers @brainshutdown

    Thanks for your help - I'll give you as much info as I can.

    Running
    kextstat | grep AMDGPUWakeHandler

    didn't return anything (I got the following):

    Phoebes-MacBook-Pro:~ phoebe$ kextstat | grep AMDGPUWakeHandler
    Phoebes-MacBook-Pro:~ phoebe$


    From what you said - that means it isn't loaded. To be sure I tried to unload it and got the following:

    Phoebes-MacBook-Pro:~ phoebe$ sudo kextunload /System/Library/Extensions/AMDGPUWakeHandler.kext
    Password:
    (kernel) Kext io.github.blackgate.AMDGPUWakeHandler not found for unload request.
    Failed to unload io.github.blackgate.AMDGPUWakeHandler - (libkern/kext) not found.

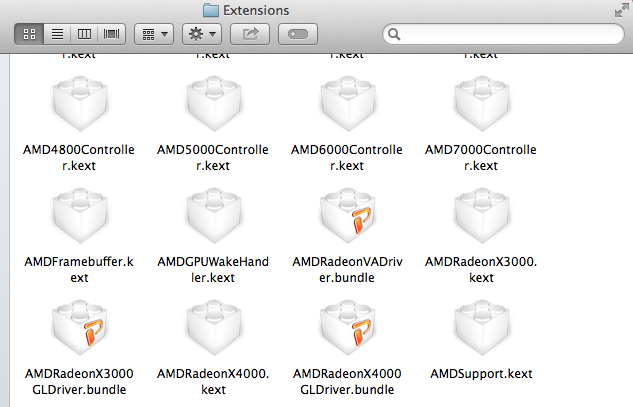

    I checked and it is in the correct directory:

    Screen Shot 2017-11-12 at 21.27.42.png

    I then tried to load it and got the following:

    Phoebes-MacBook-Pro:~ phoebe$ sudo kextload /System/Library/Extensions/AMDGPUWakeHandler.kext
    /System/Library/Extensions/AMDGPUWakeHandler.kext failed to load - (libkern/kext) authentication failure (file ownership/permissions); check the system/kernel logs for errors or try kextutil(8).

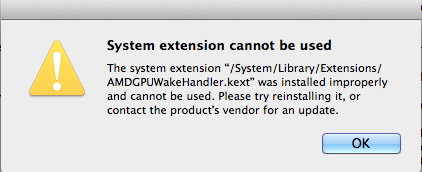

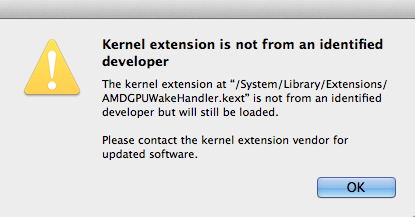

    Screen Shot 2017-11-12 at 21.23.56.png Screen Shot 2017-11-12 at 21.24.14.png

    I'm assuming that as I've run the following the permissions are OK? - But I'm unsure why it wasn't loaded in the first place? The

    sudo chown -R root:wheel /System/Library/Extensions/AMDGPUWakeHandler.kext
    sudo touch /System/Library/Extensions


    thanks very much

  23. brainshutdown thread starter macrumors regular

    Joined:
    Jul 16, 2012
    #23
    OK, it must be the permissions. Did you try rerunning the chown and then doing the kextload?
    If it still doesn't work try this:
    Code:
    sudo chmod -R 755 /System/Library/Extensions/AMDGPUWakeHandler.kext
    sudo chown -R root:wheel /System/Library/Extensions/AMDGPUWakeHandler.kext
    sudo touch /System/Library/Extensions
    sudo kextload /System/Library/Extensions/AMDGPUWakeHandler.kext


  24. mcbeej, Nov 13, 2017
    Last edited: Nov 13, 2017

    mcbeej macrumors member

    Joined:
    Jun 7, 2007
    #24
    The kext isn't working for me either, with similar errors to tmanx above.

    ('ve done all the suggested procedures above, so permissions etc should be ok.)

    If I try to load it manually, I get:
    /Library/Extensions/AMDGPUWakeHandler.kext failed to load - (libkern/kext) dependency resolution failure; check the system/kernel logs for errors or try kextutil(8).

    I'm on El Cap, perhaps that's an issue..?

    Code:
    sudo kextutil -v /Library/Extensions/AMDGPUWakeHandler.kext
    Defaulting to kernel file '/System/Library/Kernels/kernel'
    /Library/Extensions/AMDGPUWakeHandler.kext - no compatible dependency found for com.apple.kpi.mach.
    /Library/Extensions/AMDGPUWakeHandler.kext - no compatible dependency found for com.apple.kpi.iokit.
    /Library/Extensions/AMDGPUWakeHandler.kext - no compatible dependency found for com.apple.kpi.libkern.
    /Library/Extensions/AMDGPUWakeHandler.kext - no compatible dependency found for com.apple.kpi.mach.
    /Library/Extensions/AMDGPUWakeHandler.kext - no compatible dependency found for com.apple.kpi.iokit.
    /Library/Extensions/AMDGPUWakeHandler.kext - no compatible dependency found for com.apple.kpi.libkern.
    /Library/Extensions/AMDGPUWakeHandler.kext - no compatible dependency found for com.apple.kpi.mach.
    /Library/Extensions/AMDGPUWakeHandler.kext - no compatible dependency found for com.apple.kpi.iokit.
    /Library/Extensions/AMDGPUWakeHandler.kext - no compatible dependency found for com.apple.kpi.libkern.
    Diagnostics for /Library/Extensions/AMDGPUWakeHandler.kext:
    Dependency Resolution Failures:
        Only incompatible kexts found for these libraries:
            com.apple.kpi.mach
            com.apple.kpi.iokit
            com.apple.kpi.libkern

    Code Signing Failure: not code signed

    --

    Code:
    kextlibs -xml /Library/Extensions/AMDGPUWakeHandler.kext
        <key>OSBundleLibraries</key>
        <dict>
            <key>com.apple.kpi.iokit</key>
            <string>15.6</string>
            <key>com.apple.kpi.libkern</key>
            <string>15.6</string>
        </dict>


    I'll see if I can build an El Cap compatible version...

  25. brainshutdown thread starter macrumors regular

    Joined:
    Jul 16, 2012
    #25
    @mcbeej You aren't using this kext version. I known this because your kextutil references a lib that is not used in this version. Please download the version in this thread, because the other I posted in the other thread is only compatible with Sierra.


Share This Page
