Dongle thread for the new Macbook Pro's

Creep89 said:
Is there a working USB-C to Ethernet + USB adapter? I got one from Aukey but after sleep the LAN is not recognized anymore and I have to reboot in order to get it working again.
Click to expand...

I am using the Belkin adapter and it works just fine - have had none of those issues.
[doublepost=1480723708][/doublepost]
richpjr said:
I am using the Belkin adapter and it works just fine - have had none of those issues.
Click to expand...

Ah, sorry, to clarify the Belkin is USB C to ethernet only. Missed the USB part.
[doublepost=1480723738][/doublepost]
MarcBou said:
Can't believe it doesn't have HDMI but it has firewire.
Click to expand...

No kidding. Don't like that tradeoff at all.

Sorry for reposting if already out there but has everyone seen this video? Funny even to this fanboy!

Last edited:
  • Like
Reactions: cerberusss
Is the Apple USB-C to USB-A connector the best one? I've heard things about other ones exploding and not working half the time or something...but I also heard the Apple one is only USB 2.0? So what's the best one?

I tried this cable: https://www.amazon.co.uk/gp/product/B01E9RTEI8/ref=oh_aui_detailpage_o02_s00?ie=UTF8&psc=1

It wont run 4k @60hz on MBP 13inch late 2016

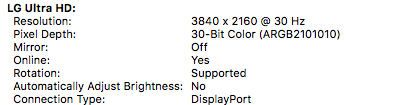

See attached screenshot


confused as to what will allow me to run a 4k DP monitor at 60hz
[doublepost=1480768425][/doublepost]
snake007uk said:
I tried this cable: https://www.amazon.co.uk/gp/product/B01E9RTEI8/ref=oh_aui_detailpage_o02_s00?ie=UTF8&psc=1

It wont run 4k @60hz on MBP 13inch late 2016

See attached screenshot


confused as to what will allow me to run a 4k DP monitor at 60hz
Click to expand...


----------------

I got it work by swapping which port it used and on the macbook ? then when i placed it back it to the original port it worked... must be buggy software issue


Attachments

  • Screen Shot 2016-12-03 at 12.02.07.png
    Screen Shot 2016-12-03 at 12.02.07.png
    19.9 KB · Views: 224
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
  • Like
Reactions: jimthing
Follow up question regarding the OE Apple digital multiport adapter with HDMI...

I originally bought this adapter in early 2015 for my '15 rMB 12". When I use the new USB-C charge cable supplied with my '16 MBP, it almost feels like I'm breaking the connector trying to insert it into the multiport adapter, the old USB-C charge cable from the retina MacBook 12" gave a nice audible click feel. I understand these cables are different, as the one supplied with the new MBP is larger in diameter and the AC adapter is higher wattage. Has anyone else experienced this?

I use a Western Digital Hard Drive connected to my iMac via FW800 for Time Machine backups and I'll probably be doing my migration assistant transfer to my new Macbook Pro via that instead of going with a direct cable connection. (Unless you guys recommend otherwise.)

Is there any way to connect FW800 to the Macbook Pro or should I just stick with USB 2.0 instead? I'll be moving Time Machine backups to an Airport Extreme in the future which only does 2.0 anyway.

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
Oesoto said:
Sorry if this was mentioned in previous posts

What do you guys think about this hub? Looks fine

https://www.kickstarter.com/projects/hypershop/hyperdrivetm-compact-thunderbolt-3-usb-c-hub-for-m
Click to expand...
Of course someone beat me to it. I was going to share this as well. If I understand correctly, the killer feature on here is the 4k@60hz with full usb-c bandwidth 5ghz. I don't believe any of the usb-c hubs do this currently. I could be wrong. Not paying close attention since I'm using a hub for DP, not HDMI.

No, it's a Tbolt 3 hub, not just a USB-C one — hence the feature many may want, is both HDMI and Tbolt 3 displays via the one dock.

Granted the HDMI at 4K is limited to 30Hz regardless (though 1080p is 60Hz, and likely 1440p at 60Hz too – though of course they don't clarify what 1440p would do!), but still, one also gets Tbolt 3 5K at 60Hz at the same time.

From a MBP, this may mean running 2x LG 5K's at 60Hz, another HDTV at 60Hz, and the MBP's screen, all at the same time (the other LG 5K from the other side of the MBP, of course).

Incidentally, the USB-A's & C's all run at 5Gbps, and not 10Gbps (that gen-2 C's can offer), though that's to have enough bandwidth for all the remaining (non-display) ports, I'd think.

Last edited:
  • Like
Reactions: roland.schemers
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
So I have been reading threw this thread & I am looking for a dongle or dongles with 2 or 3 regular usb 3.0 ports, HDMI port that supports 4k, ethernet & card reader. Can I find all of those ports in one dongle or do I need to get 2 or 3 dongles. I usually plug in 2 external hard drives, external monitor, ethernet cable, and dongle for mouse. I will be plugging the dongle into the 15" touch bar model.

So I sort of need to decide on what dongles I should get. The ports I need are HDMI, Ethernet, at least 2 or 3 full usb ports and a SD Card Reader. I do not use all of the ports every day but I do use them so based on that what sort of dongles should I look at. I have been looking at the dell dongle but it does not pass threw power and with that dongle I would need to add separate sd card reader. I have been looking at this dongle the Satechi Aluminum Multi-Port Adapter 4K but its 79.99. Another option is to get the apple Multiport Digital A/V adaptor & a SD card reader & a ethernet adaptor. Which option is better or is there a dongle I am missing ?

comptr said:
So I sort of need to decide on what dongles I should get. The ports I need are HDMI, Ethernet, at least 2 or 3 full usb ports and a SD Card Reader. I do not use all of the ports every day but I do use them so based on that what sort of dongles should I look at. I have been looking at the dell dongle but it does not pass threw power and with that dongle I would need to add separate sd card reader. I have been looking at this dongle the Satechi Aluminum Multi-Port Adapter 4K but its 79.99. Another option is to get the apple Multiport Digital A/V adaptor & a SD card reader & a ethernet adaptor. Which option is better or is there a dongle I am missing ?
Click to expand...

I went with the second option, though can't say much about the Satechi aside from a friend has it and has problems with it.

jimthing said:
No, it's a Tbolt 3 hub, not just a USB-C one — hence the feature many may want, is both HDMI and Tbolt 3 displays via the one dock.

Granted the HDMI at 4K is limited to 30Hz regardless (though 1080p is 60Hz, and likely 1440p at 60Hz too – though of course they don't clarify what 1440p would do!), but still, one also gets Tbolt 3 5K at 60Hz at the same time.

From a MBP, this may mean running 2x LG 5K's at 60Hz, another HDTV at 60Hz, and the MBP's screen, all at the same time (the other LG 5K from the other side of the MBP, of course).

Incidentally, the USB-A's & C's all run at 5Gbps, and not 10Gbps (that gen-2 C's can offer), though that's to have enough bandwidth for all the remaining (non-display) ports, I'd think.
Click to expand...
I really hope this adapter gets produced. Has a lot of funding. I supported it for the $69 option since I was a little late to the party. This would be the perfect hub, and then when I get a 5K monitor I can throw those little USB-C to USB-A adapters that are a few bucks on.

So it seems the Apple Multi port Digital A/V adaptor is the only adaptor that can pass through the 87watt for the 15" MacBook Pro.
