Early iPhone 12 Teardown Features Smaller Taptic Engine, Magnet Ring and L-Shaped Logic Board

[MacRumors]

The iPhone 12 and 12 Pro are set to be delivered to customers this Friday, but there are already a few out in the wild. Leaker DuanRui this morning shared a video featuring a short teardown of the new iPhone 12, giving us a quick look at the internals.

In the video, the iPhone 12 is taken apart component by component, with comparisons to corresponding iPhone 11 parts provided. The new iPhone 12 has an L-shaped logic board, which we initially saw in a leak in May. The iPhone 12 logic board isn't identical to the leaked logic board, so that leaked version is likely from another one of the iPhone 12 models.

https://twitter.com/x/status/1318911559943430145

The logic board is longer than the logic board that was used in the iPhone 11, and it has the aforementioned L design rather than just a straight design.

There's a 2,815mAh battery in the iPhone 12, which was seen in Brazilian regulatory filings last week. Comparatively, the iPhone 11 has a higher capacity 3,110mAh battery. Apple lists similar battery lengths for both iPhone models, though, due to efficiency improvements introduced through the A14.

https://twitter.com/x/status/1318948737499111424

Smaller batteries may have been included because Apple may have needed extra space for the 5G components in this year's iPhones, but there have already been some concerning early tests about faster than normal battery drain when using 5G networks. That's not necessarily a surprise because it's well known that 5G drains battery faster, but it's something iPhone 12 and 12 Pro users should be aware of.

The Taptic Engine, which provides haptic feedback, is a good deal smaller in the iPhone 12, and the teardown also shows off that magnetic ring that works with MagSafe accessories.

There are also comparisons between other components such as the display, dual-lens camera setup, flash, and more, which those interested can see in the video.

iFixit will have in-depth teardowns of both the iPhone 12 and 12 Pro coming in the future, which we can count on seeing after the new devices are released.

Article Link: Early iPhone 12 Teardown Features Smaller Taptic Engine, Magnet Ring and L-Shaped Logic Board



[LeadingHeat]

ESD damage allll over that poor iPhone 12. Ground yourself when working with electronics, people!



[4jasontv]

This is cool, but I really want to see how this compares to the mini.



[ss2cire]

the poor iphone, RIP.



[jcshas]

I really only care about seeing a drop test.



[ss2cire]

ESD damage allll over that poor iPhone 12. Ground yourself when working with electronics, people!

yes but... the teardowns kill the phone anyway so.... no need to protect...



[Kylo83]

So is the Taptic not as strong then



[TheYayAreaLiving 🎗️]

The iPhone didn't deserve that this early.



[JPack]

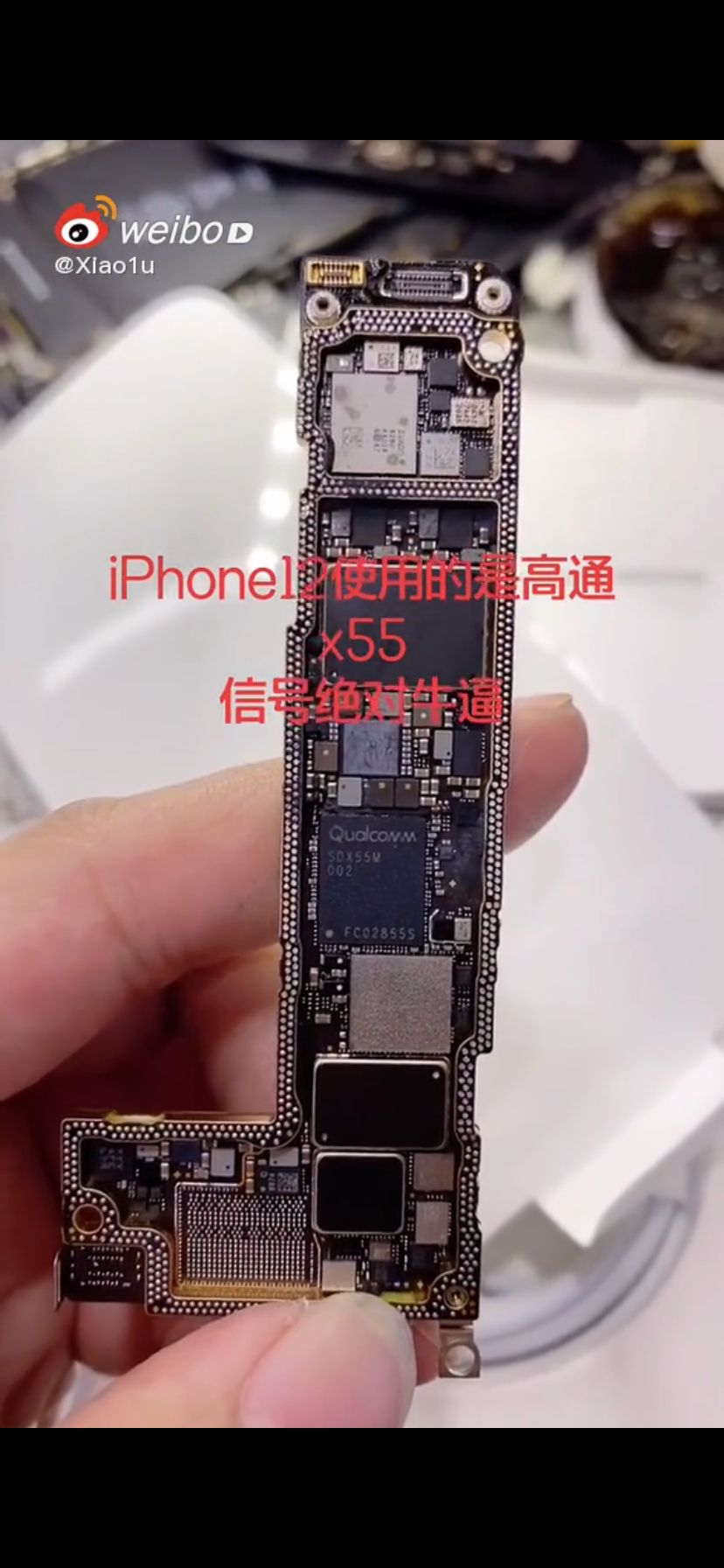

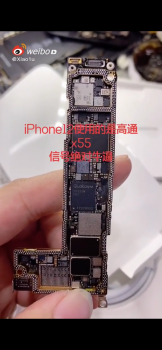

Qualcomm X55 confirmed
