Found way to know what GPU is in use!

Matt 2.x said:
Awsome all the improvements that has exploded here since this first started.
Looking forward to version 7.
Click to expand...

It should be out relatively soon (read: a day or two...lots of work to catch up on after my trip to California)! I was able to merge Kyle's changes over to the main repo on GitHub and I tested it out on the plane. There are just a couple things I want to attempt to fix/add before it's released. Hopefully soon we can take off the "experimental" tag, it's getting pretty close.

prism said:
Testing it right now on my 15" i5 and I must say, its friggin awesome!!!
Click to expand...

Thanks, glad it's working out for you! :)

ubercool said:
Cody has done a great job, make sure to donate to support his trailblazing efforts! :)
Click to expand...

Thanks! Donations are awesome and always greatly appreciated. Another thanks to everyone who has donated previously! You guys rock. :D

willyrc said:
Hey guys,

Sorry about the Growl framework, I have removed the dependency.

ah: I haven't tried switcher but I will definitely summit the changes to the gfxCardStatus at github.

waffles123: Can you try again?

By the way, I'm a 99% sure that the GPU switching in the new MBPs is software based and not a magical hardware solution.
Click to expand...

this is GREAT ! works fine even with external monitor attached.
both screens go blank and to blue for a moment, but better then logging off. :)

tworth23 said:
Can you show some screen shots of that intel maccpuid, how does it display the cpu speed, as an icon on the display or as an app you have to open?
Click to expand...

I'd appreciate that as well. There's basic info about this program here: http://software.intel.com/en-us/articles/download-maccpuid/

And some screenshots (http://www.google.com/images?hl=en&...g&sa=N&tab=vi&ei=4JDnS9OzJMKqlAey5sGfBA&gbv=2), but I'm not sure where the Turbo Boost info would be displayed--in the frequency line?

Thanks, ThinkThink.

tworth23 said:
Can you show some screen shots of that intel maccpuid, how does it display the cpu speed, as an icon on the display or as an app you have to open?
Click to expand...

It simply is an application with a refresh button to update the CPU speed.

Libertine Lush said:
I'm not sure where the Turbo Boost info would be displayed--in the frequency line?

Thanks, ThinkThink.
Click to expand...

You are welcome :)

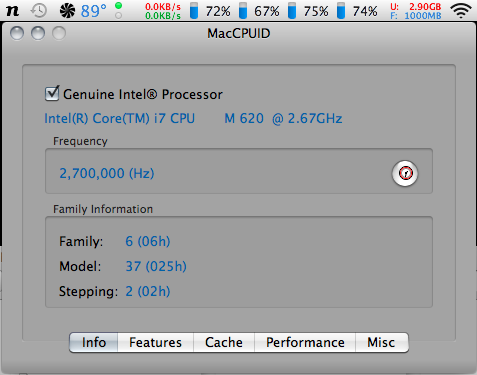

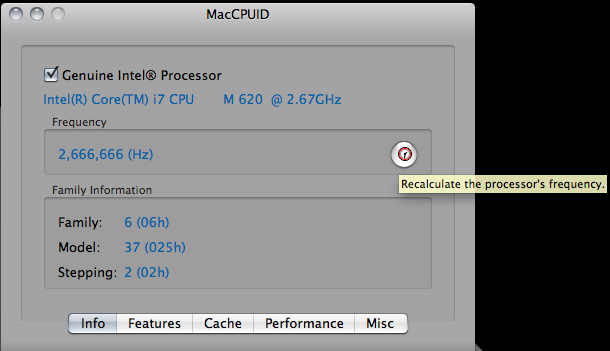

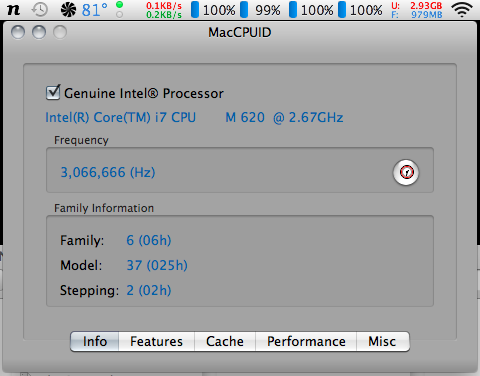

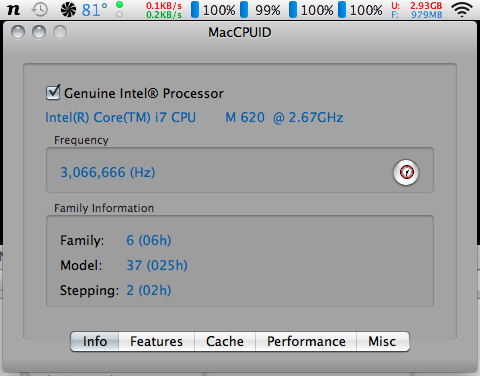

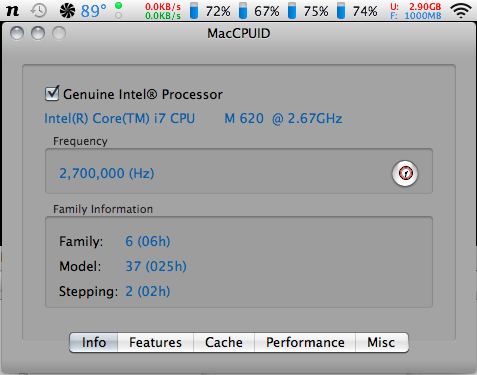

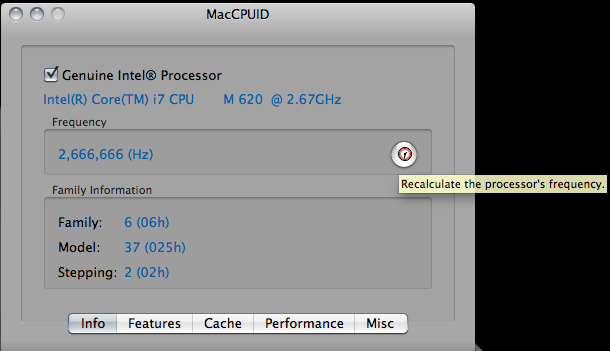

You can see the TurboBoost feature in action (2nd and 3rd screenshot).


Attachments

  • MacCPUID.png
    48.7 KB · Views: 94
  • MacCPUID2.png
    46.8 KB · Views: 103
  • MacCPUID3.png
    47.2 KB · Views: 97
ThinkThink said:
It simply is an application with a refresh button to update the CPU speed.



You are welcome :)

You can see the TurboBoost feature in action (2nd and 3rd screenshot).
Click to expand...

That is interesting, I wonder why it doesn't show Speedstep states.

1.6.1 works better for me than the 1.7 beta actually. The 1.7 doesn't turn off the 330M as shown by istat power status of the gpu.

bafonso said:
1.6.1 works better for me than the 1.7 beta actually. The 1.7 doesn't turn off the 330M as shown by istat power status of the gpu.
Click to expand...

What applications are running when seeing these results? I haven't had any issues, and I am trying to see if I can reproduce what others are seeing.

The code in 1.7 does something similar to 1.61, but has extra code to disable swapping to nvidia (basically it disables dynamic switching).

vmware fusion does not play nice with the intel gfxcrd and your vm will stop working

paralells will use the intel gpu and your vm will still work

diamond.g said:
Even odder, I can't seem to get mine to show the turboboost in action. Are you running anything to get it to show up correctly?
Click to expand...

Me neither. I was encoding a movie before with ScreenFlow and didn't see the turboboost in action, even though I was constantly refreshing it.

Maybe the CPU needs to be taxed harder?

MBHockey said:
Me neither. I was encoding a movie before with ScreenFlow and didn't see the turboboost in action, even though I was constantly refreshing it.

Maybe the CPU needs to be taxed harder?
Click to expand...

I dunno, had two super_pi sessions going and 4 yes > /dev/null and got nothing...

ksmith173 said:
What applications are running when seeing these results? I haven't had any issues, and I am trying to see if I can reproduce what others are seeing.

The code in 1.7 does something similar to 1.61, but has extra code to disable swapping to nvidia (basically it disables dynamic switching).
Click to expand...

I think I was just trying it out with Curio and keynote. I have several processes on google chrome that are trying to use the nvidia too.

bafonso said:
I think I was just trying it out with Curio and keynote. I have several processes on google chrome that are trying to use the nvidia too.
Click to expand...

But the behavior does not seem to be maybe only due to the 1.6 vs 1.7. I believe I had to quit keynote and re-start in order for it stop using the 330m. this with 1.6.1

bafonso said:
But the behavior does not seem to be maybe only due to the 1.6 vs 1.7. I believe I had to quit keynote and re-start in order for it stop using the 330m. this with 1.6.1
Click to expand...

Yes, it seems that if an application was using the nvidia card, and you switch to the intel, it will not shut off the nvidia until the application quits. With 1.7, you can set it to use intel only before launching any apps, which should prevent problems like this.

a4209797 said:
vmware fusion does not play nice with the intel gfxcrd and your vm will stop working

paralells will use the intel gpu and your vm will still work
Click to expand...

VirtualBox seems to use the intel gpu and work fine. This for a XP machine.

ksmith173 said:
Yes, it seems that if an application was using the nvidia card, and you switch to the intel, it will not shut off the nvidia until the application quits. With 1.7, you can set it to use intel only before launching any apps, which should prevent problems like this.
Click to expand...

How is that different from 1.6? what do you mean before launching any app? That is the same as setting it to intel on 1.6 and launching keynote

@bafanso

bafonso said:
1.6.1 works better for me than the 1.7 beta actually. The 1.7 doesn't turn off the 330M as shown by istat power status of the gpu.
Click to expand...

I have istat pro for my macbook pro 15" i7 and it doesnt show which cpu is on or off. What version of istat pro do you have, is it different than mine, mine only shows, cpu-disks-memory-network-temps-fans-uptime and only shows the temp of one gpu. Can you guide me to the istat you have?

bafonso said:
How is that different from 1.6? what do you mean before launching any app? That is the same as setting it to intel on 1.6 and launching keynote
Click to expand...

Here's the behavior I find with 1.6.1:

Force intel, start keynote, it stays on intel. You can preview slideshow, etc.

Put nvidia on, start keynote, it uses nvidia as expected. If you change to intel, the 330m keeps going on. Slideshow doesn't work as it says there's not enough vram. This seems to indicate the gfxcard is tricking the program half way through after it expected to have more memory or something.

Bottom line, you need to really start everything from the beginning with intel set or you can't change half way without some weird stuff probably happening...

tworth23 said:
I have istat pro for my macbook pro 15" i7 and it doesnt show which cpu is on or off. What version of istat pro do you have, is it different than mine, mine only shows, cpu-disks-memory-network-temps-fans-uptime and only shows the temp of one gpu. Can you guide me to the istat you have?
Click to expand...

On sensors, GPU1 and GPU2 power both seem to correspond to the 330m as they're either 0 or ~ 1w or 2w when the 330m is on.

ThinkThink said:
You can see the TurboBoost feature in action (2nd and 3rd screenshot).
Click to expand...

Thanks for taking the time to do that.

bafonso said:
On sensors, GPU1 and GPU2 power both seem to correspond to the 330m as they're either 0 or ~ 1w or 2w when the 330m is on.
Click to expand...

Does anyone know for sure how to interpret the GPU Power data in iStat menu? Which GPU does GPU 1 and GPU 2 correspond to? Just checking it now, I noticed when Intel is on, both GPUs show "0" watts, but when I turn Nvidia on, GPU 1 showed positive and GPU 2 negative at first. Moments later, both are postive, roughly 2 and 1 watts respectively.
