MP 1,1-5,1 GPU Compatibility List for cMP

[m4v3r1ck]

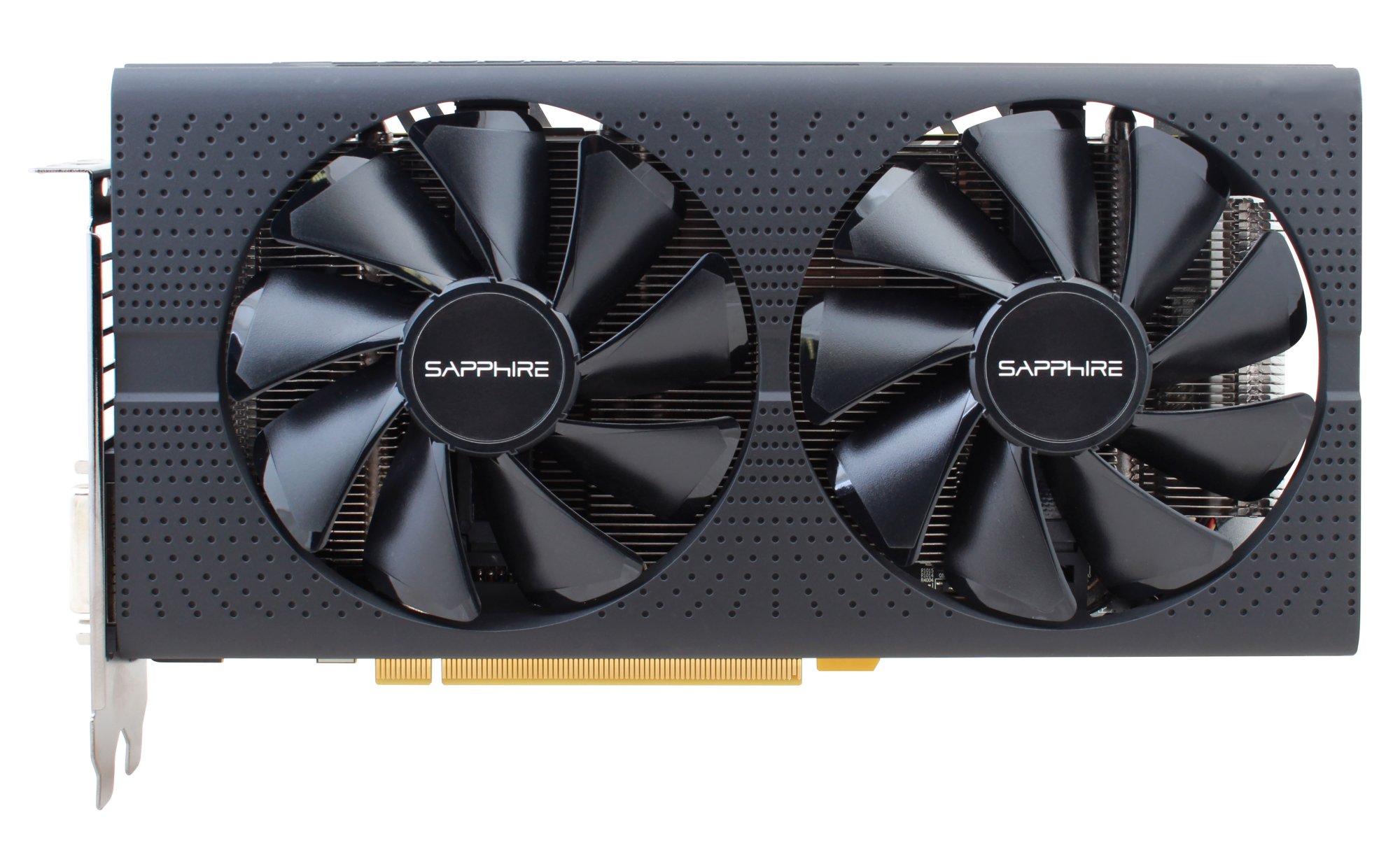

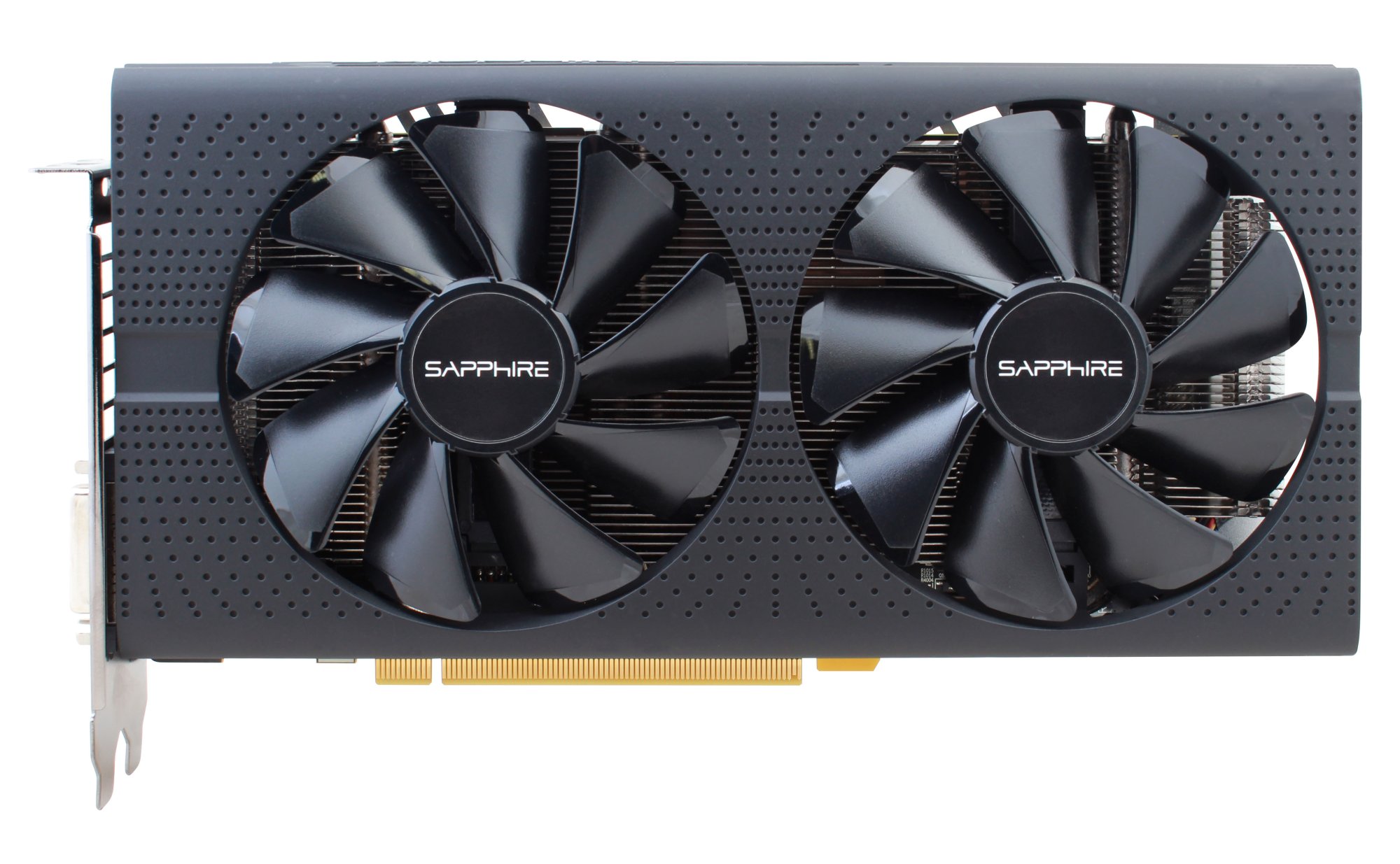

Stockphoto RX 580 8GB - 11265-05

View attachment 2366291

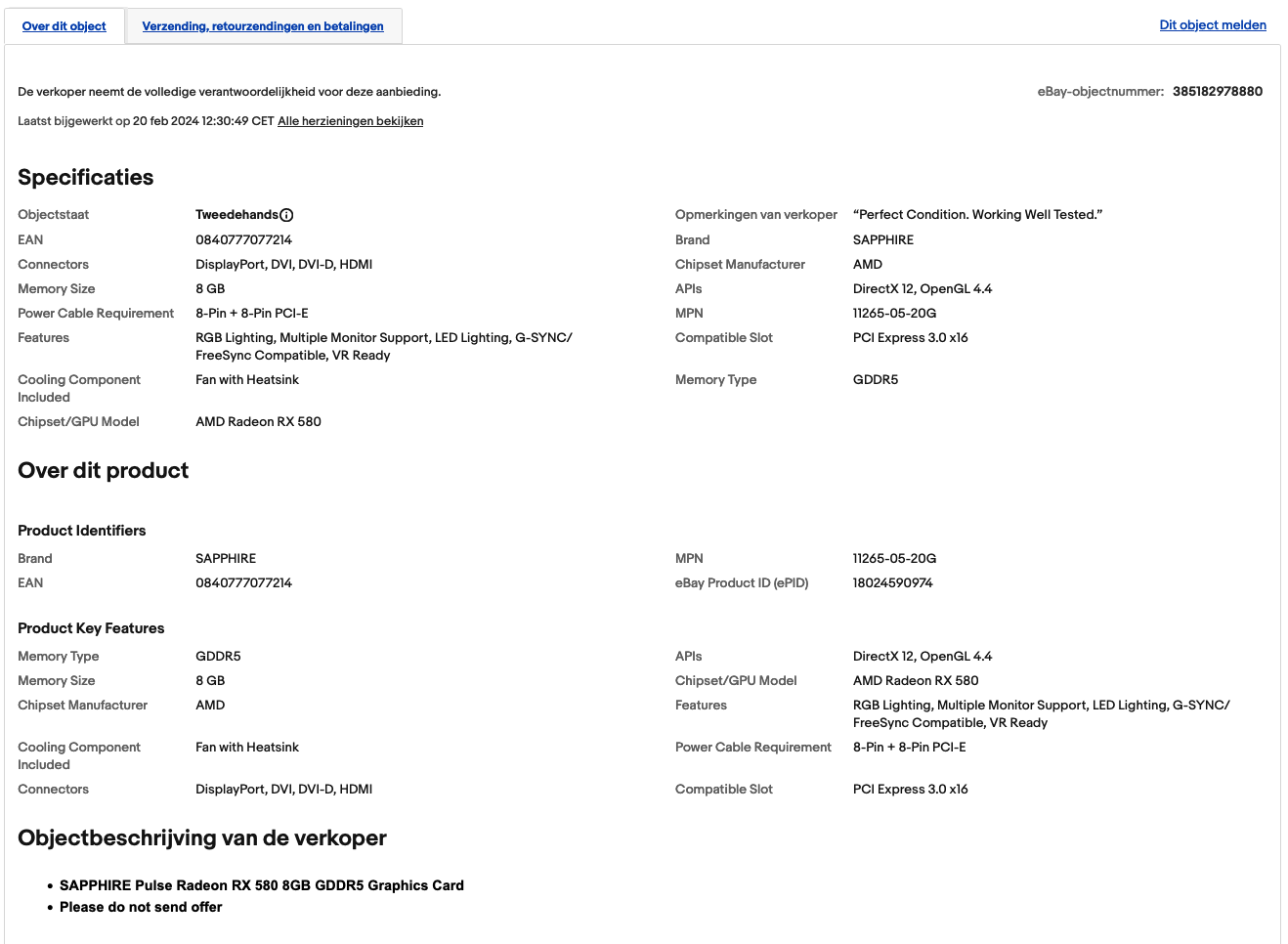

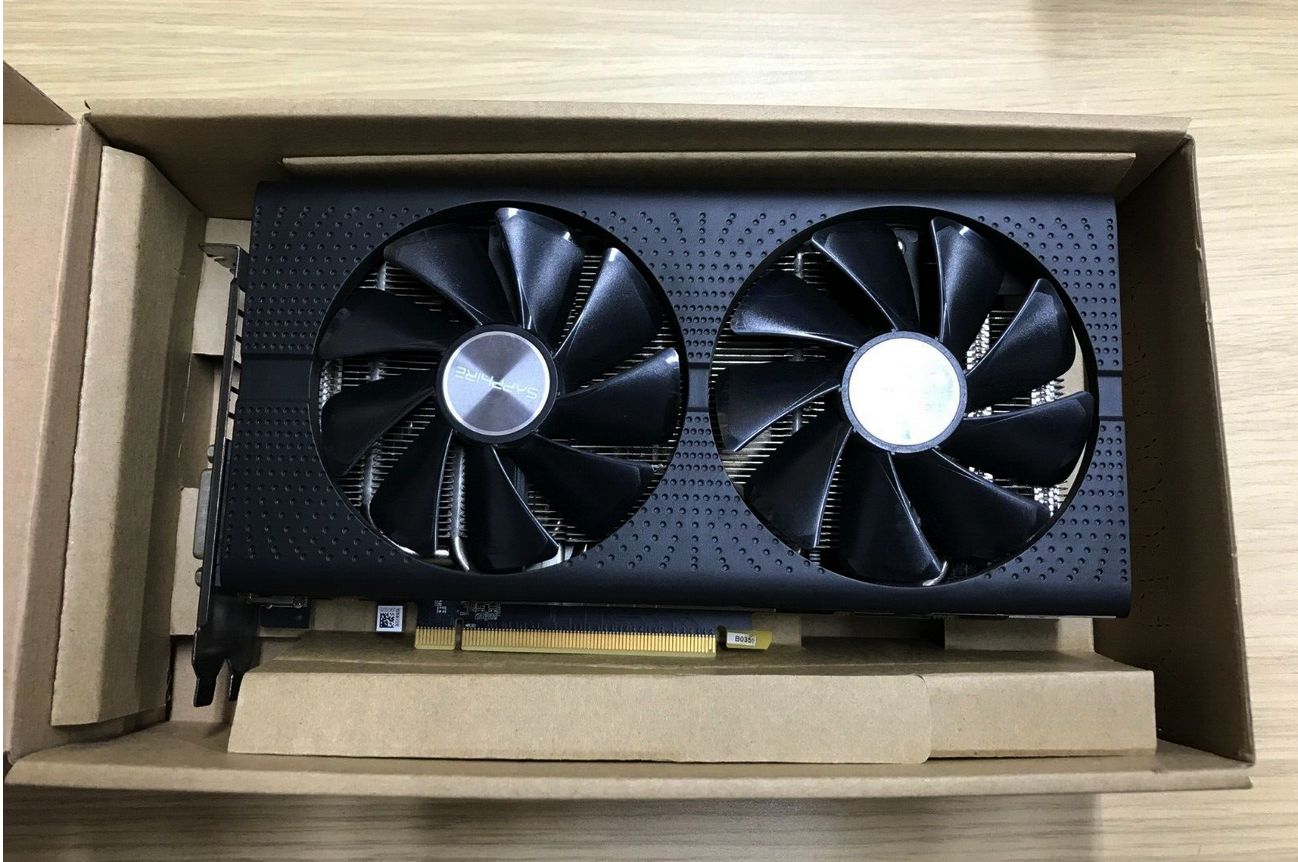

Offered RX 580 8GB on Ebay as 11265-05

SAPPHIRE Pulse Radeon RX 580 8GB GDDR5 Graphics Card GPU​

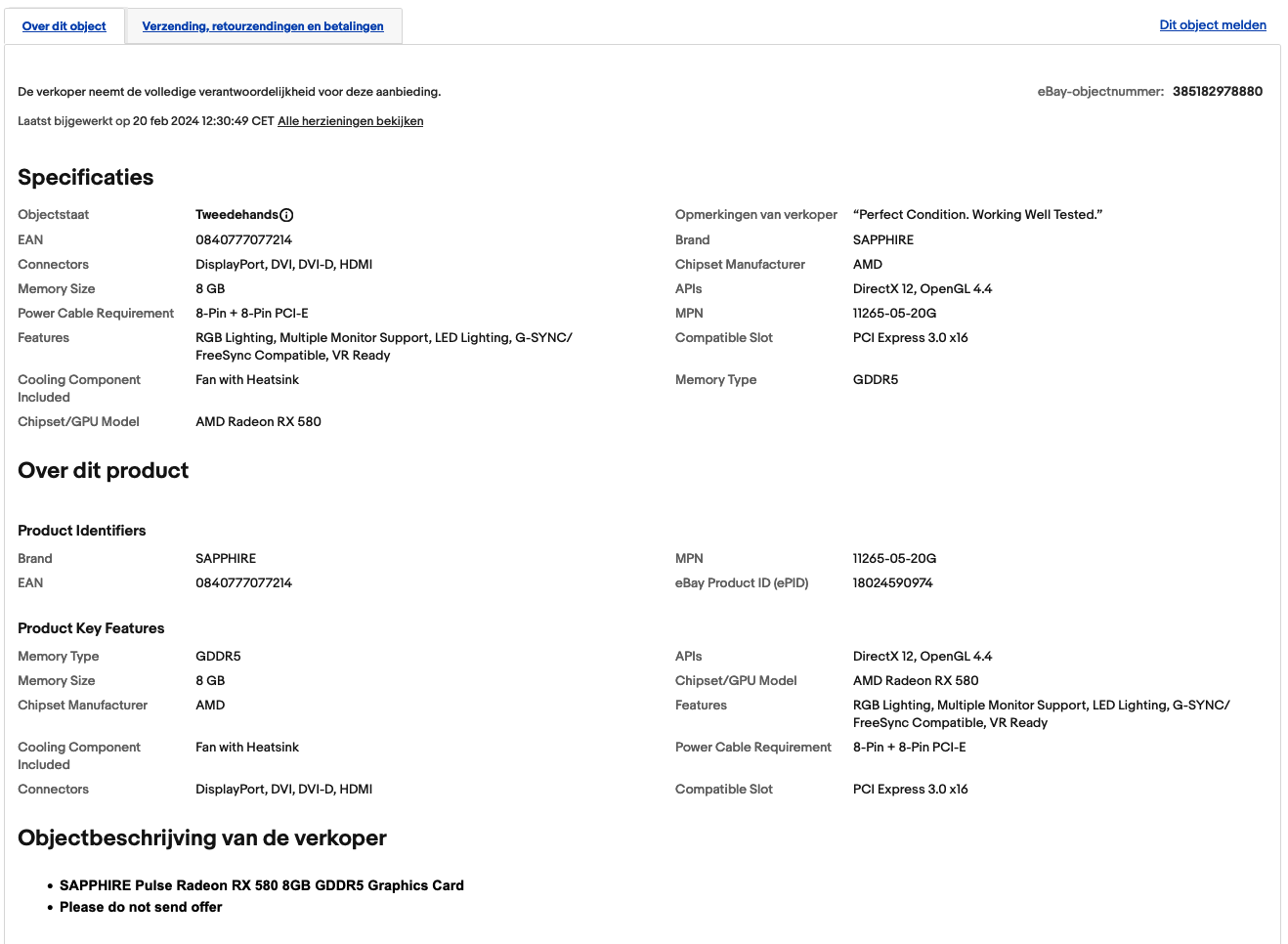

View attachment 2366289

View attachment 2366297

Received: 11265-05-20G

View attachment 2366290

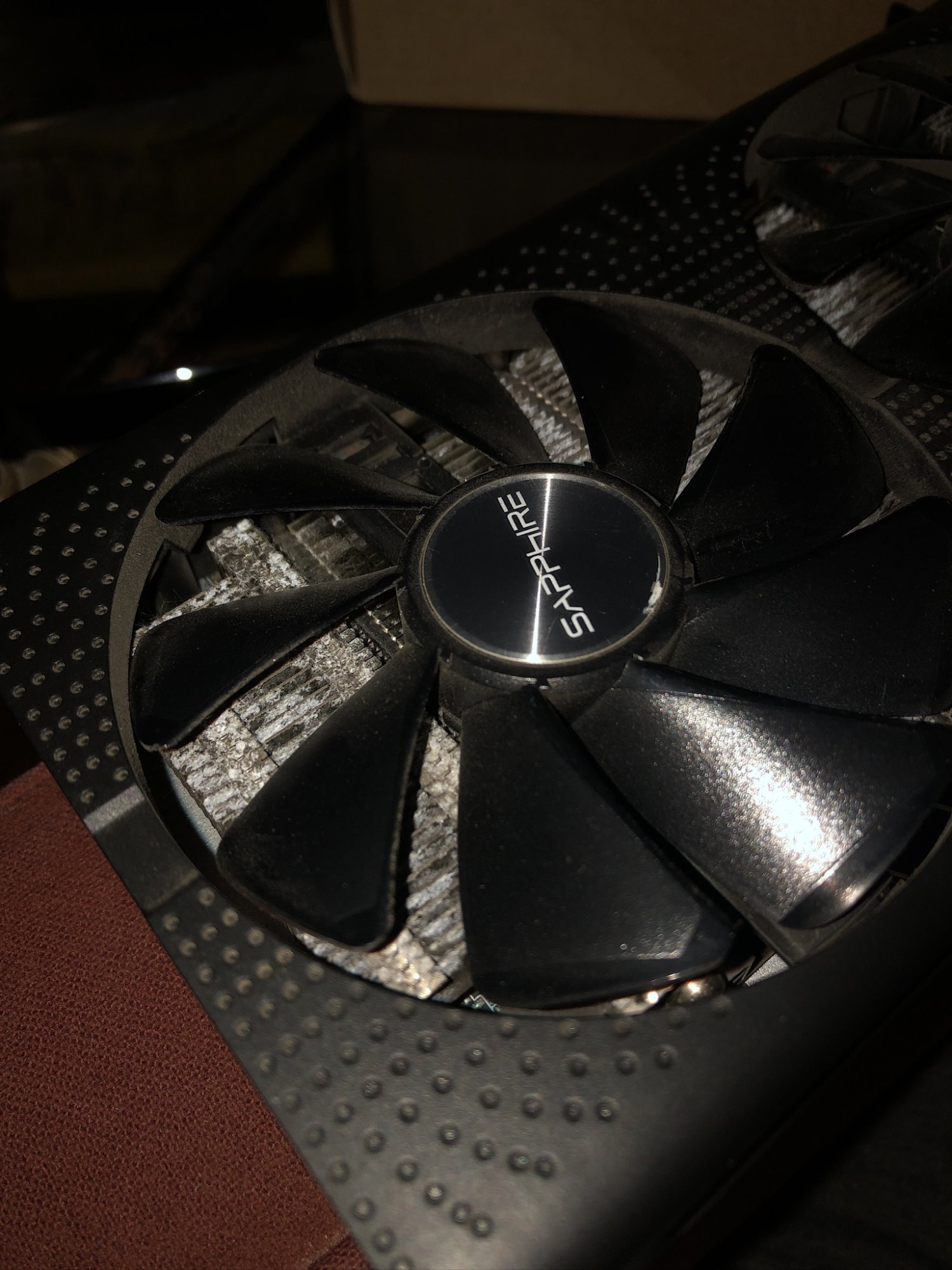

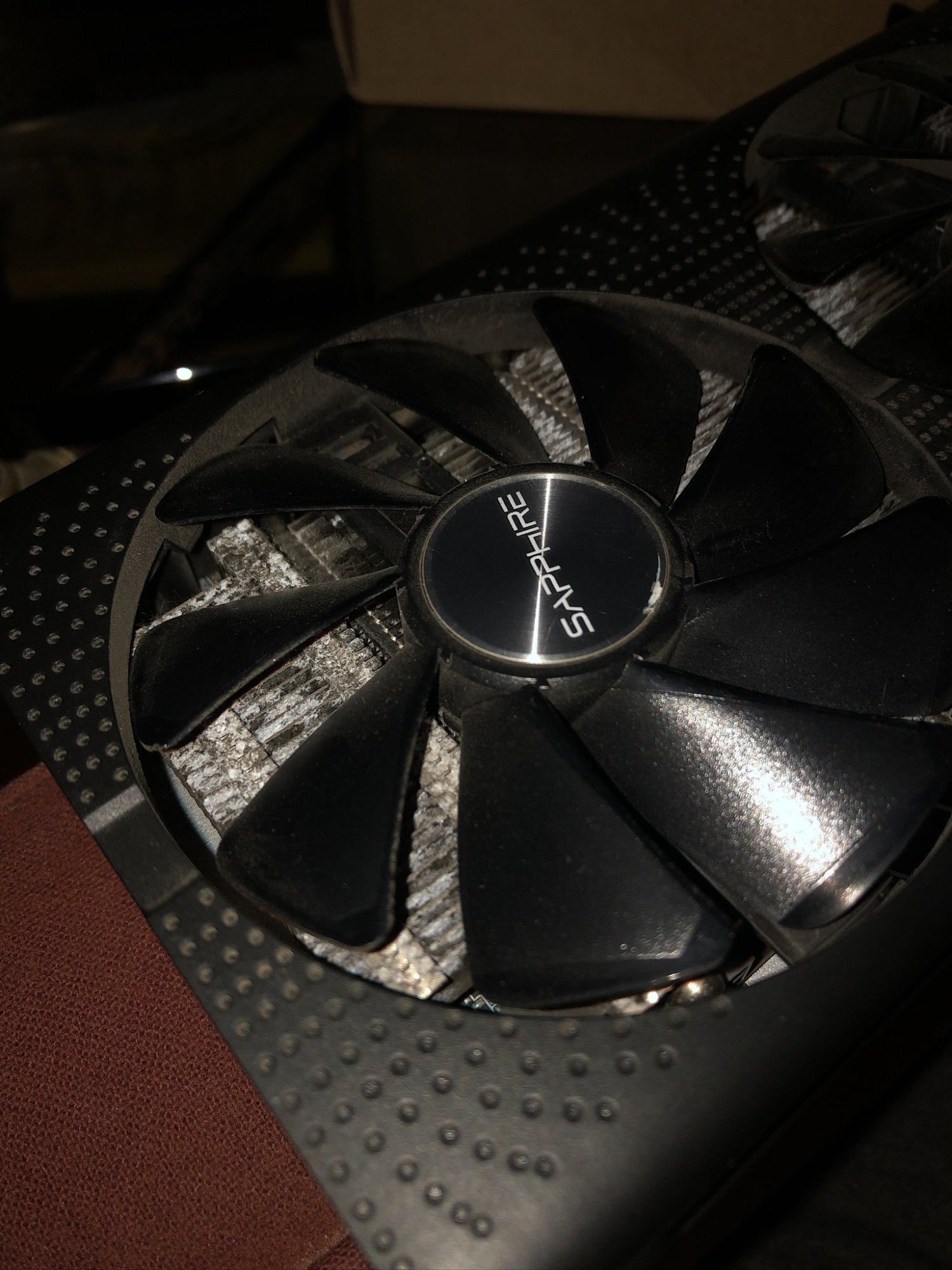

I assume this one needs to be returned, what am I seeing beneath the fan? This unit seems to have a BIOS switch for Gaming/Compute.

Update: Got a refund from ebay, great customer service. Happy with that.

Got another used Sapphire Pulse RX 580 8GB in 100% better condition from Marketplace in The Netherlands:

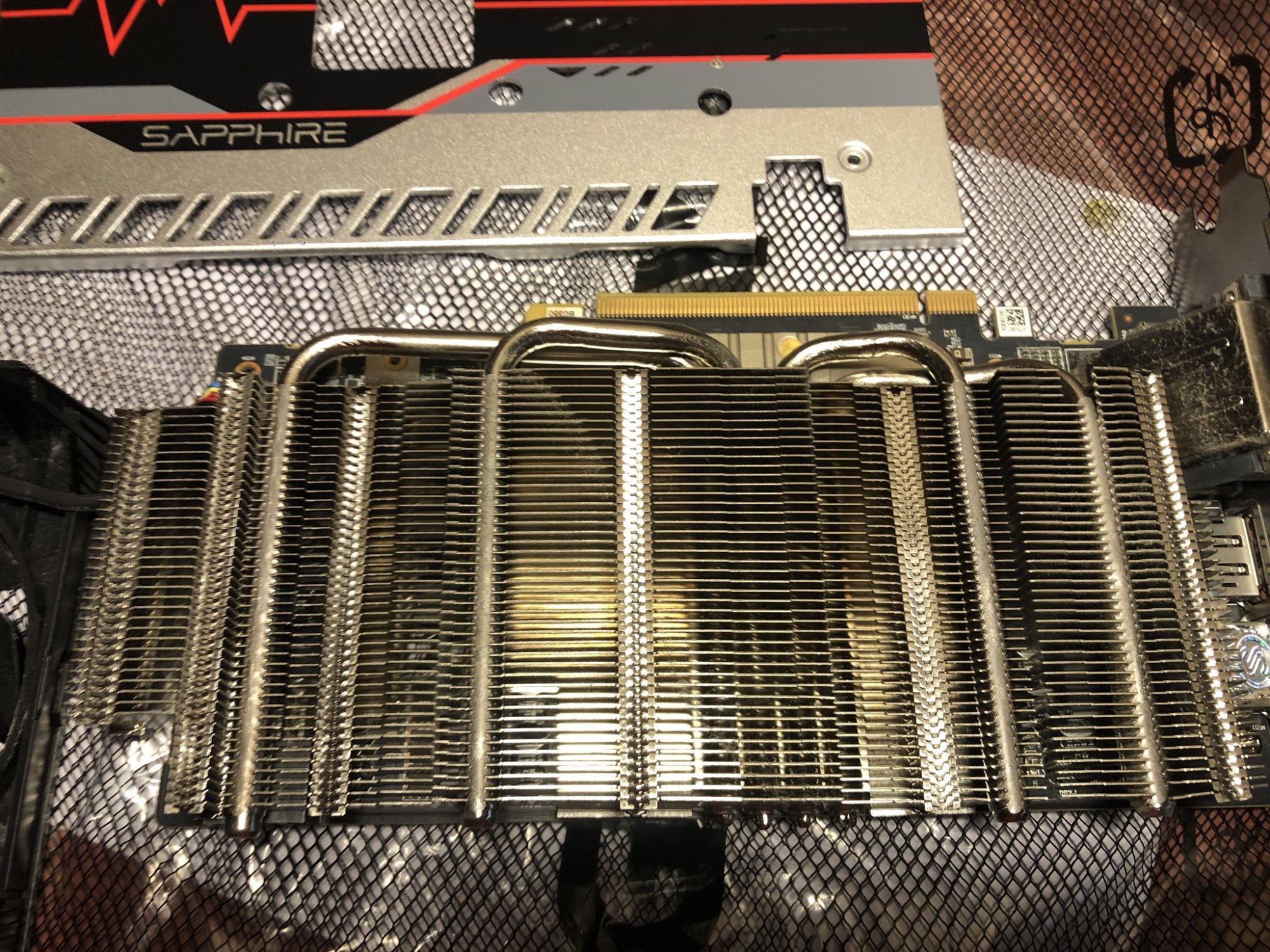

Heatsink:

PCB:

Gave it a cleanup, put it together again and installed it. So far so good.

Set-up ROM switch mode 1 = Gaming (Default)

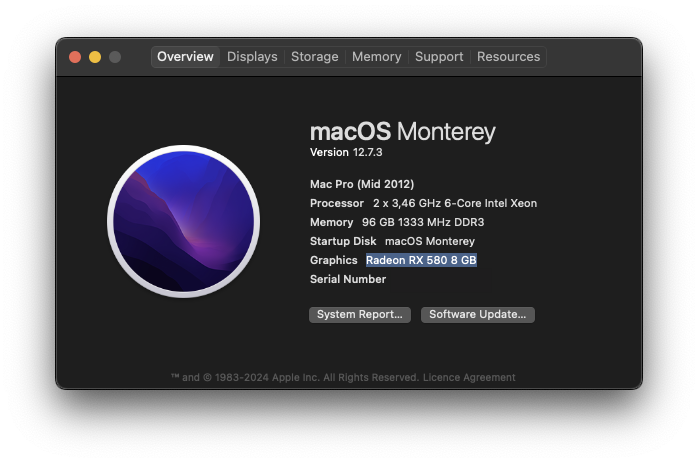

Radeon RX 580:

  Name:    ATY,Orinoco
  Type:    Display Controller
  Driver Installed:    Yes
  MSI:    Yes
  Bus:    PCI
  Slot:    Slot-1
  Vendor ID:    0x1002
  Device ID:    0x67df
  Subsystem Vendor ID:    0x1da2
  Subsystem ID:    0x353e
  Revision ID:    0x00e7
  Link Width:    x16
  Link Speed:    5.0 GT/s

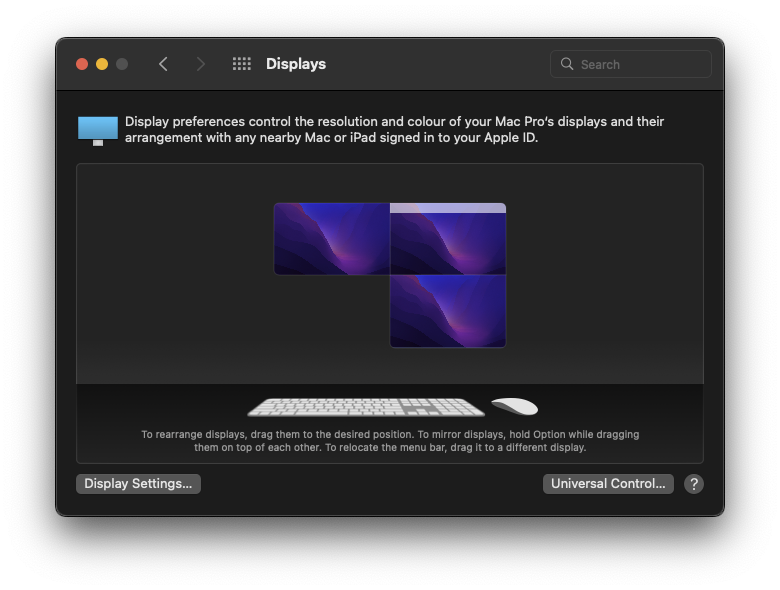

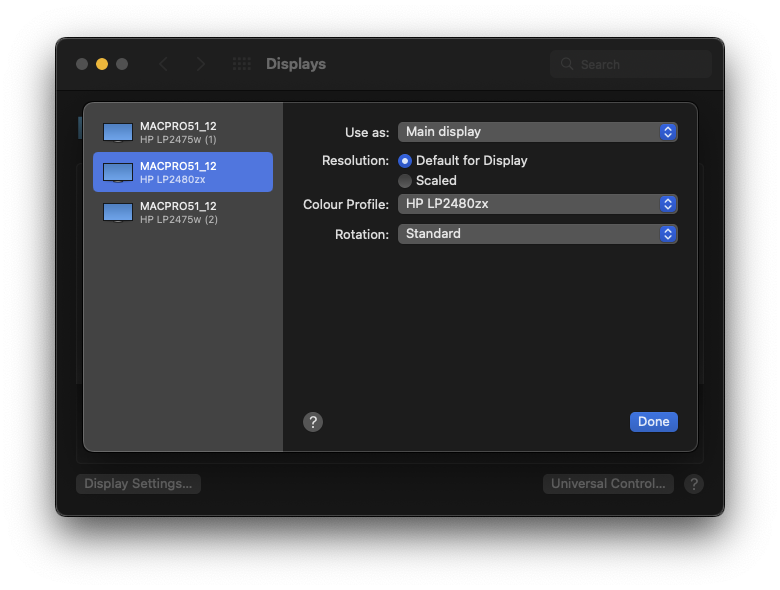

I'm experiencing a (text) render issue on the second HDMI port for monitor 0:

Monitor 0 - main display 2nd HDMI
Monitor 1 - extended display 1st HDMI
Monitor 3 - extended display DVI

What could be the cause of the render issue? Is it OCLP related perhaps?

Update: resolved the issue using a DisplayPort cable iso the HDMI cable.



[Mac Hammer Fan]

Is this card compatible with a Mac Pro 5,1?

Sapphire Radeon RX 580 8G Pulse, 4895106281905. from China​

I have another Sapphire Radeon Pulse RX 580 in my first Mac Pro 5,1 that works well without additional power.



[tsialex]

Is this card compatible with a Mac Pro5,1?

Sapphire Radeon RX 580 8G Pulse, 4895106281905. from China​

Could be, could not. Any RX 580 2048SPs are not compatible, most Chinese market cards are 2048SPs.

There are lots and lots of Sapphire Pulse RX 580 2048SP from China that are not supported by Apple AMD drivers.



[Mac Hammer Fan]

The seller mentioned in the link Mac compatible. Fingers crossed.



[Mac Hammer Fan]

Item arrived well packed and in perfect condition from Ebay (seller was from Czech Republic). The Radeon RX 580 card is compatible with my Mac Pro 5,1. A pleasant surprise. It replaced my Geforce 980 which doesn't support Mojave and higher although it was a reasonably fast card.



[Mac Hammer Fan]

I didn't use additional power at this moment.
Is this what I need?
K26S SATA cable 15-pin to 6-pin PCI Express power adapter graphics card 15 cm?

​



[MarkC426]

I didn't use additional power at this moment.
Is this what I need?
K26S SATA cable 15-pin to 6-pin PCI Express power adapter graphics card 15 cm?

What connectors does the RX580 have….one 8 pin?



[Silencio]

A 1x 8-pin to 2x mini 6-pin cable should be sufficient to power the RX580. You shouldn't need additional SATA power or anything.



[tsialex]

A 1x 8-pin to 2x mini 6-pin cable should be sufficient to power the RX580. You shouldn't need additional SATA power or anything.

You are forgetting overclocked versions, like Sapphire Nitro/Nitro+/Nitro+ SE and others - these require additional power, preferably Pixla's mod for anyone gaming/rendering.

Even a standard Sapphire Pulse can trigger SMC PSU emergency shutdown when used full throttle, but for most people is nothing something that frequently occurs.



[Mac Hammer Fan]

What connectors does the RX580 have….one 8 pin?

The Radeon has a 8 pin and 6 pin. The 8 pin is connected and goes to two 6 pins, the 6 pin not.



[tsialex]

The Radeon has a 8 pin and 6 pin. The 8 pin is connected and goes to two 6 pins, the 6 pin not.

So, you not bought a Sapphire Pulse, but a Nitro something.



[Mac Hammer Fan]

So, you not bought a Sapphire Pulse, but a Nitro something.

I bought a Sapphire Pulse, not a Nitro.



[tsialex]

I bought a Sapphire Pulse, not a Nitro.

If you bought a Pulse, the seller sent you another GPU.

Sapphire Pulse RX 580 have ONLY one 8-pin PCIe power connector, check Sapphire spec sheet. Nitro something is always 8 + 6-pin.



[Mac Hammer Fan]

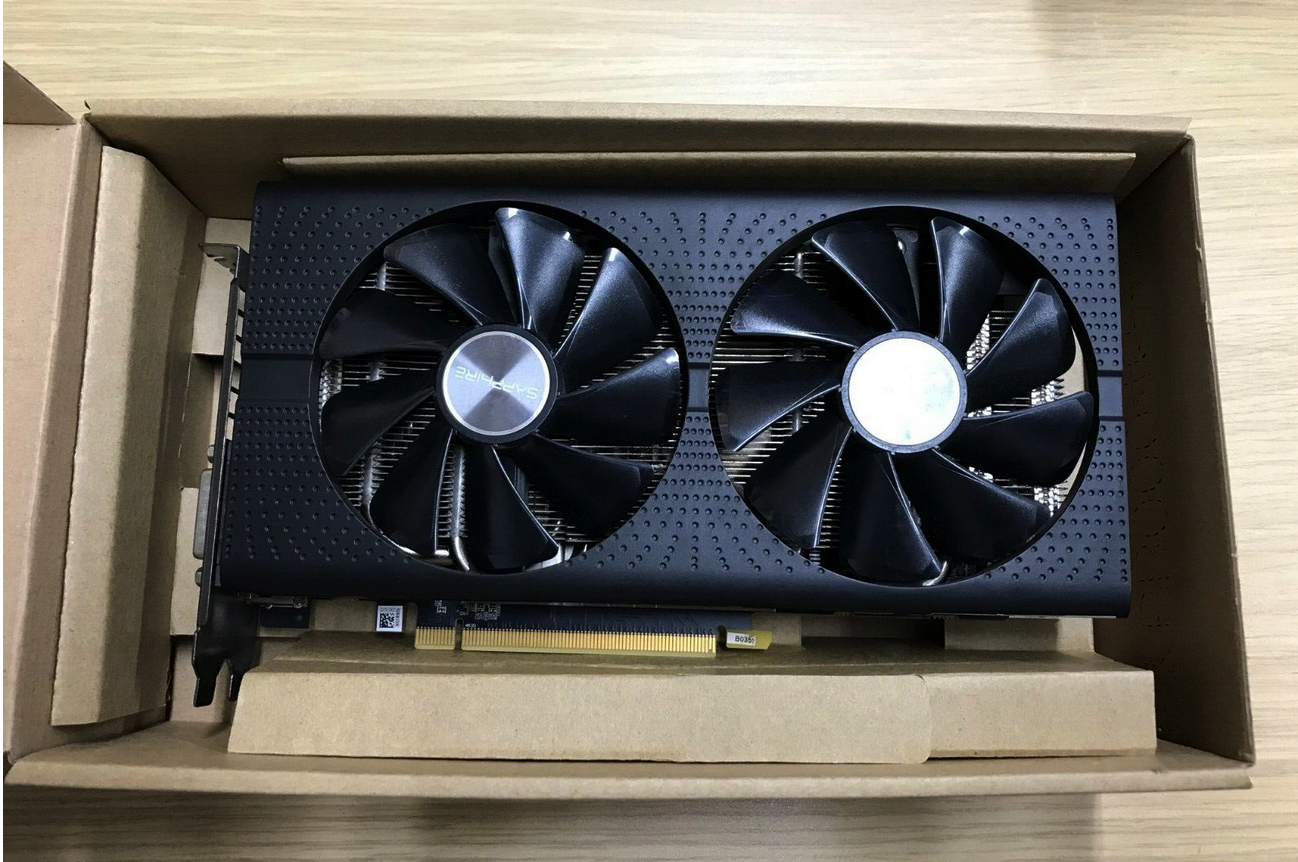

This is the one I bought

It has an 8 pin and 6 pin slot, but it seems the 6 pin is not used or needed. It's the same card as my first Sapphire Pulse, except it's now from China. Luckilly, I definitely don't have the Nitro. I never used the 6 pin with my first card and I didn't have unexpected shutdowns, even not with Furmark.



[tsialex]

This is the one I bought

It has an 8 pin and 6 pin slot, but it seems the 6 pin is not used or needed. It's the same card as my first Sapphire Pulse, except it's now from China. LUckully, I definitely don't have the Nitro.

There is no Sapphire Pulse with 8 + 6-pin power connectors, go to the Sapphire site and check it.

The PCB of Pulse have pads for ONLY one 8-pin power connector, see this photo of the back of the PCB from @m4v3r1ck Pulse, first post on this exact page:

If you got a one that have 8 + 6-pin, is a Sapphire Nitro something with a pair of Pulse fans, maybe a Pulse heatsink or something along the lines.



[Mac Hammer Fan]

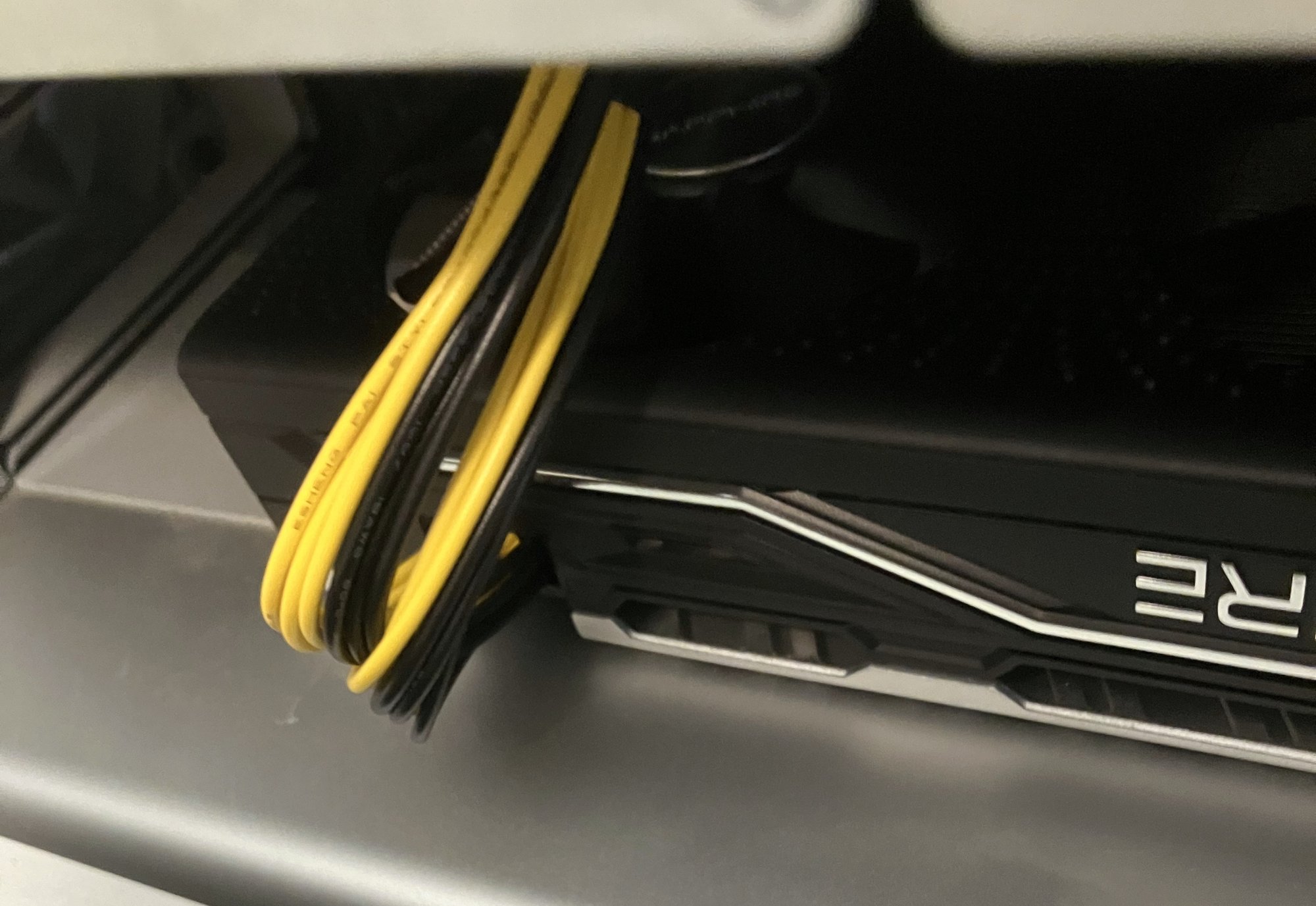

Here is another picture of my card.

It's only connected with the 8-pin. You are right. I'm sorry.



[LookToWindward]

Hi,

Does anyone know about the "GE Force GTX 1060 OC", I can't see it mentioned anywhere on this thread?

Thanks
Dave



[Mac Hammer Fan]

Hi,

Does anyone know about the "GE Force GTX 1060 OC", I can't see it mentioned anywhere on this thread?

Thanks
Dave

Perhaps it is supported on High Sierra with the NVidia webdriver but some say it's not supported.



[LookToWindward]

Perhaps it is supported on High Sierra with the NVidia webdriver but some say it's not supported.

Thanks, yes, I think it's not supported anymore



[mhomscheidt]

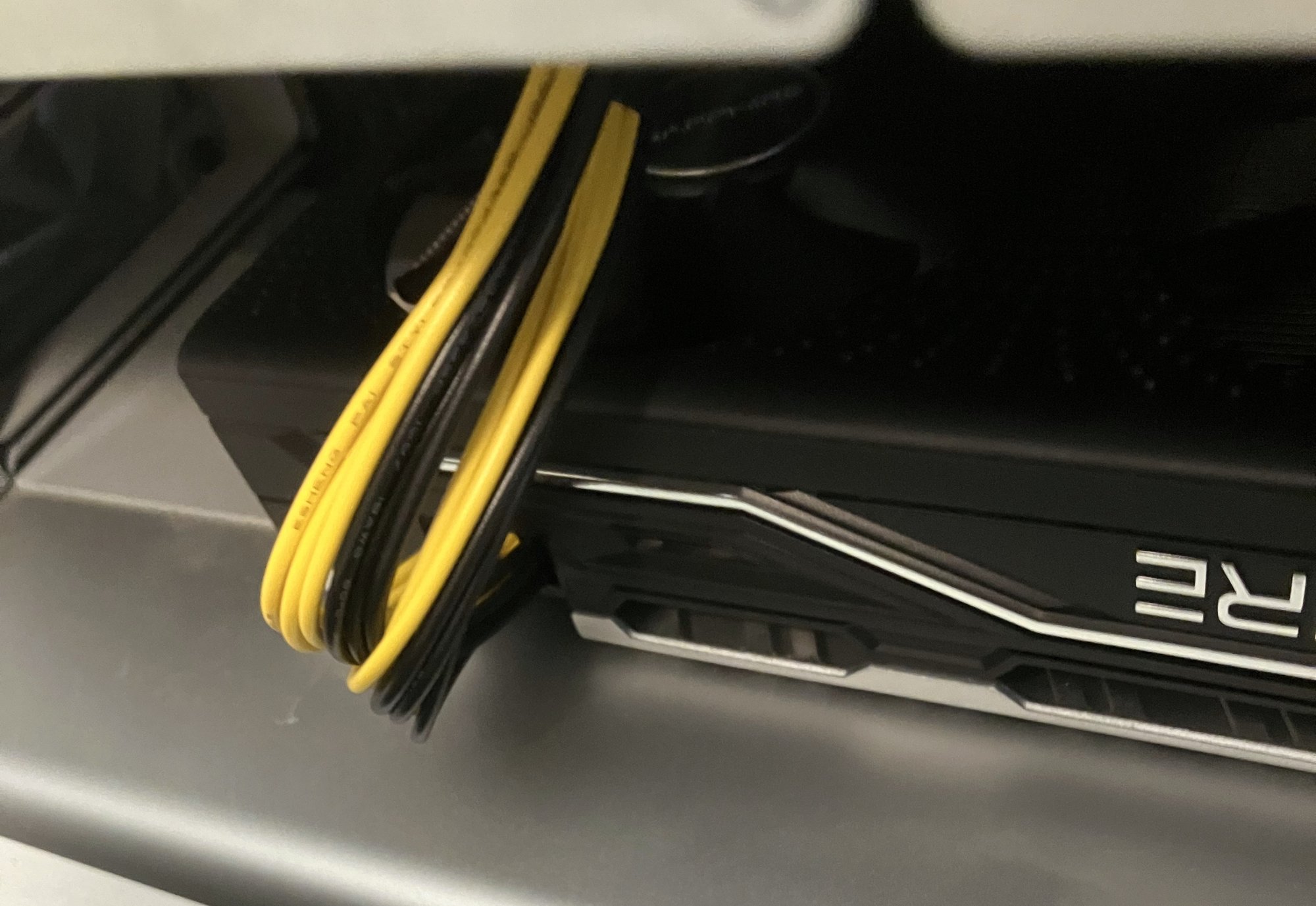

Here is another picture of my card.

It's only connected with the 8-pin. You are right. I'm sorry.
View attachment 2392855

Hello,
I just got the same card but missed the point that the Mac Pro 4.1 PCB has two Mini 6pin connectors and my previous card had two 6pin connectors instead of one 8pin connector.
Now I'm wondering where i can get the correct cable from Mini 6pin to 8pin. I tried the term "MicroFit" from the original post/wiki entry but did not find an appropriate cable.
Maybe it is worth mentioning that I like to order in Europe.

Regards
Michael



[mrkapqa]

@mhomscheidt, you can ffind on ebay, like "dual mini 6 pin to 8 pin adapter mac"
there are some trader in europe, like france and germany/holland, who sell such items for europe.



[iddqds]

FWIW I run three 4k displays from a RX570 with three DP and one HDMI ports, but it seems RX580 is different in this regard?

Hi,
i am a absolute beginner in here.

someone donated me a CMP3,1. I also happen to have Sapphire Nitro+ 4gb RX 570 (says Mining Edition).

I bought a power adapter to convert 2 x 6 pins power output to one 8 pins into GPU. Now i have 6 pins power socket unplugged on my rx 570.

i managed to install the opencore monterey using an nvidia gpu but opencore does not support root patches on yhis card.

My questions are
-do i need to power my gpu 8+6 pins to get it work or 8 pins is enough?
-how do i power my rx 570 and additional 6 pins? what do i need?

thanks in advance.



[flyproductions]

i managed to install the opencore monterey using an nvidia gpu but opencore does not support root patches on yhis card.

Sure OCLP comes along with root patches for Polaris, which your RX 570 is. You might have to clear root patches first and then install them again, if you had some other GPU installed before.

My questions are
-do i need to power my gpu 8+6 pins to get it work or 8 pins is enough?
-how do i power my rx 570 and additional 6 pins? what do i need?

You need to connect both of the plugs. But as your card has a TDP of no more than 150 watts, powering it wiht the mainboard's connectors should be ok. You shold find a 2 x mini 6pin to 1 x 8pin cable, And another one to split the power to both of your card's connectors, which means female 8pin to 2 x 8 (6+2) pins.



[AritzUrr]

Is this card compatible with a Mac Pro 5,1?

Sapphire Radeon RX 580 8G Pulse, 4895106281905. from China​

I have another Sapphire Radeon Pulse RX 580 in my first Mac Pro 5,1 that works well without additional power.

I bought the same card from the same seller and have issues trying to enable GOP as it seeems that the BIOS from the card has been modified. I can't seee the OCLP menu. The sellers marks it as unmodified GPU but seems otherwise. Did you manage to enable GOP to get the Boot menu?



[AritzUrr]

For anyone interested, I've flashed the original BIOS of the card and now I have the OCLP boot screen menu. Till then, creating the OCLP with amd gop inject worked fine as well. But these ebay ads are misleading, be careful.
