Graphics card overheating / kernel panic /smc fan control?

Discussion in 'Mac Pro' started by Gregrb, Sep 4, 2016.

  1. Gregrb macrumors newbie

    Joined:
    Apr 28, 2016
    #1
    I have a mac pro 1,1 (upgraded to 2,1) tower 24GB of Ram with with two Quad core INTEL XEON X5355 2.66GHZ processors making 8 CORE. The current Graphics card is a ATI Radeon HD 4870. I am getting kernel panics when I'm working on large audio mixing / editing sessions in pro tools 10. These panics happen after 2 hours or more of work on sessions that are using a lot of cpu and once the mac us running really hot, and the kernel panics show the graphics card is the problem.

    The graphics card was recently replaced and I am having not other problems usually associated with failing graphics cards such as blue screens scrambling graphics etc. it looks like the graphics hard is overheating when the mac is getting hot and causing the panics.

    I have seen that is software called Smc Fan control and thinking this will help if I run this when working on large sessions, I'm using os10.6.8 so I wonder if anyone knows which version of that I need to run, and what fans on the mac pro would need to be speeded up to cool graphics card and poss cpu. And also what are good speed settings to use?

    I'm also wondering about any other methods to cool graphics card and cpu, external fans? Settings that can be changed to graphics?

  2. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #2
    The very 1st thing to do. Apply compressed air from the back of the card (you better do it at out door). A 4870 is a very old card, there may be lots of dust in the heatsink. Which can greatly reduce the efficiency of the overall cooling ability.

    If that doesn't help, consider re-paste the GPU. For the age of 4870, very likely the thermal paste already dried up.

    I am not familiar with the 1,1's dan design. If there is a fan for the PCIe slot, increase that one via SMC fan control can also help the GPU cooling.

  3. Gregrb thread starter macrumors newbie

    Joined:
    Apr 28, 2016
    #3
    Thanks for the help. So also an upgrade of the graphics card to a new model would poss help as well then? Can you suggest some suitable replacement cards that would work on my model and would just be swapped for the current one. Ideally one that can still be purchased new?

  4. owbp macrumors 6502a

    owbp

    Joined:
    Jan 28, 2016
    Location:
    Belgrade, Serbia
    #4
    It has 4 fans: CPU/RAM, PCI slot, PSU and Exhaust. So, yes, it can be done and i would do it to, to see if there are some changes afterwards.

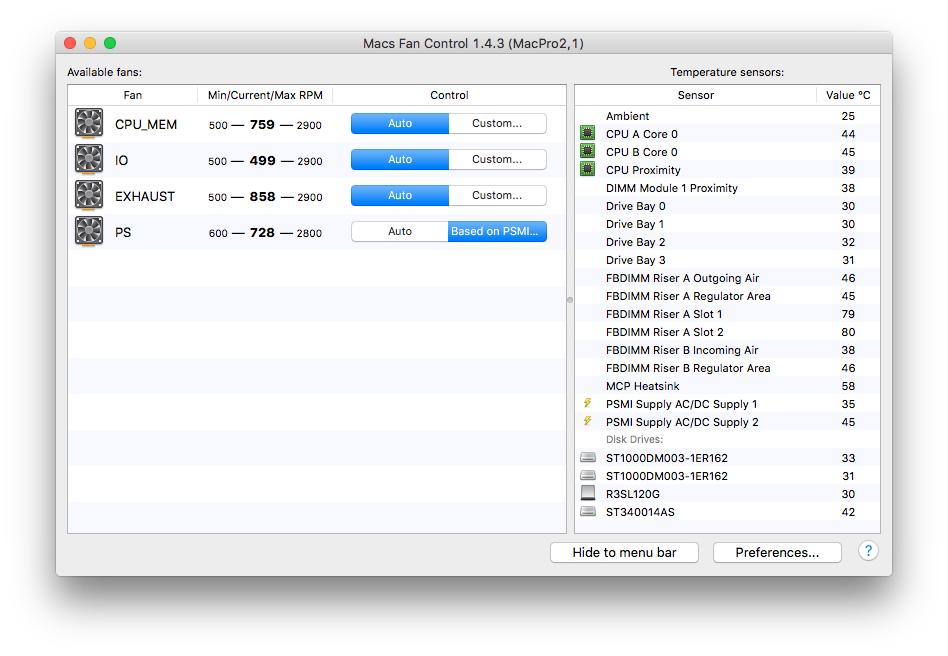

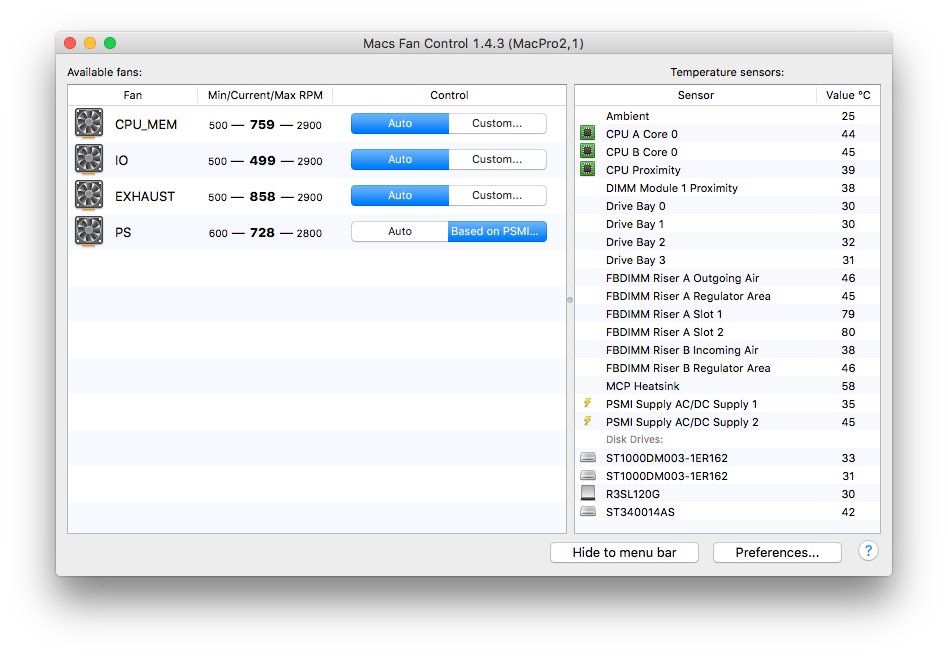

    Screen Shot 2016-09-04 at 9.38.56 PM.png
    The only ones that you can, hopefully, purchase new are R9 280 and 280X (equivalents to HD7950 and HD7970 GHz).
    They can be flashed very easily to show boot screens and be recognized as genuine apple cards. But you'll have to go for reference design cards with DVI, HDMI and two mini Display ports if you want them to work 100%. Sapphire reference, MSI and Gigabyte are the safest bets AFAIK.

  5. Gregrb thread starter macrumors newbie

    Joined:
    Apr 28, 2016
    #5
    Thanks, I see you posted screen shot from Macs Facebook control, would that be a better program totry instead of smc fan control? As it looks like that program changes fan speeds based on what temperatures it finds parts are running at.

  6. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #6
  7. owbp macrumors 6502a

    owbp

    Joined:
    Jan 28, 2016
    Location:
    Belgrade, Serbia
    #7
    Sorry, didn't see that the OP is using 10.6.8.
    On the other hand Pro Tools 10 works great in Mountain Lion and Mavericks (there are just couple minor glitches with some 3rd party virtual instruments, don't remember which but I'm sure that is is on Avid's web site).
    Btw, i have never used PT for midi and virtual instruments. For that i use Logic.

    You're right, thats the program i use for three reasons:
    - you have sensor based fan control so you can assign fan to temperature - i keep PSU under 50C, so fan starts speeding up at 43C and max allowed is 60C;
    - you can type exact RPM you wish - iStat Menus has only sliders for fan speeds
    - you can download Windows version also (from the same site) to use in your Bootcamp.

  8. Gregrb thread starter macrumors newbie

    Joined:
    Apr 28, 2016
    #8
    Thanks for those settings that's really useful. What are the other settings you use e.g cpu, and other fans.

  9. owbp macrumors 6502a

    owbp

    Joined:
    Jan 28, 2016
    Location:
    Belgrade, Serbia
    #9
    Not a problem at all. The other fans, as you can see, are all set to automatic.

    Before i got 8GB (4x2GB) of Samsung RAM i used to adjust CPU Fan and Exhaust (since they are on the same horizontal path) to keep my Northbridge under 70C, but since the RAM i bought has temperature sensors in it, Apple's SMC i keeping those fans up by 150-200 RPM all the time so it just cools itself now. I also disassembled my Mac and blew the dust with compressed air, so the temp of the Northbridge went down by 20C by itself before i even got the ram.

    IO or PCI/HD/Expansion fan i never touched. I have only GPU there, it first was Gigabyte 7950 Windforce and now it is MSI 7950, so they cool themselves enough, no need for help at the moment.

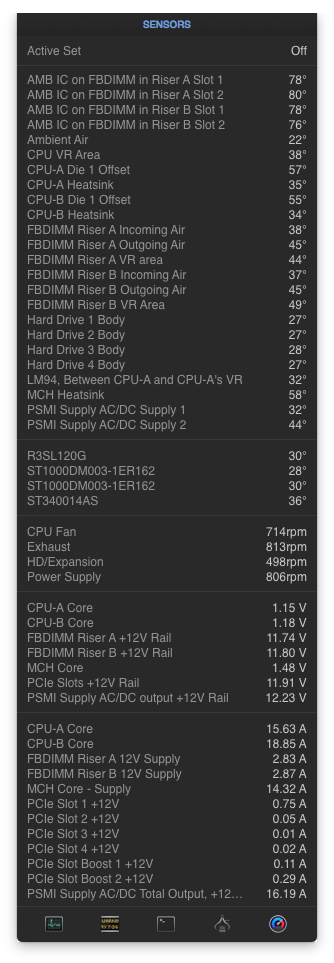

    I am attaching screenshot from iStat Menus so you can see those 4 RAM sticks that have temp sensors and are not giving those two fans (CPU and Exhaust) to stay at stock RPM (500 and 600 RPM).

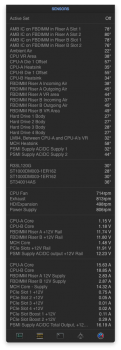

    Screen Shot 2016-09-05 at 3.55.34 PM.png

  10. Gregrb thread starter macrumors newbie

    Joined:
    Apr 28, 2016
    #10
    Following your help, I blew dust our of graphics card and installed fan control. Had no more graphics card kernel panics following that, but then yesterday I started having different kernel panic.

    Can someone help me work out what these kernel panics mean that I have had over last couple of days are and how to fix / avoid them?

    I'm running pro tools 10 on os10.6.8 and when these panics are happening I am using a lot of plugins as well as ssl duende firewire and uad firewire dsp units all on ther own dedicated firewire busses, and the sessions do have a lot of audio tracks, so I am using a lot of CPU.

    I wondered if issue is that I'm just pushing the cpu to much? Within pro tools setting I have assigned the 8 cores if cpu to pro tools, and it's allocated to access up to 95%. Below are the two recent kernel panic reports


    First report happened today whilest in pro tools session and selecting to save as:

    Interval Since Last Panic Report: 766146 sec
    Panics Since Last Report: 42
    Anonymous UUID: F98D4286-C191-427A-A72F-1620C510E388

    Sat Sep 17 14:39:51 2016
    panic(cpu 6 caller 0x2abf6a): Kernel trap at 0x005397ec, type 14=page fault, registers:
    CR0: 0x8001003b, CR2: 0x00000008, CR3: 0x00100000, CR4: 0x00000660
    EAX: 0x00000000, EBX: 0x22902500, ECX: 0x20000002, EDX: 0x00000000
    CR2: 0x00000008, EBP: 0x90153d38, ESI: 0x00000001, EDI: 0x25369640
    EFL: 0x00010206, EIP: 0x005397ec, CS: 0x00000008, DS: 0x253d0010
    Error code: 0x00000000

    Backtrace (CPU 6), Frame : Return Address (4 potential args on stack)
    0x90153b38 : 0x21b837 (0x5dd7fc 0x90153b6c 0x223ce1 0x0)
    0x90153b88 : 0x2abf6a (0x59e3d0 0x5397ec 0xe 0x59e59a)
    0x90153c68 : 0x2a1a78 (0x90153c80 0x0 0x90153d38 0x5397ec)
    0x90153c78 : 0x5397ec (0xe 0x48 0x90150010 0x10)
    0x90153d38 : 0x539706 (0x25369640 0x20eefdc0 0x0 0x25369640)
    0x90153d58 : 0x53966e (0x25369640 0x21a8c800 0x0 0x25369640)
    0x90153d78 : 0x53fdf6 (0x25369640 0x2535b740 0x0 0x51723f)
    0x90153dc8 : 0x53fea7 (0x2535b740 0x4 0x0 0xe00002c1)
    0x90153de8 : 0x56fa2b (0x2535b740 0x85f8a0 0x90153e18 0x2aac45)
    0x90153e08 : 0x28c3e3 (0x20ea66c0 0x24d2a878 0x90153e3c 0x29aca1)
    0x90153e58 : 0x21dbe5 (0x24d2a850 0x24b62490 0x1ff728 0x1303)
    0x90153e98 : 0x210a86 (0x24d2a800 0x0 0x24dbbe30 0x20ea66c0)
    0x90153ef8 : 0x216f84 (0x24d2a800 0x0 0x0 0x0)
    0x90153f78 : 0x295c57 (0x22affd88 0x0 0x0 0x0)
    0x90153fc8 : 0x2a256d (0x22affd84 0x7fff 0x10 0x22affd84)

    BSD process name corresponding to current thread: smc-write

    Mac OS version:
    10K549

    Kernel version:
    Darwin Kernel Version 10.8.0: Tue Jun 7 16:33:36 PDT 2011; root:xnu-1504.15.3~1/RELEASE_I386
    System model name: MacPro2,1 (Mac-F4208DC8)

    System uptime in nanoseconds: 7184569005005
    unloaded kexts:
    (none)
    loaded kexts:
    com.digidesign.mbox2.driver 10.3.5f211
    com.paceap.kext.pacesupport.snowleopard 5.9.1
    com.uaudio.driver.UAFWAudio 4.1.1 16344
    com.AmbrosiaSW.AudioSupport 3.2
    com.uaudio.driver.UAD2System 7.3.0
    com.solidstatelogic.driver.SSLDuendeDriver 2.2.2
    com.digidesign.mbox2.boot.driver 10.3.5f211
    com.solidstatelogic.driver.DuendePCIDriver 1.3
    com.apple.driver.InternalModemSupport 2.6.2
    com.apple.filesystems.autofs 2.1.0
    com.apple.driver.AppleTyMCEDriver 1.0.2d2
    com.apple.driver.AppleHWSensor 1.9.3d0
    com.apple.driver.AudioAUUC 1.57
    com.apple.driver.AppleUpstreamUserClient 3.5.7
    com.apple.driver.AppleMCCSControl 1.0.20
    com.apple.driver.AppleHDA 2.0.5f14
    com.apple.kext.ATIFramebuffer 6.3.6
    com.apple.Dont_Steal_Mac_OS_X 7.0.0
    com.apple.driver.AudioIPCDriver 1.1.6
    com.apple.driver.AppleMCEDriver 1.1.9
    com.apple.driver.AppleIntelYonahProfile 14
    com.apple.driver.AppleIntelPenrynProfile 17
    com.apple.driver.AppleIntelNehalemProfile 11
    com.apple.driver.AppleIntelMeromProfile 19
    com.apple.driver.ACPI_SMC_PlatformPlugin 4.7.0a1
    com.apple.driver.AppleLPC 1.5.1
    com.apple.ATIRadeonX2000 6.3.6
    com.apple.driver.CSRHIDTransitionDriver 2.4.5f3
    com.apple.iokit.SCSITaskUserClient 2.6.8
    com.apple.driver.PioneerSuperDrive 2.6.1
    com.apple.BootCache 31.1
    com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
    com.apple.iokit.IOAHCIBlockStorage 1.6.4
    com.apple.driver.AppleIntel8254XEthernet 2.1.3b1
    com.apple.driver.AppleFWOHCI 4.7.3
    com.apple.driver.AppleUSBHub 4.2.4
    com.apple.driver.AirPortBrcm43xx 423.91.27
    com.apple.driver.AirPortBrcm43224 428.42.4
    com.apple.driver.AppleAHCIPort 2.1.7
    com.apple.driver.AppleIntelPIIXATA 2.5.1
    com.apple.driver.AppleEFINVRAM 1.4.0
    com.apple.driver.AppleUSBEHCI 4.2.4
    com.apple.driver.AppleUSBUHCI 4.2.0
    com.apple.driver.AppleACPIButtons 1.3.6
    com.apple.driver.AppleRTC 1.3.1
    com.apple.driver.AppleHPET 1.5
    com.apple.driver.AppleSMBIOS 1.7
    com.apple.driver.AppleACPIEC 1.3.6
    com.apple.driver.AppleAPIC 1.4
    com.apple.driver.AppleIntelCPUPowerManagementClient 142.6.0
    com.apple.security.sandbox 1
    com.apple.security.quarantine 0
    com.apple.nke.applicationfirewall 2.1.12
    com.apple.driver.AppleIntelCPUPowerManagement 142.6.0
    com.apple.iokit.IOSCSIBlockCommandsDevice 2.6.8 - last loaded 287353337271
    com.apple.iokit.IOUSBMassStorageClass 2.6.7
    com.apple.driver.AppleProfileReadCounterAction 17
    com.apple.driver.AppleProfileTimestampAction 10
    com.apple.driver.AppleProfileThreadInfoAction 14
    com.apple.driver.AppleProfileRegisterStateAction 10
    com.apple.driver.AppleProfileKEventAction 10
    com.apple.driver.AppleProfileCallstackAction 20
    com.apple.driver.AppleHDAHardwareConfigDriver 2.0.5f14
    com.apple.driver.DspFuncLib 2.0.5f14
    com.apple.iokit.IOSurface 74.2
    com.apple.iokit.IOBluetoothSerialManager 2.4.5f3
    com.apple.iokit.IOSerialFamily 10.0.3
    com.apple.iokit.IOAudioFamily 1.8.3fc2
    com.apple.kext.OSvKernDSPLib 1.3
    com.apple.iokit.IOFireWireIP 2.0.3
    com.apple.driver.AppleHDAController 2.0.5f14
    com.apple.iokit.IOHDAFamily 2.0.5f14
    com.apple.iokit.AppleProfileFamily 41
    com.apple.driver.AppleSMC 3.1.0d5
    com.apple.driver.IOPlatformPluginFamily 4.7.0a1
    com.apple.driver.AppleSMBusPCI 1.0.10d0
    com.apple.iokit.IONDRVSupport 2.2
    com.apple.kext.ATI4800Controller 6.3.6
    com.apple.kext.ATISupport 6.3.6
    com.apple.iokit.IOGraphicsFamily 2.2
    com.apple.driver.CSRUSBBluetoothHCIController 2.4.5f3
    com.apple.driver.AppleUSBBluetoothHCIController 2.4.5f3
    com.apple.iokit.IOBluetoothFamily 2.4.5f3
    com.apple.driver.AppleUSBHIDKeyboard 141.5
    com.apple.driver.AppleHIDKeyboard 141.5
    com.apple.iokit.IOUSBHIDDriver 4.2.0
    com.apple.driver.AppleUSBMergeNub 4.2.4
    com.apple.driver.AppleUSBComposite 3.9.0
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 2.6.8
    com.apple.iokit.IOBDStorageFamily 1.6
    com.apple.iokit.IODVDStorageFamily 1.6
    com.apple.iokit.IOCDStorageFamily 1.6.1
    com.apple.driver.XsanFilter 402.1
    com.apple.iokit.IOATAPIProtocolTransport 2.5.1
    com.apple.iokit.IOSCSIArchitectureModelFamily 2.6.8
    com.apple.driver.AppleFileSystemDriver 2.0
    com.apple.iokit.IOFireWireFamily 4.2.6
    com.apple.iokit.IOUSBUserClient 4.2.4
    com.apple.iokit.IO80211Family 320.1
    com.apple.iokit.IONetworkingFamily 1.10
    com.apple.iokit.IOAHCIFamily 2.0.6
    com.apple.iokit.IOATAFamily 2.5.1
    com.apple.iokit.IOUSBFamily 4.2.4
    com.apple.driver.AppleEFIRuntime 1.4.0
    com.apple.iokit.IOHIDFamily 1.6.6
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.kext.AppleMatch 1.0.0d1
    com.apple.security.TMSafetyNet 6
    com.apple.driver.DiskImages 289.1
    com.apple.iokit.IOStorageFamily 1.6.3
    com.apple.driver.AppleACPIPlatform 1.3.6
    com.apple.iokit.IOPCIFamily 2.6.5
    com.apple.iokit.IOACPIFamily 1.3.0
    Model: MacPro2,1, BootROM MP21.007F.B06, 8 processors, Quad-Core Intel Xeon, 2.66 GHz, 24 GB, SMC 1.7f10
    Graphics: ATI Radeon HD 4870, ATI Radeon HD 4870, PCIe, 512 MB
    Memory Module: global_name
    AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x87), Broadcom BCM43xx 1.0 (5.10.131.42.4)
    Bluetooth: Version 2.4.5f3, 2 service, 12 devices, 1 incoming serial ports
    Network Service: AirPort, AirPort, en2
    PCI Card: pci104c,8235, sppci_ieee1394openhci, Slot-4@4,0,0
    PCI Card: ATI Radeon HD 4870, sppci_displaycontroller, Slot-1
    PCI Card: pci104c,823f, sppci_ieee1394openhci, Slot-2@16,0,0
    Serial ATA Device: WDC WD2500JS-41SGB0, 232.89 GB
    Serial ATA Device: ST31500341AS, 1.36 TB
    Serial ATA Device: Hitachi HDS722020ALA330, 1.82 TB
    Parallel ATA Device: PIONEER DVD-RW DVR-118L
    Parallel ATA Device: HL-DT-STDVD-RAM GH22NP21
    USB Device: LaCie Hard Drive USB, 0x059f (LaCie), 0x1018, 0xfd300000 / 8
    USB Device: Keyboard Hub, 0x05ac (Apple Inc.), 0x1006, 0xfd400000 / 3
    USB Device: iLok, 0x088e, 0x5036, 0xfd430000 / 7
    USB Device: USB Optical Mouse, 0x046d (Logitech Inc.), 0xc05b, 0xfd410000 / 6
    USB Device: Apple Keyboard, 0x05ac (Apple Inc.), 0x0250, 0xfd420000 / 5
    USB Device: USB2.0 Hub, 0x2101, 0x8500, 0xfd100000 / 2
    USB Device: USB HID, 0x2101, 0x8501, 0xfd110000 / 4
    USB Device: Bluetooth USB Host Controller, 0x05ac (Apple Inc.), 0x8206, 0x5d200000 / 2
    USB Device: Mbox 2, 0x0dba, 0x3000, 0x1d200000 / 2
    FireWire Device: UAD2_Satellite_Duo, Universal_Audio, Up to 800 Mb/sec
    FireWire Device: Duende board, Solid State Logic, Up to 400 Mb/sec
    FireWire Device: built-in_hub, Up to 800 Mb/sec
    FireWire Device: Duende board, Solid State Logic, Up to 400 Mb/sec


    This second report happened yesterday upon opening my pro tools session:


    Interval Since Last Panic Report: 753120 sec
    Panics Since Last Report: 41
    Anonymous UUID: F98D4286-C191-427A-A72F-1620C510E388

    Fri Sep 16 15:42:59 2016
    panic(cpu 6 caller 0x2abf6a): Kernel trap at 0x00225858, type 14=page fault, registers:
    CR0: 0x8001003b, CR2: 0x000000d4, CR3: 0x00100000, CR4: 0x00000660
    EAX: 0x00000000, EBX: 0xffffffff, ECX: 0x000000cf, EDX: 0x00863360
    CR2: 0x000000d4, EBP: 0x8ffa9e38, ESI: 0xffffffff, EDI: 0x008485b4
    EFL: 0x00010006, EIP: 0x00225858, CS: 0x00000008, DS: 0x00000010
    Error code: 0x00000000

    Backtrace (CPU 6), Frame : Return Address (4 potential args on stack)
    0x8ffa9c18 : 0x21b837 (0x5dd7fc 0x8ffa9c4c 0x223ce1 0x0)
    0x8ffa9c68 : 0x2abf6a (0x59e3d0 0x225858 0xe 0x59e59a)
    0x8ffa9d48 : 0x2a1a78 (0x8ffa9d60 0x17 0x8ffa9e38 0x225858)
    0x8ffa9d58 : 0x225858 (0xe 0x48 0x8ffa0010 0x2a0010)
    0x8ffa9e38 : 0x226223 (0x24937b7c 0x5 0x8ffa9e88 0x24937b7c)
    0x8ffa9e58 : 0x2278d8 (0x24937b7c 0x1 0x863eac 0x7c)
    0x8ffa9e88 : 0x23190a (0x24937b7c 0x0 0x0 0xfa97078c)
    0x8ffa9ed8 : 0x298e82 (0x8ff06050 0xfa1578eb 0x7c 0x4fd60f)
    0x8ffa9f28 : 0x2aa26c (0x1 0x91206a8c 0x0 0x2299c760)
    0x8ffa9f48 : 0x2b32f2 (0x219b2b80 0x0 0x8ffa9f78 0x2aa21d)
    0x8ffa9f78 : 0x2ab423 (0xde 0x219b2b80 0x0 0x0)
    0x8ffa9fd8 : 0x2a1c2e (0x219b2b80 0x0 0x0 0x0)

    BSD process name corresponding to current thread: Pro Tools

    Mac OS version:
    10K549

    Kernel version:
    Darwin Kernel Version 10.8.0: Tue Jun 7 16:33:36 PDT 2011; root:xnu-1504.15.3~1/RELEASE_I386
    System model name: MacPro2,1 (Mac-F4208DC8)

    System uptime in nanoseconds: 536771731548
    unloaded kexts:
    (none)
    loaded kexts:
    com.digidesign.mbox2.driver 10.3.5f211
    com.paceap.kext.pacesupport.snowleopard 5.9.1
    com.uaudio.driver.UAFWAudio 4.1.1 16344
    com.AmbrosiaSW.AudioSupport 3.2
    com.uaudio.driver.UAD2System 7.3.0
    com.solidstatelogic.driver.SSLDuendeDriver 2.2.2
    com.digidesign.mbox2.boot.driver 10.3.5f211
    com.solidstatelogic.driver.DuendePCIDriver 1.3
    com.apple.driver.InternalModemSupport 2.6.2
    com.apple.filesystems.autofs 2.1.0
    com.apple.driver.AppleTyMCEDriver 1.0.2d2
    com.apple.driver.AppleHWSensor 1.9.3d0
    com.apple.driver.AudioAUUC 1.57
    com.apple.driver.AppleUpstreamUserClient 3.5.7
    com.apple.driver.AppleMCCSControl 1.0.20
    com.apple.driver.AppleHDA 2.0.5f14
    com.apple.kext.ATIFramebuffer 6.3.6
    com.apple.Dont_Steal_Mac_OS_X 7.0.0
    com.apple.driver.AudioIPCDriver 1.1.6
    com.apple.driver.AppleMCEDriver 1.1.9
    com.apple.driver.AppleIntelYonahProfile 14
    com.apple.driver.AppleIntelPenrynProfile 17
    com.apple.driver.AppleIntelNehalemProfile 11
    com.apple.driver.AppleIntelMeromProfile 19
    com.apple.driver.ACPI_SMC_PlatformPlugin 4.7.0a1
    com.apple.driver.AppleLPC 1.5.1
    com.apple.ATIRadeonX2000 6.3.6
    com.apple.driver.CSRHIDTransitionDriver 2.4.5f3
    com.apple.iokit.SCSITaskUserClient 2.6.8
    com.apple.driver.PioneerSuperDrive 2.6.1
    com.apple.BootCache 31.1
    com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
    com.apple.iokit.IOAHCIBlockStorage 1.6.4
    com.apple.driver.AppleIntel8254XEthernet 2.1.3b1
    com.apple.driver.AppleFWOHCI 4.7.3
    com.apple.driver.AppleUSBHub 4.2.4
    com.apple.driver.AirPortBrcm43xx 423.91.27
    com.apple.driver.AirPortBrcm43224 428.42.4
    com.apple.driver.AppleAHCIPort 2.1.7
    com.apple.driver.AppleIntelPIIXATA 2.5.1
    com.apple.driver.AppleEFINVRAM 1.4.0
    com.apple.driver.AppleUSBEHCI 4.2.4
    com.apple.driver.AppleUSBUHCI 4.2.0
    com.apple.driver.AppleACPIButtons 1.3.6
    com.apple.driver.AppleRTC 1.3.1
    com.apple.driver.AppleHPET 1.5
    com.apple.driver.AppleSMBIOS 1.7
    com.apple.driver.AppleACPIEC 1.3.6
    com.apple.driver.AppleAPIC 1.4
    com.apple.driver.AppleIntelCPUPowerManagementClient 142.6.0
    com.apple.security.sandbox 1
    com.apple.security.quarantine 0
    com.apple.nke.applicationfirewall 2.1.12
    com.apple.driver.AppleIntelCPUPowerManagement 142.6.0
    com.apple.iokit.IOSCSIBlockCommandsDevice 2.6.8 - last loaded 64785208129
    com.apple.iokit.IOUSBMassStorageClass 2.6.7
    com.apple.driver.AppleProfileReadCounterAction 17
    com.apple.driver.AppleProfileTimestampAction 10
    com.apple.driver.AppleProfileThreadInfoAction 14
    com.apple.driver.AppleProfileRegisterStateAction 10
    com.apple.driver.AppleProfileKEventAction 10
    com.apple.driver.AppleProfileCallstackAction 20
    com.apple.driver.AppleHDAHardwareConfigDriver 2.0.5f14
    com.apple.driver.DspFuncLib 2.0.5f14
    com.apple.iokit.IOSurface 74.2
    com.apple.iokit.IOBluetoothSerialManager 2.4.5f3
    com.apple.iokit.IOSerialFamily 10.0.3
    com.apple.iokit.IOAudioFamily 1.8.3fc2
    com.apple.kext.OSvKernDSPLib 1.3
    com.apple.iokit.IOFireWireIP 2.0.3
    com.apple.driver.AppleHDAController 2.0.5f14
    com.apple.iokit.IOHDAFamily 2.0.5f14
    com.apple.iokit.AppleProfileFamily 41
    com.apple.driver.AppleSMC 3.1.0d5
    com.apple.driver.IOPlatformPluginFamily 4.7.0a1
    com.apple.driver.AppleSMBusPCI 1.0.10d0
    com.apple.iokit.IONDRVSupport 2.2
    com.apple.kext.ATI4800Controller 6.3.6
    com.apple.kext.ATISupport 6.3.6
    com.apple.iokit.IOGraphicsFamily 2.2
    com.apple.driver.CSRUSBBluetoothHCIController 2.4.5f3
    com.apple.driver.AppleUSBBluetoothHCIController 2.4.5f3
    com.apple.iokit.IOBluetoothFamily 2.4.5f3
    com.apple.driver.AppleUSBHIDKeyboard 141.5
    com.apple.driver.AppleHIDKeyboard 141.5
    com.apple.iokit.IOUSBHIDDriver 4.2.0
    com.apple.driver.AppleUSBMergeNub 4.2.4
    com.apple.driver.AppleUSBComposite 3.9.0
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 2.6.8
    com.apple.iokit.IOBDStorageFamily 1.6
    com.apple.iokit.IODVDStorageFamily 1.6
    com.apple.iokit.IOCDStorageFamily 1.6.1
    com.apple.driver.XsanFilter 402.1
    com.apple.iokit.IOATAPIProtocolTransport 2.5.1
    com.apple.iokit.IOSCSIArchitectureModelFamily 2.6.8
    com.apple.driver.AppleFileSystemDriver 2.0
    com.apple.iokit.IOFireWireFamily 4.2.6
    com.apple.iokit.IOUSBUserClient 4.2.4
    com.apple.iokit.IO80211Family 320.1
    com.apple.iokit.IONetworkingFamily 1.10
    com.apple.iokit.IOAHCIFamily 2.0.6
    com.apple.iokit.IOATAFamily 2.5.1
    com.apple.iokit.IOUSBFamily 4.2.4
    com.apple.driver.AppleEFIRuntime 1.4.0
    com.apple.iokit.IOHIDFamily 1.6.6
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.kext.AppleMatch 1.0.0d1
    com.apple.security.TMSafetyNet 6
    com.apple.driver.DiskImages 289.1
    com.apple.iokit.IOStorageFamily 1.6.3
    com.apple.driver.AppleACPIPlatform 1.3.6
    com.apple.iokit.IOPCIFamily 2.6.5
    com.apple.iokit.IOACPIFamily 1.3.0
    Model: MacPro2,1, BootROM MP21.007F.B06, 8 processors, Quad-Core Intel Xeon, 2.66 GHz, 24 GB, SMC 1.7f10
    Graphics: ATI Radeon HD 4870, ATI Radeon HD 4870, PCIe, 512 MB
    Memory Module: global_name
    AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x87), Broadcom BCM43xx 1.0 (5.10.131.42.4)
    Bluetooth: Version 2.4.5f3, 2 service, 12 devices, 1 incoming serial ports
    Network Service: AirPort, AirPort, en2
    PCI Card: pci104c,8235, sppci_ieee1394openhci, Slot-4@4,0,0
    PCI Card: ATI Radeon HD 4870, sppci_displaycontroller, Slot-1
    PCI Card: pci104c,823f, sppci_ieee1394openhci, Slot-2@16,0,0
    Serial ATA Device: WDC WD2500JS-41SGB0, 232.89 GB
    Serial ATA Device: ST31500341AS, 1.36 TB
    Serial ATA Device: Hitachi HDS722020ALA330, 1.82 TB
    Parallel ATA Device: PIONEER DVD-RW DVR-118L
    Parallel ATA Device: HL-DT-STDVD-RAM GH22NP21
    USB Device: Keyboard Hub, 0x05ac (Apple Inc.), 0x1006, 0xfd400000 / 3
    USB Device: iLok, 0x088e, 0x5036, 0xfd430000 / 7
    USB Device: USB Optical Mouse, 0x046d (Logitech Inc.), 0xc05b, 0xfd410000 / 6
    USB Device: Apple Keyboard, 0x05ac (Apple Inc.), 0x0250, 0xfd420000 / 5
    USB Device: USB2.0 Hub, 0x2101, 0x8500, 0xfd100000 / 2
    USB Device: USB HID, 0x2101, 0x8501, 0xfd110000 / 4
    USB Device: Mbox 2, 0x0dba, 0x3000, 0x1d200000 / 2
    USB Device: Bluetooth USB Host Controller, 0x05ac (Apple Inc.), 0x8206, 0x5d200000 / 2
    FireWire Device: UAD2_Satellite_Duo, Universal_Audio, Up to 800 Mb/sec
    FireWire Device: Duende board, Solid State Logic, Up to 400 Mb/sec
    FireWire Device: built-in_hub, Up to 800 Mb/sec
    FireWire Device: Duende board, Solid State Logic, Up to 400 Mb/sec

  11. owbp macrumors 6502a

    owbp

    Joined:
    Jan 28, 2016
    Location:
    Belgrade, Serbia
    #11
    I'm not sure what is causing your panics, but can share what would i do in this situation. :)

    Mbox is known to cause system wide panics if hot-swapped even if Pro Tools isn't running (plugged and unplugged if Mac is on). I don't know if and when Avid sorted that out but it is one thing to have in mind.
    If you have ever done it, it is possible that your PRAM got corrupted, so resetting PRAM should be first thing on your list.

    Second thing that i would do is trash Pro Tools preferences, but i really don't think that is the issue.


    Then, because we want to assume that hardware is ok and don't want to mess up with your current working setup :) I would take a spare HDD (anything that you have lying around), install fresh Snow Leopard with Pro Tools and then add one by one of your interfaces - install drivers following manuals to a letter (aka don't connect your interface until installer asks you to) - and stress your Mac with some PT project hard as you can.
    I'm hoping that panics are caused by some third party drivers (mbox?) but trying to avoid messing with setup you have now, this is the safest way to take (AFAIK of course).


Share This Page
