Has anyone purchased the Dell U2711 Display?

spaceballl

macrumors 68030
Original poster
Nov 2, 2003
2,856
240
San Francisco, CA
I'm going to buy a new macbook pro and monitor soon. I really want a 27" monitor and if Apple releases a 27" Cinema Display with the new macbooks, then I'll just get that. Otherwise, this U2711 is looking pretty fantastic. Has anyone bought it? Curious to hear some impressions from fellow mac users, if so. Here is a review. CNet has a video review someplace too.


ozbody

macrumors newbie
Feb 16, 2010
4
0

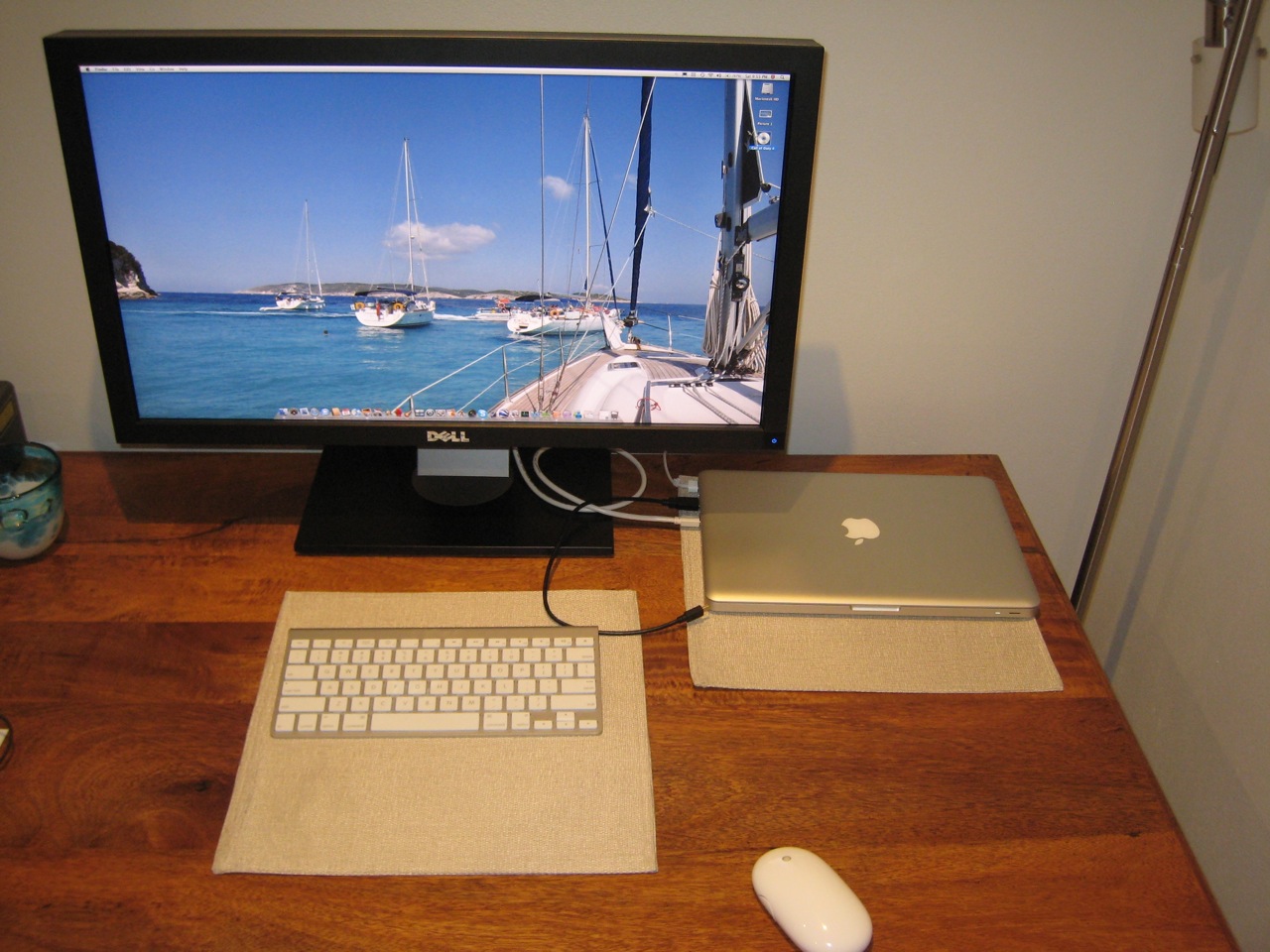

Yes, it works very well. I've connected a 2009 Macbook up to my new Dell U2711 monitor, running at 2560 x 1440, 60hz. The Dell is a stunning monitor. The easiest way is to get a mini DisplayPort to DisplayPort cable which is available from Circuit Assembly (http://estore.circuitassembly.com/products/Mini-Displayport-to-Displayport-Adapter-Cable.html). I found that I could then use the Dell U2711 as an extended monitor running at 2560 x 1440 connected to the Macbook. If I tried to mirror the Macbook to the monitor then the U2711 would drop to a lower resolution or crop the display so that less of the screen is used (obviously this is less than desirable). They way I found to get around this is to leave the Macbook closed and use an external keyboard and mouse (in my case these are the wireless versions). Now I can run the U2711 at full resolution (2560 x 1440) with Macbook fully visible on it.

Hope this helps.


spaceballl

macrumors 68030
Original poster
Nov 2, 2003
2,856
240
San Francisco, CA
I'm glad to hear that it can power such a high resolution with nothing but the mini-displayport to displayport adaptor. I'm really looking forward to picking this monitor up when I buy my new MacBook Pro!


Eddyisgreat

macrumors 601
Oct 24, 2007
4,847
1
Ordered mine today after getting tired of waiting a few years for Apples new Cinema Displays to update!
/jealous

I'll see how much I can get locally for my ACD and if it's worth the time to upgrade to the U2711. I drool over those iMac screens so it would be quite a treat.


kasakka

macrumors 68020
Oct 25, 2008
2,064
735
Apparently Dell has simply crammed the scaler and OSD from the Dell 3008WFP because it has the same problems, namely excessive amount of connections (who the hell needs S-Video and Composite these days?) and several second lag when switching inputs or resolutions. I find the lag on my 3008WFP rather annoying since I switch between my MBP (connected via mini-DP -> DP cable) and PC.


spaceballl

macrumors 68030
Original poster
Nov 2, 2003
2,856
240
San Francisco, CA
Well, I was going to get the U2711... but the Apple 24" LED display went back on the refurb store for $599, and I had to pull the trigger on it!


lilo777

macrumors 603
Nov 25, 2009
5,144
0
Apparently Dell has simply crammed the scaler and OSD from the Dell 3008WFP because it has the same problems, namely excessive amount of connections (who the hell needs S-Video and Composite these days?) and several second lag when switching inputs or resolutions. I find the lag on my 3008WFP rather annoying since I switch between my MBP (connected via mini-DP -> DP cable) and PC.
Really? This is considered a problem now?


kasakka

macrumors 68020
Oct 25, 2008
2,064
735
Really? This is considered a problem now?
When you have two computers connected to it, yes it is. I have my MBP and my desktop PC connected to it. MBP via Displayport, PC via dual link DVI.

Due to both the annoying switching lag and the fact that I have to scroll thru all the useless connectors (or thru the clunky menus in the OSD) makes it a bit of a chore.

A display of this size and resolution is hardly ideal for S-Video or composite or component because those connections give somewhat crappy image quality even on small displays so a display this big will be just a blur. Not to mention there are few devices that actually use those connectors.

VGA, 2xDVI, Displayport and HDMI (even though the HDMI only goes up to 1920x1200) would've been more than sufficient. I suspect Dell included the rest only for more impressive spec lists.

But my real beef is that they didn't bother improving the control circuitry for the much newer U2711.


rhyx

macrumors 6502
Jan 15, 2008
351
1
I should have a U2711 coming in shortly. I'll be sure to post a review once it comes in. A few other forums online have reviews up already.


jcondago

macrumors newbie
Feb 25, 2010
1
0
ozbody,
Did you just use a mini Display Port to Display Port cable to get the U2711 to output at its highest resolution (2560 x 1440) from a macbook pro? So you don't need a dual link DVI adapter like you would if you connect to the 30" Apple Cinema HD?

I've got an early 2009 macbook pro and was thinking of buying the Dell U2711. However, I can't return the monitor once I purchase it so I want to make super sure it'll work.

Thanks!


playalistic

macrumors regular
Sep 27, 2007
104
0
Surrey, UK
ozbody,
Did you just use a mini Display Port to Display Port cable to get the U2711 to output at its highest resolution (2560 x 1440) from a macbook pro? So you don't need a dual link DVI adapter like you would if you connect to the 30" Apple Cinema HD?

I've got an early 2009 macbook pro and was thinking of buying the Dell U2711. However, I can't return the monitor once I purchase it so I want to make super sure it'll work.

Thanks!
Yeah, that'll work just fine!


ozbody

macrumors newbie
Feb 16, 2010
4
0
ozbody,
Did you just use a mini Display Port to Display Port cable to get the U2711 to output at its highest resolution (2560 x 1440) from a macbook pro? So you don't need a dual link DVI adapter like you would if you connect to the 30" Apple Cinema HD?

I've got an early 2009 macbook pro and was thinking of buying the Dell U2711. However, I can't return the monitor once I purchase it so I want to make super sure it'll work.

Thanks!
Hi, all I used was the Mini Displayport to Displayport cable. No dual link DVI was required. Displayport outputted to the U2711 at its highest resolution.


billib

macrumors member
Apr 23, 2009
93
0
USA
DUAL LINK or NOT

Hi, all I used was the Mini Displayport to Displayport cable. No dual link DVI was required. Displayport outputted to the U2711 at its highest resolution.
Hi ozbody, so the Dell can be driven to DUAL LINK Resolution
without using a DUAL LINK setup. WOW, that Mini Displayport
is something else!!! Wikipedia says it can drive 2560 x 1600.

THANKS!!!!


billib

macrumors member
Apr 23, 2009
93
0
USA
MiniDisptsy port too Display Port Cable??????

Ok, I'm confused :eek: (I confuse easy)!
Your link in post #2 is for.
The MiniDisplay Port too Displsay Port &
Another poster has a link to the Belkin
MiniDisplay Port to MiniDisplay Port.

Your using the MDP too DP to drive 2600 x 1600.
Does the other MDP too MDP also drive 2600 x 1600?
I'm guessing MDP to DP is 1900 x 1200.

Have I got that right? :confused:
Does the Dell Display even have a DP or
does the Dell only have a MDP?

Don't you just LOVE saying the same thing
over and over and over again! If it wasn't
for that other post and link I wouldn't be
asking.

Thanks!!


ozbody

macrumors newbie
Feb 16, 2010
4
0
Ok, I'm confused :eek: (I confuse easy)!
Your link in post #2 is for.
The MiniDisplay Port too Displsay Port &
Another poster has a link to the Belkin
MiniDisplay Port to MiniDisplay Port.

Your using the MDP too DP to drive 2600 x 1600.
Does the other MDP too MDP also drive 2600 x 1600?
I'm guessing MDP to DP is 1900 x 1200.

Have I got that right? :confused:
Does the Dell Display even have a DP or
does the Dell only have a MDP?

Don't you just LOVE saying the same thing
over and over and over again! If it wasn't
for that other post and link I wouldn't be
asking.

Thanks!!


Goodness, even you question is confusing.

Here's a synopsis of what I did.

  1. I had a 2009 MacBook already (this is NOT the Pro version).
  2. I then bought the Mini DisplayPort to DisplayPort cable from Circuit Assembly.
  3. I then bought the Dell U2711 monitor.
  4. I then plugged the cable into the Mccbook Mini DisplayPort and the Dell U2711 DisplayPort (the U2711 does NOT have a Mini DisplayPort.

Then I got the U2711 display to run at 2560x1440, based upon the setup in my first post (mirroring using an external keyboard and mouse).

That's it! Pretty simple.

I have no idea re the other resolutions or equipment mentioned in your post.

Good luck.....


billib

macrumors member
Apr 23, 2009
93
0
USA
Mini Display Port "101"

[*]I had a 2009 MacBook already (this is NOT the Pro version).
[*]I then bought the Mini DisplayPort to DisplayPort cable from Circuit Assembly.
[*]I then bought the Dell U2711 monitor.
[*]I then plugged the cable into the Mccbook Mini DisplayPort and the Dell U2711 DisplayPort (the U2711 does NOT have a Mini DisplayPort.
[/LIST]

Then I got the U2711 display to run at 2560x1440, based upon the setup in my first post (mirroring using an external keyboard and mouse).
Pretty simple.
Thank you so much!!!
I apologize for being a P-I-T-Ass!!!!!!!!
You couldn't have made it any clearer.
Thanks again.


dyn

macrumors 68030
Aug 8, 2009
2,708
383
.nl
Does the Dell Display even have a DP or does the Dell only have a MDP?
The Dell monitors have the standard DisplayPort connector (they actually use DisplayPort natively so you definitely want to use DisplayPort instead of HDMI or DVI), but Macs require the mini DisplayPort connector. The protocol being used is the exact same thing (DisplayPort), only the connectors are different which is why you only need a cable with a standard DisplayPort connector on one end and a mini DisplayPort connector on the other end. DisplayPort (the protocol, not the connector) can output resolutions of 2560x1440 or 2560x1600 without any problems no matter what connector you use.

There is only one difference: the mini DisplayPort connector does not support audio which the standard DisplayConnector does. I don't really consider that to be a problem because it is used for computer displays which mostly (as in 99% of the displays) lack audio. The ones who have audio use a 3,5mm jack for that.

Dell displays are really great because they have great TFT panels and they use DisplayPort among DVI and HDMI (aka multipurpose displays!). The only downside is the slowness of the display when switching outputs and when waking from standby but not all of them have this problem (the 3008WFP does :().


billib

macrumors member
Apr 23, 2009
93
0
USA
MiniDisplatPort MUST READ!!!!!!!!!!!!!!!!!

The Dell monitors have the standard DisplayPort connector (they actually use DisplayPort natively so you definitely want to use DisplayPort instead of HDMI or DVI), but Macs require the mini DisplayPort connector. The protocol being used is the exact same thing (DisplayPort), only the connectors are different which is why you only need a cable with a standard DisplayPort connector on one end and a mini DisplayPort connector on the other end. DisplayPort (the protocol, not the connector) can output resolutions of 2560x1440 or 2560x1600 without any problems no matter what connector you use.

There is only one difference: the mini DisplayPort connector does not support audio which the standard DisplayConnector does. I don't really consider that to be a problem because it is used for computer displays which mostly (as in 99% of the displays) lack audio. The ones who have audio use a 3,5mm jack for that.

Dell displays are really great because they have great TFT panels and they use DisplayPort among DVI and HDMI (aka multipurpose displays!). The only downside is the slowness of the display when switching outputs and when waking from standby but not all of them have this problem (the 3008WFP does :().
Thanks for such clear explanation!!!
Its a shame it doesn't carry sound.
Who knows, maybe a future hardware change by Apple
will provide that.
