HD154UI 3-Drive RAID0 Benchmarks

Discussion in 'Mac Pro' started by Tesselator, May 26, 2009.

?

Did you find this useful or interesting?

  1. Yes.

    12 vote(s)
    85.7%
  2. No

    2 vote(s)
    14.3%
  1. Tesselator macrumors 601

    Tesselator

    Joined:
    Jan 9, 2008
    Location:
    Japan
    #1
    Hi Yall, :D

    I just got four 1.5TB HD154UI F2 EcoGreen Raid Class drives for $97 each and configured 3 of them into a RAID0 configuration. This is a step along the way of my project to fit 12 HDDs in a Mac Pro case - gracefully. ;)

    Anyway, I thought it might be useful to share with the gang how they profile as setup in Apple's software RAID0 configuration. I selected 128K block sizes for the RAID because when I'm working it's usually with large data like video or large images. This will waste a little extra space and add to the margin of error when calculating folder and files sizes in some software but should be worth it for larger files.

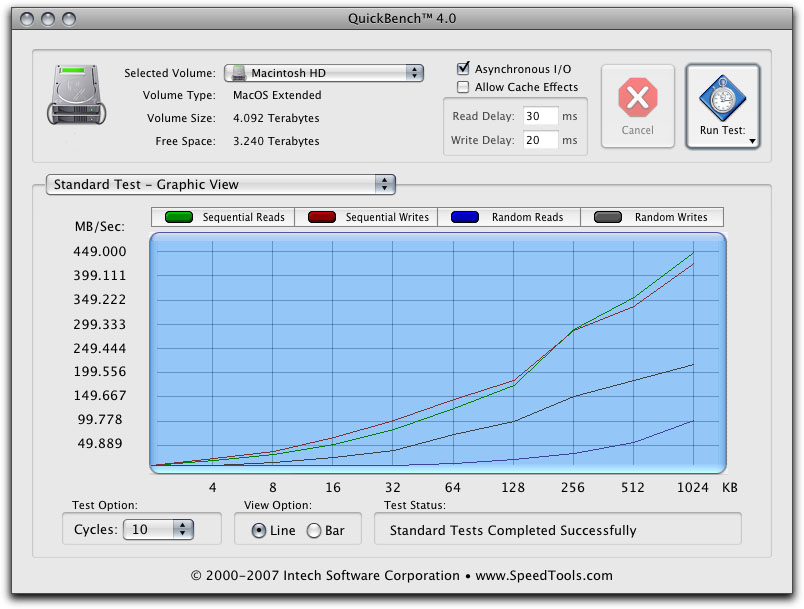

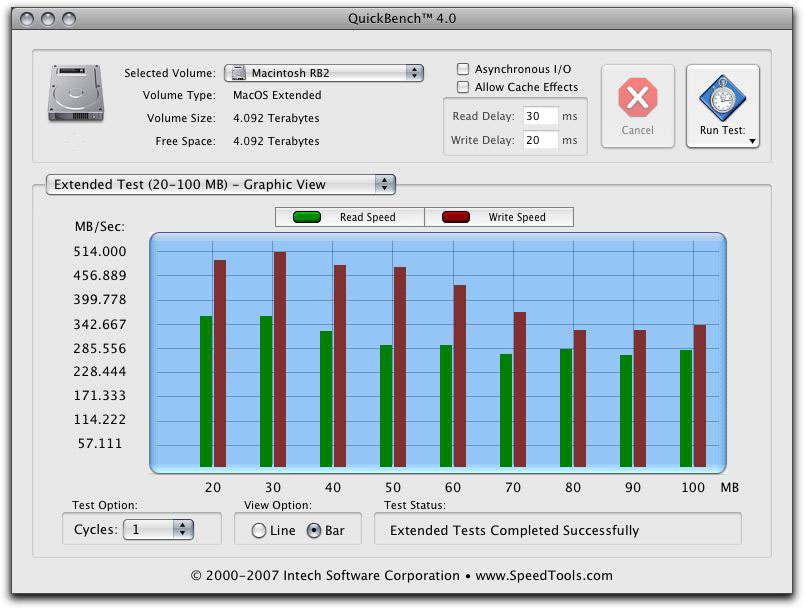

    So without more verbosity here are the benchmark results:


    [​IMG] [​IMG]



    [​IMG]
    [​IMG]



    [​IMG]
    [​IMG]



    [​IMG]
    [​IMG]



    [​IMG]
    [​IMG]



    [​IMG]


    The red patterned bars are Writes and the red solid bars are Reads.


    Code:
    +---------------------+---------------+
    | Blocksize           |  Avg Latency  |
    +---------------------+---------------+
      4 K        Seq Read     0.019 ms
              Random Read     0.024 ms
                Seq Write     0.024 ms
             Random Write     0.409 ms
      Create scratch file     0.112 ms
      8 K        Seq Read     0.025 ms
              Random Read     0.030 ms
                Seq Write     0.033 ms
             Random Write     1.044 ms
      Create scratch file     0.129 ms
      16 K       Seq Read     0.040 ms
              Random Read     0.039 ms
                Seq Write     1.531 ms
             Random Write     4.643 ms
      Create scratch file     0.055 ms
      32 K       Seq Read     0.067 ms
              Random Read     0.065 ms
                Seq Write     2.420 ms
             Random Write     4.595 ms
      Create scratch file     0.189 ms
      64 K       Seq Read     0.127 ms
              Random Read     0.119 ms
                Seq Write     1.603 ms
             Random Write     4.974 ms
      Create scratch file     0.382 ms
      128 K      Seq Read     0.251 ms
              Random Read     0.235 ms
                Seq Write     2.881 ms
             Random Write     5.530 ms
      Create scratch file     0.699 ms
      256 K      Seq Read     0.519 ms
              Random Read     0.468 ms
                Seq Write     6.210 ms
             Random Write     8.436 ms
      Create scratch file     1.242 ms
    +-------------------------------------+


    !-Enjoy

  2. nanofrog macrumors G4

    Joined:
    May 6, 2008
    #2
    Hmm...12 drives huh.. You're as bad as I am. :eek: :D :p

    Not bad at all for $97 each :), and even better that it's UBE = 1E15. :D

    Let me know how they do, as I'm always interested in lower cost drives that won't drop out all the time. Though this is software RAID... much easier than a full RAID controller. ;)

    Perhaps they'd be good in JBOD for backup. (Too nervous for a stripe set for backup use). :p Maybe I should pick up a pair. ;)

  3. Tesselator thread starter macrumors 601

    Tesselator

    Joined:
    Jan 9, 2008
    Location:
    Japan
    #3
    I wanna wait till the 2TB Green drives come down in price and get 4 of those. Then with the 4 I had before that'll make 12 and I'll be ready to start modding the case. :) Totally that'll make 18 TB - after formatting. I'll probably sell the system at that point - I dunno...

    I wanna play with a 5.8GHz quad! w/ 8 virtual cores! :D

    .

  4. nanofrog macrumors G4

    Joined:
    May 6, 2008
    #4
    I'd rather have the WD 2TB drives as well, but I'm having a hard time parting with $200 each. :rolleyes: For backup, I tend to be frugal, as I could care less about speed. Afterall, I have to save where I can to help boost the RAID budget. :D :p

    Now that's more like it! :D Bring on the nitrogen! ;) Now how do I squeeze a cryrogenics system to the size of a shoe box so it fits inside the case? :p

  5. TheStrudel macrumors 65816

    TheStrudel

    Joined:
    Jan 5, 2008
    #5
    Oh, nice, I didn't know that Samsung had finally released their high capacity new generation HDDs. How do you like them? I'd been eagerly awaiting the next tech bump from Samsung. Also, I didn't see on the website where drive speed was - are these guys 5400 rpm (like I presume the 'green' moniker refers to) or 7200 rpm?

  6. Tesselator thread starter macrumors 601

    Tesselator

    Joined:
    Jan 9, 2008
    Location:
    Japan
    #6
    Companies making green drives are a little tight about that in specific but I know they're variable speed. Probably around 3500 RPM ~ 5600 RPM but the density is now at 500 GB per platter so they achieve essentially the same data rates as a 7200 drive with 386 GB platters. A little faster in some areas, and a little slower in others.

    [​IMG]
    So far I like them OK! They run 5c to 8c cooler, rated higher (60c instead of 50c), and they're between 100 MB/s to almost 200 MB/s faster than the drives I'm coming from (in a 3-drive RAID 0). They're a little slow to spin up to ready but I mostly leave my machine on 24/7 so I don't care so much about the difference. Samsung says they take 13 seconds to be ready but it's really more like 9. Some drives are like 5 and 6 I think tho. This might matter more to me when I have all 12 but there might be a sunny side to that too - the breaker at the mains won't pop when I turn on my machine. :p

    I don't believe there is such a thing as man-made global-warming (it's all a scam to initiate a global tax structure in order that the money might be used for war and tyranny) but it's nice that my power bill will be 50¢ less a month I guess. :)

    In all they're heads and shoulders above my 1TB WD Green drives and probably profile more like a 1TB black. So, yeah, I like'em prety good. :)

  7. nanofrog macrumors G4

    Joined:
    May 6, 2008
    #7
    Spin up does seem a tad slow, but they aren't sold as the fastest RAID drives Samsung makes either. ;) Just think though; 12 of those attached to a hardware RAID controller with staggered spin up engaged (say 0.7s per). GRANNY Boot. :p

  8. Tesselator thread starter macrumors 601

    Tesselator

    Joined:
    Jan 9, 2008
    Location:
    Japan
    #8
    Ha ha! We'd need a "Feel the power" start-up sound. :D

    These drives make a pretty funky start-up sound on their own already though so if staggered that might just do it. :D

  9. nanofrog macrumors G4

    Joined:
    May 6, 2008
    #9
    When you get all 12, you can send them my way. ;) I'll record any startup noise for you. :D :p

  10. Tesselator thread starter macrumors 601

    Tesselator

    Joined:
    Jan 9, 2008
    Location:
    Japan
    #10
    Really? It may not be worth the trip - I want NASA launch sounds. :D

  11. nanofrog macrumors G4

    Joined:
    May 6, 2008
    #11
    Meh... Not off those drives. :eek: I think you'd have to go with 15K SAS for that one. :D :p

  12. rw3 macrumors 6502a

    rw3

    Joined:
    May 13, 2008
    Location:
    DFW, TX
    #12
    Where were you able to purchase these from? Thanks

  13. Tesselator thread starter macrumors 601

    Tesselator

    Joined:
    Jan 9, 2008
    Location:
    Japan
    #14
    Hhehehe. :D Or a 2K RPM maybe? I wouldn't mind being able to afford enough of them for a 4TB RAID. :D


    http://kakaku.com/item/K0000017674/
    I used this site. I used the PC DEPOT store link because they're the cheapest w/free shipping.


    Ouch! $350 street.

  14. nanofrog macrumors G4

    Joined:
    May 6, 2008
    #15
    Hmm... Somehow I see this approaching a new reasonably priced car. :eek: :D :p

    Whoa... That would take a bite out of one's wallet. :eek: ;)

  15. Mac Husky macrumors regular

    Joined:
    Mar 28, 2009
    Location:
    Bavaria, Germany
    #16
    Right, but YOU can afford a couple of those saving the bugs by buying a Mac in the States or elsewhere instead of Germany :D
    So everything is relative ;)

    But on the other side one of the disks, that has the same price here.
    And that´s just doubled price of the RE3 1TB (cheapest online price 173 USD :eek:). So worth thinking about it.
    More performance, less noise, less power consumption, less vibrations.

    Maybe worth waiting for smaller RE4 disks for planned RAID0 instead of buying RE3 now?!

  16. DoFoT9 macrumors P6

    DoFoT9

    Joined:
    Jun 11, 2007
    Location:
    Singapore
    #17
    Tess you never cease to amaze me, the info you contain in that brain is like a big bunch of woaaah :eek:

    i wish we could transplant your knowledge into my head :) probably wouldnt fit though :( *wishes matrix was around*

    i voted very informative :p

  17. Tesselator thread starter macrumors 601

    Tesselator

    Joined:
    Jan 9, 2008
    Location:
    Japan
    #18
    So I'm a fart smeller... Oops, I mean smart feller... Gee thanks man! :D

  18. DoFoT9 macrumors P6

    DoFoT9

    Joined:
    Jun 11, 2007
    Location:
    Singapore
    #19
    oh :eek: you ripped one!!

    hahaahhah

    complements are given where they are deserved

  19. nanofrog macrumors G4

    Joined:
    May 6, 2008
    #20
    I've not looked at the price structure in Germany, so I don't know how much more it costs vs. the US on an identical machine.

    Hmm... If you're planning on RAID, and the usage is write intensive, I'd rethink the use of SSD's. The reasoning, is the UBE of the flash isn't anywhere near what an enterprise disk is. 1E4/1E5 for SSD, vs. 1E15 for enterprise. Even with write leveling and TRIM, I can't see the SSD's UBE increasing that much. None of the articles I've seen gives any proof that it actually can. Given my experience with flash memory, I remain very skeptical. ;)
    WARNING: You might go totally insane. :eek: :D :p

  20. Mac Husky macrumors regular

    Joined:
    Mar 28, 2009
    Location:
    Bavaria, Germany
    #21
    As it is off topic, just a short overview:
    2.66 Quad standard configuration: € 2.299 = USD 3.250
    2.93 Quad standard configuration: € 2.749 = USD 3.886
    2.26 Octo standard configuration: € 2.999 = USD 4.239
    2.66 Octo standard configuration: € 4.259 = USD 6.020
    2.93 Octo standard configuration: € 5.339 = USD 7.547

  21. nanofrog macrumors G4

    Joined:
    May 6, 2008
    #22
    OUCH! And I thought they were overpriced here in the US... That's just insane. :(

  22. DoFoT9 macrumors P6

    DoFoT9

    Joined:
    Jun 11, 2007
    Location:
    Singapore
    #23
    after some vague considerations:: id take it. all smart people are crazy in some way - i would fit the stereotype :)

    2.66 Quad $4499AUS = £2207 (= $3599US) - normal US = $2499
    2.93 Quad $5499Aus = £2697 (= $4399US) - normal US = $2999

    something doesnt make sense here.. australias prices are cheaper then UK but more expensive then US - quite considerable too :confused:

  23. Mac Husky macrumors regular

    Joined:
    Mar 28, 2009
    Location:
    Bavaria, Germany
    #24
    Probably they are ;) But another 30% :)eek:) more overpized in Germany :D

  24. nanofrog macrumors G4

    Joined:
    May 6, 2008
    #25
    Who, Me? Crazy? //whistles and eyes move about the ceiling. :D :p

    I know they're nutz on the pricing in Australia, but is it getting worse over exchange rates?
    Looking at it from what DoFoT9 has to pay, maybe we shouldn't complain so hard. ;)

    Nah. Never. :D :p
