How to install Samsung 970 EVO Plus 500GB Internal SSD to Mac Pro 2009

Discussion in 'Mac Pro' started by Rohanpainter, May 8, 2019.

  1. Rohanpainter macrumors newbie

    Joined:
    Oct 18, 2018
    #1
    Hi,

    I would like to install the Samsung 970 EVO Plus 500GB Internal SSD M.2 2280 NVMe PCIe 3.0 x4 PCI Express to my Mac Pro 2009.

    Will it support ?

    How to install ? (do I need a software or any technical things to do?

    How to make it a boot drive and transferring all the Apps from the old drive.

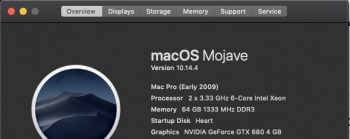

    My Mac Pro config is attached


    Attached Files:

  2. tsialex macrumors 601

    tsialex

    Joined:
    Jun 13, 2016
    Location:
    Brazil
    #2
    Samsung 970 EVO Plus is not macOS compatible. It will not work with a Mac Pro, or any other Mac, and even don't work with hackintoshes.

    Samsung 970 EVO and Samsung 970 Pro are macOS compatible. You can read about compatible NVMe and AHCI M.2 drives here: Blade SSDs - NVMe & AHCI

  3. Rohanpainter thread starter macrumors newbie

    Joined:
    Oct 18, 2018
    #3
    Thanks Tsialex for your swift reply and thorough information, what would be the fastest SSD that I can purchase for my boot up drive, and fast functioning for editing and colour grading softwares that work with 4k videos.

  4. tsialex macrumors 601

    tsialex

    Joined:
    Jun 13, 2016
    Location:
    Brazil
    #4
    Samsung 970 Pro + a switched adapter like HighPoint SSD7101-A/SSD7102 or IO Crest IO-PCE2824-TM2 (aka Syba SI-PEX40129), any other adapter will be limited at 1500MB/s.

  5. togitom macrumors newbie

    togitom

    Joined:
    Nov 6, 2009
    #5
    When you say "don't work" meaning will not boot from or will not work at all. Well, it worked perfectly for me until my 8 dollar cheap JEYI x16 card fell apart on me, I think. I have the 1TB version and it was working fine until recently. I even had a cheaper PCIE 4x card and it was working very nicely. Just wanted to see if x16 card and slot will improve the performance or not. But it didn't.

  6. bsbeamer macrumors 68020

    Joined:
    Sep 19, 2012
    #6
    Why the multiple posts about this?
    https://forums.macrumors.com/thread...sd-for-my-mac-pro-mac-pro-early-2009.2180615/

    This same link has been shared with you numerous times:
    https://forums.macrumors.com/threads/blade-ssds-nvme-ahci.2146725/

    All the information you need is in that thread. Please read it.

  7. tsialex macrumors 601

    tsialex

    Joined:
    Jun 13, 2016
    Location:
    Brazil
    #7
    970 EVO Plus is not macOS compatible. Works in a Mac for Windows or Linux, but don't work with macOS.

    You can install, but you have constant Kernel Panics, this has been showed numerous times here, just use the search. Samsung support even acknowledged it to a 970 EVO Plus owner.

  8. togitom macrumors newbie

    togitom

    Joined:
    Nov 6, 2009
    #8
    Well, you gave me a scare my friend. I have 1TB Asgard brand NVME and 1TB EVO Plus. Like I said, EVO is now waiting on its x4 card. But, until it arrives, I will back up what's in it to an external drive.

    It works fine but again, thanks for warning me.

  9. tsialex macrumors 601

    tsialex

    Joined:
    Jun 13, 2016
    Location:
    Brazil
    #9
    Start reading the page 24 of the Blade thread, there are numerous reports of problems and KPs with 970 EVO Plus https://forums.macrumors.com/threads/blade-ssds-nvme-ahci.2146725/page-24

  10. macoso macrumors newbie

    Joined:
    May 15, 2019
    Location:
    Italy
    #10
    Yesterday I just have to return back to the vendor a new samsung 970 evo plus due to the Kernel Panic on

  11. mhafeez macrumors regular

    mhafeez

    Joined:
    Oct 30, 2013
    #11
    Samsung just released latest firmware for 970 EVO Plus. Now it works flawlessly on Macs/Hackintoshes

  12. bsbeamer macrumors 68020

    Joined:
    Sep 19, 2012
    #12
    Magician is STILL Windows-based only. All other downloads are ISO that need to be booted with the note "Notice: ISO files may be used only via DOS using a bootable CD/DVD."

    Some Mac users will (still) have issues with this on MacPro's...

    https://www.samsung.com/semiconductor/minisite/ssd/download/tools/

  13. fatespawn macrumors regular

    fatespawn

    Joined:
    Feb 22, 2009
    Location:
    Chicagoish
    #13
    I assume you need Windows to update the firmware?

  14. EL34 macrumors newbie

    EL34

    Joined:
    Thursday
    Location:
    North Carolina
    #14
    Any word on this? I'd have to dig out an old machine - haven't used windows in a long time.

  15. tsialex macrumors 601

    tsialex

    Joined:
    Jun 13, 2016
    Location:
    Brazil
    #15
