MP 1,1-5,1 How to rescan SATA ports without restarting?

mrjayviper

macrumors regular
Original poster
Jul 17, 2012
234
14
I want to hot swap SATA drives but unsure what command to run so macOS Mojave can recognize the new drive. Thanks


bookemdano

macrumors 65816
Jul 29, 2011
1,211
701
"Features

The Tempo SATA Pro Plus supports hot-swapping of external drives under OS X, and supports booting from attached drives under OS X"
https://no-trouble.com/hardware/585-tempo-ssd-pro-plus.html
When did OP refer to using a "Tempo SATA Pro Plus" card? I think he would have mentioned if he was using one.

My answer refers to the built-in SATA controller on the Mac Pro's logic board, which it's safe to assume the OP was asking about.

  • Like
Reactions: mikehalloran

chrfr

macrumors G3
Jul 11, 2009
8,203
2,530
I want to hot swap SATA drives but unsure what command to run so macOS Mojave can recognize the new drive. Thanks
Don't do that. The Mac Pro's drives are not intended to be hot swappable, and you're going to cause yourself some problems by trying to do so.


H2SO4

macrumors 601
Nov 4, 2008
4,353
3,752
I’m won
Don't do that. The Mac Pro's drives are not intended to be hot swappable, and you're going to cause yourself some problems by trying to do so.
I’m wondering. Somebody made a program that makes external drives appear as internal.
Now just a maybe......
Maybe the reverse can be done and when finished with a drive you eject it and remove?


chrfr

macrumors G3
Jul 11, 2009
8,203
2,530
I’m won

I’m wondering. Somebody made a program that makes external drives appear as internal.
Now just a maybe......
Maybe the reverse can be done and when finished with a drive you eject it and remove?
No, this is about the SATA controller itself. Hot swappable drives were considered for the Mac Pro but in the end were not included in production computers.

  • Like
Reactions: mikehalloran

mikehalloran

macrumors 68000
Oct 14, 2018
1,600
390
The Sillie Con Valley
No, this is about the SATA controller itself.
Exactly. It is possible to totally screw up a SATA SSD to the point where you hope that it's still under warranty.

eSATA is a little different. If you can eject the drives from the desktop and then turn off your external dock, you stand a chance of not damaging them on removal. They will not reappear on the desktop without shut down and restarting the dock before booting up.


chrfr

macrumors G3
Jul 11, 2009
8,203
2,530
Actually, the drives are hot swappable - but not when installed on a cMP internal SATA port.

The fault is with the cMP, not with the drives.
A rather semantic point, but yes, that's correct. The Mac Pro's SATA controller does not support hot swapping of disks; not even Apple's Mac Pro RAID card supported it. Presumably, Apple wanted buyers to steer toward the Xserve for that functionality.


bsbeamer

macrumors 68020
Sep 19, 2012
2,402
1,116
Presumably, Apple wanted buyers to steer toward the Xserve for that functionality.
Ironic since the MP5,1 was basically offered as an XSERVE replacement at one point after it was killed as a product in 2011.

Believe Apple bailed on their XSERVE RAID in 2008. Many companies stepped up for RAID5 offerings at that time (CalDigit and Promise might be most consumer popular).


tsialex

macrumors 603
Jun 13, 2016
5,382
6,100
Brazil
Thanks. I notice, however, that hot-swap is supported on other motherboards of that era (e.g. https://www.newegg.com/sr2600urbrpna-dual-intel-xeon-5500-series/p/N82E16816117123), so I assume that it was a chipset feature.

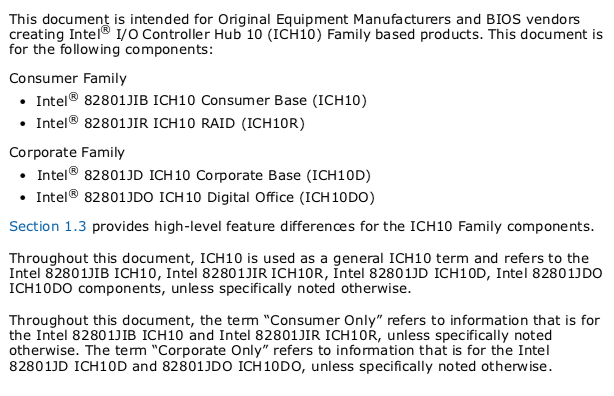

There are 4 distinct versions of ICH10 chipset, two consumer (ICH10 and ICH10R) and two corporate (ICH10D and ICH10DO):

Screen Shot 2019-07-08 at 01.11.17.png

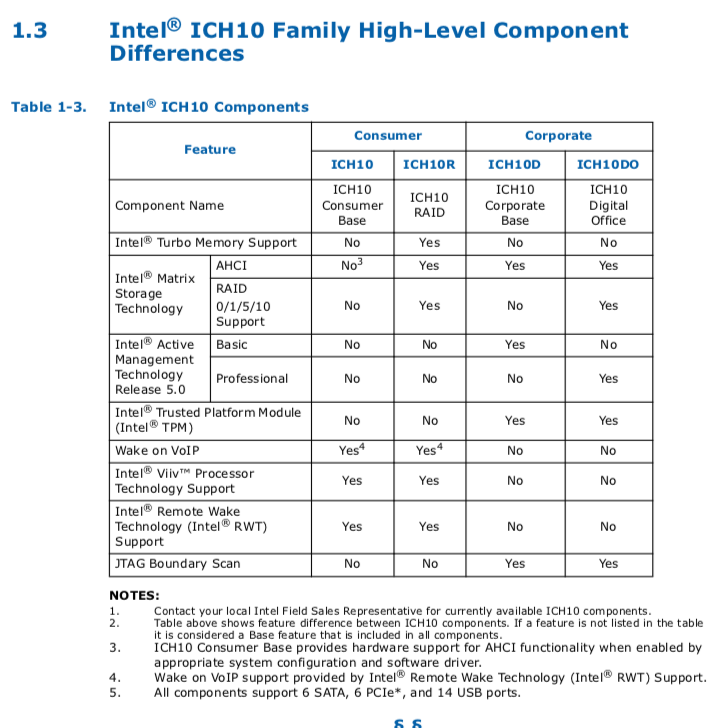

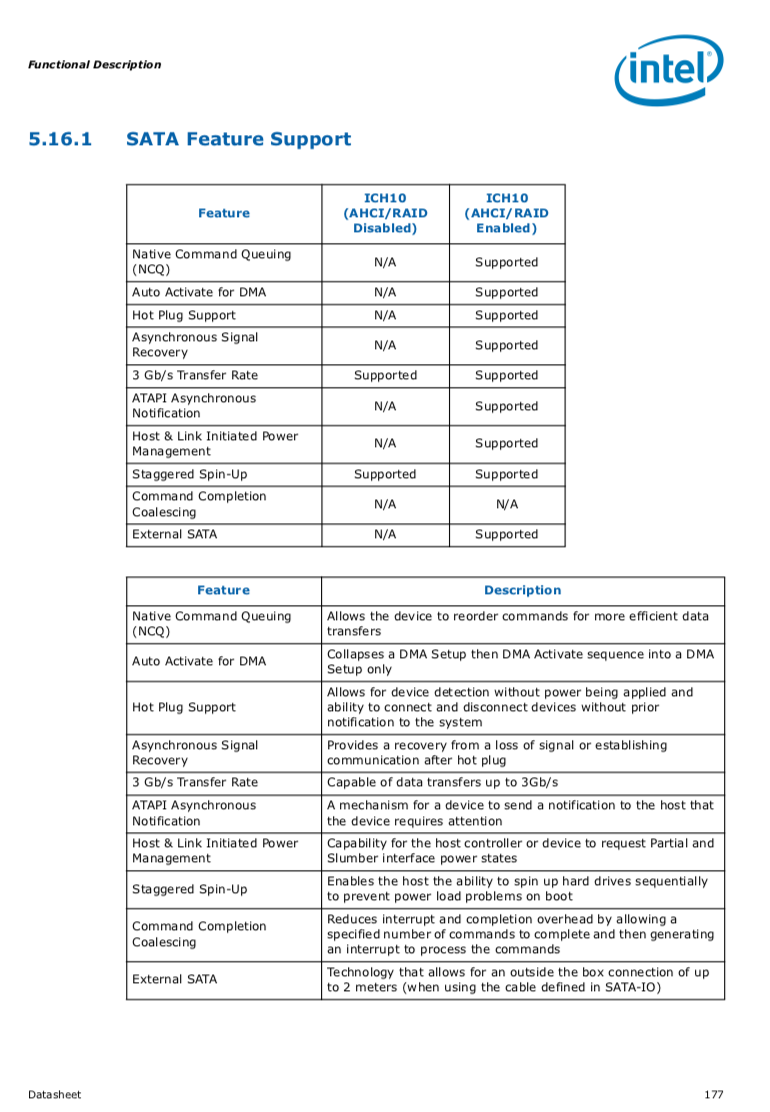

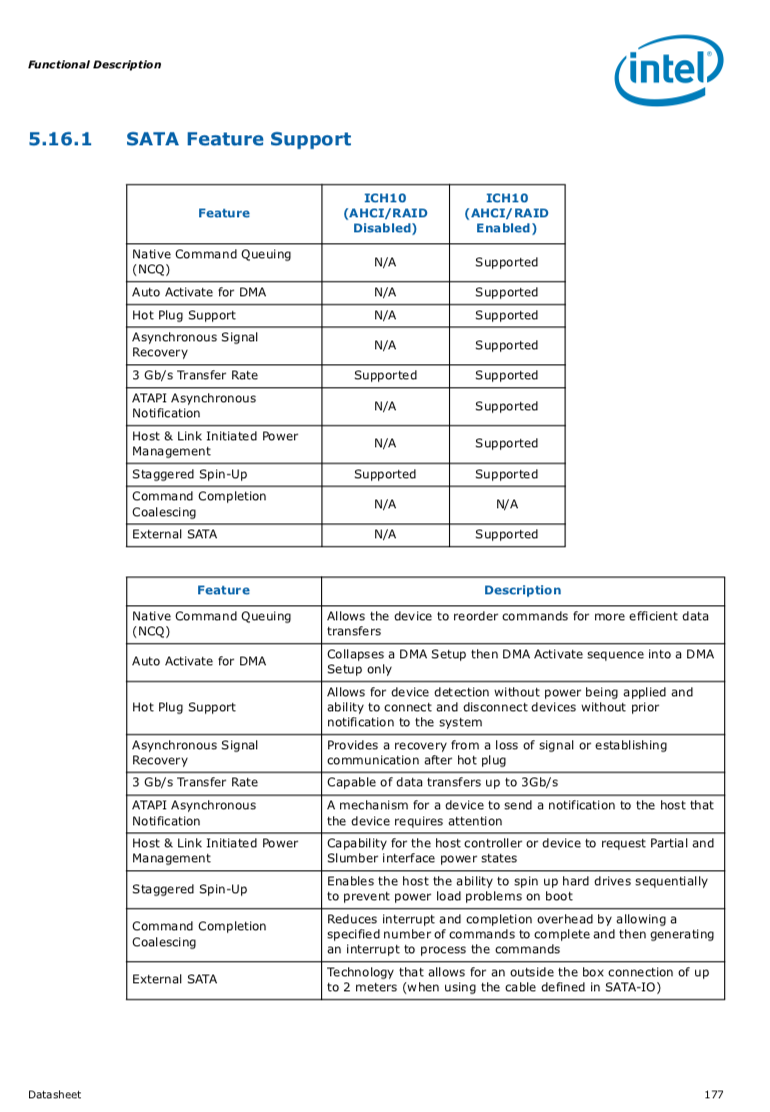

Only the ICH10R and ICH10DO have RAID/hot plug support:

Screen Shot 2019-07-08 at 01.07.27.png

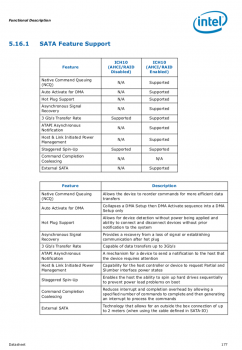

Screen Shot 2019-07-08 at 01.17.17.png

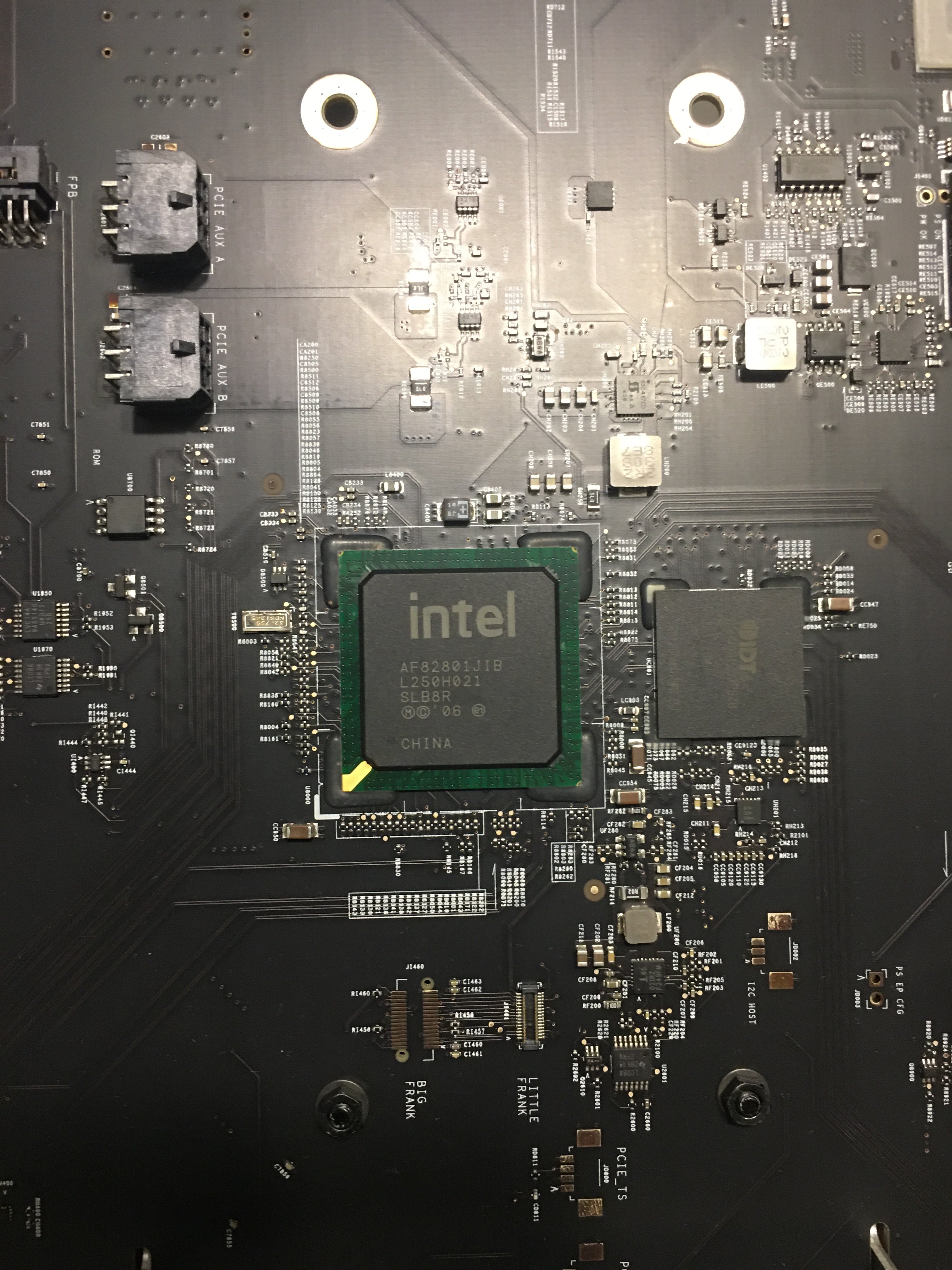

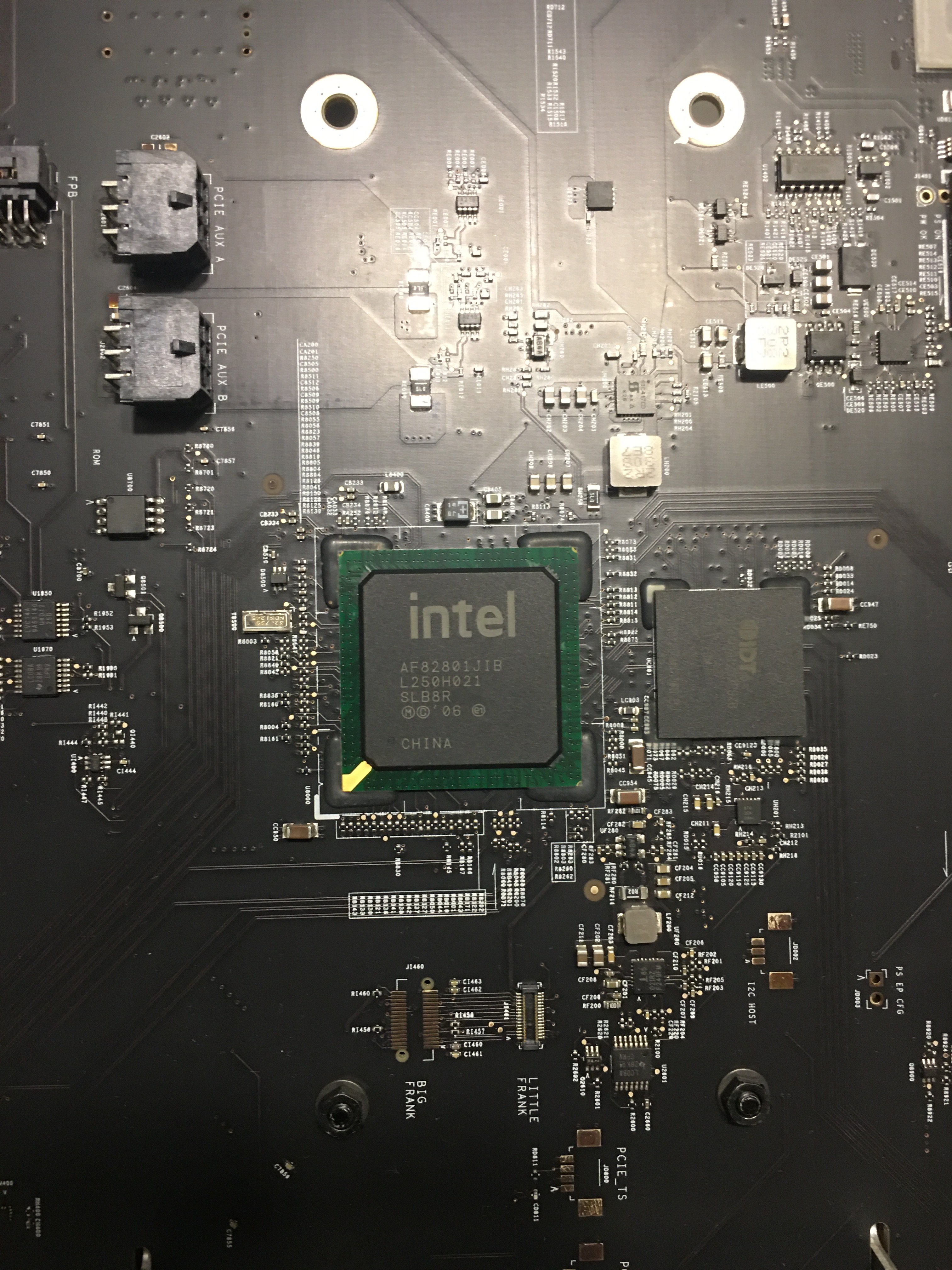

Mac Pro ICH10 version is 82801JIB, no RAID or hot plug support:


Apple was selling a real hardware SAS RAID card as an option to be used with slot-4, with a SAS mux in the backplane, probably this is the motive why they chose the simplest ICH10 version (to make a cheaper BOM).

Btw, to have hot plug support some discrete components are needed, Mac Pro don't have it, but some of the Xserve boards have them.

Last edited:

AidenShaw

macrumors P6
Feb 8, 2003
18,095
4,155
The Peninsula

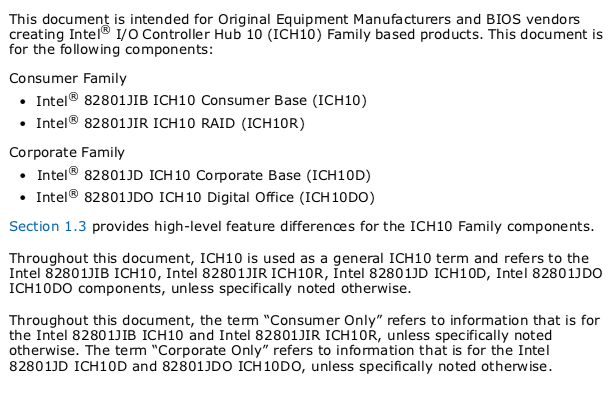

There are 4 distinct versions of ICH10 chipset, two consumer (ICH10 and ICH10R) and two corporate (ICH10D and ICH10DO):

View attachment 847182

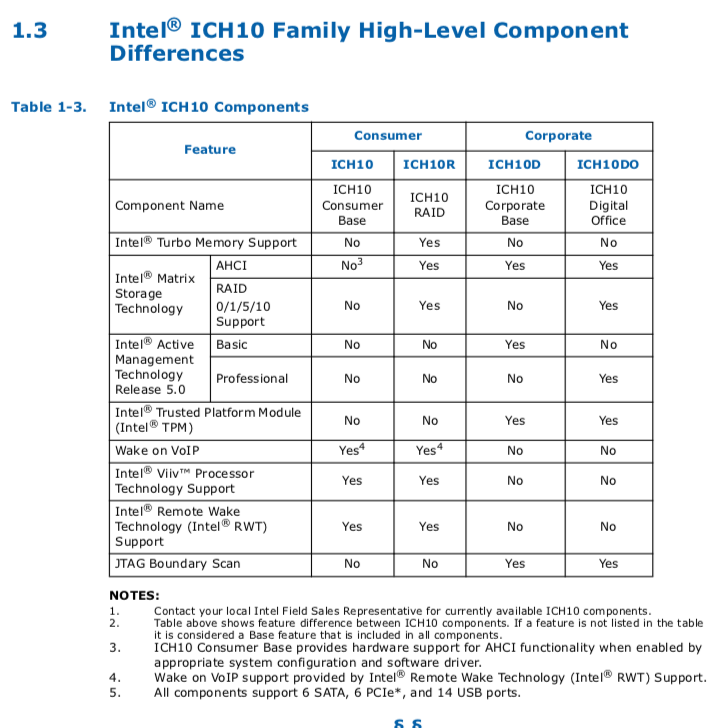

Only the ICH10R and ICH10DO have RAID/hot plug support:

View attachment 847191
View attachment 847184

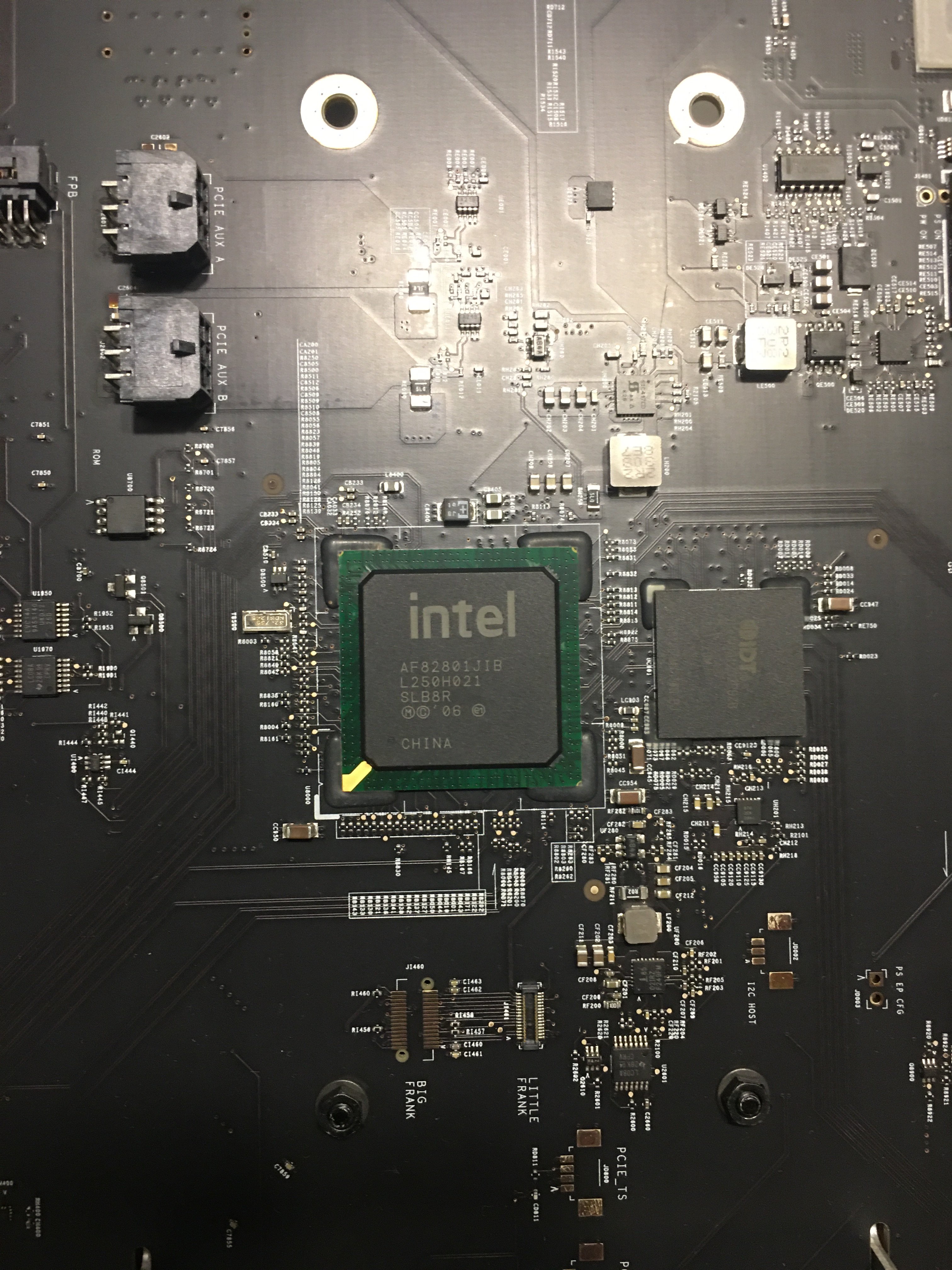

Mac Pro ICH10 version is 82801JIB, no RAID or hot plug support:

View attachment 847188

Apple was selling a real hardware SAS RAID card as an option to be used with slot-4, with a SAS mux in the backplane, probably this is the motive why they chose the simplest ICH10 version (to make a cheaper BOM).

Btw, to have hot plug support some discrete components are needed, Mac Pro don't have it, but some of the Xserve boards have them.
Thanks.
