I think I found a way to connect the LED Cinema Display

Discussion in 'MacBook' started by kenbrinkman, Apr 9, 2015.

  1. kenbrinkman, Apr 9, 2015
    Last edited: Apr 10, 2015

    kenbrinkman macrumors regular

    kenbrinkman

    Joined:
    May 20, 2009
    Location:
    Daytona Beach, FL
    #1
    I have a 24" LED Cinema display that was succeeded by the Thunderbolt display. The Cinema display uses three plugs (Magsafe, Mini DisplayPort, USB) whereas the newer Thunderbolt display only has thunderbolt and power. With the dawn of the USB-C overlord included with the rMB, I've been looking into how I could possibly connect the rMB to my beautiful LED Cinema display. I was initially disheartened when it was concluded here that the thunderbolt display wouldn't work because thunderbolt isn't included in the USB-C spec. DisplayPort, however is. So there might be hope for my cinema display after all.

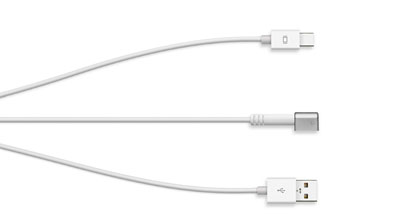

    Here's what comes off of the cinema display:
    [​IMG]

    In order for the USB hub, speakers, and camera on the display to be connected, I'll need the $79 apple adapter for one USB-C, one USB, and one HDMI (which won't be used). The regular USB will connect fine, and the USB-C will need to be split into two (one for display and one for power) through some kind of USB-C Hub. But the most difficult thing is the male mini DisplayPort from the cinema display.

    With a mishmash of adapters, here's how I think it might be possible:

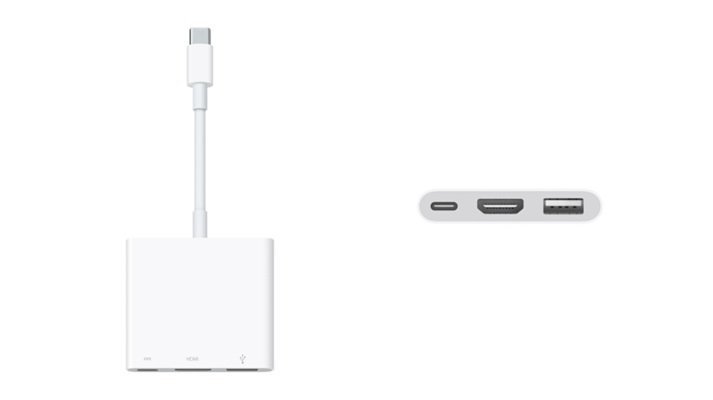

    1a. $79 Apple USB-C to USB-C, HDMI, and regular USB adapter

    [​IMG]

    1b. Hypothetical USB-C Hub is needed to connect the display and power simulatneously (if the rMB doesn't get power from the display itself)

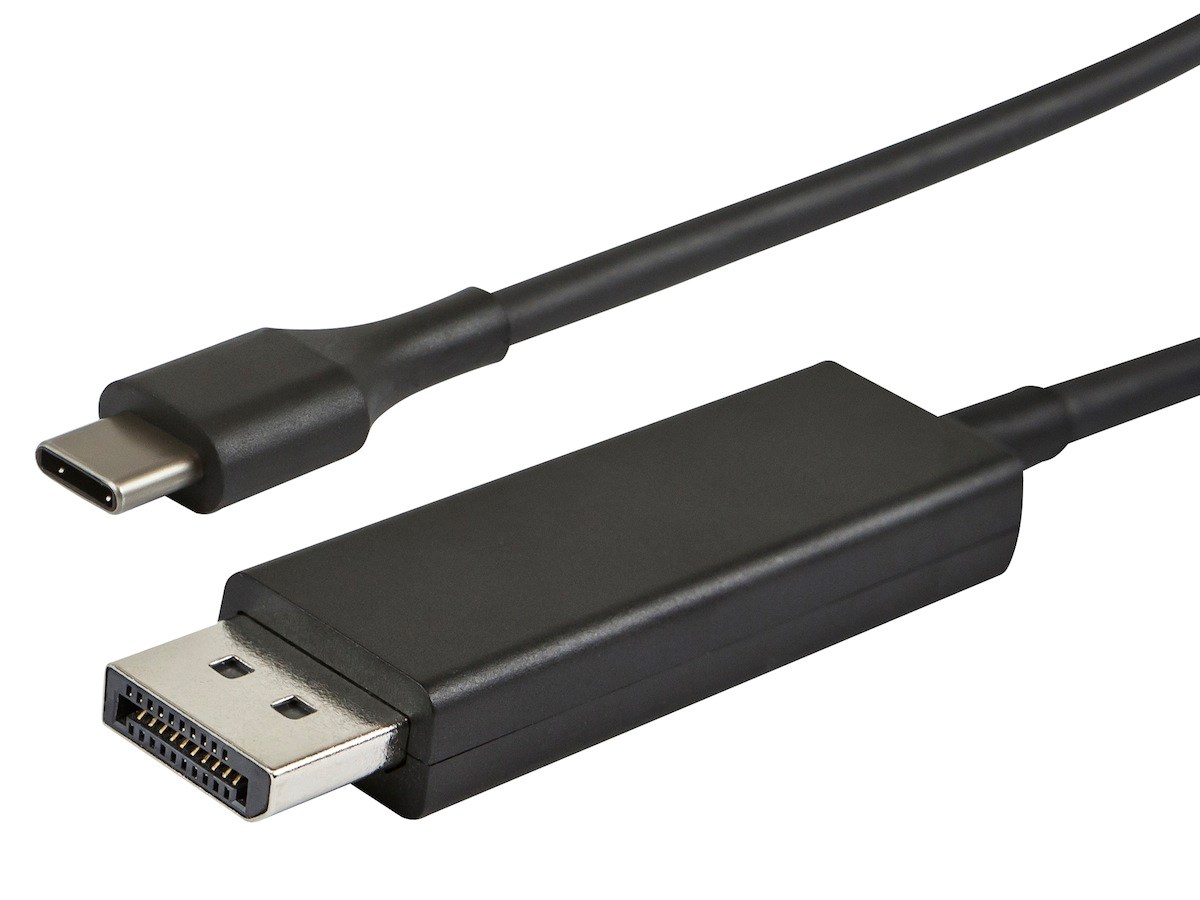

    2. Apple USB-C Adapter at the rMB to DisplayPort Monoprice Male USB-C to DisplayPort Male

    [​IMG]

    3. From DisplayPort to Mini DisplayPort Monoprice Mini DisplayPort Male to Female DisplayPort

    [​IMG]

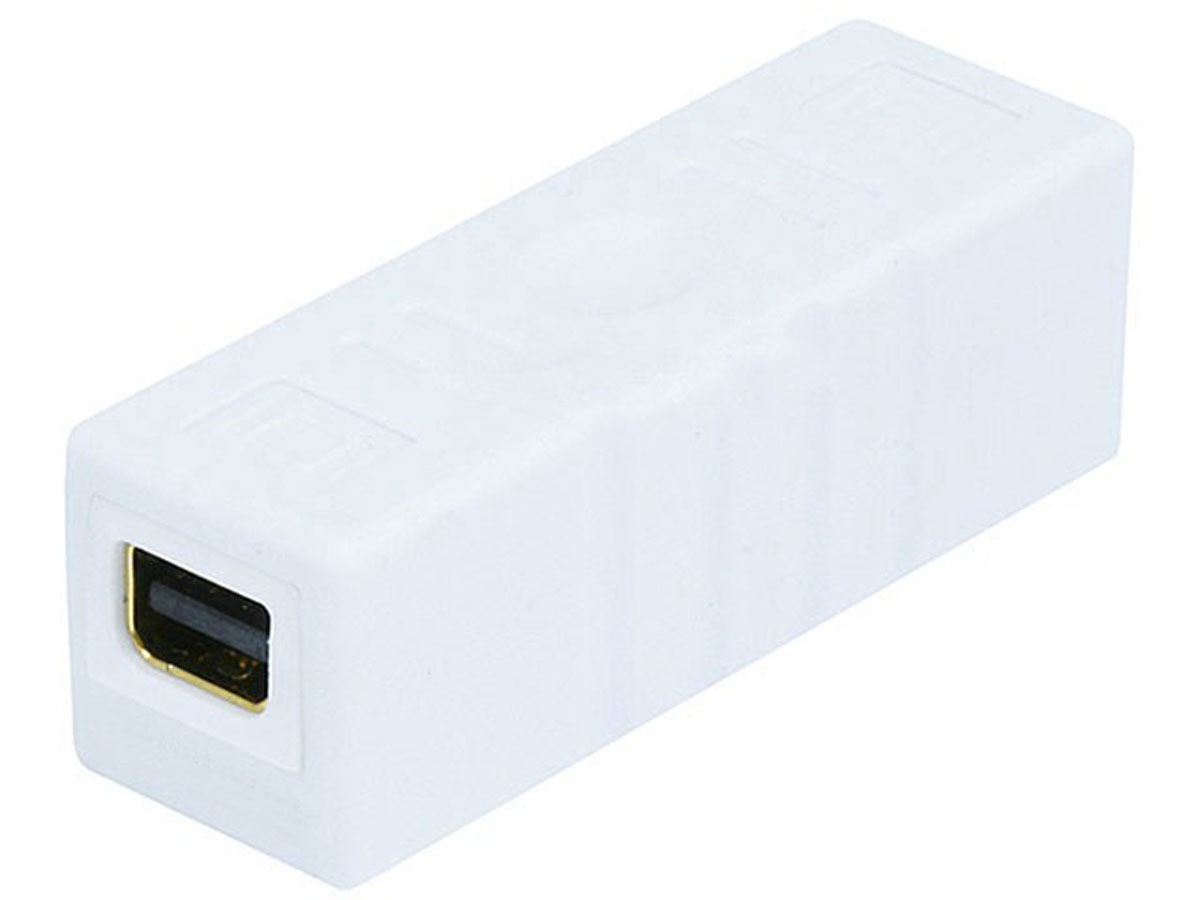

    4. Female Mini DisplayPort Coupler (for the male cinema display mini DisplayPort lead) Monoprice Female Mini DisplayPort Coupler

    [​IMG]

    With no less than five (!) adapters at a pretty unreasonable $140+, I think I could retain the functionality of my beloved (and aging) cinema display. The most ironic part is that this whole mess of cables and adapters is connected to a single tiny USB port. I guess that simplifies the docking station aspect of the cinema display. What do you guys think? Possible?

  2. jonfarr macrumors 6502a

    jonfarr

    Joined:
    Jun 29, 2012
    Location:
    Portland
    #2
    idk if that will work with all the adapters, but I'm no expert and I didn't even sleep at a holiday inn express either...

  3. powersteer macrumors member

    Joined:
    Jan 7, 2015
  4. gglockner macrumors 6502

    gglockner

    Joined:
    Nov 25, 2007
    Location:
    Bellevue, WA
    #4
  5. Freyqq macrumors 68040

    Joined:
    Dec 13, 2004
    #5
    Yep, that should work. The key is that monitor is mini-dp and not thunderbolt.

  6. Dandu macrumors regular

    Joined:
    Jan 23, 2009
    #6
    @gglockner : your solution will not work.

    It's a (mini)DP to HDMI cable, and it's not reversible : you can't use it to connect a DP display (like Apple Display) to an HDMI output.

  7. dyt1983, Apr 10, 2015
    Last edited: Jun 2, 2015

    dyt1983 macrumors 65816

    Joined:
    May 6, 2014
    Location:
    USA USA USA
    #7
    edit: To remove personally identifying information not relevant to the thread.

  8. gglockner macrumors 6502

    gglockner

    Joined:
    Nov 25, 2007
    Location:
    Bellevue, WA
    #8
    It's not bidirectional? Harumpf.

  9. redheeler macrumors 603

    redheeler

    Joined:
    Oct 17, 2014
    #9
    I'm still surprised at how expensive that adapter is :eek:

    That is correct, I have tried to use mine the other way around without success.

  10. gglockner macrumors 6502

    gglockner

    Joined:
    Nov 25, 2007
    Location:
    Bellevue, WA
    #10
    OK, so the OP's suggestion will work for DisplayPort video, but then you cannot simultaneously connect DisplayPort video and power? That's awful.

  11. kenbrinkman thread starter macrumors regular

    kenbrinkman

    Joined:
    May 20, 2009
    Location:
    Daytona Beach, FL
    #11
    You can, you just need a yet-to-be-relseased USB-C Hub. (one for display, one for power)

  12. Dandu macrumors regular

    Joined:
    Jan 23, 2009
    #12
    It's not a "real" adapter : it's a passive link, the Graphic Card send a real HDMI signal in the DisplayPort connector, and it's routed to the HDMI connector.

    Real adapter are very expansive, and there is HDMI to DisplayPort on the market (by Kanex), but with a MacBook, i think it's limited to 1080p.

  13. ctyrider, Apr 10, 2015
    Last edited: Apr 10, 2015

    ctyrider macrumors 6502a

    ctyrider

    Joined:
    Jul 15, 2012
    #13
    Agreed. The only way to connect to DisplayPort screens is via USB-C to DisplayPort cables, like this one:

    https://store.google.com/product/usb_type_c_to_displayport_cable

    Trouble with that is - there is no way to charge rMB while using your display. We will have to wait for USB-C hubs to become available to be able to do this.

    EDIT: I suppose using something like this could be another option (albeit not cheap one), this is an active converter not an adapter. If this works - you can connect Apple LED display via HDMI port on A/V dongle, while leaving USB-C port available for charging.

    http://www.startech.com/AV/Converters/Video/Active-HDMI-or-DVI-to-DisplayPort-Converter~HDMI2DP

  14. legioxi macrumors 6502a

    Joined:
    Mar 2, 2013
    #14
    Unfortunately that is limited in resolution:


  15. ctyrider macrumors 6502a

    ctyrider

    Joined:
    Jul 15, 2012
    #15
    1920x1200 is the max resolution of Apple 24" LED Display. Isn't that what we are trying to connect?

  16. legioxi macrumors 6502a

    Joined:
    Mar 2, 2013
    #16
    I was thinking the 27" Apple Cinema Display. Identical display to the TBD except no Thunderbolt requirement.

    EDIT: I see the OP was indeed speaking about the 24". I stand corrected.

  17. NathanA macrumors 6502a

    Joined:
    Feb 9, 2008
    #17
    The other problem with any of these solutions is that it will not allow you to use the USB ports built into the monitor.

    -- Nathan

  18. kenbrinkman, Apr 10, 2015
    Last edited: Apr 10, 2015

    kenbrinkman thread starter macrumors regular

    kenbrinkman

    Joined:
    May 20, 2009
    Location:
    Daytona Beach, FL
    #18
    Well the first step is the $79 Apple USB-C adapter which has a USB-C, HDMI (which can't be used for the display) and a regular USB. The USB lead from the display is connected to the USB port on the $79 adapter and the display's USB hub, iSight camera, speakers, etc. should all work.

  19. ctyrider macrumors 6502a

    ctyrider

    Joined:
    Jul 15, 2012
    #19
    It can, with than active converter, like the one I linked to above.

  20. kenbrinkman thread starter macrumors regular

    kenbrinkman

    Joined:
    May 20, 2009
    Location:
    Daytona Beach, FL
    #20
    Right it's possible, but it's expensive and has pretty poor reviews. A native option might work better even though you need an additional adapter.

  21. HelsinkiMac macrumors member

    Joined:
    Feb 20, 2010
    #21
    My issue is even worse, attempting to get an old apple cinema display HD (1920x1200) with the apple ADC connector to work! Currently works fine with a macbook air and minidisplayport to DVI adaptor and the active Apple DVI to ADC adaptor. I haven't figured out how to get 1920x1200 DVI which is what I need, since the VGA/HDMI adapters only output 1920x1080. Any ideas?!

  22. dyt1983, Apr 11, 2015
    Last edited: Jun 2, 2015

    dyt1983 macrumors 65816

    Joined:
    May 6, 2014
    Location:
    USA USA USA
    #22
    edit: To remove personally identifying information not relevant to the thread.

  23. ctyrider macrumors 6502a

    ctyrider

    Joined:
    Jul 15, 2012
    #23
    You're wrong on most of these points:

    Pretty sure USB-C port on A/V adapter is not just for power. Yes, that's how Apple intends it to be used, but I there is no such thing as "USB-C power only" port specification.

    USB-C hubs will appear sooner rather than later. Some are already in development, like this one.

    USB-C DisplayPort adapters/cables already exist, no need to wait.

  24. dyt1983, Apr 11, 2015
    Last edited: Jun 2, 2015

    dyt1983 macrumors 65816

    Joined:
    May 6, 2014
    Location:
    USA USA USA
    #24
    edit: To remove personally identifying information not relevant to the thread.

  25. ctyrider macrumors 6502a

    ctyrider

    Joined:
    Jul 15, 2012
    #25
    Anything is possible, but I'd be surprised if that's the case. We will know soon enough.

    Ah, OK sorry. Yes I am sure such adapter will exist at some point. I wish Apple's $79 adapter had mDP rather than HDMI port - then it would've been perfect.
