iFixit Tears Down Apple's Fifth-Generation iPod Touch

Discussion in 'MacRumors.com News Discussion' started by MacRumors, Oct 11, 2012.

  1. MacRumors macrumors bot


    Apr 12, 2001

    The teardown experts at iFixit have turned their attention to Apple's fifth-generation iPod touch, moving quickly to examine the internals of the company's redesigned device.

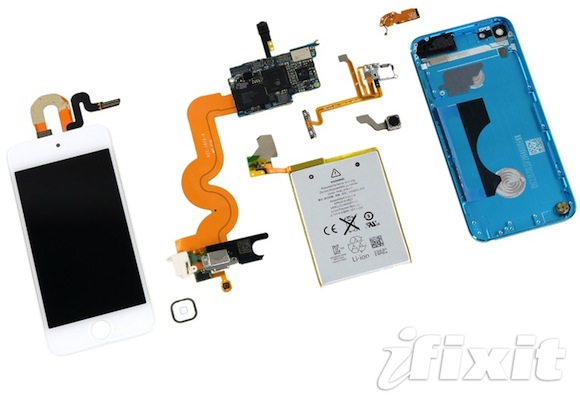

    The teardown reveals few surprises, but offers a good look at how Apple has been able to pack all of the components into a body that has 20% less volume than the iPhone 5. With a lack of cellular communications technology, the iPod touch carries fewer components and consolidates them into just a handful of parts. Most notably the logic board and battery are smaller than seen in the iPhone 5 and carry a top-and-bottom layout as opposed to the side-by-side layout seen in the iPhone.

    One aspect of the teardown that did catch our eye is the Lightning connector and headphone jack assembly, which contains a long ribbon cable extending from those ports at the bottom of the device up to the logic board at the top. This part was seen several times back in August and was at the time claimed to be for the "iPad mini".

    Those claims led to confusion over whether the iPad mini's headphone jack would be located at the bottom as on the iPhone 5 and the iPod touch or on the top as in the full-size iPad and as seen in mockups and cases reportedly based on leaked iPad mini design specs. With the appearance of this part in the iPod touch, the discrepancy has now been resolved and signs are pointing to the iPad mini's headphone jack being along the top edge of the device.

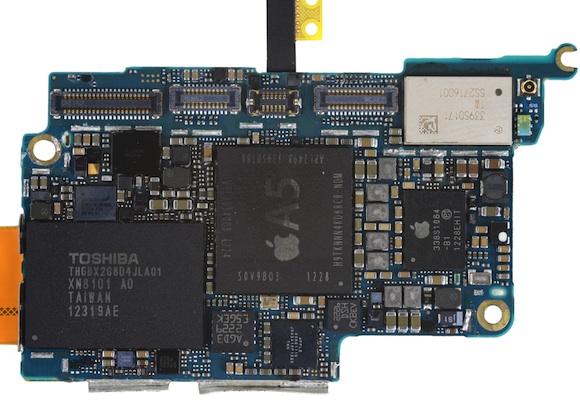

    Other aspects of the device are fairly standard, with the logic board revealing Apple's A5 system-on-a-chip, flash storage from Toshiba, and the usual assortment of chips for handling Wi-Fi, touchscreen functions, gyroscope, and more.

    Overall, iFixit found the new iPod touch to be difficult to repair, with many components soldered together and the device held together with adhesives and clips that make it difficult to open. The revelation is not a surprise, as Apple does not intend its mobile products to be user-serviceable and the company's efforts to push the limits of design and size reduction have led it to sacrifice accessibility.

    Article Link: iFixit Tears Down Apple's Fifth-Generation iPod Touch
  2. flopticalcube macrumors G4


    Sep 7, 2006
    In the velcro closure of America's Hat
  3. gpat macrumors 6502a

    Mar 1, 2011

  4. krause734 macrumors regular


    Jul 30, 2010
    Look up in the sky! It's an iPhone 4s! No, it's an iPhone 5! It's an iPad Mini! No, it's an iPod Touch 5!!!
  5. pOK macrumors newbie

    Oct 8, 2012
    Gold Coast, Australia
    Someone's sleepy ;-)

  6. riverob macrumors member

    Jun 29, 2010
    That's what Applecare is for...
  7. WildCowboy Administrator/Editor


    Staff Member

    Jan 20, 2005
    Thanks...I read it over twice and missed both of those. :)
  8. iSee macrumors 68040


    Oct 25, 2004
    Right, because that's what people really want to do with their Ipods: repair them.

    Right now there are people tearing open the package containing their brand new iPod Touch, putting a screw driver to it, finding it diffucult to repair and howling to the heavens:

    "Oh Noooo! It's not repairable!!! I can't believe I paid $300 for this thing! Damn you Apple! Damn you to hell!"

    Seriously, the market has spoken. People value small size and improved battery life over repairability. If Apple made it larger or made the battery smaller in order to make it more repairable, people would be less willing to pay $300.
  9. daneoni macrumors G4


    Mar 24, 2006
    Its a harder sell this year. Starts at $299 and is still far too reliant on the dinosaur that is iTunes.
  10. flopticalcube macrumors G4


    Sep 7, 2006
    In the velcro closure of America's Hat
    Yep. Extended warranties are the biggest profit center in any company and AAPL knows it.
  11. QCassidy352 macrumors G3


    Mar 20, 2003
    Bay Area
    What isee said. Seriously guys, about .0001% of users would trade thinness for the ability to tear open their iPod and fiddle with things. If you're in that small group... Well, sorry. The market isn't on your side.
  12. Jsameds macrumors 68030

    Apr 22, 2008
    Haha :D Like it!
  13. Meroigo macrumors newbie

    Jun 15, 2012
    It is? Can't you setup an iOS device without a computer nowdays? Buy and download your apps/music/video from iTunes store with the device itself over Wifi.
  14. WLS macrumors 65816

    Jul 10, 2008
    Read the source article, the MR editor misses one of the more important surprises!
    "When comparing the Touch to the iPhone 5 display assembly, it's apparent that this is a much simpler, cheaper design, despite Apple claiming the two have very similar functionality."
  15. elvetio macrumors member

    May 29, 2012
  16. crazy4apple macrumors regular

    Jan 26, 2010
    London (UK)
    where's the Ipad Mini Invites WSJ said

    I thought Walt Mossberg was tight with Tim. what happened to the rumor that invites for the Ipad mini would come on the 10th yesterday :(
  17. commander.data macrumors 6502a

    Nov 10, 2006
    It'd be good if they measured the A5 die size just to confirm the iPod Touch is using the 32nm version that is generally expected.
  18. shanmugam macrumors 68020


    Sep 24, 2008
    Blazer town!
    Looks good, need to go to store to take a hands on look.

    any one got iPod touch instead of iPhone 5?
  19. turtlez macrumors 6502a


    Jun 17, 2012
    lol @ people complaining you cannot repair it. Same kind of thing as non user replaceable battery. Ask how many people replace the battery in their smart phones (non iPhone) and I bet less than 1% have. I have had a nokia 6220 since 2005 and the battery is still fine.

    Hilarious how people use it as an argument not to buy from Apple. They always get caught out when I say "Yeah I would never buy from Apple because I cannot replace the battery in 10 year time!"

    Looks > Replacing battery in 10 years when your phone will be extinct just in the hardware performance department.

    Why buy a battery for a laptop that can only run windows 3.1? Get me?
  20. mesostinky macrumors newbie

    Oct 5, 2012
    I posted the same thing other day but I'll repeat it again because I think it is a valid point. The way Apple treats the Touch really annoys me. First off they hamper it with a previous generation cpu and half the ram vs the iphone. Second they use a cheaper screen. Third a weaker previous generation camera. Fourth no gps. And to top it off they charge the same price as an iphone. So by all outward appearances you are getting an iphone minus the cell chipset but in reality they cut corners almost everywhere and give you a cheaper built product. They can of course choose to do that, but then cut the price. And yes I realize an unlocked iphone is more expensive but then again I can buy an iphone from any carrier for those cheaper "subsidized" prices right now, so the comparison holds.
    I've owned a few Touch's and think they are cool devices. But lower the darn price already.
  21. WildCowboy Administrator/Editor


    Staff Member

    Jan 20, 2005
    I'm not entirely sure what they mean by that, but I think they're referring to the overall assembly, including the sturdier home button and the other sensors needed in the iPhone 5. The display panel itself looks the same to me.

    Forbes was the source of that rumor, and PED admitted that he shouldn't have published it.
  22. jabingla2810 macrumors 68020

    Oct 15, 2008
    Amazing to see the inside of the aluminium case has been treated to the same colour as the outside.

    Nice touch.
  23. Zunjine macrumors 6502a

    Jun 26, 2009

    People who are into tech often forget how not normal they are. And I say this as someone who loves techies. I really do. But if you're here, talking about this, then you are not normal. Even those of us who are casual techies are still way outside of the bellcurve. We are outliers and we shouldn't forget that - these design choices aren't made with us in mind.


    The iPhone 5 with 32GB of internal storage is £599 here in the UK. The entry price new iPod touch has the same internal memory and costs £249. I don't know how you make that the same price. For £249 this is one hell of a good device. Brilliant screen, screaming fast processor, HD video recording, facetime, Siri. This is a great little device for that money and not nearly as expensive as the iPhone 5.
  24. aneftp macrumors 68040

    Jul 28, 2007
    512MB RAM in iPod Touch 5th gen.

    That's 1/2 the RAM as the iPhone 5.

    iPod Touch for at least the first 3 generations were at least as fast or slightly faster than their iPhone counterparts cause it was "tweaked" as a gaming device.

    Now iPod Touch is the step sister to the iPhone. Never getting the lastest gen specs.

    For $299. I can find a very good condition or mint iPhone 4S 16GB. Some of which still have 4-6 months of warranty left on craigslist.
