iMac Pro - First Hands On Thread

Discussion in 'iMac' started by bplein, Dec 23, 2017.

  1. nick82 macrumors newbie

    Joined:
    Apr 29, 2010
    #101
    Here you go.

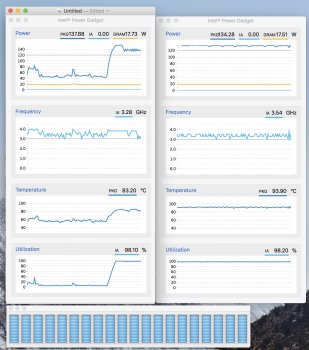

    I saved a screenshot of the initial ramp up (the charts on the left) and then let it keep running until everything hit steady state (on the right).

    Nick


    Attached Files:

  2. Trebuin macrumors 65816

    Trebuin

    Joined:
    Jun 3, 2008
    Location:
    Central Cali
    #102
    Thanks Nick. That picture is worth its weight in gold. Basically, we need a much longer benchmark on the CPU to tell the actual performance as that picture shows the 8 core should out perform the 10 core on single thread, & the multi thread performance actually matches geek bench. There appears to be a bit more thermal throttling going on there with the 10 core. I'm definitely happy with my 8 core now. It's not to say that you got ripped off...especially if you're a high cpu user like myself. I just don't do enough work to benefit enough from the extra savings off the 10 core vs what I already get from the 8 core over the i7.
    --- Post Merged, Dec 28, 2017 ---
    One more thing, could you keep the intel gadget up & also run only geek bench to see what the temps & clock are doing with that please?

  3. ThatSandWyrm, Dec 29, 2017
    Last edited: Dec 29, 2017

    ThatSandWyrm macrumors regular

    ThatSandWyrm

    Joined:
    Oct 30, 2017
    Location:
    Indianapolis
    #103
    From what I'm seeing in my app testing, the case for the 10-core is purely about getting the higher clock speed. While anything above 8-10 cores will likely (depending on the specific multi-core optimizations of your software) see rapidly diminishing returns, and in some cases you may actually see slower processing times due to core management algorithms originally written with 4-core processors in mind. Where data is loaded and processed on all cores together at one time (like a horse race), and 90+% of the cores are forced to wait for the outliers to finish before receiving new data. Causing the utilization on 8-10 core Xeons to never go over 50-60% of their theoretical maximum.

    Which is why every 4-core computer I have is smoking my new iMP on CPU processing. In the horse-race model, the 4-core chips are less likely to hit those computation outliers in any particular run, and when they do hit them, only 3 cores are forced to wait on the outliers instead of 7 or 9. That, combined with their higher clock speeds, means that they come much closer to hitting their theoretical maximum performance.

    So really, 8-cores should be more than enough for 99% of the 1% of users the iMP is aimed at. Ten if you want slightly better single-thread performance. If you go higher than 8-10, you should be intimately familiar with how your apps feed data to their cpu cores, and know beforehand that more cores will help rather than hinder your computation.

    Given the problems with core usage in apps not directly optimized by Apple, the real advantage of the extra cores is simply being able to work in 2-3 demanding programs concurrently without any noticeable slowdown. That's a valuable advantage, but one that you could also achieve by buying two lesser computers that are each optimized for their specific tasks.

    EDIT: This lack of real-world performance is not a new problem in the realm of high-core count workstations. Here's a link to a posting by a Windows user who's brand new HP workstation (16 cores, 32 threads) was smoked by a MacBook Pro (4 cores, 8 threads) due to poor app optimization.

    https://forum.affinity.serif.com/in...xeon-cores-slower-than-8-core-i7-macbook-pro/

  4. Trebuin macrumors 65816

    Trebuin

    Joined:
    Jun 3, 2008
    Location:
    Central Cali
    #104
    I've been using a few other benchmarks to test out the single threaded performance & have conformed that the longer the 10 core runs, the worse it does against the 8 core...again, single threaded ops only. Think of it as a race, one person starts off sprinting & does great over the first lap, but the second person has a steady pace & eventually overtakes the first...ie, slow & steady wins the race. Your diminishing returns definitely happens at the 8 core point. It may actually occur before that, but we don't have 6 cores as an option to test. With the single threaded ops, the i7 definitely overtakes all the Xeons.

  5. ThatSandWyrm, Dec 29, 2017
    Last edited: Dec 29, 2017

    ThatSandWyrm macrumors regular

    ThatSandWyrm

    Joined:
    Oct 30, 2017
    Location:
    Indianapolis
    #105
    Maybe you missed my point, but my i7's (2015 iMac, home-built PC) are significantly smoking the iMP in some MULTI-CORE tests, not just in single-threaded apps. The issue is that the apps (or their libraries) are optimized for 4-core processors, and don't scale well at all beyond that.

    Take Agisoft Photoscan, for instance. When building a point cloud, or later a mesh from that cloud, all of the processor cores are given data at the same time. But ALL OF THEM have to complete the run before any new data is loaded. So when the run first starts, the processor is running at ~75% utilization. But on every 3rd or 4th run, it dips down to ~5-10% for 2-3 seconds because 18-19 of my core threads have completed, but one or two outliers are still processing the run. It's analogous to a horse race where everyone is standing around waiting on one injured horse to walk over the finish line before the next race can start.

    But if you're running 8 threads at a time instead of 20, you're much less likely to have a "walking horse" on any given individual run. So they hit fewer stalls, and the effect of each stall is much less damaging to overall performance because fewer cores are kept waiting for new data.

    I mean, here's my mesh generation figures from my CPU tests:

    #1 – Home built 4-core i7 PC @ 1588 seconds
    #2 – Late 2015 27" iMac @ 2460 seconds
    #3 – iMac Pro 10-Core @ 3116 seconds (51% of PC speed)

    If the program was able to use one of the 10 cores to feed new horses (data) as needed, instead of all at once, none of the cores would be sitting around waiting, and performance would drastically improve. But setting aside one core for data management like that would be worse for a 4-core processor than the one-race-at-a-time approach.

    Even when the scores are better for the iMP, they're often not drastically better:

    Dense Point Cloud Generation...

    #1 iMac Pro 10-Core @ 1133 seconds (only 37% faster than 4-core PC)
    #2 Home built 4-core i7 PC @ 1554 seconds
    #3 Late 2015 27" iMac @ 1671 seconds

    This is different from something like RAW processing in Photoshop. Where the 10 cores make a huge difference to loading times, and how fast updates to multiple images are shown. But then you save out the files and it's no faster than before because that function is single-threaded.

  6. mossback macrumors member

    mossback

    Joined:
    Nov 18, 2007
    Location:
    PNW
    #106
    Is it logical to expect that, over time, and hopefully in the near term, developers will only increase optimization and utilization of 6/8/10 or more cores? Does an app need to be developed specifically for a certain amount of cores, or can they be made to scale to what's available on a given machine?

  7. bxs, Dec 29, 2017
    Last edited: Dec 29, 2017

    bxs macrumors 6502a

    Joined:
    Oct 20, 2007
    Location:
    Seattle, WA
    #107
    Run your tests again with the software using only 4 cores on each machine. For the machines with more than 4 cores simply turn off the extra cores to make the software run on 4 cores.

    sudo nvram boot-args="cpus=4" & Restart

  8. ThatSandWyrm, Dec 29, 2017
    Last edited: Dec 29, 2017

    ThatSandWyrm macrumors regular

    ThatSandWyrm

    Joined:
    Oct 30, 2017
    Location:
    Indianapolis
    #108
    Whether or not developers will optimize for more than 4 cores (or whatever consumer chips have in the future) will depend on their market. The extremely expensive niche products like Maya will optimize for workstation-class machines first (if they haven't already), because that's what a large proportion of their users (especially the big film/game studios) are running on. The more mass-market apps like PhotoScan or Photoshop may see little upside to optimizing for more than 4 cores unless they can charge enough for a "pro" version to make a business case for the extra development time. Or unless they can just buy a code library that does all the hard work for them.

    As far as the optimizations themselves, I'm not an expert on this subject. But I do think the run-the-horses-together algorithm probably works better on ~4 cores. After that you'll have some number of cores that really need to be set aside to feed the others for higher throughput. But that's going to depend on a lot of factors. It may even be that the all-horses-at-once algorithm is still preferable because of how the CPU caches are addressed by the cores. Which you could only get around by adding more CPUs with fewer cores each. Whatever the case, it's a complex problem with no easy answers.
    --- Post Merged, Dec 29, 2017 ---
    I was just looking for how to do that. Thanks!

  9. redshift27 macrumors newbie

    redshift27

    Joined:
    Jan 6, 2017
    #109
    Somewhat simpler is to launch Instruments.app (if you have Xcode installed), go to its Preferences menu, choose CPUs and pick however many you want, +/- hyperthreading. Changed on the fly, no reboot required.

  10. ThatSandWyrm macrumors regular

    ThatSandWyrm

    Joined:
    Oct 30, 2017
    Location:
    Indianapolis
    #110
    Even better!

  11. Trebuin macrumors 65816

    Trebuin

    Joined:
    Jun 3, 2008
    Location:
    Central Cali
    #111
    You bring up an important and excellent point I have not really discussed because I made my decision based on multi-cores.

    Every user needing CPU power needs to know if they need the single core or multi core performance. This involves knowing how your software performs. Handbrake uses all of every core well, where your examples are in between multi thread and single thread ops that clearly benefit from fewer and faster cores. Others can only use one thread whereas some people just don't need the CPU power at all.

  12. RuffDraft macrumors regular

    RuffDraft

    Joined:
    Sep 16, 2012
    #112
    I'm not so sure that I deserve those accolades, but thank you very much.

    It's definitely about having fun, and I hope you have as many fun trips on the road next year as you have this year!

    All the best for the new year!!

  13. bxs macrumors 6502a

    Joined:
    Oct 20, 2007
    Location:
    Seattle, WA
    #113
    Nice addition given by redshift27 above. :)

    You can easily check you've set the core count correctly by selecting the Activity Monitor's Windows->CPU Usage. If you've set it to 4 then only 4 of the histograms will be active. Be sure to reset things when you're done testing.

  14. ay42 macrumors newbie

    Joined:
    Dec 15, 2017
    #114
    So are you or others seeing in these benchmarks that the 10 core’s higher turbo boost eventually does not make up for the lower base clock when it comes to single thread? Which benchmarks and how long are we talking about before the 8 core outperforms the 10 core? I’m about to place my order

  15. Bradleyone macrumors regular

    Joined:
    Jul 7, 2015
    #115
    Looking forward to seeing the effects of shutting off 6 cores for this software. Quite eye opening.

    Maybe it really doesn't like Xeons. Could it be using something in the i7 that a Xeon doesn't have?

  16. George Dawes macrumors 6502a

    George Dawes

    Joined:
    Jul 17, 2014
    Location:
    =VH=
    #116
    i don't need one

    but by god i want one

    the base one looks like magical to me

  17. ThatSandWyrm, Dec 29, 2017
    Last edited: Dec 29, 2017

    ThatSandWyrm macrumors regular

    ThatSandWyrm

    Joined:
    Oct 30, 2017
    Location:
    Indianapolis
    #117
    As an owner of the 10-Core, I would advise buying the higher base-clocked 8-core instead. If the iMac had a decent GPU, I'd seriously consider returning the iMP for a regular iMac with an 4+Ghz i7 chip. But not when the best GPU they're offering is an RX580.
    --- Post Merged, Dec 29, 2017 ---
    Working on the new benchmarks. They take time.

    The i7 has a much higher native clock speed. That's the killer. Their own docs recommend 4-core i7's over CPUs with more cores. Maybe it will change if they utilize the new vector instructions in the new Xeon chips we have, or aggressively re-factor their code for high number of CPUs.

    Considering the nVidia advantage in raw GPU processing (fewer cores clocked higher) over AMD GPUs (more cores clocked lower) we may be looking at a fundamental computational wall that Intel has no idea how to climb. They can't meaningfully raise clock speeds beyond 4Ghz, and substituting large numbers of slower cores seems to encounter diminishing returns very quickly. Plus GPUs scale much better than CPUs. So essentially CPUs have just become feeder mechanisms for GPUs, rather than a computational end in themselves.
    --- Post Merged, Dec 29, 2017 ---

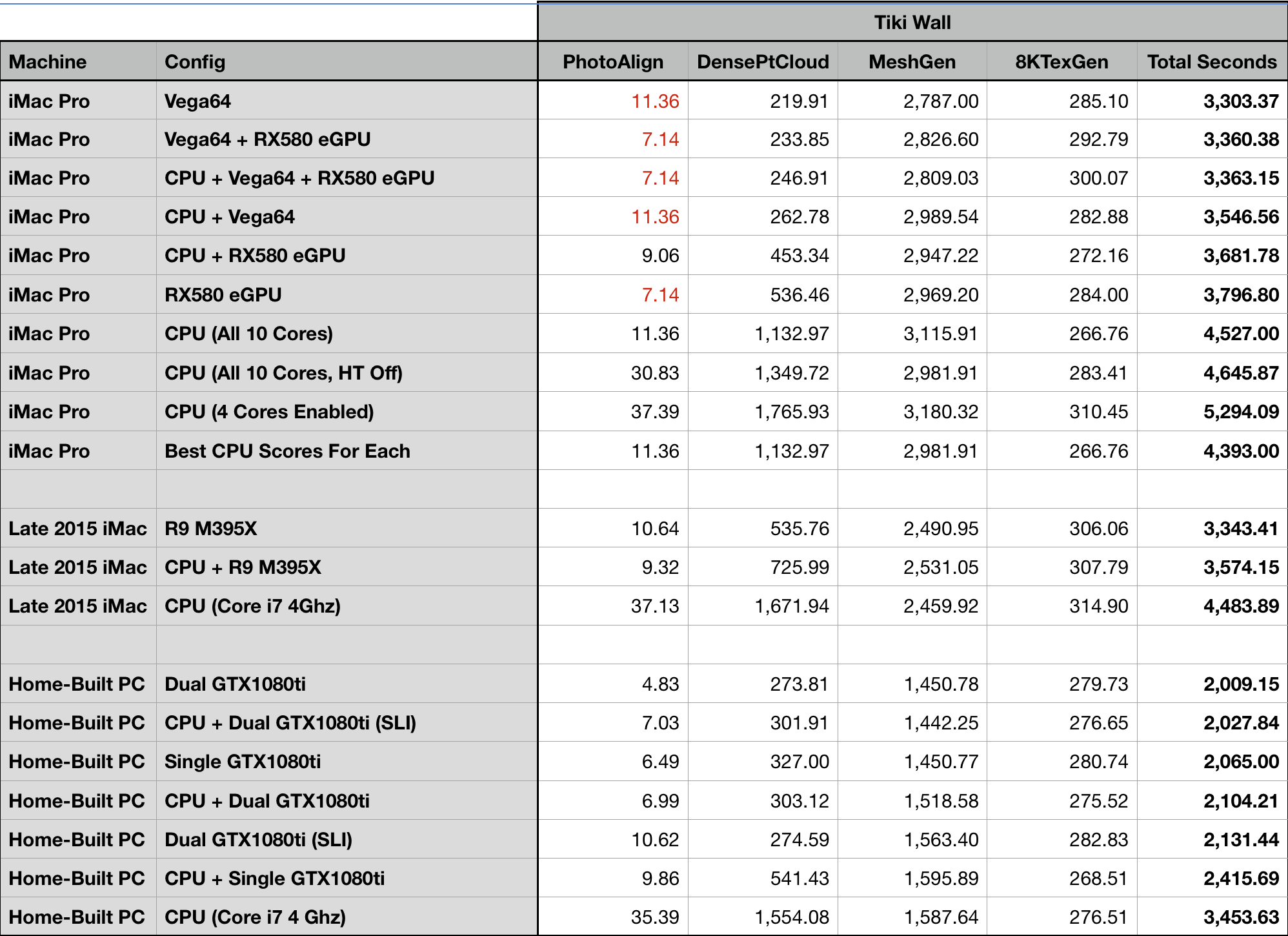

    New Benchmarks (see screenshot).

    Red numbers for the Vega tests indicate CPU calculations being substiituted for Vega tests that would have crashed when run due to a bug of some kind.

    4 cores wasn't any faster than 10 (although the actual difference was slight for the mesh generation). What did boost the mesh generation time past the 10-core baseline was turning off hyper threading for the 10 core run. But this made the other calculation steps run slower, resulting in a net loss. If you're willing to switch hyper threading on and off per-step, then you can gain 5% in overall processing. Woohoo! (not). Even the best combination of settings is still 27% slower than a 4Ghz i7 running in Windows.

    Time to move on to other software tests...


    Attached Files:

  18. nick82 macrumors newbie

    Joined:
    Apr 29, 2010
    #118

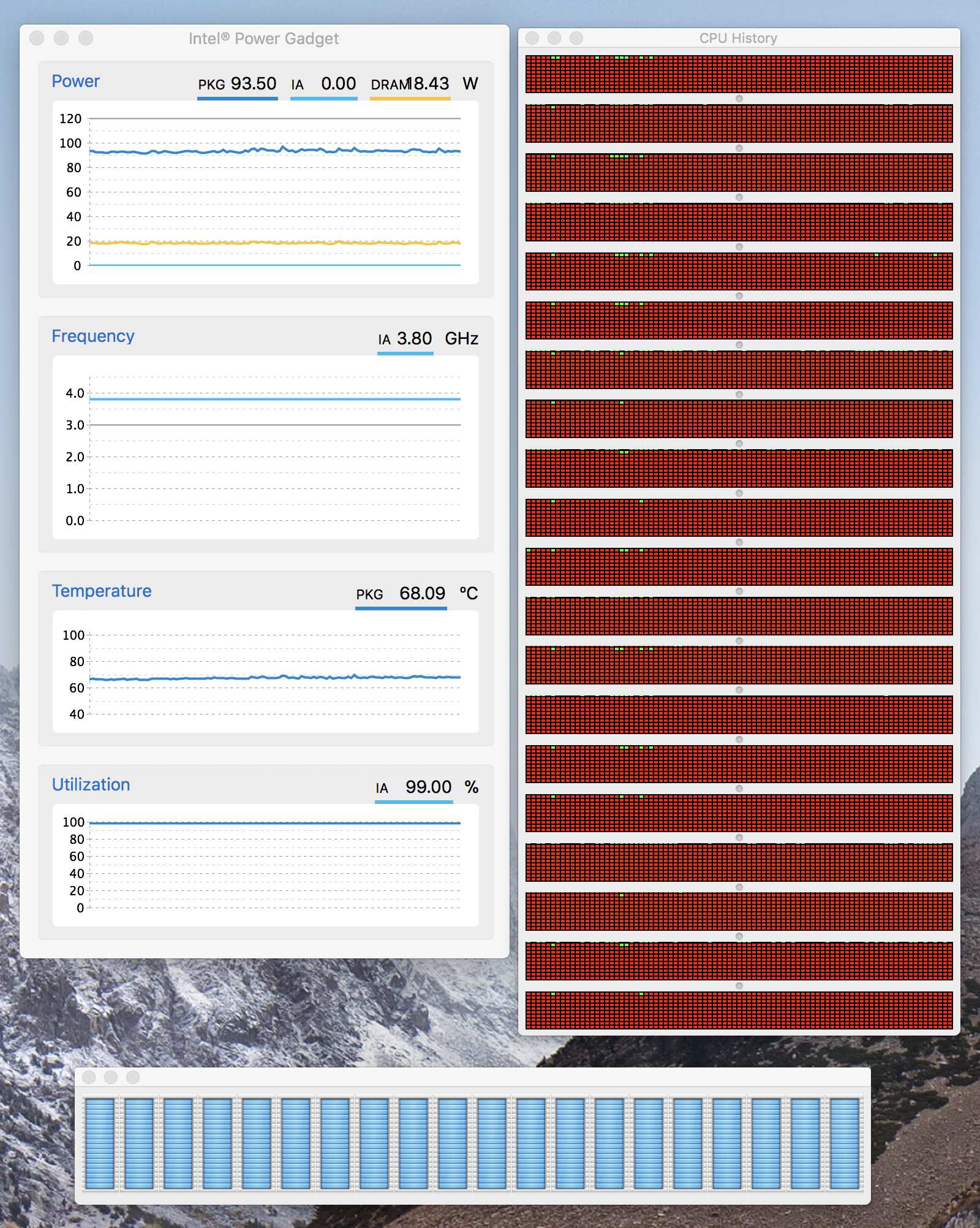

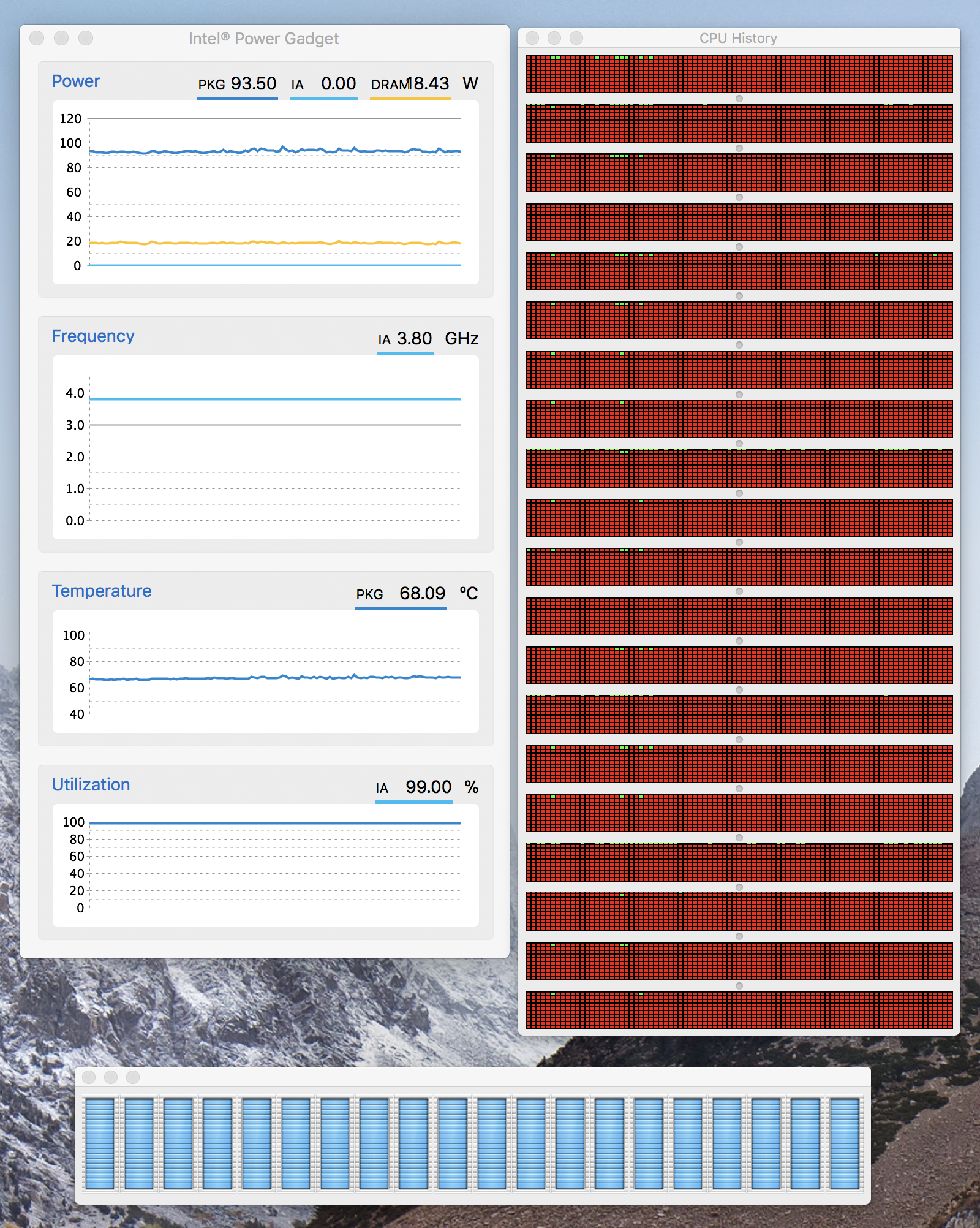

    Adding an interesting data point for discussion purposes.

    I launched photos earlier today and apparently it's been busy downloading a bunch of photos from iCloud and is now running some ML algorithms. There was a thread called photoanalysisd taking a bunch of cycles when I first unlocked, but now we're back to Photos itself churning resources. When I look through the app I see it's about 1000 of 6500 photos through the facial recognition scan, so I'm guessing that's what's eating up CPU time.

    What is surprising is that we're landing at some new numbers [again for 10-core].

    Still 99% utilization.
    This time settling at 3.8Ghz [vs 3.5 I saw with the yes test] and temps are ~70C [vs 90+ with yes]

    Nick


    Attached Files:

  19. iamMacPerson macrumors 68030

    iamMacPerson

    Joined:
    Jun 12, 2011
    Location:
    AZ/10.0.1.1
    #119
    Potential buyer later on this coming year. I use Final Cut a lot, primarily for h.264 edits with some color correction (generally no stabalization needed). My question is, does iMac Pro have QuickSync? I was watching a video from DetroitBorg where he said it didn’t have QuickSync and thus H.264 endcoding was faster on the regular iMac 5k. I thought the newer Xeons had a built in GPU just for QuickSync? Or is that limited to the mobile Xeons? TIA!

  20. Trebuin macrumors 65816

    Trebuin

    Joined:
    Jun 3, 2008
    Location:
    Central Cali
    #120
    Running raw calculations, prime95, & a few others. Basically, the 8 core doesn’t not get hot enough to drop below 3.9GHz, but the 10 core does & drops to about 3.5. Not a big difference. I’m very happy with the 8 core. Another poster brought up some software that waits for operations to complete before next assignment. This means fewer cores helps. It really all depends on what software you intend to use. For me, handbrake, which loves cores. The difference between the 8 & 10 multi thread is 10 mins over an hour. I decided that wasn’t worth $800. I also wanted a faster single core, which had me concerned until I found that the 8c drops to 3.9 instead of 3.2. It’s not i7 speeds there, but it does the job & grinds handbrake & three operating systems at the same time very well.

    Get the memory you think you’ll need now unless it’s 128c then you’re crazy or wealthy. Vega 64 is probably worth it.
    --- Post Merged, Dec 30, 2017 ---
    I’m out right now for a few days, but I’ll double check. Keep in mind that QS quality is not up to Software quality.
    --- Post Merged, Dec 30, 2017 ---
    Thinking about your test, if your software depends on all threads being completed before the next assignements, then hyperthreading would absolutely be horrible for it, especially if the cpu use is good. You can see that on the cpu test of cinebench, the hyperthreading jobs are really slow because the cores have few tansistors left to allocate. Thanks again for posting this info.
    --- Post Merged, Dec 30, 2017 ---
    I just confirmed by remoting in, no quicksync. Thats usually built in on the intel video die.

  21. mdntcallr macrumors 65816

    mdntcallr

    Joined:
    Aug 1, 2000
    #121
    Where are the new iMac Pro's assembled? curious to know if US made like some of the prior models.

    thanks!

  22. mikeboss macrumors 65816

    mikeboss

    Joined:
    Aug 13, 2009
    Location:
    switzerland
    #122
    AFAIK, this has not been confirmed yet. but I think that the latest version of Final Cut uses the video encoder hardware built-in to the AMD Radeon Pro Vega.
    --- Post Merged, Dec 30, 2017 ---
    china

  23. joema2 macrumors 68000

    joema2

    Joined:
    Sep 3, 2013
    #123
    That that is the million-dollar question. No Xeon has ever had Quick Sync except some low-end four-core versions. Some early rumors indicated the iMac Pro used a customized Xeon with Quick Sync. The earliest sketchy FCPX benchmarks indicated the iMP was either using that or maybe the similar UVD/VCE transcoding hardware bundled on AMD GPUs.

    However more recent benchmarks are starting to look like the iMP Xeon doesn't have Quick Sync and maybe FCPX isn't using AMD's fixed-function transcoding logic -- at least for H264.

    It is a complex and fragmented picture because FCPX on the iMP seems very fast at encoding H265/HEVC which definitely requires some kind of hardware acceleration -- it is about 10x as compute-intensive as H264.

    However in the real world, H264 and variants like Sony's XAVC-S and Google's VP9 and AV1 are the dominate codecs today. It is increasingly vital that any computer targeted at video editing must have hardware acceleration for H264 and similar codecs, not just H265/HEVC.

    Maybe further benchmarks will illuminate this area but it's a bit disturbing that Max Yuryev's tests showed the 8-core Vega56 iMP was slower on several FCPX H264 benchmarks than a 2017 iMac 27.

    Lots of people use other video editing software but FCPX is a good indicator of what's possible since Apple optimizes it for their own hardware. If FCPX isn't using hardware acceleration for H264 on the iMP, that's not a good sign.

  24. phobos macrumors regular

    Joined:
    Feb 25, 2008
    #124

    Max Yuryev over on YouTube has a nice video about Final Cut Pro and the new iMac Pro. Xeons don’t have Quicksync and it seeems in a lot of cases the regular iMac is faster than the iMac Pro. Where the iMac Pro shines is in the 6 and 8k raw videos and encoding in H265 where Quicksync is not optimized.

    Also the fact that it does all these things silently as opposed to hearing a vacuum cleaner like the regular iMac
    Here’s the link

  25. SoyCapitanSoyCapitan, Dec 31, 2017
    Last edited by a moderator: Dec 31, 2017

    SoyCapitanSoyCapitan macrumors 601

    SoyCapitanSoyCapitan

    Joined:
    Jul 4, 2015
    Location:
    Paris
    #125
    Played with the 8 core version today.

    Final Cut timeline playback of 8K ProRes422 was very good.

    Quicktime playback of the same video was so-so. It's still early days for that level of content and generally Mac GPU drivers aren't optimized enough. I'd like to see AMD release the same optimizations for Mac and PC simultaneously with EXACTLY the same hardware feature support.
