Resolved Intel HD3000 increase vram

Samuelsan2001

macrumors 604
Oct 24, 2013
7,694
2,118
I found some mixed reports of getting up to 1gb online but by all reports it makes very little difference to performance over 512mb as the HD3000 is just a pretty poor graphics card and more ram is not going to help.

  • Like
Reactions: ABC5S
Comment

Mustache

macrumors newbie
Original poster
Feb 14, 2016
3
0
Okay, here's the funny thing:
I was running 30fps in csgo on 384mb. When I increased it to 512 mb, performance doubled, averaging 60fps when I first launched the game after the hack. However, in the subsequent times that I opened the game, it dropped to 30fps.

Wat

Comment

ABC5S

Suspended
Sep 10, 2013
3,395
1,646
Florida
Don't do it. Does not work for Pro's 2014/2015. This guy may want to mess with things, but I would not

Comment

JTToft

macrumors 68040
Apr 27, 2010
3,447
787
Aarhus, Denmark
There are too many reports of issues to make it worthwhile if you ask me. And at some point, the HD 3000 just won't be able to utilise the extra memory.

Though, why did you have to increase to 512 MB? That should be the standard amount if you have 16 GB of system memory.

Comment

snaky69

macrumors 603
Mar 14, 2008
5,904
484
So I have went to this post https://forums.macrumors.com/threads/how-to-increase-vram-for-hd3000-graphics.1766384/ and have increased vram from 384mb to 512mb. I was wondering if it is possible to increase vram further to 2 or 3 gb by changing the 40 in the code to 80 or 120

MacBook Pro 13 inch, early 2011

Intel i5 2.3GHz
16GB 1333MHz RAM (custom upgrade)
VRAM will do absolutely nothing to help performance. RAM isn't the bottleneck, the 300HD is a crappy card, plain and simple. It could have a TB of VRAM and still suck.

Comment

RoboWarriorSr

macrumors 6502a
Feb 23, 2013
885
49
VRAM is probably the least of the worries, the real game changer would be faster VRAM, the Intel 3000 cards use the LPDDR3 1600 MHz which is only 25.6 GB/s. The Nvidia 650m and 750m cards utilized GDDR5 VRAM which is 80.3 GB/s. Intel is trying to negate this issues by adding on a L4 CPU cache which adds 50 GB/s of 128 MB of usable VRAM on top of the 25.6 GB/s RAM, this gets performance much closer to the 650m and 750m. So like everyone else here says, adding more VRAM wouldn't really help, 512 MB is probably the highest one can go to see small performance improvement though from my understanding, windows increases that to 1 GB (sees no benefit in games but in performance applications).

Comment

vicgregor

macrumors newbie
Oct 2, 2016
17
4
Intel HD 3000 is capable to use a limit of 1.7GB VRAM, as said in ARK.
Anyway, at Sierra we did only manage to reach 1024MB VRAM, stable and working.
If you try to overtake this limit, expect kernel panic or heavy bugs.
Anyway, VRAM won't make a lot of difference for most users because Graphics 3000 have only 16 Execution Units. From 512MB to 1024MB makes some difference, but after 1024MB some users that tried reported to have no change or decrease on benchmarks. You can only see most of difference from 512 to 1024MB, however, when using GPU to render videos; what you'll feel without doing things like these is just a little boost on performance.
I'll try changing my actual Kingston DDR3 SODIMM 1333Mhz CL9 4GBx2 to Corsair Vengeance DDR3L SODIMM 1600Mhz CL9 4GBx2 RAMs to see if I get any performance boost. I'm using a Mac Mini mid-2011 i5 2415M version that I just purchased second hand as my first Mac, saw one guy that got a 1600Mhz RAM fully working on a Macbook Pro with same processor, from Kingston, so I bought better quality ones from Corsair and will make my effort.
Anyway, if you are using the original hard disk drive that became with your Mac (5400RPM), I would recommend changing to SSD or a 7200RPM HDD, that'll really improve your performance for sure.

  • Like
Reactions: lesterneil
Comment

avriler

macrumors newbie
Oct 3, 2016
4
1
Intel HD 3000 is capable to use a limit of 1.7GB VRAM, as said in ARK.
Anyway, at Sierra we did only manage to reach 1024MB VRAM, stable and working.
If you try to overtake this limit, expect kernel panic or heavy bugs.
Anyway, VRAM won't make a lot of difference for most users because Graphics 3000 have only 16 Execution Units. From 512MB to 1024MB makes some difference, but after 1024MB some users that tried reported to have no change or decrease on benchmarks. You can only see most of difference from 512 to 1024MB, however, when using GPU to render videos; what you'll feel without doing things like these is just a little boost on performance.
I'll try changing my actual Kingston DDR3 SODIMM 1333Mhz CL9 4GBx2 to Corsair Vengeance DDR3L SODIMM 1600Mhz CL9 4GBx2 RAMs to see if I get any performance boost. I'm using a Mac Mini mid-2011 i5 2415M version that I just purchased second hand as my first Mac, saw one guy that got a 1600Mhz RAM fully working on a Macbook Pro with same processor, from Kingston, so I bought better quality ones from Corsair and will make my effort.
Anyway, if you are using the original hard disk drive that became with your Mac (5400RPM), I would recommend changing to SSD or a 7200RPM HDD, that'll really improve your performance for sure.
I have MacBook Pro early 2011 , but I couldn't change VRam , I didn't get any error by those commands but nothing changed at all, running Sierra

Comment

Kevin Devius Crenshaw

macrumors newbie
Jan 29, 2020
1
0

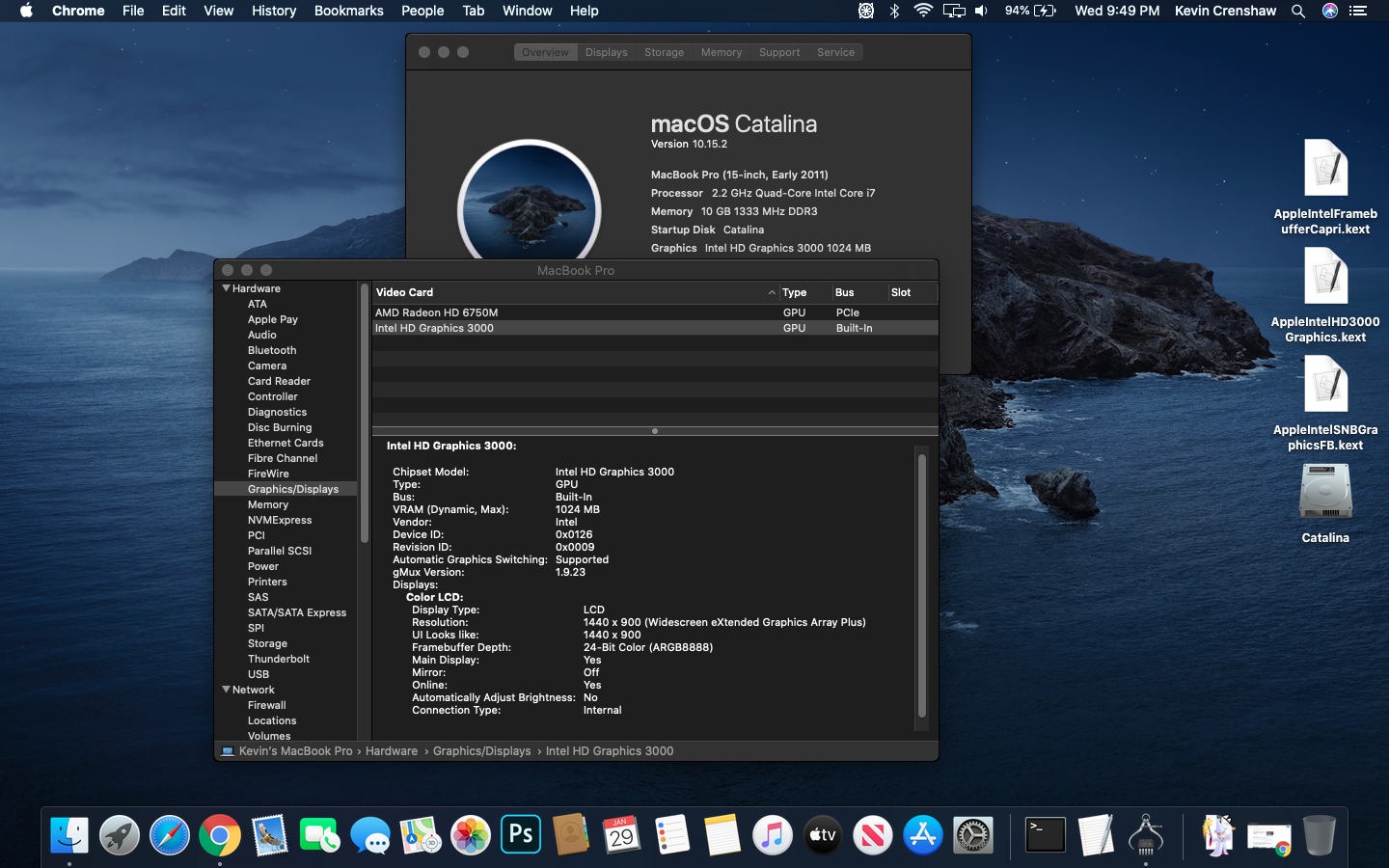

Just wanted to chime in: I tried this for about an hour trying to figure it out on Catalina with a Early 2011 15" i7. I disabled SIP using my installer drive due to Command + R not working for some reason. Got into installer, disabled SIP (which is "csrutil disable" in terminal), rebooted into macos, then went to terminal and typed in "mount -uw /" to actually make it possible to write to the main drive (i think? read somewhere it works with catalina since Apple doesn't want people editing files. Only works on this boot I've also heard, but I made my changes then rebooted and they still exist), anyhow.. gave myself permissions to write/read to the SLE folder (because without this step it won't work on catalina) by right clicking Extensions folder and making my username read/write worthy. THEN you can finally take any of the pre-configured files on this thread to use your favorite kext installer and get it working. I have not tried to get it to 2gb as I figured 1gb was plenty (dead dgpu, of course.). Next step is to get the laptop to stop supplying power to the dead chip. Otherwise, this little guy I picked up for free at an electronic store's dumpster is awesome and has hardly any scratches on it. I think it was thrown due to the dead gpu and non tech savvy user. Sorry if no one cares, but I figured I'd chime in on my experience just in case some other nerd is looking for the answer to the EARLY 2011 MACBOOK PRO INTEL HD3000 CATALINA INCREASE VRAM....err, trick. >.> lol


Attachments

Comment
