well I ordered the above cable from Amazon to connect my iPhone 15 PM to my old 2014 Mac mini with USB 3.0 ports. I can report that I am getting up to Up to 5 Gb/s connection on my mini and my daily USB connected iMazing backup is finishing at a much faster rate! :)

  • Like
Reactions: snipr125
The M1, M2 iPads have them and they are still slow when connected to a Mac or PC

Yep these still transfer at USB 2 speeds even with a TB cable.

So this has nothing to do with the iPhone.

The transfer speed being negotiated between the desktop and iOS/iPadOS platforms are slower by design. This could be for a number of reasons. Maybe parts of these software systems haven't been updated for a long time.

Bash:
# Useful for improving Time Machine backup prep. times, Mac App Store install speeds, etc.

sudo sysctl debug.lowpri_throttle_enabled=0

# To restore defaults

sudo sysctl debug.lowpri_throttle_enabled=1

Anyone tried this?

Does this help?

I have a Monoprice Thunderbolt/USB4 cable.

  • With an NVMe drive I get 40 Gb/s.
  • With my M1 iPad Pro I get 10 Gb/s.
  • With my iPhone 15 Pro Max I get only 480 Mb/s.
I will try my Belkin Thunderbolt 3 cable later. (I have to dig it out.) I have also ordered an Intel- and USB-IF-certified TB/USB4 cable.

I have a Monoprice Thunderbolt/USB4 cable.

  • With an NVMe drive I get 40 Gb/s.
  • With my M1 iPad Pro I get 10 Gb/s.
  • With my iPhone 15 Pro Max I get only 480 Mb/s.
I will try my Belkin Thunderbolt 3 cable later. (I have to dig it out.) I have also ordered an Intel- and USB-IF-certified TB/USB4 cable.
Connected to Mac or PC? Using a generic cable from Amazon I get 2Gb/s connected to Windows 11 PC (15 Pro Max)

I recently helped someone do a backup. They last backed up in October. It took well over an hour for the new data to transfer over. YIKES Apple

Bash:
# Useful for improving Time Machine backup prep. times, Mac App Store install speeds, etc.

sudo sysctl debug.lowpri_throttle_enabled=0

# To restore defaults

sudo sysctl debug.lowpri_throttle_enabled=1

Anyone tried this?

Does this help?

Ok, sudo does work in MacOS, but me thinks you are talking to the wrong crowd… 🤣

I recently helped someone do a backup. They last backed up in October. It took well over an hour for the new data to transfer over. YIKES Apple
This is probably the only real disappointment about the 15 Pro Max. I was having visions of super-fast backups, but in reality, although it might technically be faster (it's hard to tell with this kind of thing), it sure doesn't feel that way... backups took a long time before, and they take a long time now.

There's no doubt that the raw transfer speed is better. As a test, I just copied a bit over 8gb of video files via Image Capture, and it took about 45 seconds, which works out to be roughly 200MB/s... not nearly as fast as we should get with 10gbps, but still considerably faster than USB2 speeds.

But watching the throughput during the backup, there are periods of 70-80MB/s (so a bit better than USB2 speed), along with stretches where virtually no data is transferred. So, I guess some of the speed is lost by the fact that little chunks of data are being transferred and encrypted, with the backup process itself trying to figure out what incremental data needs to be copied over also cutting into it substantially.

Ok, sudo does work in MacOS, but me thinks you are talking to the wrong crowd… 🤣

I don't know weather macOS limit the transfer speed by this option.

Because when I connect my iPhone 15 Pro Max to my Mac mini, it shows speed at 10 Gbps.

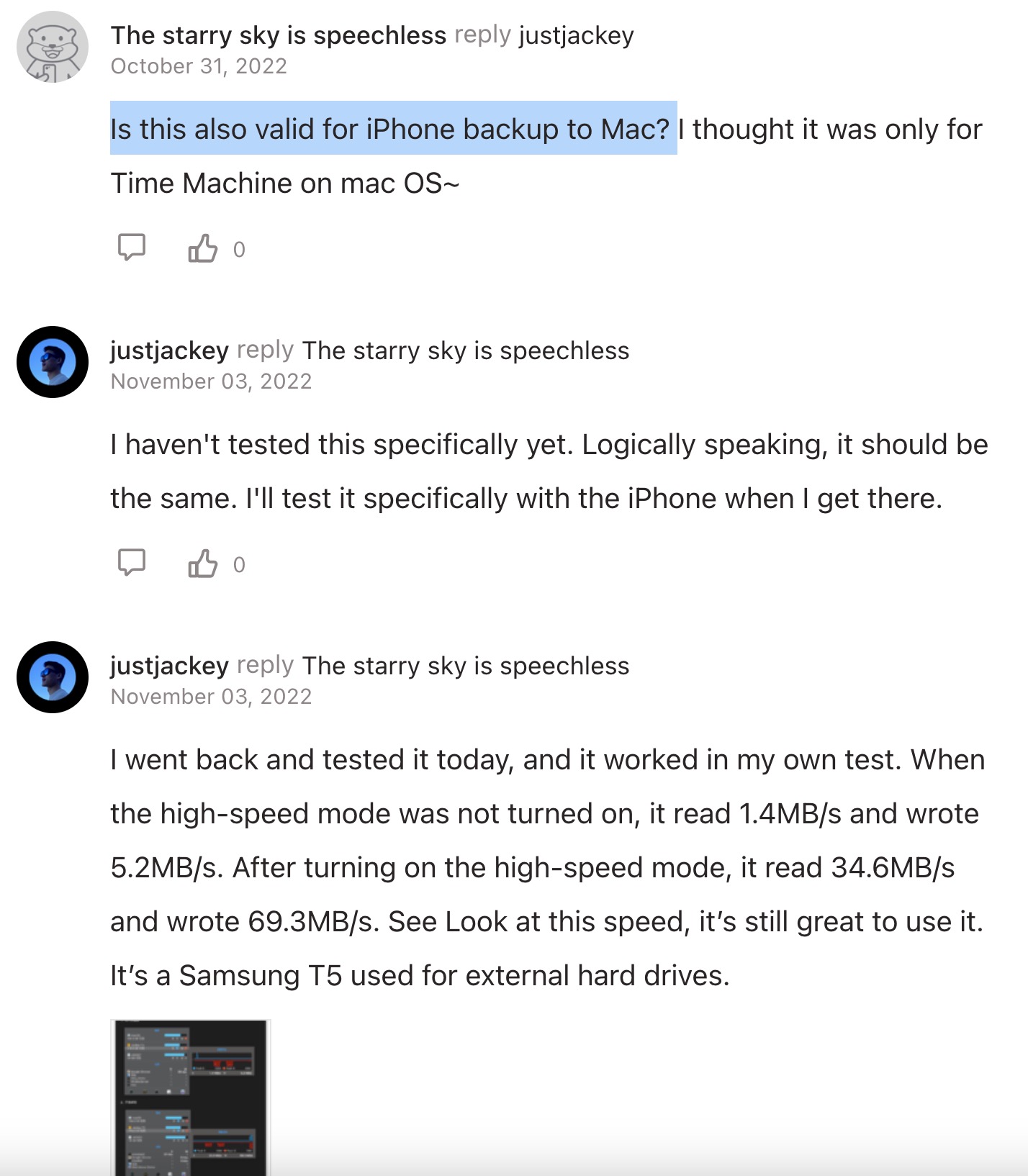

According to justjackey's test, it should work if data transfer was too slow and limited by macOS.

Now the question is, when this option is set to 0, can iPhone 15 Pros connected to mac run at the 10 Gbps that shows in system panel.



I finally thought I'd give this a go with my Mac Studio M1 Max.

Using a Thunderbolt 3 cable on the front (USB-C ports), the iPhone was only coming up as a USB2 device
Using the same cable on the rear ports, still USB2.

This is the cable, and otherwise gives fast speeds:

I changed tack and tried the cable that came with my Thunderbolt enclosure to one of the rear ports and it came up with USB3:

This is the cable:

Although transfer speeds, even connected at USB3, doing a phone backup isn't particularly fast. Still only showing about 40MB/s

Wanted to chime in with how this situation has evolved for me as I've been annoyed by slow backup speeds for ages now.

Today I found myself making a fresh backup of my iPhone 15 Pro Max 512gb. The device reports 295gb available, so adjusting for system files and such, the overall backup should be between 150gb and 200gb.

This was on my M1 Mac using a USB4 cable (from Anker I believe) connected to the Thunderbolt 4 Dock from OWC. The backup ended up taking almost 2 hours, and as soon as I realized how long it was taking I remembered this transfer speed issue and kicked myself for using what I believed was a poor quality cable. That is not actually the case.

I stumbled on this thread and in particularly the Time Machine Speedup command that I am familiar with and use regularly, however I have only ever used it for Time Machine. Had no idea it was applicable to iPhone backups as well, which it definitely is.

Without the setting enabled, System Information was showing my iPhone connected at 480 Mb/s regardless of cable or port utilized. I deleted the backup I had just made and went to make a brand new backup from scratch. I enabled the
sudo sysctl debug.lowpri_throttle_enabled=0 command as I usually do when making a large Time Machine backup.

I'm pleased to report that after maybe 10-15 minutes, the new backup is already 50% completed. System Information now reports my iPhone being connected at up to 10 Gb/s. I wish there was either a way to make that command stay enabled so high speed transfer is always active, or honestly Apple should figure out how to make the transfer rate as high as compatibility of the cable and port utilized will allow. God knows how much time this could save people going forward who are simply unaware that there is a better way to go about the backup process. Hopefully I can remember to make sure I enable it every time I need to make an iPhone backup.

And of course, as always, don't skimp out on cheap cables. Just not worth the headache. Okay thanks for reading, I hope that was helpful!

Wow what a disappointment. Ive just finished reading through this entire thread hoping to find some tidbit of information that would solve this issue but to no avail. Such a shame that even so many months after the phone's release (and years after the ipad's release) there is no solution to this seemingly trivial issue. Why does marketing say one thing and reality do another? Why does an SSD directly attached to the phone allow for the full 10Gbps but not when connecting to a MacBook Pro M1 Pro or similarly capable computer?

My test setup and results:
15 Pro, 16" M1 Pro, TB3 cable correctly showing up as 10Gbps in sysinfo.
Transfer speeds to a T9 SSD both from laptop and from phone are as expected i.e. around 1GBps.
Transfer speeds between laptop and phone are around 50MBps according to activity monitor as well as manually timing.

There shouldn't be a need to find the right cable if sysinfo reports it as 10Gbps and based on other people's posts in this thread, there are no magical cables that work so i only tested the two that I have with identical results.

This is a big shame for anyone like me who often likes to transfer large files to my phone and generally being able to treat is like a handy always-on-me SSD.

There is a reddit thread where one user has mentioned that on their intel based iMac they see fast speeds but doesnt specify what exactly those speeds are. Maybe its the M series that is the common issue.

Has anyone tried contacting support to ask about this and if its something they are aware of by design or otherwise?

P.S: Reading user purplerainpurplerain's responses makes me think he must be rage-baiting or wilfully ignorant of everyones' points because wow, he really doesn't seem to understand the issue XD.

Last edited:
I have a Monoprice Thunderbolt/USB4 cable.

  • With an NVMe drive I get 40 Gb/s.
  • With my M1 iPad Pro I get 10 Gb/s.
  • With my iPhone 15 Pro Max I get only 480 Mb/s.
I will try my Belkin Thunderbolt 3 cable later. (I have to dig it out.) I have also ordered an Intel- and USB-IF-certified TB/USB4 cable.
Did anyone mention yet that only USB 3.1 gen 2 10Gbs cables and NOT TB3 will give you a 10Gbs transfer speed? At least, according to Apple 🤷🏻‍♂️

Wow what a disappointment. Ive just finished reading through this entire thread hoping to find some tidbit of information that would solve this issue but to no avail. Such a shame that even so many months after the phone's release (and years after the ipad's release) there is no solution to this seemingly trivial issue. Why does marketing say one thing and reality do another? Why does an SSD directly attached to the phone allow for the full 10Gbps but not when connecting to a MacBook Pro M1 Pro or similarly capable computer?

My test setup and results:
15 Pro, 16" M1 Pro, TB3 cable correctly showing up as 10Gbps in sysinfo.
Transfer speeds to a T9 SSD both from laptop and from phone are as expected i.e. around 1GBps.
Transfer speeds between laptop and phone are around 50MBps according to activity monitor as well as manually timing.

There shouldn't be a need to find the right cable if sysinfo reports it as 10Gbps and based on other people's posts in this thread, there are no magical cables that work so i only tested the two that I have with identical results.

This is a big shame for anyone like me who often likes to transfer large files to my phone and generally being able to treat is like a handy always-on-me SSD.

There is a reddit thread where one user has mentioned that on their intel based iMac they see fast speeds but doesnt specify what exactly those speeds are. Maybe its the M series that is the common issue.

Has anyone tried contacting support to ask about this and if its something they are aware of by design or otherwise?

P.S: Reading user purplerainpurplerain's responses makes me think he must be rage-baiting or wilfully ignorant of everyones' points because wow, he really doesn't seem to understand the issue XD.
I've accepted that transfer speeds between my M1 MBP and iPhone are slow. For video editing it's actually been better for me to:
-Record 40-90GB of video on iPhone
-Transfer to T7 SSD that attach magnetically to my phone
-Plug SSD into the Mac and edit without transferring the files.

This work flow suits me well and ensures that space on my MBP doesn't run out because of:
-90GB videos
-90GB in rendering files
-10-17GB required for exporting the file

For quick syncing to iCloud I plug my iPhone 15 Pro into ethernet. I have 100 megabit/sec upload speed, which over ethernet is faster and more reliable than syncing over wifi. :)

I am restoring from backup to a 16 pro right now, several hours in. Seems that USB 3 speeds are still not attainable with the proper cable. Another year, another device, still the same false advertising and slow USB 2.0 speeds.

Worse yet, there is no progesss bar or time remaining indicator! Apple Devices is absolutely useless, never did I think I would be pining for the days of iTunes.

I am restoring from backup to a 16 pro right now, several hours in. Seems that USB 3 speeds are still not attainable with the proper cable. Another year, another device, still the same false advertising and slow USB 2.0 speeds.

Worse yet, there is no progesss bar or time remaining indicator! Apple Devices is absolutely useless, never did I think I would be pining for the days of iTunes.

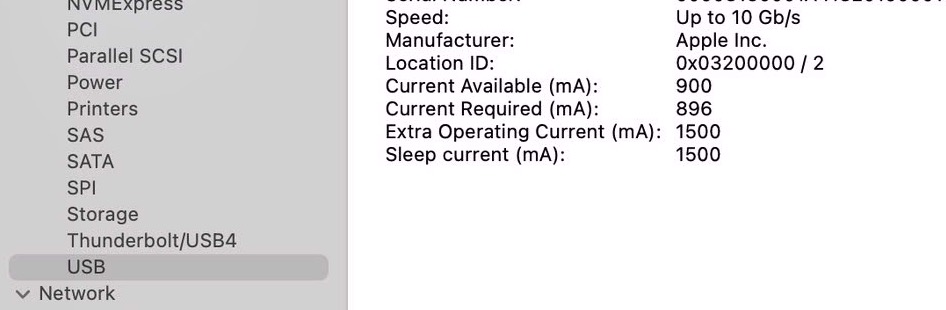

With my iPhone 15 Pro Max I get 10 Gb/s with a Belkin Thunderbolt 3 cable (F2CD081BT1M-BLK) and a Monoprice USB 4 cable (44117). Mac is MBP M3 Max.

iPhone:
Product ID: 0x12a8
Vendor ID: 0x05ac (Apple Inc.)
Version: 16.02
Serial Number: 00008130001C11DC2EA0001C
Speed: Up to 10 Gb/s
Manufacturer: Apple Inc.
Location ID: 0x02200000 / 1
Current Available (mA): 900
Current Required (mA): 896
Extra Operating Current (mA): 1500
Sleep current (mA): 2400

With my iPhone 15 Pro Max I get 10 Gb/s with a Belkin Thunderbolt 3 cable (F2CD081BT1M-BLK) and a Monoprice USB 4 cable (44117). Mac is MBP M3 Max.
Somewhere in the last 8 pages someone detailed how to check the link speed in windows and it came up as a 10 GB/S device, however iTunes (or now Apple Devices) never actually reads or writes data at anything even close to such a speed. It is curiously still limited to a USB 2.0 maximum of 480Mbps

  • Like
  • Wow
Reactions: adam1080 and twanj
With my iPhone 15 Pro Max I get 10 Gb/s with a Belkin Thunderbolt 3 cable (F2CD081BT1M-BLK) and a Monoprice USB 4 cable (44117). Mac is MBP M3 Max.
In Windows 11 I can get it to report up to 10GB/s, too.... but it absolutely does not transfer anywhere close to that speed. Max I've seen is more like 2Gb/s

  • Like
Reactions: twanj
Somewhere in the last 8 pages someone detailed how to check the link speed in windows and it came up as a 10 GB/S device, however iTunes (or now Apple Devices) never actually reads or writes data at anything even close to such a speed. It is curiously still limited to a USB 2.0 maximum of 480Mbps
Just tested again on my PC with a USBC-USBC cable, copying a 1GB video directly from iPhone 15 Pro Max to Windows 11 Desktop. Took 5.5 seconds, which is about 1.5Gb/s. So it can definitely go faster than USB 2.0 speeds, but not anything near 10Gb.

Running a backup probably isn't the best test of transfer speeds, because the phone is probably doing some additional compresssion/file sorting/computation and not just simply transferring a file from device to PC

Just tested again on my PC with a USBC-USBC cable, copying a 1GB video directly from iPhone 15 Pro Max to Windows 11 Desktop. Took 5.5 seconds, which is about 1.5Gb/s. So it can definitely go faster than USB 2.0 speeds, but not anything near 10Gb.

Running a backup probably isn't the best test of transfer speeds, because the phone is probably doing some additional compresssion/file sorting/computation and not just simply transferring a file from device to PC
True, and that would make sense that there is some overhead in that scenario. Just strange that (at least in my experience with the 15 pro and now 16 pro) not even a little faster than a regular USB 2.0 connection was achieved. The fact that it was the exact same as an (otherwise saturated) lightning cable indicates that something else might be at play here. Even 1.5Gb/s would be an improvement.

Just insane that Apple was able to never have to addresss this.
A whole bunch of advertising about a "pro" feature that doen't work in the most common scenarios
The tech jounalism / youtuber space is just a joke. Never once even tested this.
