iPhone stuck on Recovery Mode

OrangeSVTguy

OrangeSVTguy

macrumors 601
Original poster
Sep 16, 2007
4,127
69
Northeastern Ohio
I just bought a 8gb iPhone 2g from a member on this site. This is my first iPhone so I'm not up to date with all the stuff on it. It needed a new battery.

I got it but it wouldn't turn on, just would show the charging screen with 1 red bar when connected via USB. I have since removed the battery but when I go to turn it on, it shows the itunes with USB cable on it and I open up iTunes and try to do a update and restore, it always fails.

I've been googling and trying everything I could find for the last few hours with no luck :(

I have the battery removed now as the one I purchased seems to be defective so I don't get the charging status screen anymore.

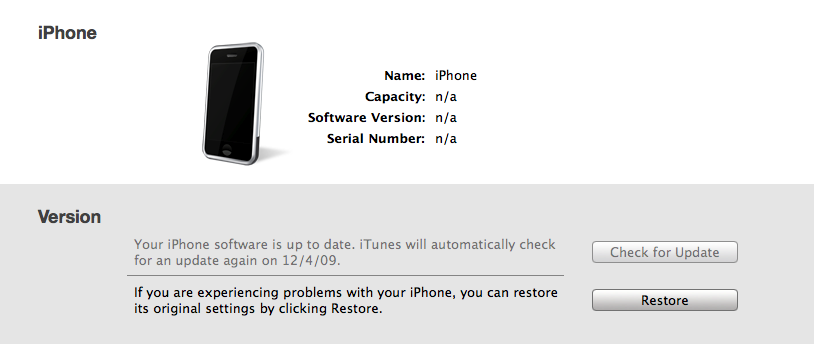

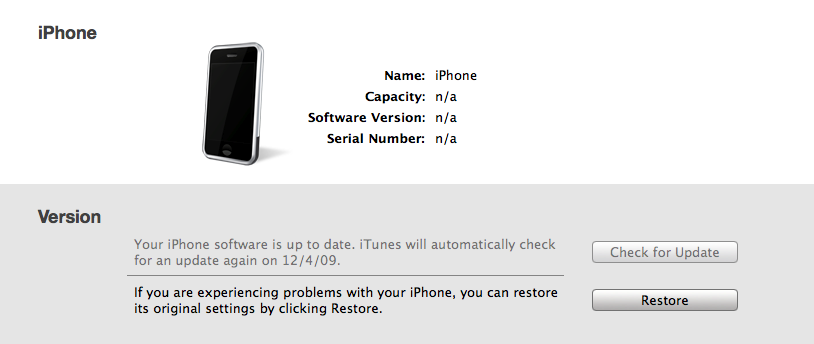

Attachments

  • Picture 2.png
    Picture 2.png
    20.1 KB · Views: 78
  • Picture 3.png
    Picture 3.png
    52.2 KB · Views: 73
-aggie- said:

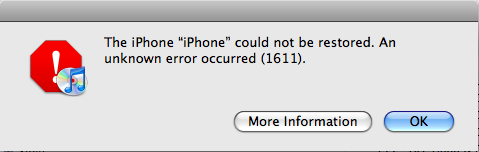

Not sure what you mean by you "have the battery removed," but here is a thread on the 1611 error:

https://forums.macrumors.com/threads/826074/

Perhaps one of the fixes there will work for you.
Click to expand...

Thanks. The only real suggestion in that thread turned out didn't work for them so I guess I might as well try and see if it works for me then.

My internal battery is removed. I'm waiting to get another one now.

I now got a 1603 error now :confused:

OrangeSVTguy said:
Thanks. The only real suggestion in that thread turned out didn't work for them so I guess I might as well try and see if it works for me then.

My internal battery is removed. I'm waiting to get another one now.

I now got a 1603 error now :confused:
Click to expand...

16xx Errors are USB miscommunication or mismatch errors. Easy way out, reboot computer and try again or simply change computer.

Same problems on another computer(PC). The seller did mention the iPhone was running OS3 and was Jailbroken/unlocked. Any chances those screwed up the software?

I don't need it unlocked/jailbroken since I use AT&T anyways. Anyway to reinstall the software on it by flashing? Flash it with an older/newer software? I'm searching as we speak so I'll see if I can find anything.

Thanks for all the replies so far.

Hm..... I'm also wondering if it needs the internal battery for it to update/recover properly?

Update:

I've been learning a lot so far. Downloaded all the stuff I needed and currently running redsn0w and jailbreaking/unlocking it.

It's Downloading the Jailbreak Data now and updating the Ramdisk. So far so good we'll see if this works :D.

update #2:
Well everything seemed to install correctly but it still only starts up with the itunes and USB cable screen. I'm trying one last time to update it through iTunes....... and it failed again. I ordered another battery so I will know by the end of the week if having a battery installed will help do anything.

....Thinking I got screwed on this deal and bought a brick :mad:

I tryed for ONE MONTH to restore it i got the same error 1611...tryed to restore it on diferent computer ,mac ,DFU mode ,recovery mode,hard reset,all versions of iTunes ,all usb ports ,other data cable , can someone had this error and fixed it ???? pls i`ll apreciate it so much !

possible solution

first let itunes install original firmware on the phone. don't worry it can be jail broken.

a other fix you should try first is to use redsn0w 7.2 it will work you need to give it 2-3 tries. and get firmware 3.0 at first. and you need a older version of itunes. 8.2 or older.


but first check if it really is a battery problem.
Do this:

with your iPhone plugged in hold down both the power and home buttons until it turns off, release both buttons, now wait 5 sec. now press the power button for 2-3 sec. The battery indicator should now show up in your display as charging. if not just leave it for 10 min and try again. If it does not show as charging now you most likely need a new battery.

hope it helps

i tryed on man too and with itunes 8.2 it doesn`t recognize the iphone 3GS that is....only newer than 8.2 works any other solution ? :(

Got another battery installed and still nothing. Still stuck on recovery mode :(. I've tried all versions of itunes on multiple computers and different OS versions as well as redsn0w with custom firmwares? Also I noticed that there was a little pink sticker on the back once I took the back cover off, I read online that is the water sensor? Guessing that this iphone got wet and it what killed the battery/charger and causing these problems?

Feeling really bummed right now :( Guess I'll be stuck using my LG Xenon from now on....

OrangeSVTguy said:
Got another battery installed and still nothing. Still stuck on recovery mode :(. I've tried all versions of itunes on multiple computers and different OS versions as well as redsn0w with custom firmwares? Also I noticed that there was a little pink sticker on the back once I took the back cover off, I read online that is the water sensor? Guessing that this iphone got wet and it what killed the battery/charger and causing these problems?

Feeling really bummed right now :( Guess I'll be stuck using my LG Xenon from now on....
Click to expand...

That does indicate contact with liquid. You might be out of luck. :(

OrangeSVTguy said:
Got another battery installed and still nothing. Still stuck on recovery mode :(. I've tried all versions of itunes on multiple computers and different OS versions as well as redsn0w with custom firmwares? Also I noticed that there was a little pink sticker on the back once I took the back cover off, I read online that is the water sensor? Guessing that this iphone got wet and it what killed the battery/charger and causing these problems?

Feeling really bummed right now :( Guess I'll be stuck using my LG Xenon from now on....
Click to expand...

Yeah, you got water damage. Sounds like you got screwed by the seller on this.

This thing is a brick. Nothing that I do seems to get me anywhere. It won't boot no matter what I do and always fails when I try to update it with iTunes. It's not worth my time anymore.

Thanks for all the help and suggestions. Just gonna sell it to try and get some of my money back.
