Specs: Mac Mini Late 2009, MC239LL/A (2.53GHz).

It was damaged in the mail (claim has been settled), but now I am trying to salvage it. I took it apart last night to discover a portion of this connector broke off. The problem is the unit is dead (will not power on). Is it possible to replace just this part or will it need an entire logic board - if so, where to get one?

I removed the logic board and can see where the connector is soldered on. I can do the repair, but is it possible to source just this piece? It has the Foxconn label on the side...

I counted, it's a 50-pin connector. Maybe these are ready avaliable at an electronics speciality store? I'm not that familiar with circuit board components and where they might be sourced...


paulrbeers

macrumors 68040
Dec 17, 2009
3,961
121


Specs: Mac Mini Late 2009, MC239LL/A (2.53GHz).

It was damaged in the mail (claim has been settled), but now I am trying to salvage it. I took it apart last night to discover a portion of this connector broke off. The problem is the unit is dead (will not power on). Is it possible to replace just this part or will it need an entire logic board - if so, where to get one?

I removed the logic board and can see where the connector is soldered on. I can do the repair, but is it possible to source just this piece? It has the Foxconn label on the side...

I counted, it's a 50-pin connector. Maybe these are ready avaliable at an electronics speciality store? I'm not that familiar with circuit board components and where they might be sourced...

Not really no.

Comment

eyepea

macrumors member
Jul 20, 2012
91
0
I would say no chance of repair if you have to remove/solder a new connector of the size in the picture.

eBay does advertise mac logic board repairers in the US. You could send your pics to them and ask if it is doable?

Compare the price with a current base mm though.

Also you could also pick up a second hand logic board on the web if you are dedicated to keeping that model. See for example:

http://www.powerbookmedic.com/Mac-Mini-Logic-Board-p-21162.html

Value for a money thought a new MM is better.

Last edited:
Comment

philipma1957

macrumors 603
Apr 13, 2010
6,316
216
Howell, New Jersey

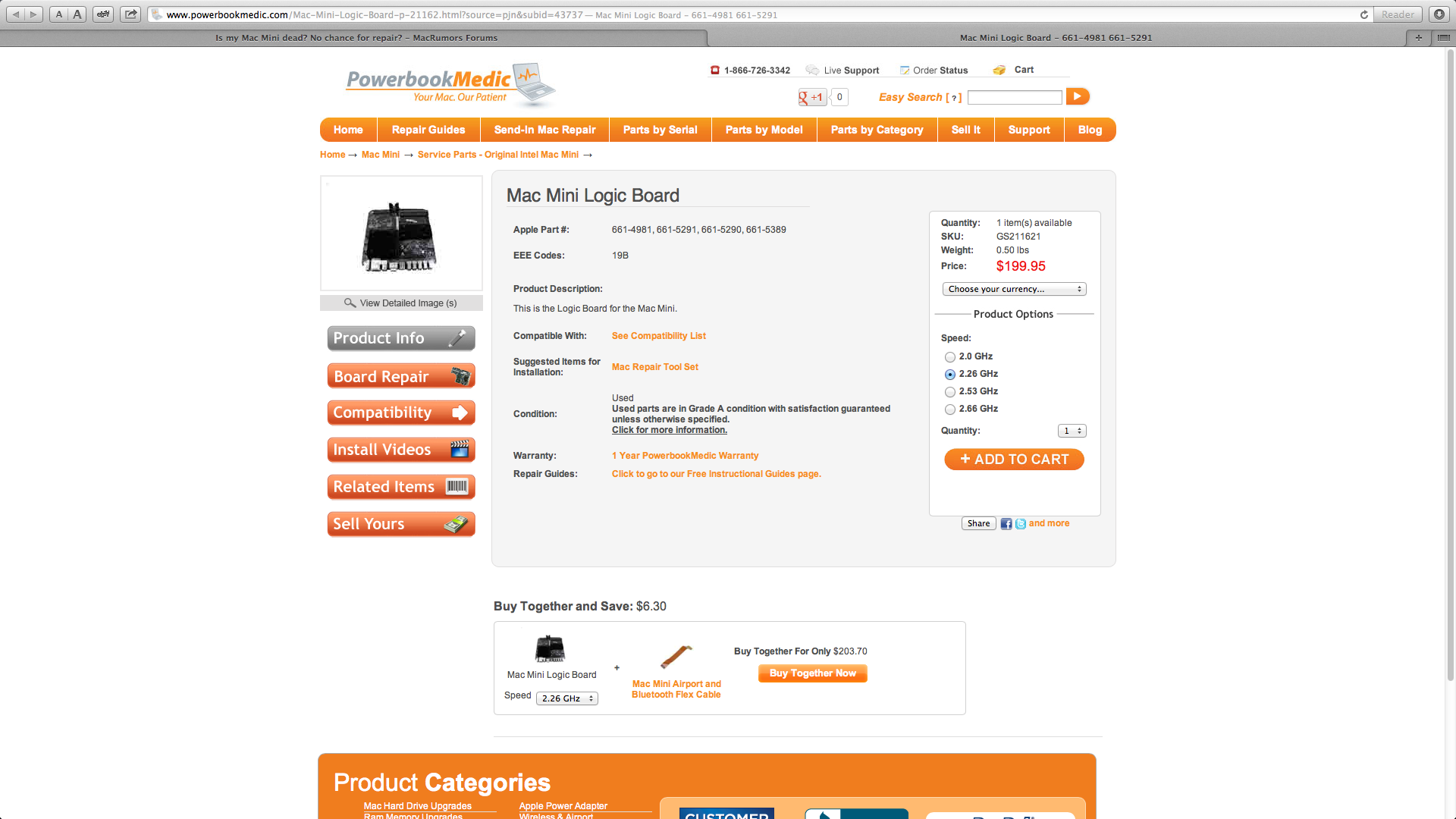

this board would work. i have owned the 2.53 and the 2.26 they are both okay part is 200 bucks. the 2.53's are out of stock


Attachments

  • Screen Shot 2013-03-21 at 8.43.25 AM 1.png
    Screen Shot 2013-03-21 at 8.43.25 AM 1.png
    331.7 KB · Views: 136
Comment

dogbertd

macrumors member
Nov 10, 2011
36
8
Dundee, Scotland, UK
That looks to me like the connector for the riser board that connects the HDD and Superdrive. So the mac ought to boot in some distressed fashion even without these, and if you've tried reseting the PRAM and all the usual tricks and it won't boot even to a blinking folder icon then I think you're going to need a whole new mobo. I'd be worried that this is only a visible sign of damage, and that there's more elsewhere.

Still there are second-hand mobos about, and it might even be cheaper to pick up a model from ebay that's being sold for parts.

Comment

daviesaz

macrumors newbie
Aug 15, 2003
15
0
Tempe, AZ
Since it's just a few pins, it might be fun to Dremel off the broken plastic bits until you have clear access to the metal contacts. Then solder on short wires with pin connectors on them. Slide the connectors onto the cable pins as you insert the cable into the connector.

Specs: Mac Mini Late 2009, MC239LL/A (2.53GHz).

It was damaged in the mail (claim has been settled), but now I am trying to salvage it. I took it apart last night to discover a portion of this connector broke off. The problem is the unit is dead (will not power on). Is it possible to replace just this part or will it need an entire logic board - if so, where to get one?

I removed the logic board and can see where the connector is soldered on. I can do the repair, but is it possible to source just this piece? It has the Foxconn label on the side...

I counted, it's a 50-pin connector. Maybe these are ready avaliable at an electronics speciality store? I'm not that familiar with circuit board components and where they might be sourced...

Comment

Fishrrman

macrumors Core
Feb 20, 2009
21,668
7,884
"It was damaged in the mail (claim has been settled), but now I am trying to salvage it."

Might be worth selling whatever's still usable for parts, but I wouldn't spend any more money on it -- particularly since "the claim has been settled"….

Comment
