Kernel Panics on SSD Fresh Install of Maverick GM

Discussion in 'OS X Mavericks (10.9)' started by ashepp, Oct 5, 2013.

  1. ashepp macrumors newbie

    Joined:
    Oct 14, 2011
    #1
    Hi Folks,
    Recently installed an SSD into my 2010 iMac and wanted to see how well the system would run the Golden Master of Mavericks.

    Created a bootable USB and completed installation to the SSD using the instructions at http://osxdaily.com/2013/06/12/make-boot-os-x-mavericks-usb-install-drive/

    However the machine won't boot to Mavericks and Kernel Panics every time. I am able to boot back into Mountain Lion from the the existing install on my other installed Hard Disk but wondering if anyone has any suggestions on what might be causing this or how to fix.

    Much appreciated!

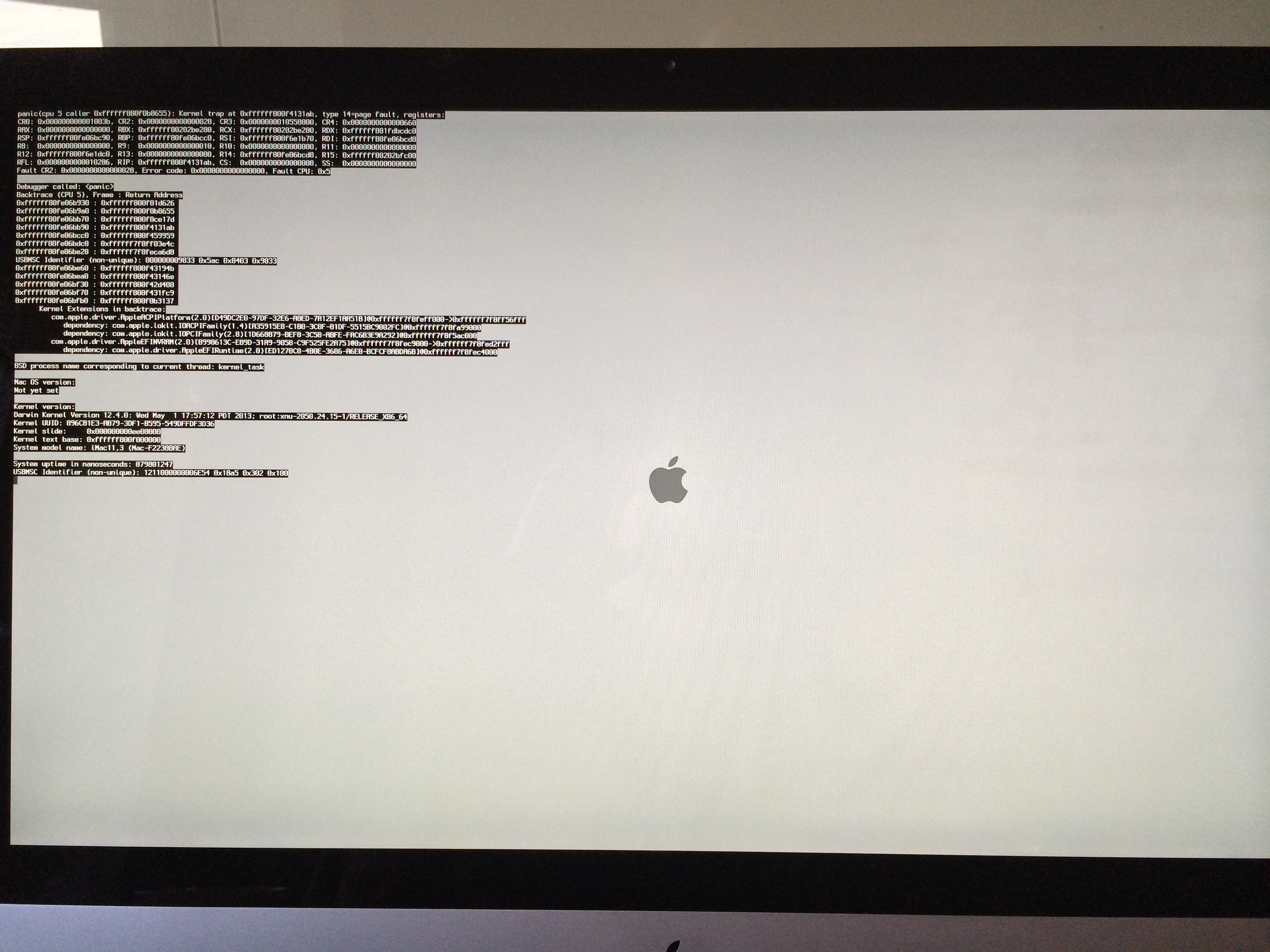

    Screenshot attached.


    Attached Files:

  2. drew627 macrumors regular

    Joined:
    Jun 26, 2013
    #2
    Well, the backtrace message clearly says that it's a driver/IOKit problem. I don't have any experience with this but why don't you do an Apple Hardware Test and report back? Might help..

  3. BasicGreatGuy Contributor

    BasicGreatGuy

    Joined:
    Sep 21, 2012
    Location:
    In the middle of several books.
    #3
  4. drew627 macrumors regular

    Joined:
    Jun 26, 2013
    #4
    Actually, it's the same method creating the same bootable USB drive. Only difference is that "createinstallmedia" automates these steps.

  5. tywebb13, Oct 5, 2013
    Last edited: Oct 5, 2013

    tywebb13 macrumors 68020

    Joined:
    Apr 21, 2012
    #5
    No it's not. Createinstallmedia actually does more than that. It isn't going to give you the same result as osxdaily's method.

    My method (i.e., the one at http://forums.macrumors.com/showpost.php?p=18081307&postcount=3 ) will make a USB which will also install a recovery partition.

    A USB made with osxdaily's method will not do that. Their method was only intended for DP1. You then had to use another method to create the recovery partition for DP1 separately.

    Createinstallmedia was introduced in DP4 to make the process easier - and install a recovery partition at the same time. It was then carried over to the GM for the same reason.

    Someone even did it both ways for the GM and said results were different (although I haven't done this myself - I don't need to - I know he's right):


  6. drew627 macrumors regular

    Joined:
    Jun 26, 2013
    #6
    Apologies.. Thanks for the clarification. I'll finish reading the linked post the next time I make an assumption... :(

  7. ashepp thread starter macrumors newbie

    Joined:
    Oct 14, 2011
    #7
    Thanks for the help folks!
    I only have a USB with InstallESD.dmg on it. and don't see the OSX Mavericks Installer.app in my Applications folder.

    Is there a way to get to createinstallmedia from what I have?

    Thanks
    Adam.

  8. tywebb13, Oct 6, 2013
    Last edited: Oct 6, 2013

    tywebb13 macrumors 68020

    Joined:
    Apr 21, 2012
    #8
    No. It's not in the InstallESD.dmg file. It's in the Resources folder.

    Anyway, that not important. The important file is Install OS X Mavericks.app.

    If you don't have it but got it originally trough legitimate means, then it should show up in the Purchases tab in the mac app store. Download again from there and it will put the app into your Applications folder.

    You can then create the bootable usb using this method:

    http://forums.macrumors.com/showpost.php?p=18081307&postcount=3

    and then install it from the usb. Just boot it up with option key.

  9. puffo25 macrumors member

    puffo25

    Joined:
    Mar 17, 2012
    Location:
    earth :-)
    #9
    Hi all,

    I have installed OSX 10.9 got legit from Apple and saved on my external USB sticker using this method: http://forums.macrumors.com/showpost.php?p=18081307&postcount=3 on my MacBook pro 9,2 model....

    I had exactly the same kernel panic after running Cocktail 7.0.1 and Marvick Cache Cleaner 8.0 and rebooting my MacBook Pro.....
    How come?????

    Now I have re-installed 10.9 again from the USB 8GB card but without running any disc cleaning utility and reboot was OK.

    So either Cocktail or Cache Cleaner 8.x are doing something bad to my mac, maybe????

    I am puzzled:-(

  10. puffo25 macrumors member

    puffo25

    Joined:
    Mar 17, 2012
    Location:
    earth :-)
    #10
    UPDATE:

    After 2 restarts, I got again the nasty kernel panic error at start-up. What I have done was just to repair disk permissions using disc utility ..... Mmmm.

    Now I have re-installed OSX 10.9 not from the external USB card but by using the 10.9 app got directly from Apple store and installed directly from the app main folder directory.

    I will try to test for few days and see if works...
    Andrea


  11. pastrychef macrumors 601

    pastrychef

    Joined:
    Sep 15, 2006
    Location:
    New York City, NY
    #11

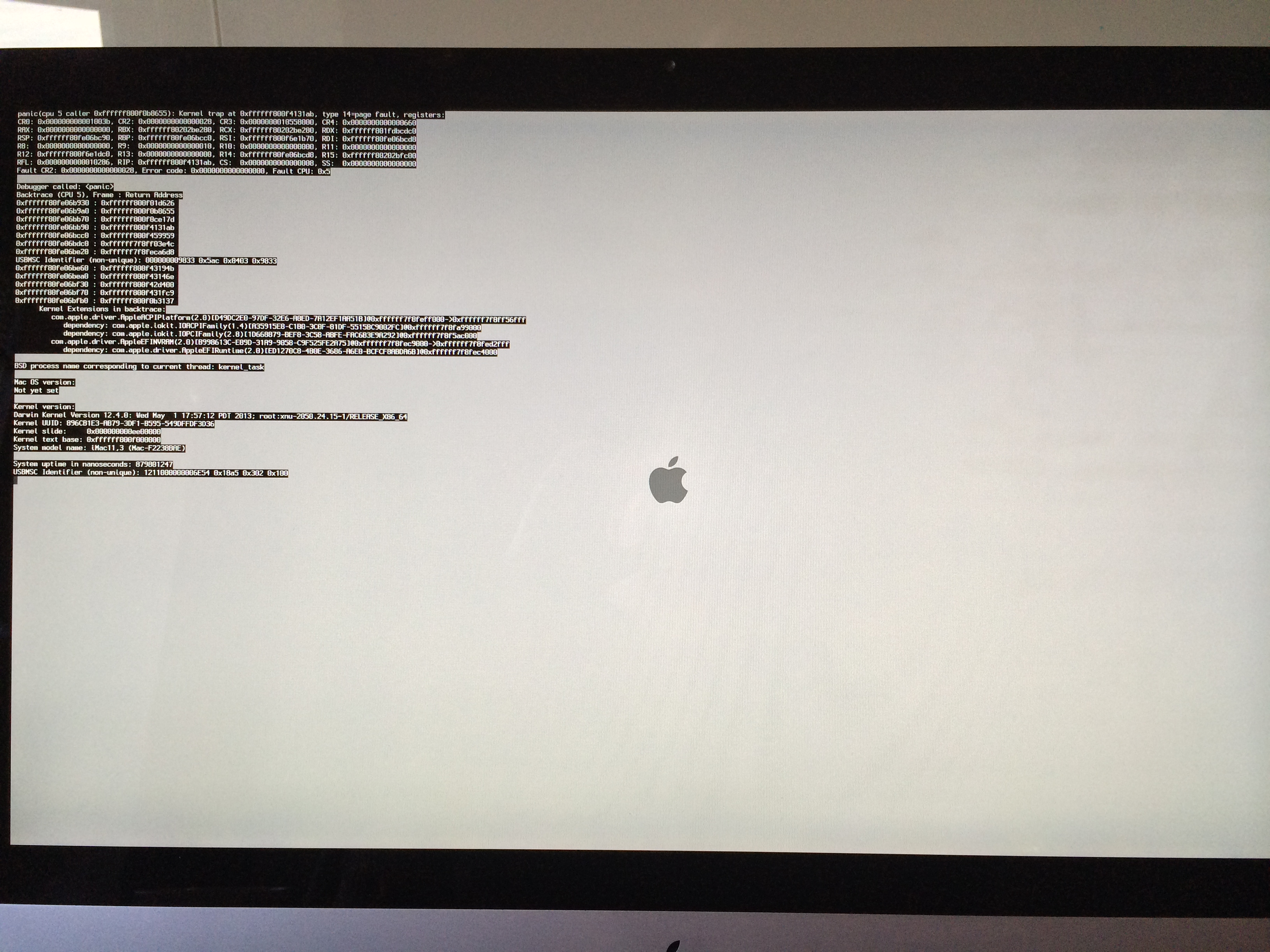

    Going by the image posted in the first post, it appears to be the one of your PCI-e cards. What kind of PCI-e cards do you have installed?

  12. chrfr macrumors 603

    Joined:
    Jul 11, 2009
    #12
    It's an iMac. There are no PCIe slots.

  13. pastrychef macrumors 601

    pastrychef

    Joined:
    Sep 15, 2006
    Location:
    New York City, NY
  14. puffo25 macrumors member

    puffo25

    Joined:
    Mar 17, 2012
    Location:
    earth :-)
    #14
    I have the problem on a MacBook Pro 13 inches 9,2 model mid 2012 with 1TB Samsung EVO SSD.

    I run also Apple Hardware Test, no problems......

    Here is the kernel panic error:
    Any clue???

    Anonymous UUID: 0FCBB5E5-E206-D9EA-4FBC-184C27CE9F7E

    Wed Oct 30 11:49:44 2013
    panic(cpu 1 caller 0xffffff80036dc19e): Kernel trap at 0xffffff800350e11b, type 14=page fault, registers:
    CR0: 0x000000008001003b, CR2: 0xffffff80039d1404, CR3: 0x0000000005b9f000, CR4: 0x00000000001606e0
    RAX: 0x0000000000000000, RBX: 0xffffff8023973f00, RCX: 0x00000001a77f7ec0, RDX: 0x0000000ffffff810
    RSP: 0xffffff81d3bfbe98, RBP: 0xffffff81d3bfbf90, RSI: 0x0000000d3bfbf600, RDI: 0xffffff80039d1404
    R8: 0x0000000000000000, R9: 0xffffff8003c531a0, R10: 0xffffff8003cd15f0, R11: 0x0000000000000016
    R12: 0x0000000000000000, R13: 0x000000000e8ad9c8, R14: 0xffffff81d3bfbf38, R15: 0xffffff8023972008
    RFL: 0x0000000000010206, RIP: 0xffffff800350e11b, CS: 0x0000000000000008, SS: 0x0000000000000000
    Fault CR2: 0xffffff80039d1404, Error code: 0x0000000000000003, Fault CPU: 0x1

    Backtrace (CPU 1), Frame : Return Address
    0xffffff81d3bfbb20 : 0xffffff8003622f69
    0xffffff81d3bfbba0 : 0xffffff80036dc19e
    0xffffff81d3bfbd70 : 0xffffff80036f3606
    0xffffff81d3bfbd90 : 0xffffff800350e11b
    0xffffff81d3bfbf90 : 0xffffff8003975f28
    0xffffff81d3bfbfb0 : 0xffffff80036d6aa7

    BSD process name corresponding to current thread: kernel_task

    Mac OS version:
    13A603

    Kernel version:
    Darwin Kernel Version 13.0.0: Thu Sep 19 22:22:27 PDT 2013; root:xnu-2422.1.72~6/RELEASE_X86_64
    Kernel UUID: 1D9369E3-D0A5-31B6-8D16-BFFBBB390393
    Kernel slide: 0x0000000003400000
    Kernel text base: 0xffffff8003600000
    System model name: MacBookPro9,2 (Mac-6F01561E16C75D06)

    System uptime in nanoseconds: 1540490802
    last loaded kext at 1503648039: com.apple.driver.AppleUSBTCKeyEventDriver 240.2 (addr 0xffffff7f84e7f000, size 16384)
    loaded kexts:
    de.novamedia.driver.NMSmartplugSCSIDevice 1.0.1
    com.rim.driver.BlackBerryUSBDriverInt 0.0.74
    com.apple.driver.AppleUSBTCKeyEventDriver 240.2
    com.apple.driver.AppleUSBTCKeyboard 240.2
    com.apple.driver.AppleFileSystemDriver 3.0.1
    com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
    com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
    com.apple.BootCache 35
    com.apple.iokit.SCSITaskUserClient 3.6.0
    com.apple.driver.XsanFilter 404
    com.apple.iokit.IOAHCIBlockStorage 2.4.0
    com.apple.driver.AppleUSBHub 650.4.4
    com.apple.driver.AppleFWOHCI 4.9.9
    com.apple.driver.AppleAHCIPort 2.9.5
    com.apple.driver.AppleSDXC 1.4.0
    com.apple.driver.AppleUSBEHCI 650.4.1
    com.apple.driver.AppleUSBXHCI 650.4.3
    com.apple.driver.AirPort.Brcm4331 700.20.22
    com.apple.iokit.AppleBCM5701Ethernet 3.6.9b9
    com.apple.driver.AppleSmartBatteryManager 161.0.0
    com.apple.driver.AppleRTC 2.0
    com.apple.driver.AppleACPIButtons 2.0
    com.apple.driver.AppleHPET 1.8
    com.apple.driver.AppleSMBIOS 2.0
    com.apple.driver.AppleACPIEC 2.0
    com.apple.driver.AppleAPIC 1.7
    com.apple.driver.AppleIntelCPUPowerManagementClient 216.0.0
    com.apple.nke.applicationfirewall 153
    com.apple.security.quarantine 3
    com.apple.driver.AppleIntelCPUPowerManagement 216.0.0
    com.apple.iokit.IOUSBHIDDriver 650.4.4
    com.apple.driver.AppleThunderboltDPInAdapter 2.5.0
    com.apple.driver.AppleThunderboltDPAdapterFamily 2.5.0
    com.apple.driver.AppleThunderboltPCIDownAdapter 1.4.0
    com.apple.driver.AppleUSBMergeNub 650.4.0
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 3.6.0
    com.apple.iokit.IOBDStorageFamily 1.7
    com.apple.iokit.IODVDStorageFamily 1.7.1
    com.apple.iokit.IOCDStorageFamily 1.7.1
    com.apple.iokit.IOAHCISerialATAPI 2.6.0
    com.apple.iokit.IOFireWireFamily 4.5.5
    com.apple.iokit.IOUSBUserClient 650.4.4
    com.apple.driver.AppleThunderboltNHI 1.9.2
    com.apple.iokit.IOThunderboltFamily 2.8.5
    com.apple.iokit.IOAHCIFamily 2.6.0
    com.apple.iokit.IO80211Family 600.34
    com.apple.iokit.IOEthernetAVBController 1.0.3b3
    com.apple.driver.mDNSOffloadUserClient 1.0.1b4
    com.apple.iokit.IONetworkingFamily 3.2
    com.apple.driver.AppleEFINVRAM 2.0
    com.apple.driver.AppleEFIRuntime 2.0
    com.apple.iokit.IOHIDFamily 2.0.0
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.security.sandbox 278.10
    com.apple.kext.AppleMatch 1.0.0d1
    com.apple.security.TMSafetyNet 7
    com.apple.driver.AppleKeyStore 2
    com.apple.driver.DiskImages 371.1
    com.apple.iokit.IOReportFamily 21
    com.apple.driver.AppleFDEKeyStore 28.30
    com.apple.iokit.IOUSBMassStorageClass 3.6.0
    com.apple.driver.AppleUSBComposite 650.4.0
    com.apple.iokit.IOSCSIBlockCommandsDevice 3.6.0
    com.apple.iokit.IOStorageFamily 1.9
    com.apple.iokit.IOSCSIArchitectureModelFamily 3.6.0
    com.apple.iokit.IOUSBFamily 650.4.4
    com.apple.driver.AppleACPIPlatform 2.0
    com.apple.iokit.IOPCIFamily 2.8
    com.apple.iokit.IOACPIFamily 1.4
    com.apple.kec.corecrypto 1.0
    com.apple.kec.pthread 1
    Model: MacBookPro9,2, BootROM MBP91.00D3.B08, 2 processors, Intel Core i7, 2.9 GHz, 16 GB, SMC 2.2f44
    Graphics: Intel HD Graphics 4000, Intel HD Graphics 4000, Built-In, 1024 MB
    Memory Module: BANK 0/DIMM0, 8 GB, DDR3, 1600 MHz, 0x802C, 0x31364B544631473634485A2D314736443120
    Memory Module: BANK 1/DIMM0, 8 GB, DDR3, 1600 MHz, 0x802C, 0x31364B544631473634485A2D314736443120
    AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0xF5), Broadcom BCM43xx 1.0 (5.106.98.100.22)
    Bluetooth: Version 4.2.0f6 12982, 3 services, 15 devices, 0 incoming serial ports
    Network Service: Ethernet (andy), Ethernet, en0
    Network Service: Wi-Fi, AirPort, en1
    Serial ATA Device: Samsung SSD 840 EVO 1TB, 1 TB
    Serial ATA Device: MATSHITADVD-R UJ-8A8
    USB Device: Hub
    USB Device: FaceTime HD Camera (Built-in)
    USB Device: Hub
    USB Device: Hub
    USB Device: Apple Internal Keyboard / Trackpad
    USB Device: IR Receiver
    USB Device: BRCM20702 Hub
    USB Device: Bluetooth USB Host Controller
    USB Device: USB OPTICAL MOUSE
    Thunderbolt Bus: MacBook Pro, Apple Inc., 25.1

  15. chrfr macrumors 603

    Joined:
    Jul 11, 2009
    #15
    Google points to this as your likely suspect- it's old software for a cellular modem. Uninstall that.

  16. pastrychef macrumors 601

    pastrychef

    Joined:
    Sep 15, 2006
    Location:
    New York City, NY
    #16
    Good catch, chrfr. That certainly does look like the culprit.

  17. puffo25 macrumors member

    puffo25

    Joined:
    Mar 17, 2012
    Location:
    earth :-)
    #17
    I am impressed!!!! If that is the reason, wow, I should pay you a big bottle of Italian wine!

    Now how can I find this specific file? A broad search did not bring up anything, even with the hidden files visibile... Do you know if I have to look for example under library under a specific path?

    Thanks in advance!
    Andrea


  18. pastrychef macrumors 601

    pastrychef

    Joined:
    Sep 15, 2006
    Location:
    New York City, NY
  19. puffo25 macrumors member

    puffo25

    Joined:
    Mar 17, 2012
    Location:
    earth :-)
    #19
    Mmmm, cannot find that damn file!
    I have looked into the extension folder, with hidden files visible but unless I am blind it is not there:-(

    This is what I see:
    Accusys6xxxx.kext
    acfs.kext
    acfsctl.kext
    ALF.kext
    AMD2400Controller.kext
    AMD2600Controller.kext
    AMD3800Controller.kext
    AMD4600Controller.kext
    AMD4800Controller.kext
    AMD5000Controller.kext
    AMD6000Controller.kext
    AMD7000Controller.kext
    AMDFramebuffer.kext
    AMDRadeonVADriver.bundle
    AMDRadeonX3000.kext
    AMDRadeonX3000GLDriver.bundle
    AMDRadeonX4000.kext
    AMDRadeonX4000GLDriver.bundle
    AMDSupport.kext
    Apple_iSight.kext
    Apple16X50Serial.kext
    AppleACPIPlatform.kext
    AppleAHCIPort.kext
    AppleAPIC.kext
    AppleBacklight.kext
    AppleBacklightExpert.kext
    AppleBluetoothMultitouch.kext
    AppleBMC.kext
    AppleCameraInterface.kext
    AppleEFIRuntime.kext
    AppleFDEKeyStore.kext
    AppleFileSystemDriver.kext
    AppleFSCompressionTypeDataless.kext
    AppleFSCompressionTypeZlib.kext
    AppleFWAudio.kext
    AppleGraphicsControl.kext
    AppleGraphicsPowerManagement.kext
    AppleHDA.kext
    AppleHIDKeyboard.kext
    AppleHIDMouse.kext
    AppleHPET.kext
    AppleHSSPIHIDDriver.kext
    AppleHSSPISupport.kext
    AppleHWAccess.kext
    AppleHWSensor.kext
    AppleIntelCPUPowerManagement.kext
    AppleIntelCPUPowerManagementClient.kext
    AppleIntelFramebufferAzul.kext
    AppleIntelFramebufferCapri.kext
    AppleIntelHD3000Graphics.kext
    AppleIntelHD3000GraphicsGA.plugin
    AppleIntelHD3000GraphicsGLDriver.bundle
    AppleIntelHD3000GraphicsVADriver.bundle
    AppleIntelHD4000Graphics.kext
    AppleIntelHD4000GraphicsGLDriver.bundle
    AppleIntelHD4000GraphicsVADriver.bundle
    AppleIntelHD5000Graphics.kext
    AppleIntelHD5000GraphicsGLDriver.bundle
    AppleIntelHD5000GraphicsVADriver.bundle
    AppleIntelHDGraphics.kext
    AppleIntelHDGraphicsFB.kext
    AppleIntelHDGraphicsGA.plugin
    AppleIntelHDGraphicsGLDriver.bundle
    AppleIntelHDGraphicsVADriver.bundle
    AppleIntelHSWVA.bundle
    AppleIntelIVBVA.bundle
    AppleIntelLpssDmac.kext
    AppleIntelLpssGspi.kext
    AppleIntelLpssSpiController.kext
    AppleIntelSNBGraphicsFB.kext
    AppleIntelSNBVA.bundle
    AppleIRController.kext
    AppleKextExcludeList.kext
    AppleKeyStore.kext
    AppleKeyswitch.kext
    AppleLPC.kext
    AppleLSIFusionMPT.kext
    AppleMatch.kext
    AppleMCCSControl.kext
    AppleMCEDriver.kext
    AppleMCP89RootPortPM.kext
    AppleMIDIFWDriver.plugin
    AppleMIDIIACDriver.plugin
    AppleMIDIRTPDriver.plugin
    AppleMIDIUSBDriver.plugin
    AppleMikeyHIDDriver.kext
    AppleMobileDevice.kext
    AppleMultitouchDriver.kext
    ApplePlatformEnabler.kext
    AppleRAID.kext
    AppleRAIDCard.kext
    AppleRTC.kext
    AppleSDXC.kext
    AppleSEP.kext
    AppleSmartBatteryManager.kext
    AppleSMBIOS.kext
    AppleSMBusController.kext
    AppleSMBusPCI.kext
    AppleSMC.kext
    AppleSMCLMU.kext
    AppleSRP.kext
    AppleStorageDrivers.kext
    AppleThunderboltDPAdapters.kext
    AppleThunderboltEDMService.kext
    AppleThunderboltIP.kext
    AppleThunderboltNHI.kext
    AppleThunderboltPCIAdapters.kext
    AppleThunderboltUTDM.kext
    AppleTopCase.kext
    AppleTyMCEDriver.kext
    AppleUpstreamUserClient.kext
    AppleUSBAudio.kext
    AppleUSBDisplays.kext
    AppleUSBEthernetHost.kext
    AppleUSBMultitouch.kext
    AppleUSBTopCase.kext
    AppleVADriver.bundle
    AppleWWANAutoEject.kext
    AppleXsanFilter.kext
    ATIRadeonX2000.kext
    ATIRadeonX2000GA.plugin
    ATIRadeonX2000GLDriver.bundle
    ATIRadeonX2000VADriver.bundle
    ATTOCelerityFC.kext
    ATTOExpressPCI4.kext
    ATTOExpressSASHBA.kext
    ATTOExpressSASHBA3.kext
    ATTOExpressSASRAID.kext
    AudioAUUC.kext
    autofs.kext
    BJUSBLoad.kext
    BoomDevice.kext
    BootCache.kext
    CanonCUPSFAXUSBClassDriver.kext
    cd9660.kext
    cdc_ecm_qmi.kext
    cdc.kext
    cddafs.kext
    CellPhoneHelper.kext
    corecrypto.kext
    CoreStorage.kext
    CUDA.kext
    Dont Steal Mac OS X.kext
    DSACL.ppp
    DSAuth.ppp
    DVFamily.bundle
    EAP-KRB.ppp
    EAP-RSA.ppp
    EAP-TLS.ppp
    ElmediaPlayer.kext
    EPSONUSBPrintClass.kext
    exfat.kext
    GeForce.kext
    GeForceGA.plugin
    GeForceGLDriver.bundle
    GeForceTesla.kext
    GeForceTeslaGLDriver.bundle
    GeForceTeslaVADriver.bundle
    GeForceVADriver.bundle
    hp_designjet_series.kext
    hp_Deskjet_io_enabler.kext
    hp_fax_io.kext
    hp_Inkjet_io_enabler.kext
    hp_Inkjet1_io_enabler.kext
    hp_Inkjet2_io_enabler.kext
    hp_Inkjet3_io_enabler.kext
    hp_Inkjet4_io_enabler.kext
    hp_Inkjet5_io_enabler.kext
    hp_Inkjet7_io_enabler.kext
    hp_Inkjet8_io_enabler.kext
    hp_Inkjet9_io_enabler.kext
    hp_io_printerclassdriver_enabler.kext
    hp_Laserjet_io_enabler.kext
    hp_Officejet_io_enabler.kext
    hp_Photosmart_io_enabler.kext
    hp_PhotosmartPro_io_enabler.kext
    hp_psa640_io_enabler.kext
    hp_qc_io_enabler.kext
    IceraUSBMassStorageBypass.kext
    IO80211Family.kext
    IOAccelerator2D.plugin
    IOAcceleratorFamily.kext
    IOAcceleratorFamily2.kext
    IOACPIFamily.kext
    IOAHCIFamily.kext
    IOATAFamily.kext
    IOAudioFamily.kext
    IOAVBFamily.kext
    IOBDStorageFamily.kext
    IOBluetoothFamily.kext
    IOBluetoothHIDDriver.kext
    IOCDStorageFamily.kext
    IODVDStorageFamily.kext
    IOFireWireAVC.kext
    IOFireWireFamily.kext
    IOFireWireIP.kext
    IOFireWireSBP2.kext
    IOFireWireSerialBusProtocolTransport.kext
    IOGraphicsFamily.kext
    IOHDIXController.kext
    IOHIDFamily.kext
    IONDRVSupport.kext
    IONetworkingFamily.kext
    IOPCIFamily.kext
    IOPlatformPluginFamily.kext
    IOReportFamily.kext
    IOSCSIArchitectureModelFamily.kext
    IOSCSIParallelFamily.kext
    IOSerialFamily.kext
    IOSMBusFamily.kext
    IOStorageFamily.kext
    IOStreamFamily.kext
    IOSurface.kext
    IOThunderboltFamily.kext
    IOTimeSyncFamily.kext
    IOUSBAttachedSCSI.kext
    IOUSBFamily.kext
    IOUSBMassStorageClass.kext
    IOUserEthernet.kext
    IOVideoFamily.kext
    iPodDriver.kext
    JMicronATA.kext
    L2TP.ppp
    LeafFwXDriverMatcher64.kext
    MacVideAudioConnectorDriver.kext
    mcxalr.kext
    msdosfs.kext
    NMLGEDriver_106.kext
    NMSamsungDriver_106.kext
    NMSmartplugSCSIDevice_106.kext
    NovatelWireless3G.kext
    NovatelWirelessFilter.kext
    NovatelWirelessUSBCDCECMControl.kext
    NovatelWirelessUSBCDCECMData.kext
    ntfs.kext
    NVDAGF100Hal.kext
    NVDAGK100Hal.kext
    NVDANV50HalTesla.kext
    NVDAResman.kext
    NVDAResmanTesla.kext
    NVDAStartup.kext
    NVSMU.kext
    OlympusDSCDriver.kext
    OlympusDSCSCSIDriver.kext
    Option72.kext
    OptionHS.kext
    OptionMSD.kext
    OptionQC.kext
    OSvKernDSPLib.kext
    PPP.kext
    PPPoE.ppp
    PPPSerial.ppp
    PPTP.ppp
    pthread.kext
    Quarantine.kext
    Radius.ppp
    RIMBBUSB.kext
    RIMBBVSP.kext
    RoxioBluRaySupport.kext
    rtl8187.kext
    Sandbox.kext
    SiLabsUSBDriver.kext
    SiLabsUSBDriver64.kext
    SMARTLib.plugin
    smbfs.kext
    SMCMotionSensor.kext
    Soundflower.kext
    System.kext
    TelestreamAudio.kext
    Terminus.kext
    TMSafetyNet.kext
    triggers.kext
    udf.kext
    VaraAudio.kext
    vecLib.kext
    WavTap.kext
    WD1394HPDriver.kext
    WDUSBHPDriver.kext
    webcontentfilter.kext
    webdav_fs.kext
    ZTEUSBCDCACMData.kext
    ZTEUSBMassStorageFilter.kext

    Please help me...


  20. xgman macrumors 601

    xgman

    Joined:
    Aug 6, 2007
    #20
    get easyfind app (free) and search for that file.

  21. chrfr macrumors 603

    Joined:
    Jul 11, 2009
    #21
    Those.

  22. puffo25 macrumors member

    puffo25

    Joined:
    Mar 17, 2012
    Location:
    earth :-)
    #22
    OK, I have removed those 7 recommended .kext files....
    (NMLGEDriver_106.kext
    NMSamsungDriver_106.kext
    NMSmartplugSCSIDevice_106.kext
    NovatelWireless3G.kext
    NovatelWirelessFilter.kext
    NovatelWirelessUSBCDCECMControl.kext
    NovatelWirelessUSBCDCECMData.kext)

    .......However using EasyFind and searching also for invisibile files, I could not find any file called: de.novamedia.driver.NMSmartplugSCSIDevice 1.0.1

    In fact this file: de.novamedia.driver.NMSmartplugSCSIDevice 1.0.1 does NOT appear in the list of kext files I have show before.
    So is this file still present or not?
    I am confused:-(

    Andrea


  23. puffo25 macrumors member

    puffo25

    Joined:
    Mar 17, 2012
    Location:
    earth :-)
    #23
    Again kernel crash after removing previous 7 .kext files.
    Very sad! :-:)confused::(

    Any clue?
    Anonymous UUID: 0FCBB5E5-E206-D9EA-4FBC-184C27CE9F7E

    Sun Nov 3 10:34:08 2013
    panic(cpu 1 caller 0xffffff802acdc19e): Kernel trap at 0xffffff802ab0e11b, type 14=page fault, registers:
    CR0: 0x000000008001003b, CR2: 0xffffff802afd1404, CR3: 0x000000002d1a5000, CR4: 0x00000000001606e0
    RAX: 0x0000000000000000, RBX: 0xffffff804b856f00, RCX: 0x00000001f6d17ec0, RDX: 0x0000000ffffff810
    RSP: 0xffffff81fb68be98, RBP: 0xffffff81fb68bf90, RSI: 0x0000000fb68bf600, RDI: 0xffffff802afd1404
    R8: 0x0000000000000000, R9: 0xffffff802b2531a0, R10: 0xffffff802b2d15f0, R11: 0x0000000000000016
    R12: 0x0000000000000000, R13: 0x000000000e8ad9c8, R14: 0xffffff81fb68bf38, R15: 0xffffff804b854008
    RFL: 0x0000000000010206, RIP: 0xffffff802ab0e11b, CS: 0x0000000000000008, SS: 0x0000000000000000
    Fault CR2: 0xffffff802afd1404, Error code: 0x0000000000000003, Fault CPU: 0x1

    Backtrace (CPU 1), Frame : Return Address
    0xffffff81fb68bb20 : 0xffffff802ac22f69
    0xffffff81fb68bba0 : 0xffffff802acdc19e
    0xffffff81fb68bd70 : 0xffffff802acf3606
    0xffffff81fb68bd90 : 0xffffff802ab0e11b
    0xffffff81fb68bf90 : 0xffffff802af75f28
    0xffffff81fb68bfb0 : 0xffffff802acd6aa7

    BSD process name corresponding to current thread: kernel_task

    Mac OS version:
    13A598

    Kernel version:
    Darwin Kernel Version 13.0.0: Thu Sep 19 22:22:27 PDT 2013; root:xnu-2422.1.72~6/RELEASE_X86_64
    Kernel UUID: 1D9369E3-D0A5-31B6-8D16-BFFBBB390393
    Kernel slide: 0x000000002aa00000
    Kernel text base: 0xffffff802ac00000
    System model name: MacBookPro9,2 (Mac-6F01561E16C75D06)

    System uptime in nanoseconds: 2389692382
    last loaded kext at 1653529643: com.apple.driver.AppleUSBTCButtons 240.2 (addr 0xffffff7fac33b000, size 20480)
    loaded kexts:
    com.rim.driver.BlackBerryUSBDriverInt 0.0.74
    com.apple.driver.AppleUSBTCButtons 240.2
    com.apple.driver.AppleUSBTCKeyEventDriver 240.2
    com.apple.driver.AppleUSBTCKeyboard 240.2
    com.apple.driver.AppleIRController 325.7
    com.apple.driver.AppleFileSystemDriver 3.0.1
    com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
    com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
    com.apple.BootCache 35
    com.apple.iokit.SCSITaskUserClient 3.6.0
    com.apple.driver.XsanFilter 404
    com.apple.iokit.IOAHCIBlockStorage 2.4.0
    com.apple.driver.AppleUSBHub 650.4.4
    com.apple.driver.AppleSDXC 1.4.0
    com.apple.iokit.AppleBCM5701Ethernet 3.6.9b9
    com.apple.driver.AirPort.Brcm4331 700.20.22
    com.apple.driver.AppleAHCIPort 2.9.5
    com.apple.driver.AppleFWOHCI 4.9.9
    com.apple.driver.AppleUSBEHCI 650.4.1
    com.apple.driver.AppleUSBXHCI 650.4.3
    com.apple.driver.AppleSmartBatteryManager 161.0.0
    com.apple.driver.AppleRTC 2.0
    com.apple.driver.AppleACPIButtons 2.0
    com.apple.driver.AppleHPET 1.8
    com.apple.driver.AppleSMBIOS 2.0
    com.apple.driver.AppleACPIEC 2.0
    com.apple.driver.AppleAPIC 1.7
    com.apple.driver.AppleIntelCPUPowerManagementClient 216.0.0
    com.apple.nke.applicationfirewall 153
    com.apple.security.quarantine 3
    com.apple.driver.AppleIntelCPUPowerManagement 216.0.0
    com.apple.driver.AppleUSBMultitouch 240.6
    com.apple.driver.AppleThunderboltDPInAdapter 2.5.0
    com.apple.driver.AppleThunderboltDPAdapterFamily 2.5.0
    com.apple.driver.AppleThunderboltPCIDownAdapter 1.4.0
    com.apple.iokit.IOUSBHIDDriver 650.4.4
    com.apple.driver.AppleUSBMergeNub 650.4.0
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 3.6.0
    com.apple.iokit.IOBDStorageFamily 1.7
    com.apple.iokit.IODVDStorageFamily 1.7.1
    com.apple.iokit.IOCDStorageFamily 1.7.1
    com.apple.iokit.IOAHCISerialATAPI 2.6.0
    com.apple.driver.AppleThunderboltNHI 1.9.2
    com.apple.iokit.IOThunderboltFamily 2.8.5
    com.apple.iokit.IOUSBUserClient 650.4.4
    com.apple.iokit.IOEthernetAVBController 1.0.3b3
    com.apple.driver.mDNSOffloadUserClient 1.0.1b4
    com.apple.iokit.IO80211Family 600.34
    com.apple.iokit.IONetworkingFamily 3.2
    com.apple.iokit.IOAHCIFamily 2.6.0
    com.apple.iokit.IOFireWireFamily 4.5.5
    com.apple.driver.AppleEFINVRAM 2.0
    com.apple.driver.AppleEFIRuntime 2.0
    com.apple.iokit.IOHIDFamily 2.0.0
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.security.sandbox 278.10
    com.apple.kext.AppleMatch 1.0.0d1
    com.apple.security.TMSafetyNet 7
    com.apple.driver.AppleKeyStore 2
    com.apple.driver.DiskImages 371.1
    com.apple.iokit.IOReportFamily 21
    com.apple.driver.AppleFDEKeyStore 28.30
    com.apple.iokit.IOUSBMassStorageClass 3.6.0
    com.apple.driver.AppleUSBComposite 650.4.0
    com.apple.iokit.IOSCSIBlockCommandsDevice 3.6.0
    com.apple.iokit.IOStorageFamily 1.9
    com.apple.iokit.IOSCSIArchitectureModelFamily 3.6.0
    com.apple.iokit.IOUSBFamily 650.4.4
    com.apple.driver.AppleACPIPlatform 2.0
    com.apple.iokit.IOPCIFamily 2.8
    com.apple.iokit.IOACPIFamily 1.4
    com.apple.kec.corecrypto 1.0
    com.apple.kec.pthread 1
    Model: MacBookPro9,2, BootROM MBP91.00D3.B08, 2 processors, Intel Core i7, 2.9 GHz, 16 GB, SMC 2.2f44
    Graphics: Intel HD Graphics 4000, Intel HD Graphics 4000, Built-In, 1024 MB
    Memory Module: BANK 0/DIMM0, 8 GB, DDR3, 1600 MHz, 0x802C, 0x31364B544631473634485A2D314736443120
    Memory Module: BANK 1/DIMM0, 8 GB, DDR3, 1600 MHz, 0x802C, 0x31364B544631473634485A2D314736443120
    AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0xF5), Broadcom BCM43xx 1.0 (5.106.98.100.22)
    Bluetooth: Version 4.2.0f6 12982, 3 services, 15 devices, 1 incoming serial ports
    Network Service: Ethernet (puff), Ethernet, en0
    Network Service: Wi-Fi, AirPort, en1
    Serial ATA Device: Samsung SSD 840 EVO 1TB, 1 TB
    Serial ATA Device: MATSHITADVD-R UJ-8A8
    USB Device: Hub
    USB Device: Hub
    USB Device: BRCM20702 Hub
    USB Device: Bluetooth USB Host Controller
    USB Device: Apple Internal Keyboard / Trackpad
    USB Device: IR Receiver
    USB Device: Hub
    USB Device: FaceTime HD Camera (Built-in)
    Thunderbolt Bus: MacBook Pro, Apple Inc., 25.1

  24. pastrychef macrumors 601

    pastrychef

    Joined:
    Sep 15, 2006
    Location:
    New York City, NY
    #24
    Try removing that.

  25. puffo25 macrumors member

    puffo25

    Joined:
    Mar 17, 2012
    Location:
    earth :-)
    #25
    Hi again and many thanks for your support so far.
    I do believe I have removed that .ketx file (com.rim.driver.BlackBerryUSBDriverInt 0.0.74) and probably couple of others,,,

    This getting the kernel crash @ startup:

    Anonymous UUID: 0FCBB5E5-E206-D9EA-4FBC-184C27CE9F7E

    Sun Nov 3 15:34:00 2013
    panic(cpu 1 caller 0xffffff80042dc19e): Kernel trap at 0xffffff800410e11b, type 14=page fault, registers:
    CR0: 0x000000008001003b, CR2: 0xffffff80045d1404, CR3: 0x00000000065fb000, CR4: 0x00000000001606e0
    RAX: 0x0000000000000000, RBX: 0xffffff80241bef00, RCX: 0x00000001945d7ec0, RDX: 0x0000000ffffff810
    RSP: 0xffffff81ca2ebe98, RBP: 0xffffff81ca2ebf90, RSI: 0x0000000ca2ebf600, RDI: 0xffffff80045d1404
    R8: 0x0000000000000000, R9: 0xffffff80048531a0, R10: 0xffffff80048d15f0, R11: 0x0000000000000016
    R12: 0x0000000000000000, R13: 0x000000000e8ad9c8, R14: 0xffffff81ca2ebf38, R15: 0xffffff80241c2808
    RFL: 0x0000000000010206, RIP: 0xffffff800410e11b, CS: 0x0000000000000008, SS: 0x0000000000000000
    Fault CR2: 0xffffff80045d1404, Error code: 0x0000000000000003, Fault CPU: 0x1

    Backtrace (CPU 1), Frame : Return Address
    0xffffff81ca2ebb20 : 0xffffff8004222f69
    0xffffff81ca2ebba0 : 0xffffff80042dc19e
    0xffffff81ca2ebd70 : 0xffffff80042f3606
    0xffffff81ca2ebd90 : 0xffffff800410e11b
    0xffffff81ca2ebf90 : 0xffffff8004575f28
    0xffffff81ca2ebfb0 : 0xffffff80042d6aa7

    BSD process name corresponding to current thread: kernel_task

    Mac OS version:
    13A598

    Kernel version:
    Darwin Kernel Version 13.0.0: Thu Sep 19 22:22:27 PDT 2013; root:xnu-2422.1.72~6/RELEASE_X86_64
    Kernel UUID: 1D9369E3-D0A5-31B6-8D16-BFFBBB390393
    Kernel slide: 0x0000000004000000
    Kernel text base: 0xffffff8004200000
    System model name: MacBookPro9,2 (Mac-6F01561E16C75D06)

    System uptime in nanoseconds: 2302014258
    last loaded kext at 1824044356: com.apple.driver.AppleUSBTCButtons 240.2 (addr 0xffffff7f857b6000, size 20480)
    loaded kexts:
    com.apple.driver.AppleUSBTCButtons 240.2
    com.apple.driver.AppleUSBTCKeyEventDriver 240.2
    com.apple.driver.AppleUSBTCKeyboard 240.2
    com.apple.driver.AppleIRController 325.7
    com.apple.driver.AppleFileSystemDriver 3.0.1
    com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
    com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
    com.apple.BootCache 35
    com.apple.iokit.SCSITaskUserClient 3.6.0
    com.apple.driver.XsanFilter 404
    com.apple.iokit.IOAHCIBlockStorage 2.4.0
    com.apple.iokit.AppleBCM5701Ethernet 3.6.9b9
    com.apple.driver.AppleSDXC 1.4.0
    com.apple.driver.AppleFWOHCI 4.9.9
    com.apple.driver.AppleUSBHub 650.4.4
    com.apple.driver.AirPort.Brcm4331 700.20.22
    com.apple.driver.AppleAHCIPort 2.9.5
    com.apple.driver.AppleUSBEHCI 650.4.1
    com.apple.driver.AppleUSBXHCI 650.4.3
    com.apple.driver.AppleSmartBatteryManager 161.0.0
    com.apple.driver.AppleRTC 2.0
    com.apple.driver.AppleACPIButtons 2.0
    com.apple.driver.AppleHPET 1.8
    com.apple.driver.AppleSMBIOS 2.0
    com.apple.driver.AppleACPIEC 2.0
    com.apple.driver.AppleAPIC 1.7
    com.apple.driver.AppleIntelCPUPowerManagementClient 216.0.0
    com.apple.nke.applicationfirewall 153
    com.apple.security.quarantine 3
    com.apple.driver.AppleIntelCPUPowerManagement 216.0.0
    com.apple.driver.AppleUSBMultitouch 240.6
    com.apple.driver.AppleThunderboltDPInAdapter 2.5.0
    com.apple.driver.AppleThunderboltDPAdapterFamily 2.5.0
    com.apple.driver.AppleThunderboltPCIDownAdapter 1.4.0
    com.apple.iokit.IOUSBHIDDriver 650.4.4
    com.apple.driver.AppleUSBMergeNub 650.4.0
    com.apple.driver.AppleUSBComposite 650.4.0
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 3.6.0
    com.apple.iokit.IOBDStorageFamily 1.7
    com.apple.iokit.IODVDStorageFamily 1.7.1
    com.apple.iokit.IOCDStorageFamily 1.7.1
    com.apple.iokit.IOAHCISerialATAPI 2.6.0
    com.apple.iokit.IOSCSIArchitectureModelFamily 3.6.0
    com.apple.iokit.IOEthernetAVBController 1.0.3b3
    com.apple.driver.mDNSOffloadUserClient 1.0.1b4
    com.apple.driver.AppleThunderboltNHI 1.9.2
    com.apple.iokit.IOThunderboltFamily 2.8.5
    com.apple.iokit.IOFireWireFamily 4.5.5
    com.apple.iokit.IOUSBUserClient 650.4.4
    com.apple.iokit.IO80211Family 600.34
    com.apple.iokit.IONetworkingFamily 3.2
    com.apple.iokit.IOAHCIFamily 2.6.0
    com.apple.iokit.IOUSBFamily 650.4.4
    com.apple.driver.AppleEFINVRAM 2.0
    com.apple.driver.AppleEFIRuntime 2.0
    com.apple.iokit.IOHIDFamily 2.0.0
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.security.sandbox 278.10
    com.apple.kext.AppleMatch 1.0.0d1
    com.apple.security.TMSafetyNet 7
    com.apple.driver.AppleKeyStore 2
    com.apple.driver.DiskImages 371.1
    com.apple.iokit.IOStorageFamily 1.9
    com.apple.iokit.IOReportFamily 21
    com.apple.driver.AppleFDEKeyStore 28.30
    com.apple.driver.AppleACPIPlatform 2.0
    com.apple.iokit.IOPCIFamily 2.8
    com.apple.iokit.IOACPIFamily 1.4
    com.apple.kec.corecrypto 1.0
    com.apple.kec.pthread 1
    Model: MacBookPro9,2, BootROM MBP91.00D3.B08, 2 processors, Intel Core i7, 2.9 GHz, 16 GB, SMC 2.2f44
    Graphics: Intel HD Graphics 4000, Intel HD Graphics 4000, Built-In, 1024 MB
    Memory Module: BANK 0/DIMM0, 8 GB, DDR3, 1600 MHz, 0x802C, 0x31364B544631473634485A2D314736443120
    Memory Module: BANK 1/DIMM0, 8 GB, DDR3, 1600 MHz, 0x802C, 0x31364B544631473634485A2D314736443120
    AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0xF5), Broadcom BCM43xx 1.0 (5.106.98.100.22)
    Bluetooth: Version 4.2.0f6 12982, 3 services, 15 devices, 1 incoming serial ports
    Network Service: Ethernet (Alinari), Ethernet, en0
    Network Service: Wi-Fi, AirPort, en1
    Serial ATA Device: Samsung SSD 840 EVO 1TB, 1 TB
    Serial ATA Device: MATSHITADVD-R UJ-8A8
    USB Device: Hub
    USB Device: FaceTime HD Camera (Built-in)
    USB Device: Hub
    USB Device: Hub
    USB Device: Apple Internal Keyboard / Trackpad
    USB Device: IR Receiver
    USB Device: BRCM20702 Hub
    USB Device: Bluetooth USB Host Controller
    Thunderbolt Bus: MacBook Pro, Apple Inc., 25.1

    What shall I do at this stage?
    Anything else to consider?
    Andrea



Share This Page
