Keyboard - Ribbon Cable 2013 MacBook air anyone?

Discussion in 'MacBook Air' started by nitecapt, Oct 28, 2018.

Tags:
  1. nitecapt macrumors newbie

    Joined:
    Mar 14, 2009
    Location:
    New York
    #1
    I replaced the touchpad on my Mid 2013 MacBook Air and in the process messed up my touchpad to keyboard cable. It's a kind of unusual cable which folds in on itself making installation tricky. There are two cables coming off the touchpad. This is the wider of the two and I can't find it anywhere nor do I know the part number.
    It's referred to as the touchpad - keyboard cable.
    Can anyone tell me where to find this part?

    Thanks
    Ray

  2. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #2

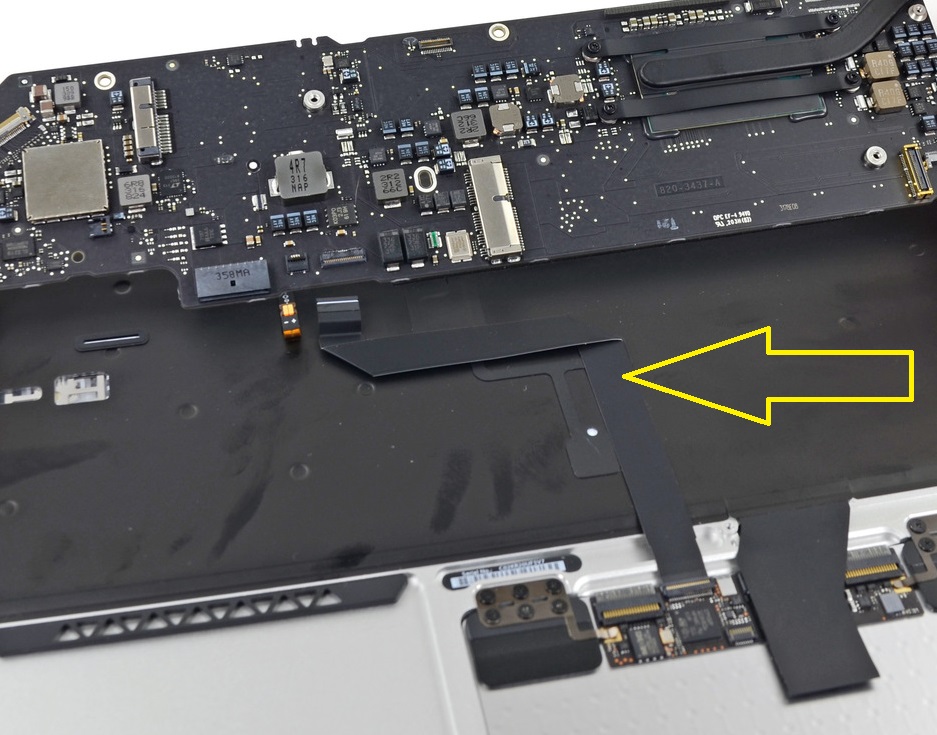

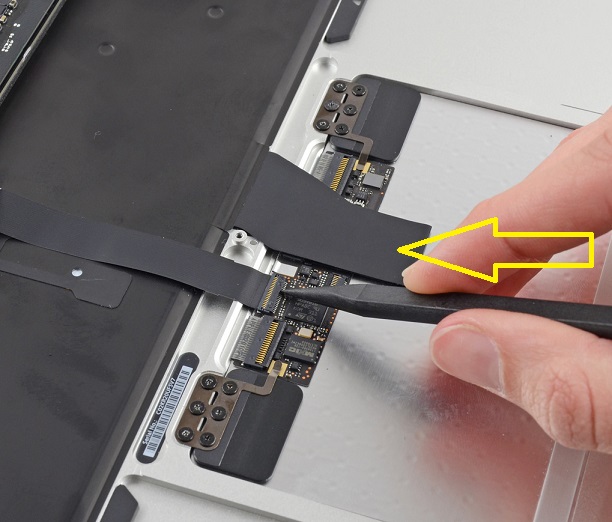

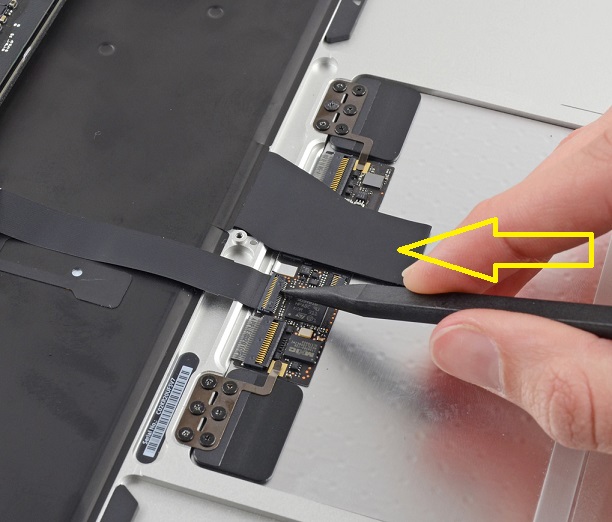

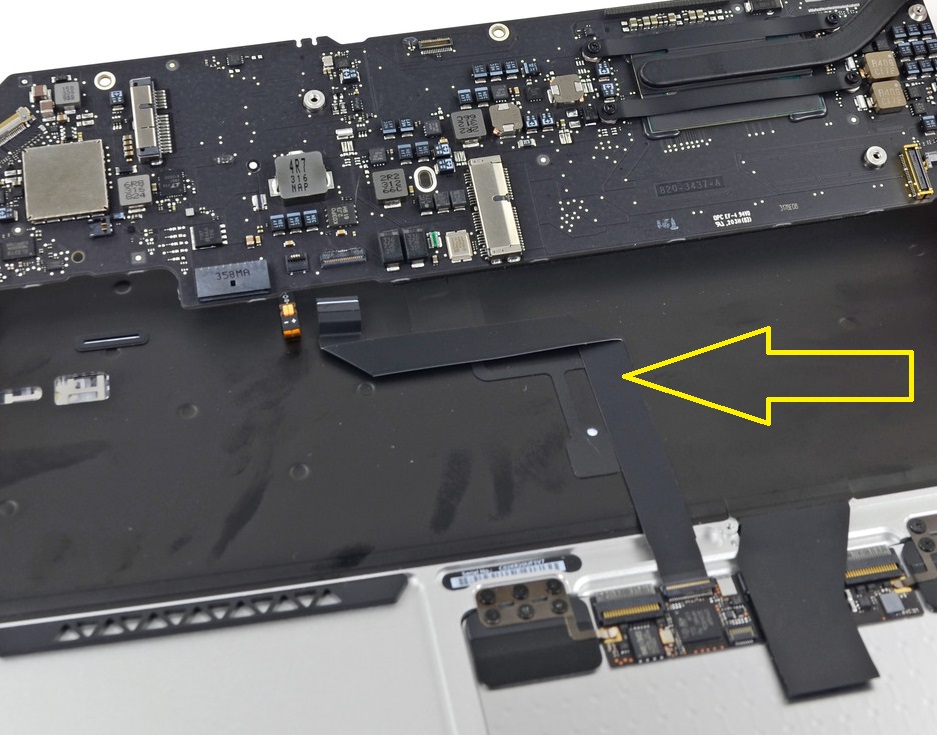

    Is it the cable that the yellow arrow is pointed at? If yes, that would be the cable coming from the keyboard. As far as I know, that cable can't be replaced by an end-user. It would be simpler to buy a replacement keyboard.


    Attached Files:

  3. nitecapt thread starter macrumors newbie

    Joined:
    Mar 14, 2009
    Location:
    New York
    #3
    Nope, my computer is different the cable can be pushed in to a connection at both ends. I wish I could take a picture, but may be I will take it apart again and do so.

  4. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #4
    The pictures I posted were for a 13" mid-2013 to 2018 Air. There are no other cables I know of that connect the keyboard to trackpad.

    Is your Air an 11"?

  5. nitecapt thread starter macrumors newbie

    Joined:
    Mar 14, 2009
    Location:
    New York
  6. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #6

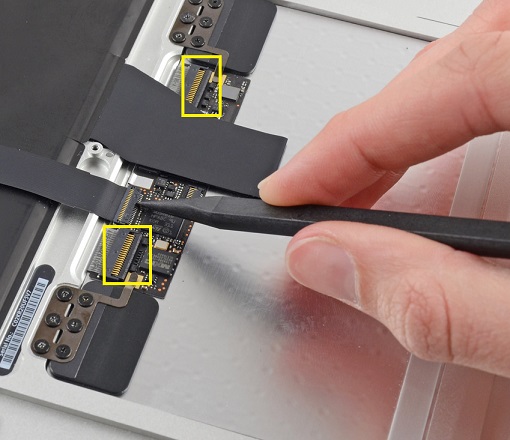

    Is it this one?


    Attached Files:

  7. nitecapt thread starter macrumors newbie

    Joined:
    Mar 14, 2009
    Location:
    New York
    #7
    No...you were right the first time. I just watched the video. It's a new keyboard or a new laptop. I am inclined to go for the second, but getting the first backed up may be difficult since it turns on and nether the keyboard nor the trackpad respond. Any idea?

  8. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #8
    Use a USB keyboard and mouse.

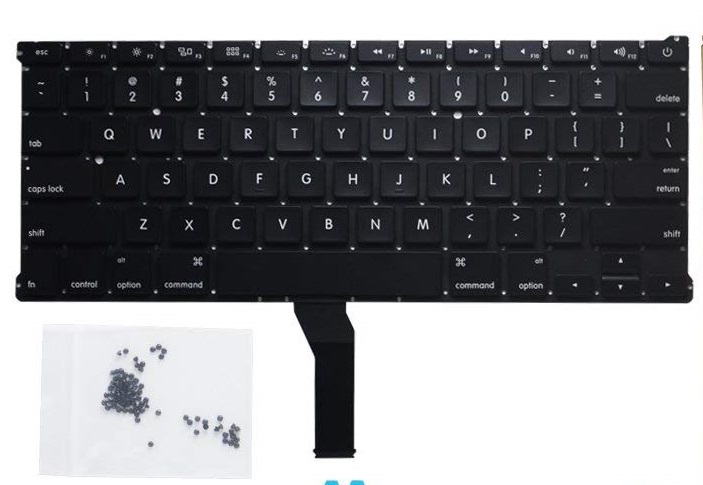

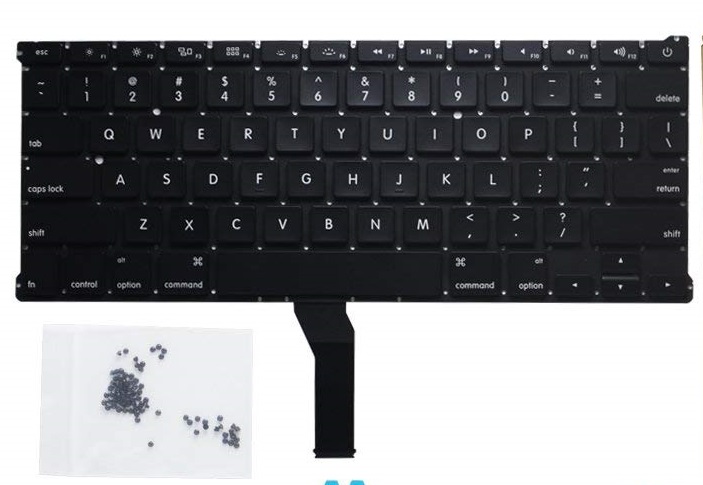

    Replace the keyboard because the 2013 Air is still a very good Mac.

  9. nitecapt thread starter macrumors newbie

    Joined:
    Mar 14, 2009
    Location:
    New York
    #9
    It looks complicated and maybe expensive. I will price it out

  10. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #10
    It's labour-intensive but pretty easy to do once you get started.

    What are the specs for the Air?

  11. nitecapt thread starter macrumors newbie

    Joined:
    Mar 14, 2009
    Location:
    New York
    #11
    Thank you I think I will give it a shot. I had already upgraded the memory and battery from OWC

  12. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
  13. nitecapt thread starter macrumors newbie

    Joined:
    Mar 14, 2009
    Location:
    New York
  14. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #14
    No problem. Just wanted to confirm since the ram is soldered to the logic board.

    Good luck with your repair.

  15. nitecapt thread starter macrumors newbie

    Joined:
    Mar 14, 2009
    Location:
    New York
    #15
    I see them online at various prices, I am going to try re-setting the cable tonight and then if it doesn't work I will get the keyboard
    I may not have properly lifted the ribbon cover where it goes in

  16. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #16
    Good idea. It's pretty finicky and there isn't much slack in the cable.

  17. nitecapt thread starter macrumors newbie

    Joined:
    Mar 14, 2009
    Location:
    New York
  18. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #18
    You are very welcome. We're all here to help and learn from each other.

  19. nitecapt thread starter macrumors newbie

    Joined:
    Mar 14, 2009
    Location:
    New York
    #19
    Well, I am back. I decided to try and check to see if I connected the ribbon cables properly and I may not have. Can you explain the purpose of the plastic mechanism which looks like a locking mechanism for the ribbon? It would appear that the ribbon on the keyboard cable goes well below that in an area that looks like it has 4 small rivets on a bar. I should have taken a photo but I am not sure I can get it, I may have gotten the keyboard ribbon right but try as I might I can't seem to get the smaller ribbon. are there any tricks you could suggest. I searched youtube for a video with a closeup of someone replacing the ribbon with very poor success. Again. Thank you!

  20. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #20

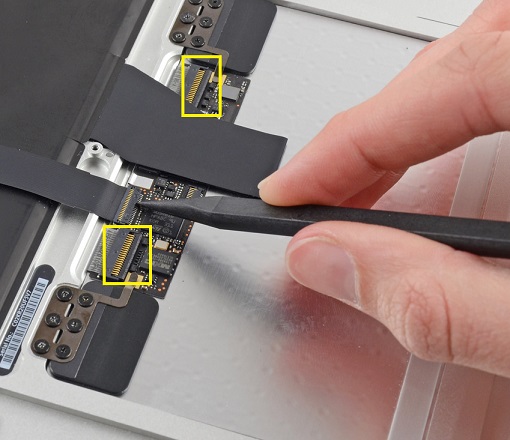

    Are you referring to the black plastic part that flips up to release the cable the down to lock in the cable? It's there to keep the cable in place. I recall breaking off one of these plastic pieces in the past. The fact that this piece was missing did not affect the Macbook functions in any manner.

    It sometimes helps to use a pair of plastic tweezers to guide the cable into place. If you have metal tweezers, you can use them yoo but I suggest placing a piece of electrical tape to prevent the metal from scraping or scratching the ribbon. Another thing that may help would be a piece of double sided tape attached to the tip of a slotted screwdriver.


    Attached Files:

  21. nitecapt thread starter macrumors newbie

    Joined:
    Mar 14, 2009
    Location:
    New York
    #21
    --- Post Merged, Oct 30, 2018 ---
    I'm so frustrated at this point i can't even seem to figure out where it goes. It shouldn't require much force to get it in, yet it seems that it does. Does it slip between the black plastic part that flips up to release the cable the down to lock in the cable?
    Or does it go below the other bar that appears to have 4 little dimples in it? Either way, I've been struggling for about an hour. Seems like it has to start perfectly straight and not just one end and then tilt the cable in. One side of the cable seems to have an indent and the other a small bump.

    Sheesh.......you know I'm from NY and we get pretty impatient here :)

  22. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #22
    Hi,

    Breathe slowly and calmly...okay, the cable goes into a slot below the gold contacts. Yes, it must be almost perfectly aligned. It may help to use tweezers and a bright light shining on the connection point.

  23. nitecapt thread starter macrumors newbie

    Joined:
    Mar 14, 2009
    Location:
    New York
    #23
    OK, I just took a break to watch some nonsense TV and Now I'm going to head back to the table to spend more time. I have been immersed in electricity lately having just installed a 3 gang box with those USB charging ports built in and a light dimmer.
    I just don't know which to do first.!

  24. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #24
    You could also use an eraser on found on the end of a pencil to help slide in the cable or a pencil tip to push it in once it's aligned.

  25. nitecapt thread starter macrumors newbie

    Joined:
    Mar 14, 2009
    Location:
    New York
    #25
    ok i'm going over to try
