Late 2013 MBP and running 4K/5K display?

Discussion in 'MacBook Pro' started by ARK, Feb 5, 2017.

  1. ARK macrumors 6502

    Joined:
    Jul 20, 2008
    Location:
    Indianapolis, IN
    #1

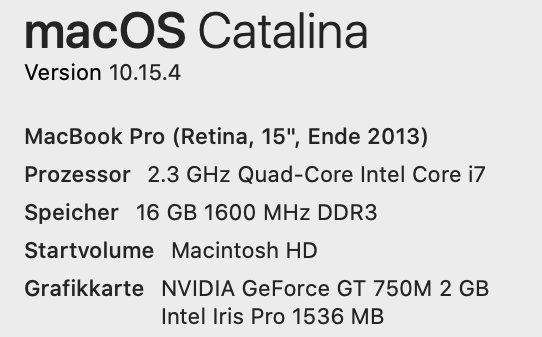

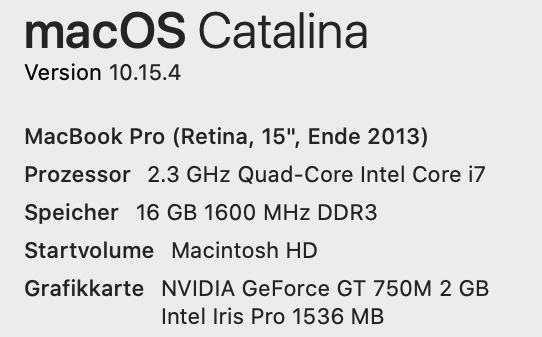

    I have a late 2013 MBP fully maxed. Can this machine run a 4k or 5K display like those new LG displays on Apple's site?

  2. Samuelsan2001 macrumors 604

    Joined:
    Oct 24, 2013
    #2
    It will support a 4K you need a 2016 for 5k and it will depend on which size MBP you have.

    All info to be found here

    https://support.apple.com/en-gb/HT206587

  3. MRxROBOT macrumors 6502

    MRxROBOT

    Joined:
    Apr 14, 2016
    Location:
    1011100110
    #3
    Although correct that ARK's 2013 MacBook Pro cannot handle a 5K display, 5K is not limited to the 2016 model. 2015 models with the m370x dGPU can run the LG UltraFine 5K display at full 5120 x 2880 resolution via Apple's Thunderbolt 3 to Thunderbolt 2 adapter.

  4. ARK, Feb 6, 2017
    Last edited: Feb 6, 2017

    ARK thread starter macrumors 6502

    Joined:
    Jul 20, 2008
    Location:
    Indianapolis, IN
    #4

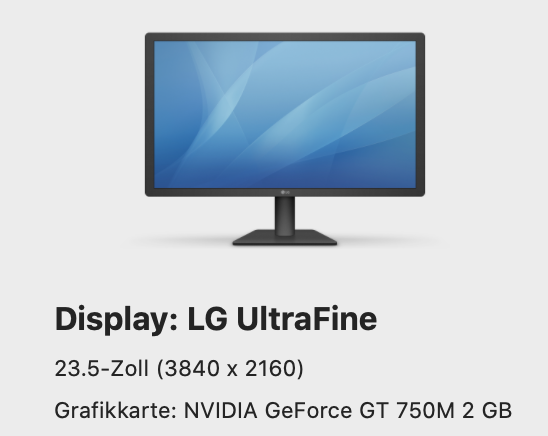

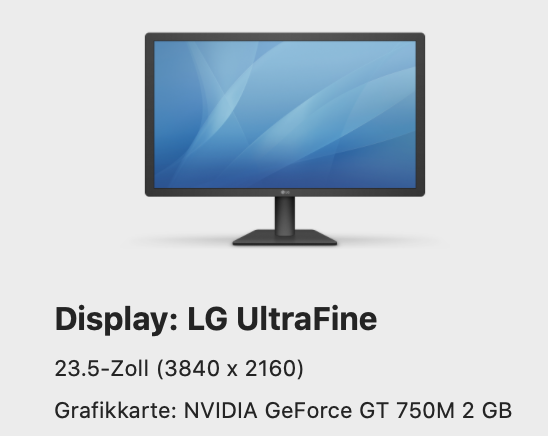

    So it says it will work with 4K displays. Does it not work with the 4K LG display that Apple is recently selling? According to Apple's site it handles MST displays only and it looks like the 4K LG is SST only.

    So for the late 2013 MBP, would I connect with HDMI or Thunderbolt? What cable would I need?
    Also for the early 2015 MB, I assume I would use a USBC - USBC cable?

    So basically it sounds like my late 2013 would limit what 4k display I get.

  5. Toutou macrumors 6502a

    Toutou

    Joined:
    Jan 6, 2015
    Location:
    Prague, Czech Republic
    #5
    Late 2013 models can output 4K, but not @ 60 Hz

  6. MRxROBOT macrumors 6502

    MRxROBOT

    Joined:
    Apr 14, 2016
    Location:
    1011100110
    #6
    Not true. The late 2013 15" rMBP is limited to 4K @ 30Hz via HDMI only. It runs 4k @ 60 Hz natively over DisplayPort (Thunderbolt port).
    --- Post Merged, Feb 6, 2017 ---

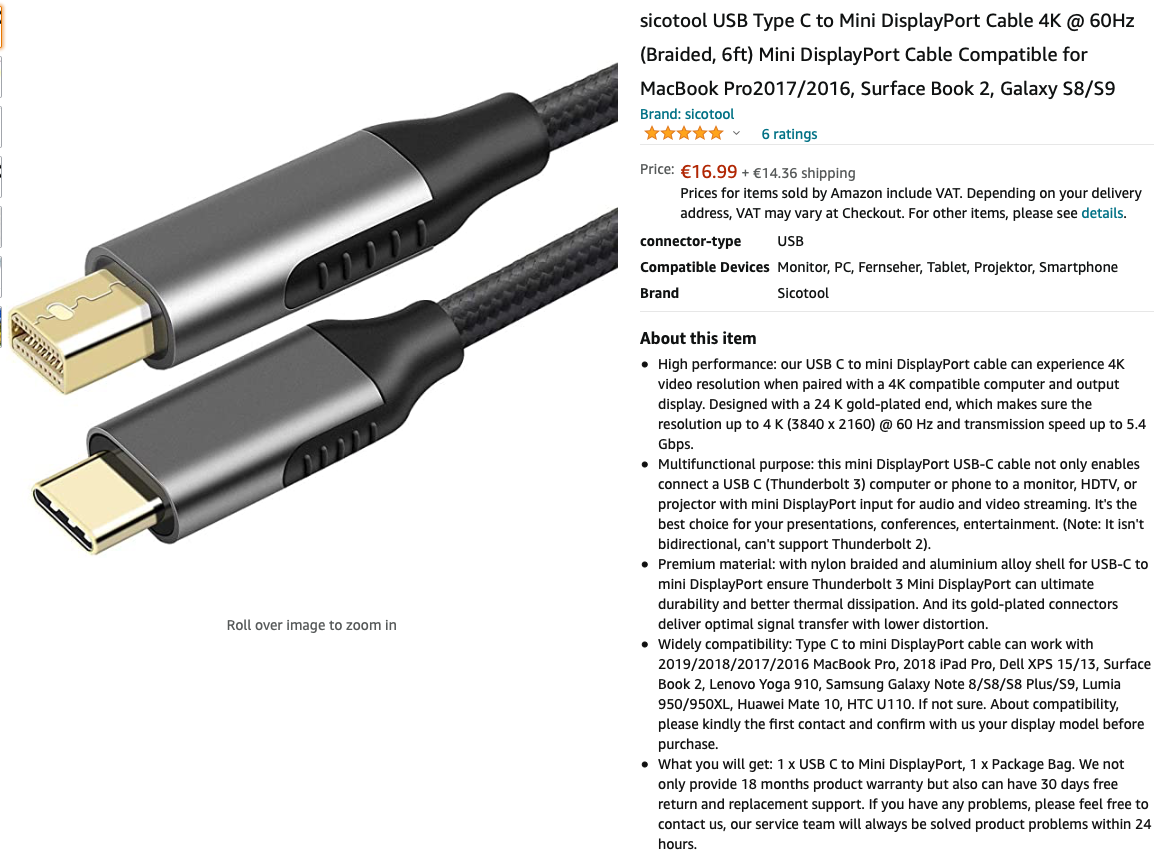

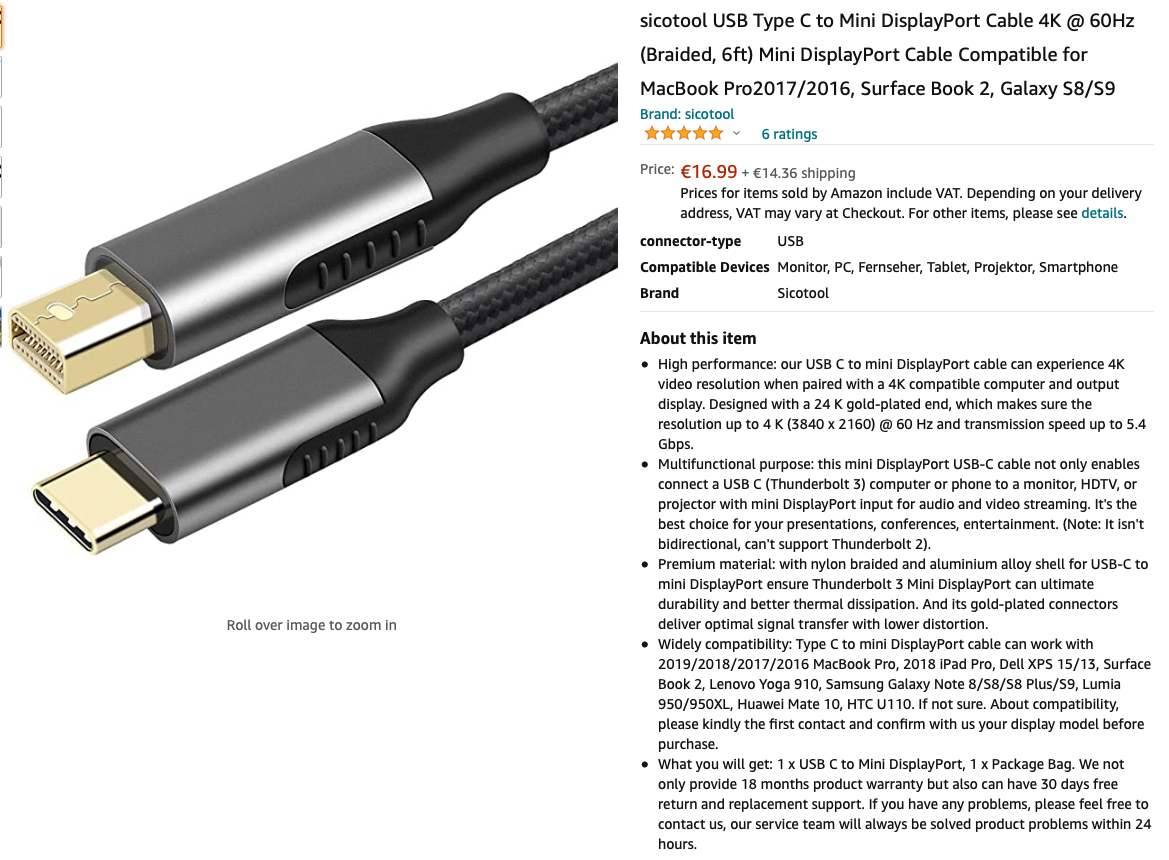

    Nope, it doesn't. The Mid 2014 15"rMBP supports 4K at 60Hz via SST and in turn this means that the Late 2013 15" does as well. The apple support page creates an artificial distinction. Why? I don't know.The truth is that the Late 2013 and the Mid 2014 15" MacBook are essentially identical machines with both using the Iris Pro 5200 and 750M. You will need a mini DisplayPort (1.2) cable to DisplayPort or HDMI to achieve this.

    Unfortunately it will not work with the LG Ultrafine 4K display at all at this time. Many on the review sites have confirmed it does not work. It will work fine with other monitors that use one of the older connecters as mentioned above. Find a monitor with DisplayPort 1.2+ or HDMI 2.0.

  7. ARK thread starter macrumors 6502

    Joined:
    Jul 20, 2008
    Location:
    Indianapolis, IN
    #7
    Thanks for your time and input. Im finding it helpful but I want to clarify something. On your first paragraph you said the late 2013 and mid 2014 are identical machines using the same video cards and the mid 2014 supports 4K at 60Hz via SST. My understanding is the LG Ultrafine 4K is SST so Im finding both paragraphs contradicting. What is it about the late 2013 that won't allow it that the mid 2014 does? Is it just the cable that isn't available to make it work at the moment or am I misunderstanding something?

  8. rutrack macrumors member

    Joined:
    Jan 5, 2017
    #8
  9. Toutou macrumors 6502a

    Toutou

    Joined:
    Jan 6, 2015
    Location:
    Prague, Czech Republic
    #9
    You're right, I didn't think of the 15".

  10. MRxROBOT macrumors 6502

    MRxROBOT

    Joined:
    Apr 14, 2016
    Location:
    1011100110
    #10

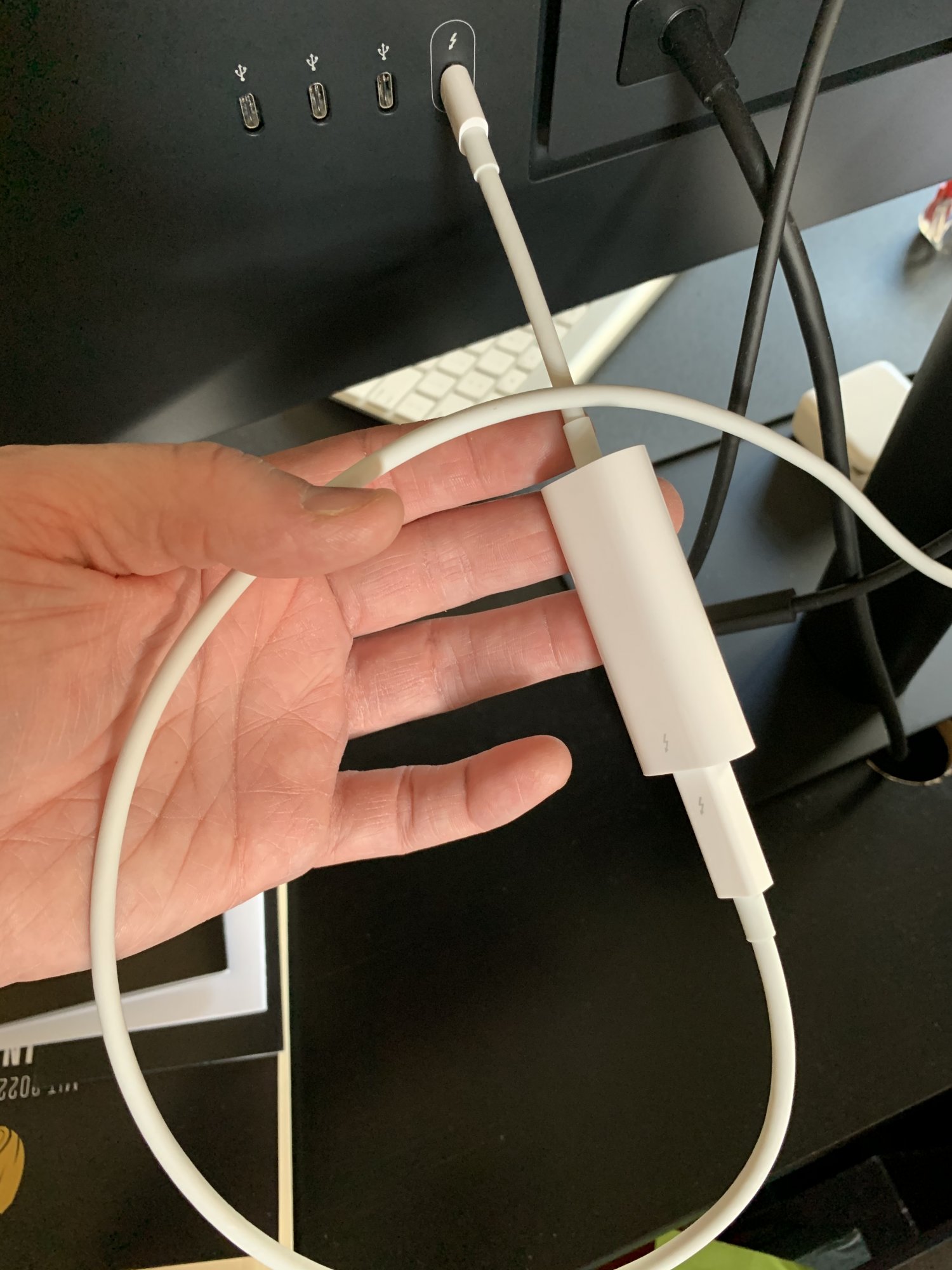

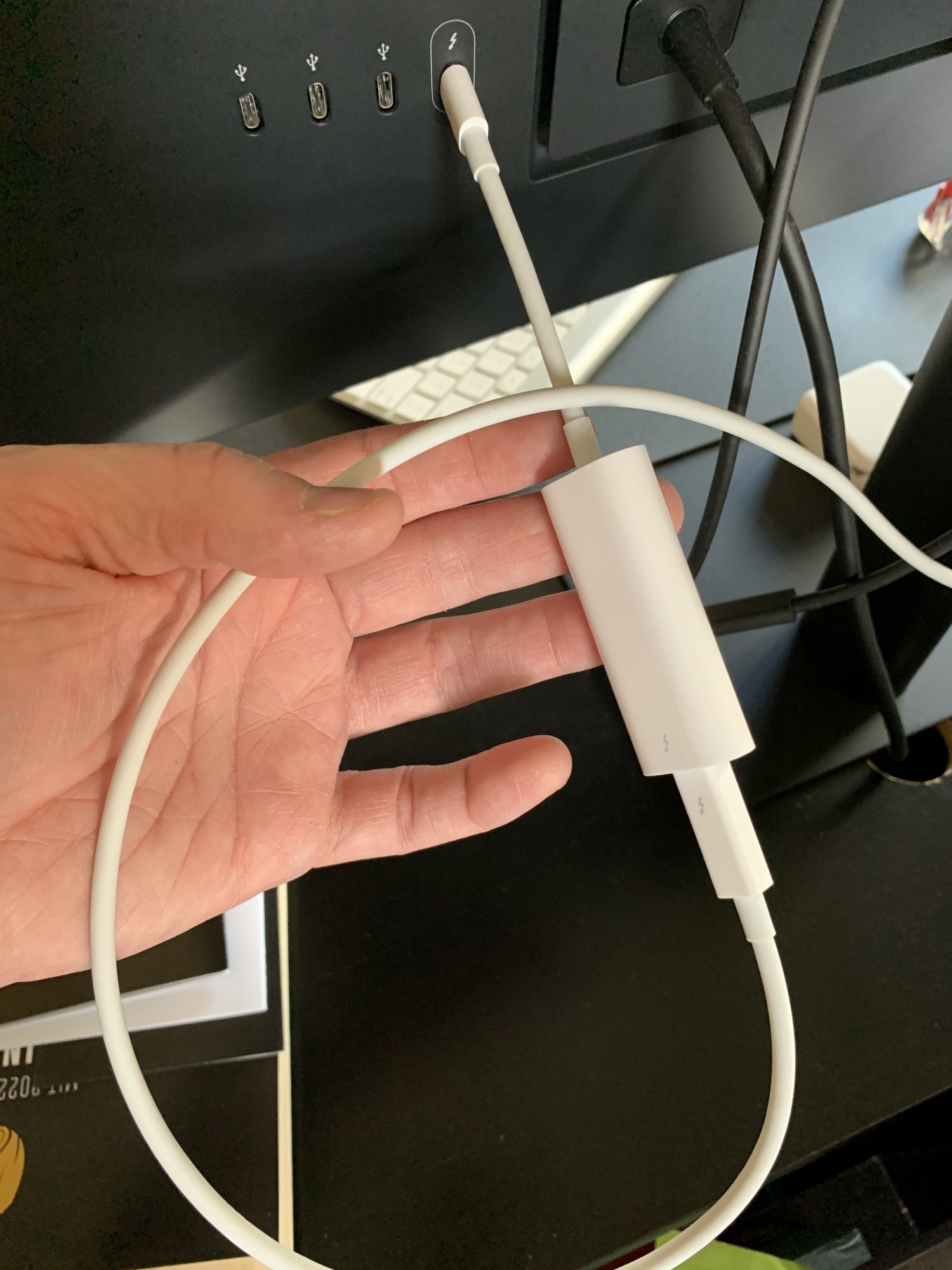

    Not a problem and I can see where you could find a bit of confusion in my post. To clarify, the reviews I've read have stated that 2013, 2014 and 2015 rMBPs are not currently working with the 4K LG UltraFine via adapters or Apple's own Thunderbolt 3 to Thunderbolt 2 adapter.

    You can see the issue I'm describing repeatedly on the Apple website.

    http://www.apple.com/shop/questions/product/HKMY2VC/A/lg-ultrafine-4k-display

    The issue could be firmware or incompatible adapters/cables on the market.

  11. caramelpolice macrumors regular

    Joined:
    Oct 6, 2012
    #11
    Not true, it will only run at 4K (see: https://support.apple.com/en-us/HT207448).

    It may offer a 5K scaling option as it does on other 4K monitors, but it renders at 5K internally and downscales to 4K for the actual output. TB2 simply does not have the bandwidth to output 5K at 60Hz.

  12. ARK thread starter macrumors 6502

    Joined:
    Jul 20, 2008
    Location:
    Indianapolis, IN
    #12
    So in the end, my late 2013 MBP will only do MST displays up to 4K at 60hz which means it won't run the Ultrafine LG 4K no matter what I do. HDMI 30hz for 4k displays and DisplayPort 60hz for 4k displays.

    My early 2015 MB will however run the Ultrafine LG 4K with the USBC to USBC cord that comes with the display. It will not run the Ultrafine LG 5K.

    Is that correct?

  13. Samuelsan2001 macrumors 604

    Joined:
    Oct 24, 2013
    #13
    Thats about the extent of it.

  14. MRxROBOT, Feb 6, 2017
    Last edited: Feb 6, 2017

    MRxROBOT macrumors 6502

    MRxROBOT

    Joined:
    Apr 14, 2016
    Location:
    1011100110
    #14
    Thunderbolt 2 does have enough bandwidth for 5K over thunderbolt but not at 60Hz as you pointed out. I connected my MacBook Pro at the apple store and streamed 5K at 30 Hz without an issue. I suppose I am playing semantics though as most people would want to run the display at 60 Hz.

    At any rate, the 2015 is capable of running a 5K display at 60 Hz, just not over Thunderbolt 2. With dual DisplayPort 1.2 cables, it works without a hitch on monitors like the Dell UP2715K 27-inch 5K display.

    The late 2013 will run a number of displays in 4K @ 60 Hz over SST, just not the UltraFine like I stated earlier. There is no hardware distinction between it and the 2014 except for a .2 minor GHz bump on the CPU which has no baring on its display output capabilities. They even share the same model identifier 11,3 ;)

  15. ARK thread starter macrumors 6502

    Joined:
    Jul 20, 2008
    Location:
    Indianapolis, IN
    #15
    Nice. I maxed mine out with the 2.6Ghz 16GB ram and 1TB drive. Its a nice machine for sure and I hope will last me a long while. That said I hope it will run a good 4K monitor for quite some time. So what 4k monitor would you recommend for me that I can also use with my early 2015 MacBook? Assuming then that the MacBook won't run a 5K display.

  16. ARK thread starter macrumors 6502

    Joined:
    Jul 20, 2008
    Location:
    Indianapolis, IN
    #16
    Anyone know the specs of the HP Envy 27? How does it compare to the LG Ultrafine, and other displays?

  17. MRxROBOT macrumors 6502

    MRxROBOT

    Joined:
    Apr 14, 2016
    Location:
    1011100110
    #17
    Sorry about the delay, been a bit busy. I'm not terribly familiar with the HP Envy, but I can give you the model I use with my late 2013 15" rMBP when at home. Well, it's my wife's now not but nevertheless :)

    It's the Dell P2715Q 27" Ultra HD 4K IPS Monitor, and it runs at the full 3840x2160 resolution at 60 Hz. So to those that say it doesn't work, Do you actually own a late 2013 rMBP and have you connected it to a SST 4K display? The answer is obviously no and I direct this to the nay sayers in this thread.
