Leaked iPhone 7 Logic Boards Suggest Intel Modem, Other Component Tweaks

Discussion in 'MacRumors.com News Discussion' started by MacRumors, Aug 16, 2016.

  1. MacRumors macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]


    Last week, MacRumors covered photos of what appear to be the front and rear of bare iPhone 7 logic boards, and since that time we've been able to study these boards and compare them to previous iPhone generations' bare and populated logic boards.

    Comparing the boards with existing component offerings and information suggests that Apple has indeed moved on from Qualcomm as its baseband modem supplier and switched to Intel for the upcoming iPhone generation. This does not preclude Apple from having other versions of the iPhone 7 or 7 Plus logic boards which feature a Qualcomm modem, such as an international model with differing LTE band options, as has been rumored.

    [​IMG]

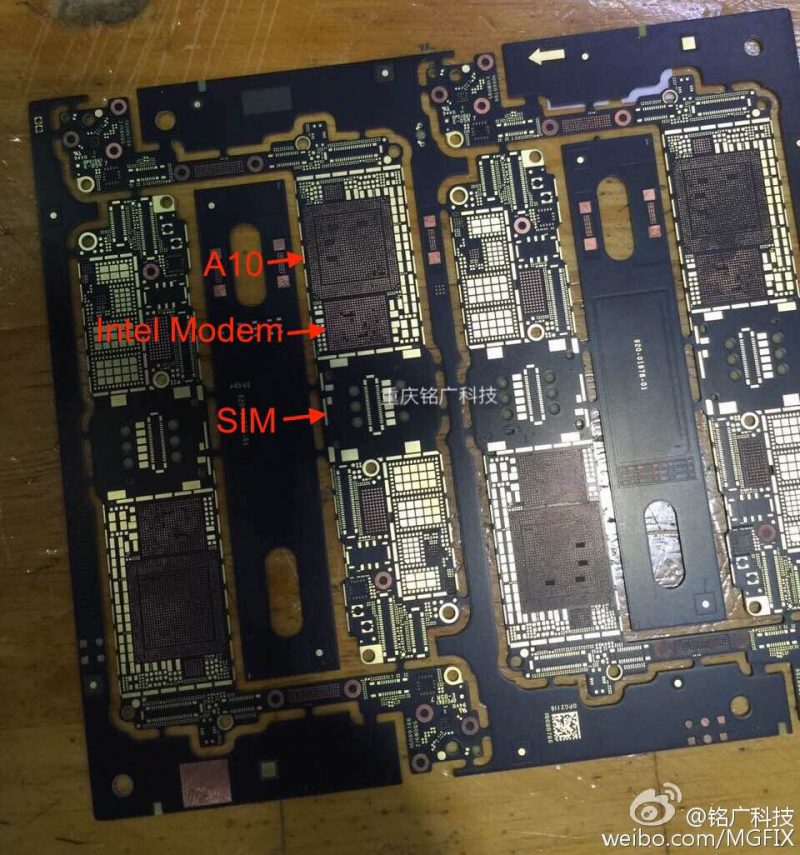

    Leaked iPhone 7 logic board with Intel modem location annotated

    The image above shows the previously leaked and annotated logic board front with the probable location of the Intel baseband modem annotated. The pad pattern for the part in this location is markedly different than the pad pattern for the Qualcomm MDM9635, as shown in iFixit's parts catalog. The pad pattern of this mystery part also appears to match the dimensions listed on Intel's website for similar baseband modem offerings to the rumored XMM 7360 design solution.


    Click here to read rest of article...

    Article Link: Leaked iPhone 7 Logic Boards Suggest Intel Modem, Other Component Tweaks

  2. SandboxGeneral Moderator emeritus

    SandboxGeneral

    Joined:
    Sep 8, 2010
    Location:
    127.0.0.1
    #2
    I wonder if it’s a feature or performance reason for the switch or more of a cost of production reason. They're used Qualcomm for quite a long time haven't they?

  3. yeah macrumors 6502a

    yeah

    Joined:
    Jul 12, 2011
  4. 1080p macrumors 68020

    1080p

    Joined:
    Mar 17, 2010
    Location:
    Planet Earth
  5. LordQ Suspended

    LordQ

    Joined:
    Sep 22, 2012
    #5
    Where the hell can I buy that!? :eek:

  6. milan03 macrumors 6502

    milan03

    Joined:
    Jul 16, 2002
    Location:
    New York City
    #6
    "It is always possible that the dimensions listed may be for a solution different than what Apple has used, whether it be custom or unannounced, but it appears as though Qualcomm could still be the supplier for the RF transceiver."

    And how exactly would Intel baseband work with Qualcomm's Transceiver?

  7. Virtualball macrumors 6502

    Joined:
    Jun 5, 2006
    #7
    Once again, thanks for the recent in-depth articles!

  8. Rudy69 macrumors 6502a

    Rudy69

    Joined:
    Mar 30, 2009
    #8
    KFC

  9. yaxomoxay macrumors 68020

    yaxomoxay

    Joined:
    Mar 3, 2010
    Location:
    Texas
    #9
    The proof that heart attack and happiness are not mutually exclusive.

  10. chrmjenkins macrumors 603

    chrmjenkins

    Joined:
    Oct 29, 2007
    Location:
    CA
    #10
    That's a good question. :)

  11. milan03 macrumors 6502

    milan03

    Joined:
    Jul 16, 2002
    Location:
    New York City
    #11
    Can't :)
    It's one or the other.

  12. konqerror macrumors 6502

    Joined:
    Dec 31, 2013
    #12
    Why not? That's how everybody used to do it way back when. The Blackberry 8700 had a Intel baseband with an Analog Devices transceiver (if I remember correctly). Blackberry 9000 had a Marvell baseband which talked to a Infineon 3G and a Renesas GSM transceiver. Any limitations would be commercial and economic, not technical.

  13. zhang96 macrumors member

    Joined:
    Jul 29, 2016
    Location:
    Ottawa
    #13
    LOOK AT THOSE PINS THEY LOOK SMART AND REVOLUTIONARY!

  14. JackANSI macrumors 6502a

    JackANSI

    Joined:
    Feb 3, 2011
    #14
    I'd be more worried about power consumption and reliability than anything... Intel is pretty new at this.

  15. Relentless Power macrumors Core

    Relentless Power

    Joined:
    Jul 12, 2016
    #15
    Not sure what this has to do with the article, but this is seriously making me hungry.

  16. SandboxGeneral Moderator emeritus

    SandboxGeneral

    Joined:
    Sep 8, 2010
    Location:
    127.0.0.1
    #16
    That thought crossed my mind too.

  17. nagromme macrumors G5

    nagromme

    Joined:
    May 2, 2002
    #17
    In my day, motherboards couldn't be accidentally swallowed.

  18. konqerror macrumors 6502

    Joined:
    Dec 31, 2013
    #18
    No they aren't. They bought Infineon's wireless division. They made the modems for the original iPhone through the GSM iPhone 4. Apple switched because nobody but Qualcomm makes CDMA chipsets. (Intel's previous baseband effort was integrated into the PXA series chips and, in Intel's worst mistake, was sold to Marvell just before the iPhone)

  19. Sefstah macrumors 6502

    Joined:
    Dec 21, 2015
    #19
    THIS IS GONNA BE THE BEST IPHONE EVER! Minus the heaphone jack, no new screen, no expandable memory, huge ugly camera bump, and still no true way to save and organize our files.

  20. JackANSI macrumors 6502a

    JackANSI

    Joined:
    Feb 3, 2011
    #20
    Good news!

  21. gim macrumors 6502

    gim

    Joined:
    Jul 27, 2014
    #21
    I hope it does. It's one of the biggest advantages of iPhones: They usually have almost all the LTE bands you need for international travel. I hoped they would eventually move to 1 global iPhone model with all bands. Instead, they supposedly even integrate different modems depending on where you buy your iPhone? I'd be highly disappointed...

  22. 1080p macrumors 68020

    1080p

    Joined:
    Mar 17, 2010
    Location:
    Planet Earth
    #22
    LOL. That is a "sandwich" that KFC used to sell a few years ago called the Double Down. It used chicken for the "buns" and had bacon and cheese in the middle.

    It's a joke because a few years ago Tim Cook said Apple was "doubling down" on leaks regarding the secrecy of their unreleased products.

  23. chrmjenkins macrumors 603

    chrmjenkins

    Joined:
    Oct 29, 2007
    Location:
    CA
    #23
    So a Qualcomm transceiver wouldn't comply with the DigRF standard?

  24. Relentless Power macrumors Core

    Relentless Power

    Joined:
    Jul 12, 2016
    #24
    That makes sense now. I seriously want one. That would be my protein after my work out.

  25. konqerror macrumors 6502

    Joined:
    Dec 31, 2013
    #25
    The problem is that Apple has to support the 1x CDMA network of Verizon and Sprint, which locks them into Qualcomm chipsets. I would rather have the non-CDMA model, since that lets them choose from a variety of vendors with potentially superior products.
